Description
Features:
- 2.5″ (63.5mm) Midrange Voice Coil
- Neodymium Ring Magnet Assembly

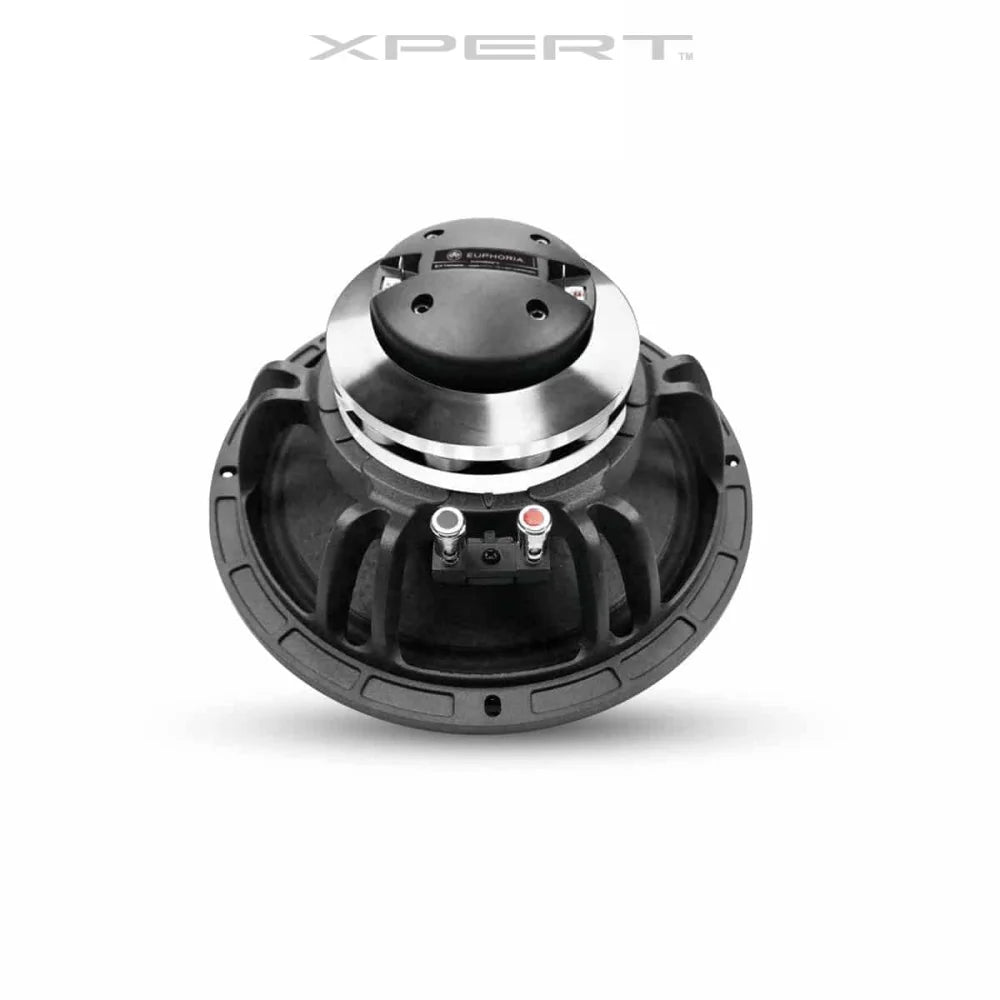

- Rear Mounted Full Sized Compression Driver
- IP52 Rated Paper Cone With Treated Cloth Surround
- Die-Cast Aluminum Basket With Radial Venting
- 1.4″ (36mm) Polyester Tweeter Diaphragm
- Wide Dispersion Conical HF Waveguide

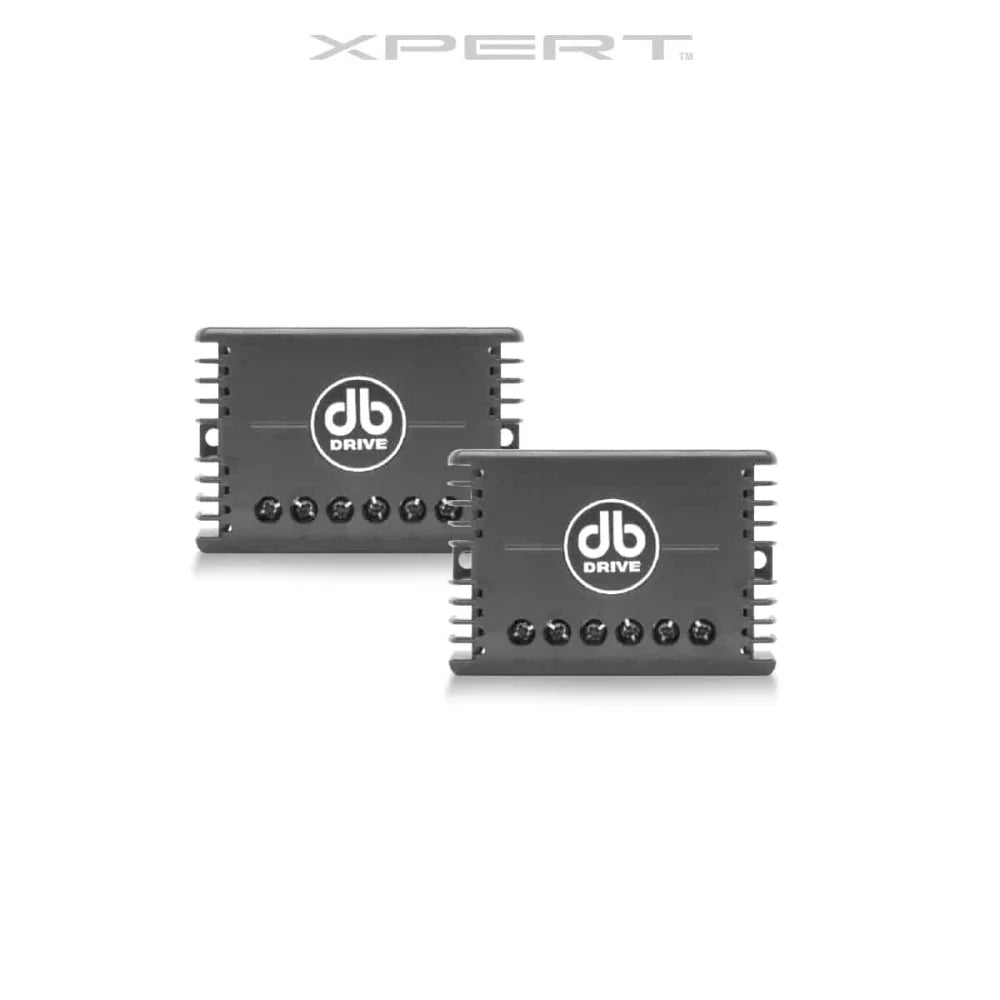

- 12dB Passive Crossover Included
- Protective Grills Included
Specifications:
| Resonant Frequency (fs) | 54.8Hz |
|---|---|
| D.C. Voice Coil Resistance (Re) | 3.3Ω |
| Mechanical Quality Factor (Qms) | 7.18 |
| Electrical Quality Factor (Qes) | 0.41 |
| Total Quality Factor (Qts) | 0.39 |
| Compliance Equivalent Volume (Vas) | 46.9L |
| Mechanical Compliance (Cms) | 0.27 mm/N |
| Nominal Impedance | 5.2Ω |
| Power Handling | 500 Watts |
| Dynamic Wattage | 1000 Watts |
| Sensitivity (1w/1m) | 106.1 dB |
| Voice Coil Diameter | 2.5″ (63.5mm) |
Product Manual
Product Manual PDF
Description
Turn up the XPERT-ise with the EX10NCD: Your Sound, Amplified!

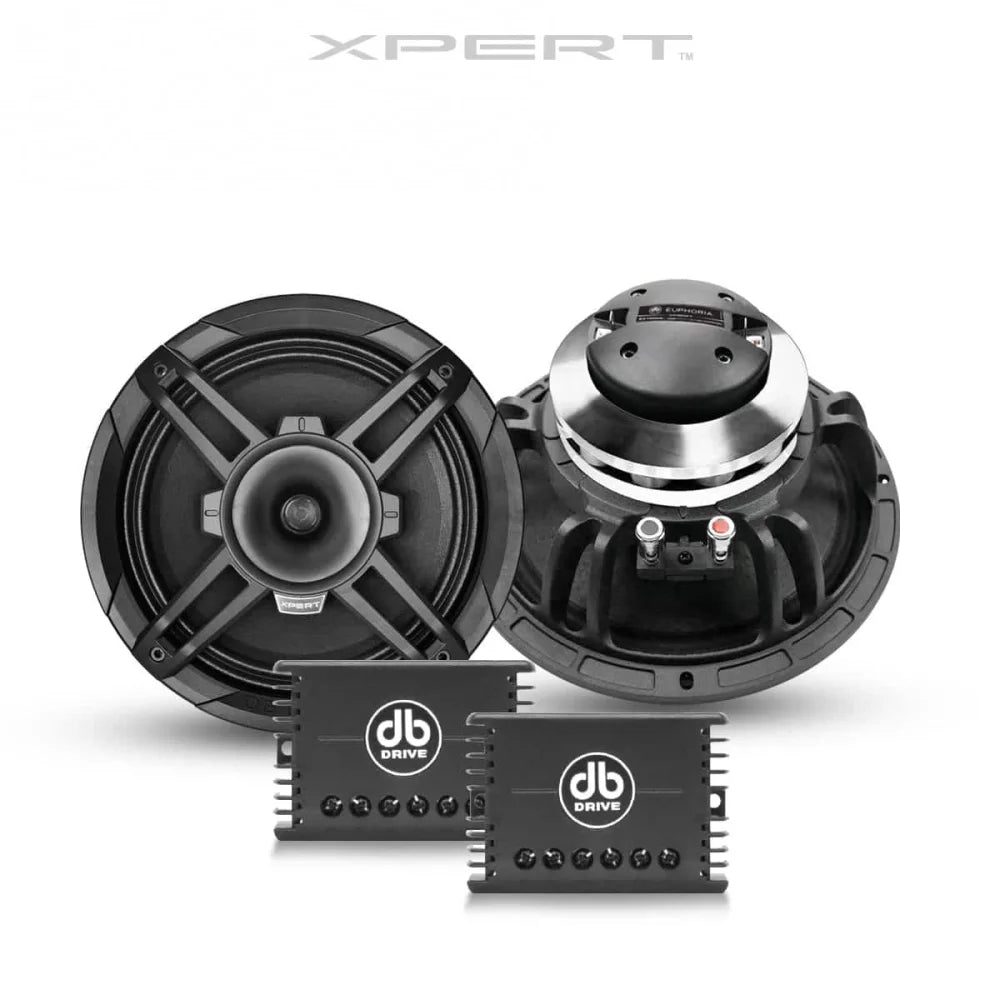

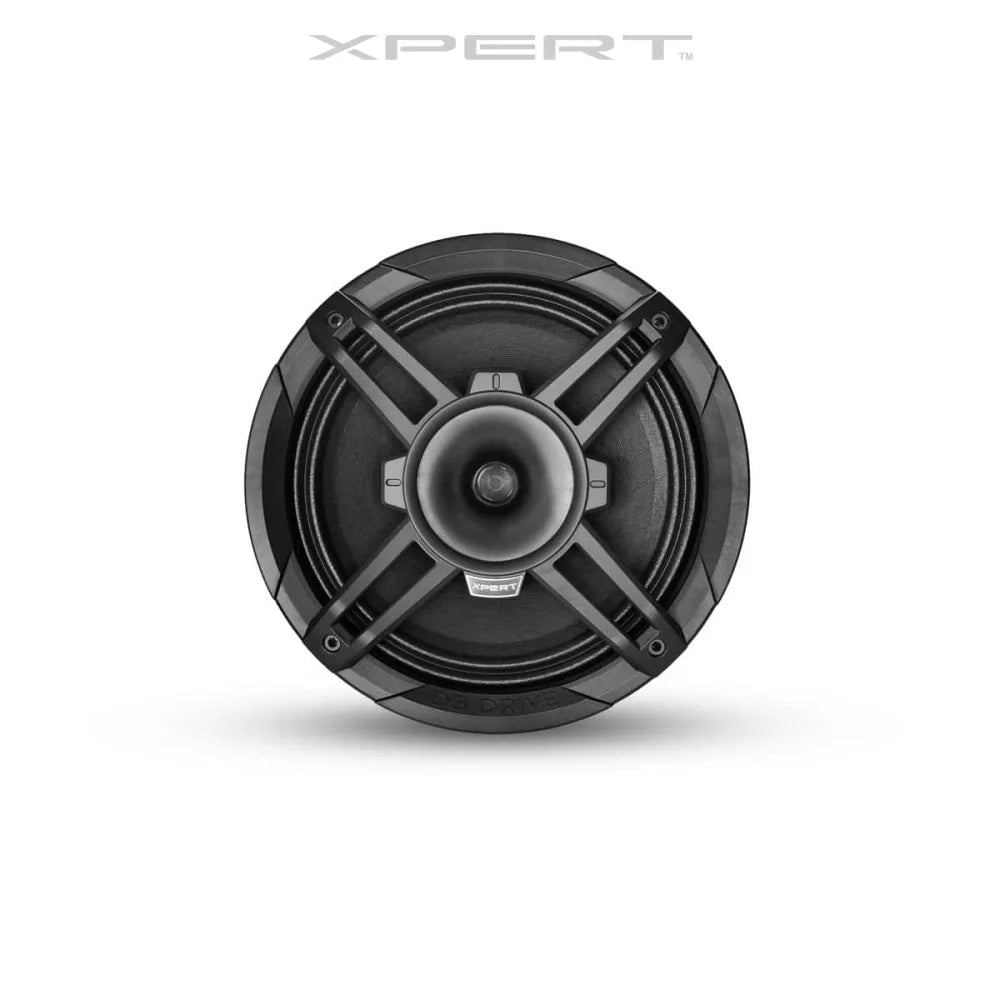

Meet the XPERT EX10NCD, the 10-inch 2-way high-efficiency loudspeaker that's about to elevate your audio game. This isn't just any speaker; it's a sonic powerhouse boasting a neodymium ring magnet assembly and a rear-mounted full-sized compression driver, ensuring every beat is delivered precisely and clearly. The IP52 rated paper cone and a treated cloth surround ensure resilience even in challenging environments. With a frequency response from 70Hz to 20KHz and a sensitivity of 106.1dB, it's ready to fill any space with rich, vibrant sound. And let's not forget the 1000 watts of max power—yes, you heard that right! Designed with a die-cast aluminum basket featuring radial venting, and a 1.4” polyester tweeter diaphragm, this speaker is built for the audiophile who demands nothing but the best. Whether you're jamming out in your garage or setting up a professional studio, the XPERT NEO PAPER SERIES will not disappoint. Get ready to experience sound like never before!
Meet the XPERT EX10NCD, the 10-inch 2-way high-efficiency loudspeaker that's about to elevate your audio game. This isn't just any speaker; it's a sonic powerhouse boasting a neodymium ring magnet assembly and a rear-mounted full-sized compression driver, ensuring every beat is delivered precisely and clearly. The IP52 rated paper cone and a treated cloth surround ensure resilience even in challenging environments. With a frequency response from 70Hz to 20KHz and a sensitivity of 106.1dB, it's ready to fill any space with rich, vibrant sound. And let's not forget the 1000 watts of max power—yes, you heard that right! Designed with a die-cast aluminum basket featuring radial venting, and a 1.4” polyester tweeter diaphragm, this speaker is built for the audiophile who demands nothing but the best. Whether you're jamming out in your garage or setting up a professional studio, the XPERT NEO PAPER SERIES will not disappoint. Get ready to experience sound like never before!
Recone Available
EXNCD-RC : Replacement Tweeter Diaphragm For EXNCDs
EX10NCD-MRC : Replacement Diaphragm For EX10NCD Mid
