Description
Features
- 2″ (51mm) Midrange Voice Coil
- Neodymium Ring Magnet Assembly

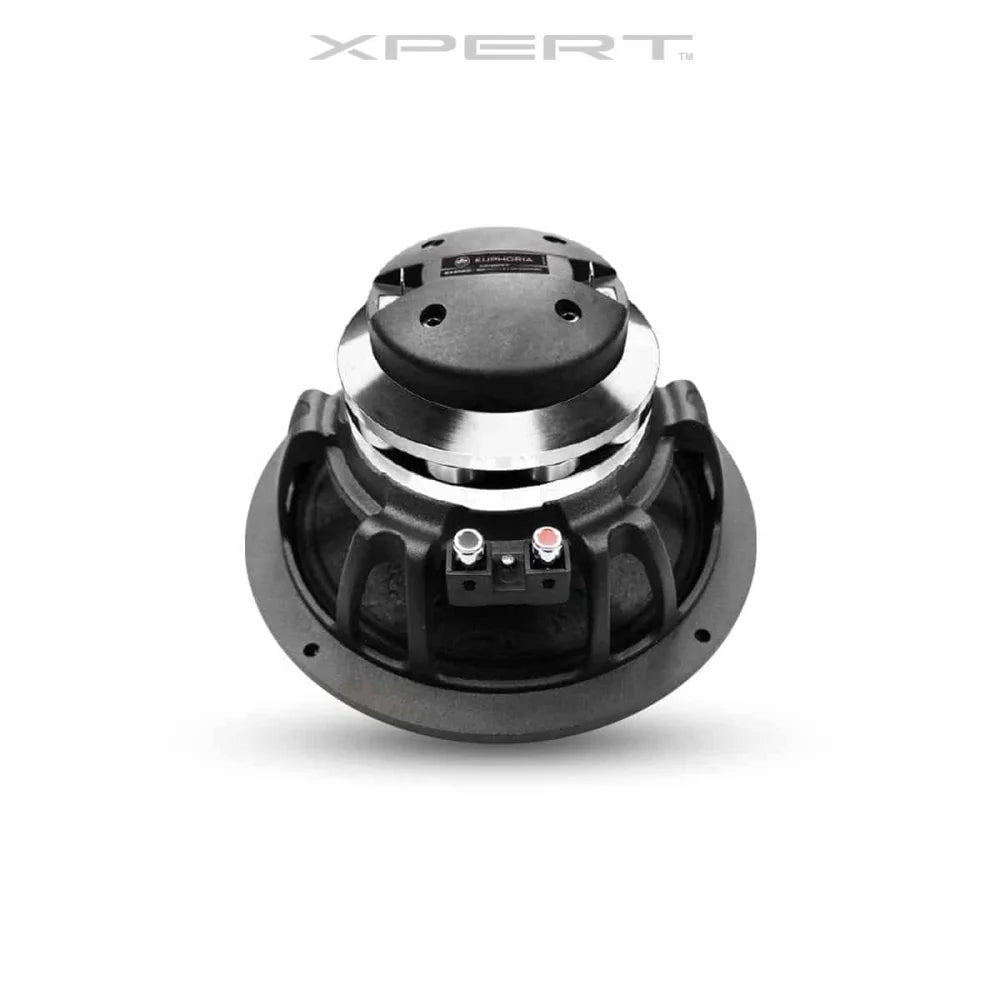

- Rear Mounted Full Sized Compression Driver
- IP52 Rated Paper Cone With Treated Cloth Surround
- Die-Cast Aluminum Basket With Radial Venting
- 1.4″ (36mm) Polyester Tweeter Diaphragm
- Wide Dispersion Conical HF Waveguide

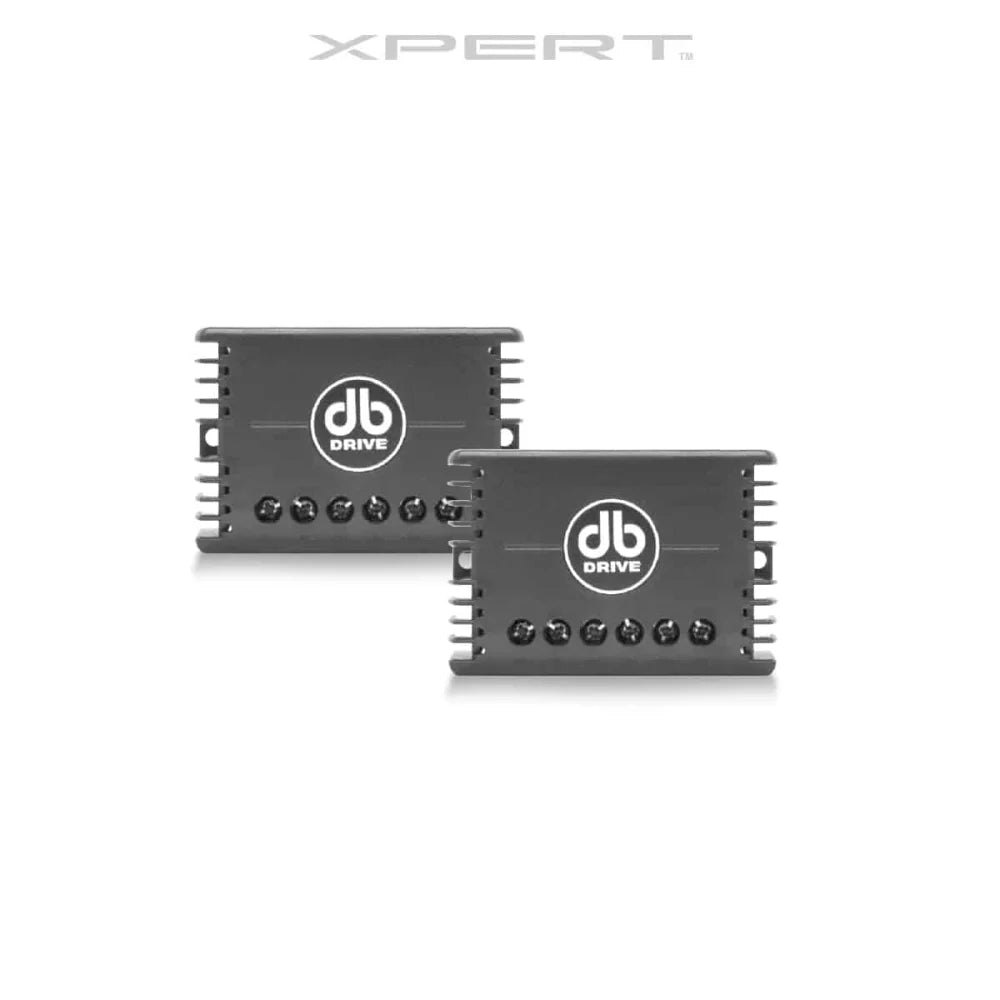

- 12dB Passive Crossover Included
- Protective Grills Included
Specifications
| Resonant Frequency (fs) | 79.7Hz |
|---|---|
| D.C. Voice Coil Resistance (Re) | 3.2Ω |
| Mechanical Quality Factor (Qms) | 8.24 |
| Electrical Quality Factor (Qes) | 0.43 |
| Total Quality Factor (Qts) | 0.41 |
| Compliance Equivalent Volume (Vas) | 16.3L |
| Mechanical Compliance (Cms) | 0.25 mm/N |
| Nominal Impedance | 5.2Ω |
| Power Handling | 450 Watts |
| Dynamic Wattage | 900 Watts |
| Sensitivity (1w/1m) | 105.4 dB |
| Voice Coil Diameter | 2.0″ (51mm) |
Product Manual
Product Manual PDF
Description
Turn up the XPERT-ise in sound!

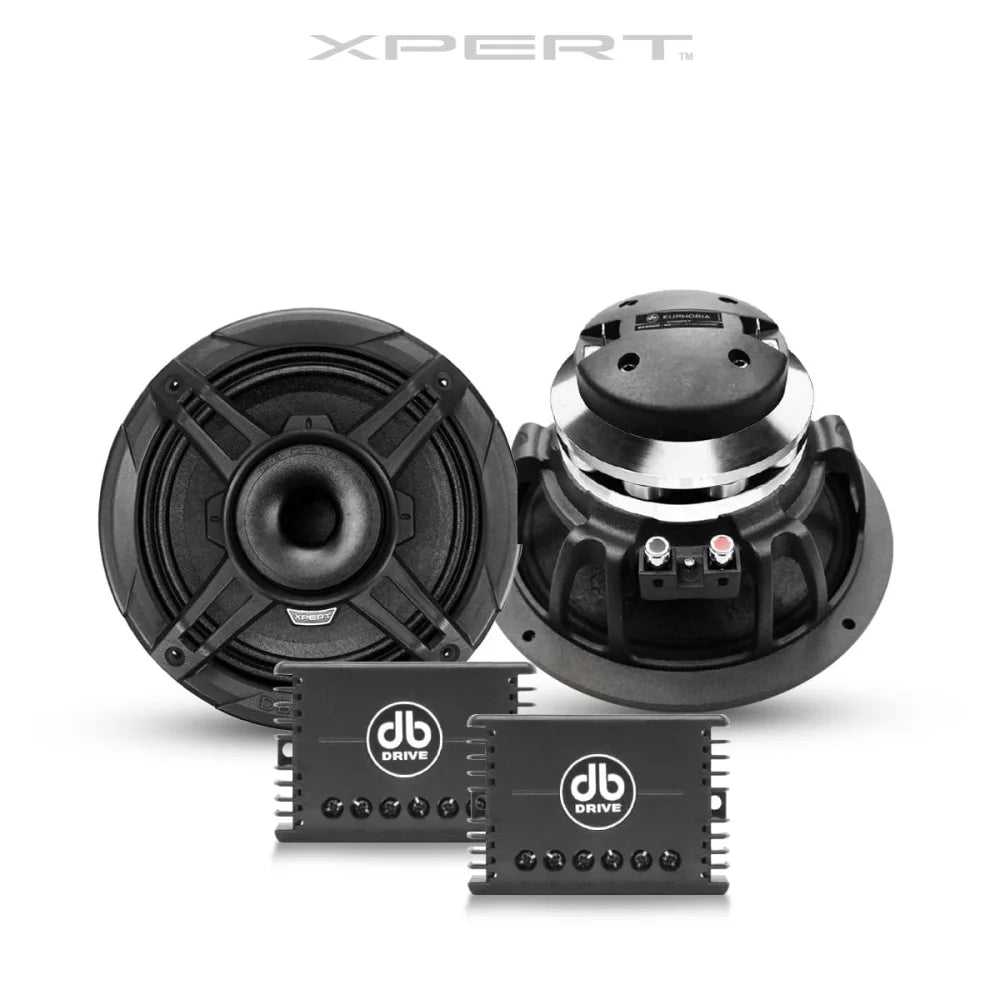

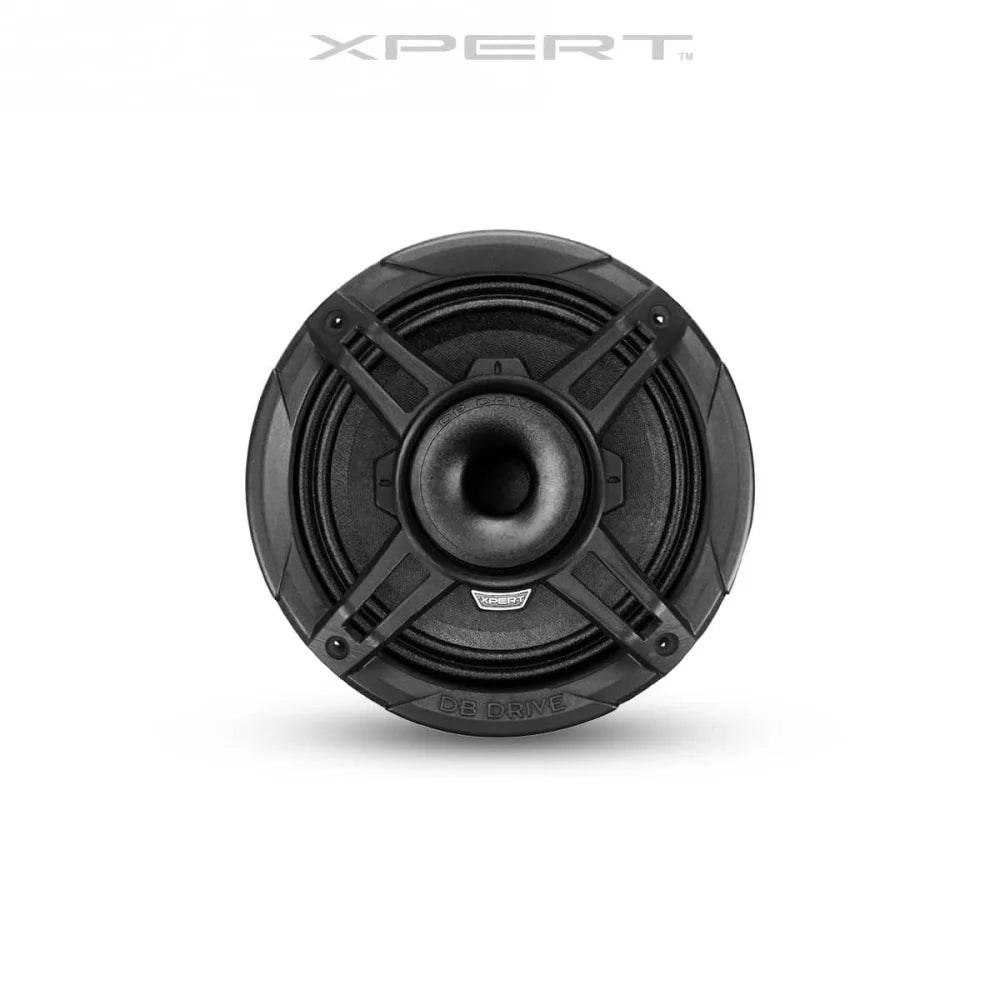

Introducing the XPERT EX8NCD: 8in 2-Way High-Efficiency Loudspeaker with a Back Mounted Compression Driver Tweeter, your ultimate audio upgrade! This powerhouse speaker features a Neodymium Ring Magnet Assembly and a Rear Mounted Full Sized Compression Driver. With its IP52 Rated Paper Cone and Treated Cloth Surround, this speaker is built to last. The Die-Cast Aluminum Basket with Radial Venting ensures durability and optimal performance. Equipped with a 1.4” (36mm) Polyester Tweeter Diaphragm and a Wide Dispersion Conical HF Waveguide, every note is delivered with precision. The 12db Passive Crossover included enhances the audio experience, while the impressive frequency response of 75Hz - 20KHz ensures you catch every nuance. With an impedance of 5.2Ω and a robust structure featuring an 8” (20.3cm) frame and a 2” (51mm) Voice Coil, this speaker is designed for excellence. Elevate your sound game with the XPERT EX8NCD!
Introducing the XPERT EX8NCD: 8in 2-Way High-Efficiency Loudspeaker with a Back Mounted Compression Driver Tweeter, your ultimate audio upgrade! This powerhouse speaker features a Neodymium Ring Magnet Assembly and a Rear Mounted Full Sized Compression Driver. With its IP52 Rated Paper Cone and Treated Cloth Surround, this speaker is built to last. The Die-Cast Aluminum Basket with Radial Venting ensures durability and optimal performance. Equipped with a 1.4” (36mm) Polyester Tweeter Diaphragm and a Wide Dispersion Conical HF Waveguide, every note is delivered with precision. The 12db Passive Crossover included enhances the audio experience, while the impressive frequency response of 75Hz - 20KHz ensures you catch every nuance. With an impedance of 5.2Ω and a robust structure featuring an 8” (20.3cm) frame and a 2” (51mm) Voice Coil, this speaker is designed for excellence. Elevate your sound game with the XPERT EX8NCD!
Recone Available
EXNCD-RC : Replacement Tweeter Diaphragm For EXNCDs
EX8NCD-MRC : Replacement Diaphragm For EX8NCD Mid
