Description
Features
- 3.0″ 4 layers Anodized aluminum high-temperature voice coil
- Non-pressed paper cone
- Double-stitched reinforced foam surround
- Dual poly-cotton dampeners
- Die-cast aluminum vented basket
- Rubber gasket trim ring
- Large gauge compression terminals
- Protective magnet cover
Specifications
- Dynamic Power Handling: 6000 Watts
- Nominal Power Handling: 3000 Watts
- Impedance: Dual 4Ω Voice Coil
- Resonant Frequency (fs): 30.713 Hz
- D.C. Voice Coil Resistance (Re): 2 x 3.2Ω
- Mechanical Quality Factor (Qms): 3.476
- Electrical Quality Factor (Qes): 0.694
- Total Quality Factor (Qts): 0.578
- Equivalent Air Volume (Vas): 57.863 L
- Mechanical Compliance of Suspension (CMS): 62.998 mm/N
- Mass of Diaphragm/Coil (Mms): 426.261 g
- Force Factor (BL): 27.547
- Sound Pressure Level (SPL): 85.7 dB
Description

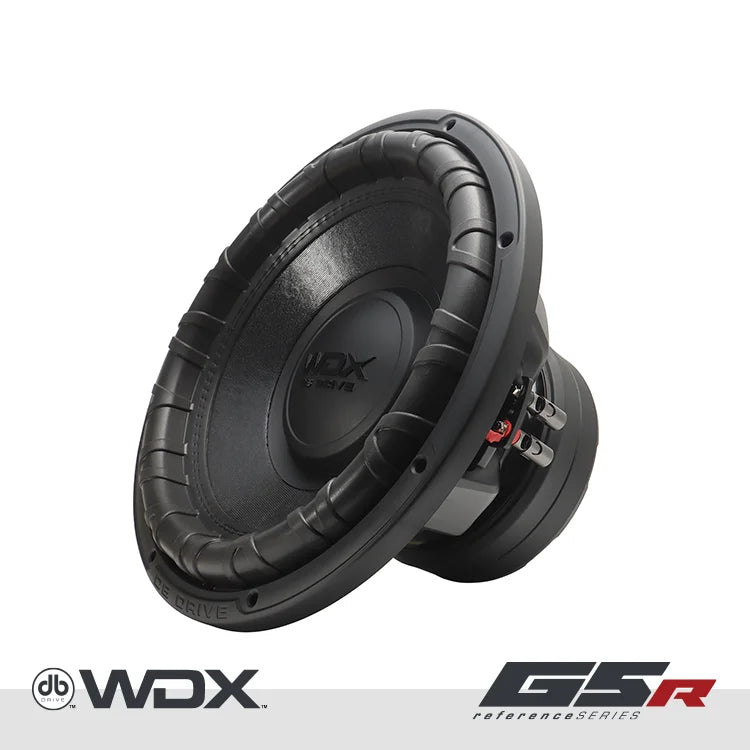

Designed for true bass enthusiasts, the WDX15G5R.4 subwoofers offer unmatched power and precision. • Featuring a custom mounting gasket for a perfect seal, eliminating rear-canceling waves for pure bass. • All-new dust caps and a custom-tooled aluminum basket provide durability, rigidity, and optimal heat dissipation. • The custom ribbed surround and High Excursion motor with Y35 ferrite magnets and high-temperature voice coils deliver deep, distortion-free bass. • Built for Bass: Power handling up to 6000 watts dynamic (3000 watts nominal) The WDX15G5R.4 sets a new standard for earth-shaking bass. Ready to feel the difference?
Product Manual
Product Manual PDF
