Description

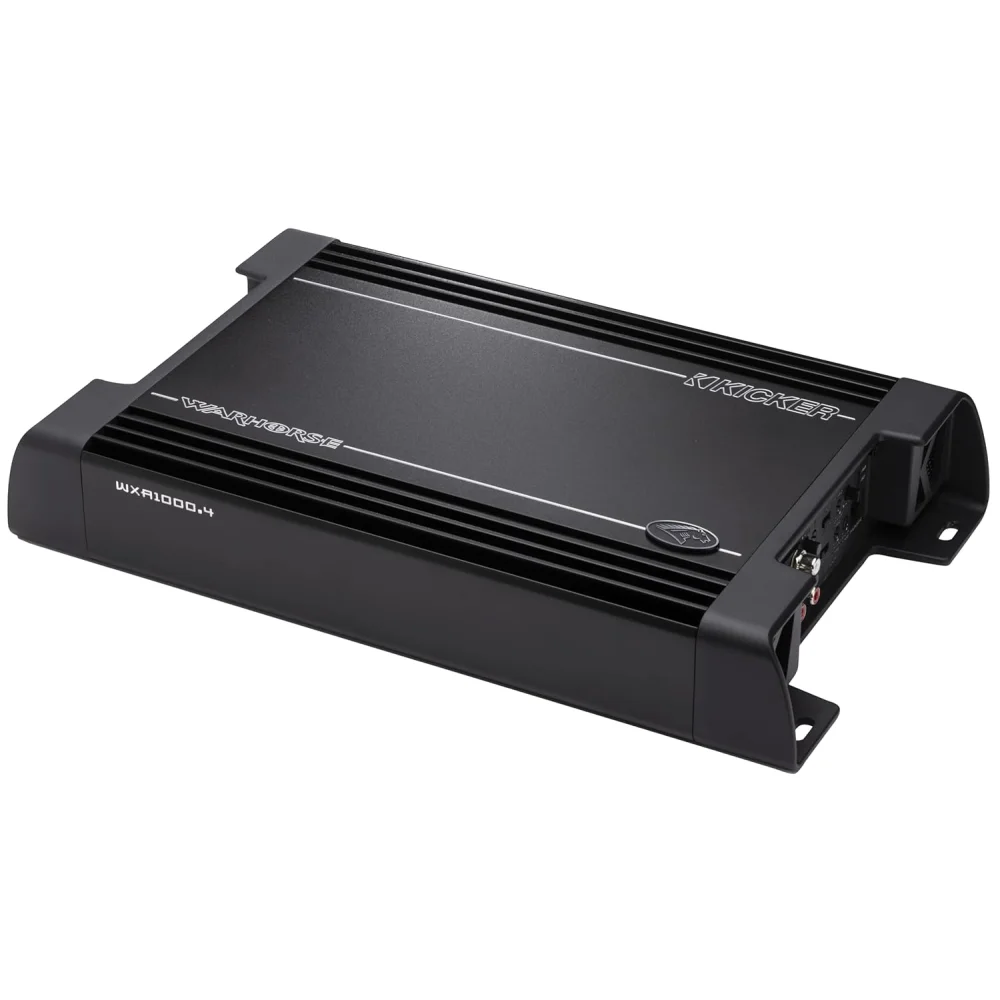

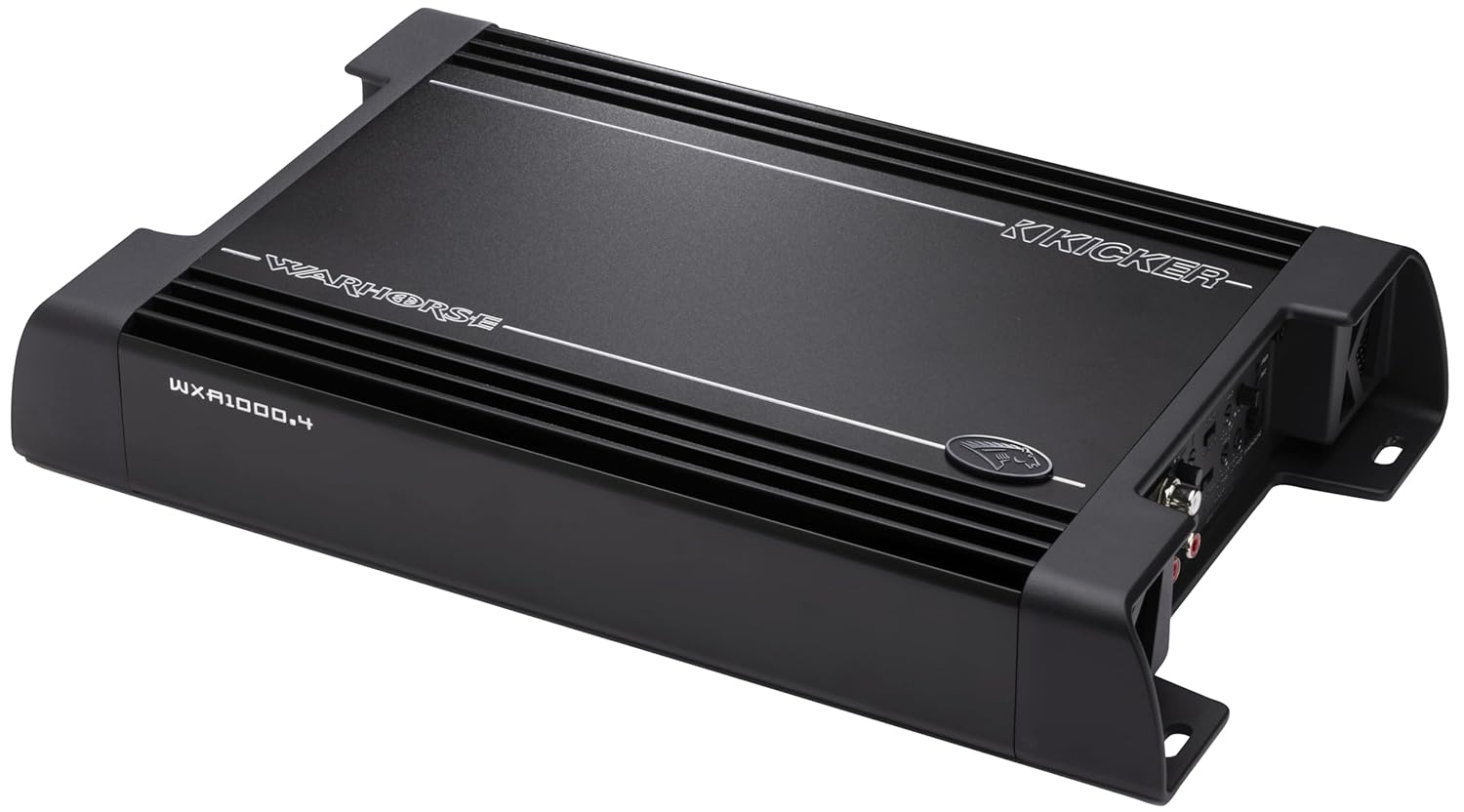

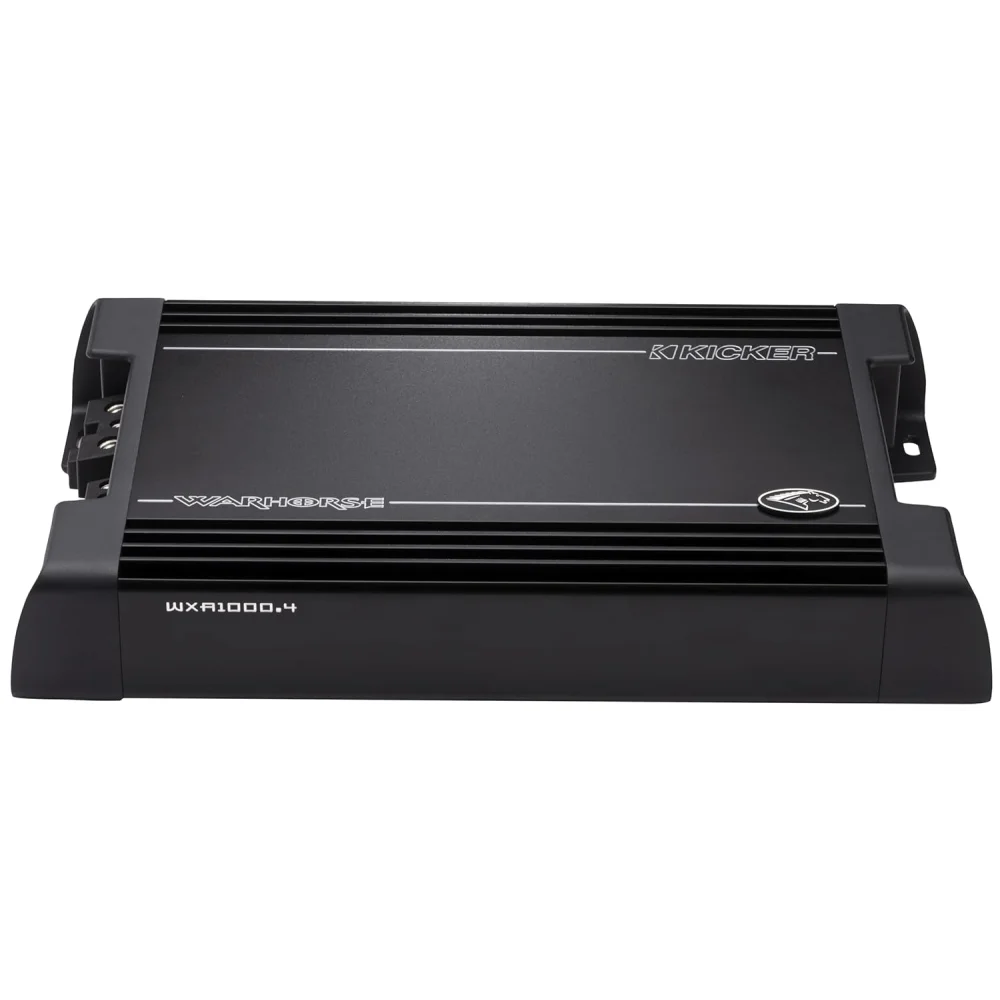

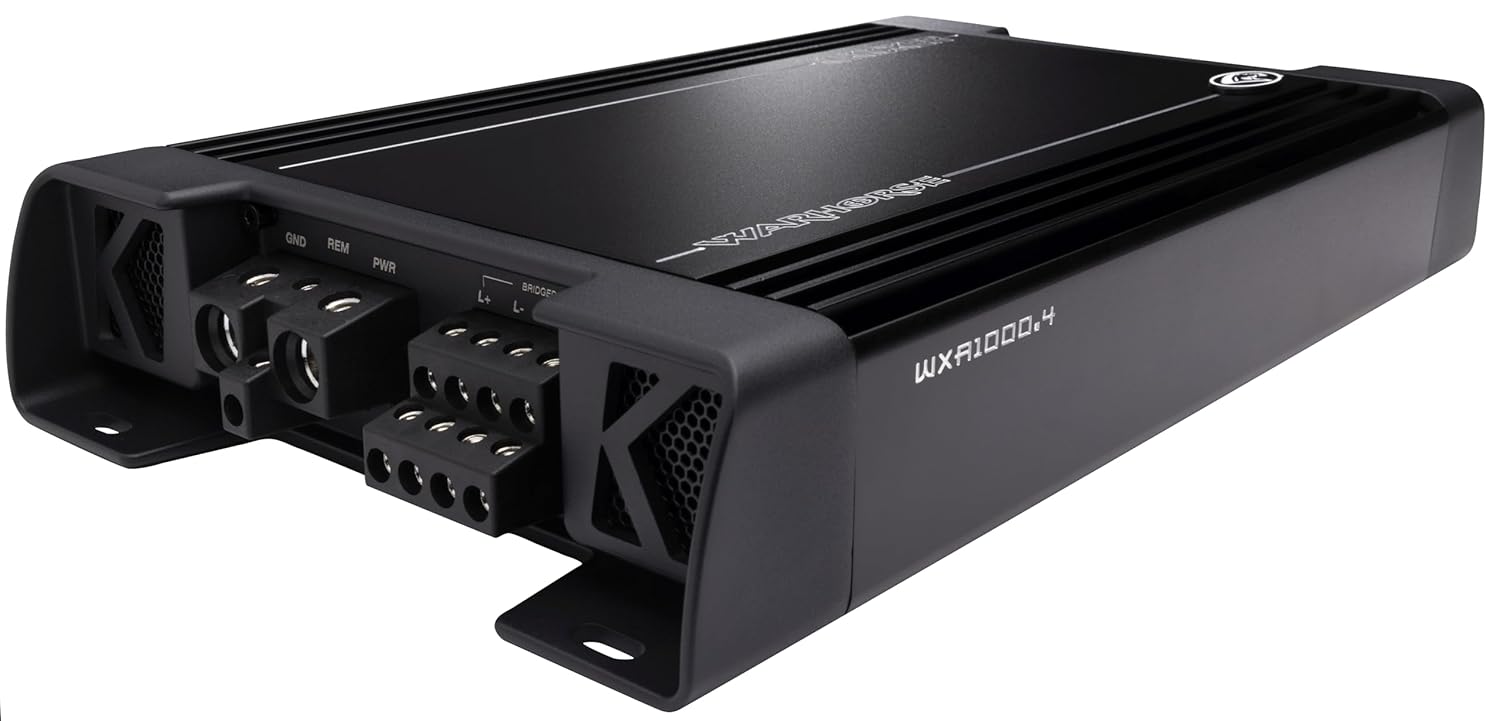

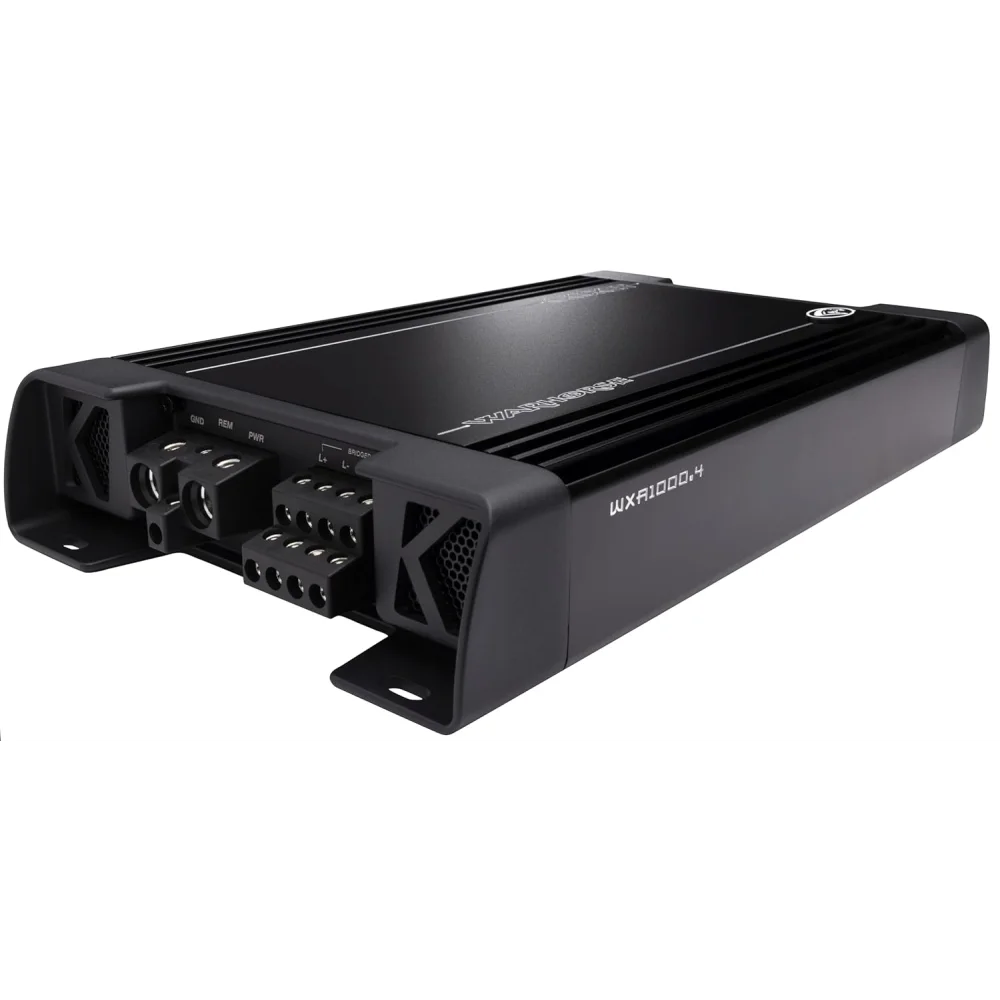

WXA1000.4 4-Channel Amplifier
The Warhorse WXA1000.4 provides 2000 watts of dynamic power while still maintaining complete reliability under this intense power use.
Full-Range Riot
- Engineered completely in-house by KICKER R&D
- Features extreme reliability under intense power and overall use
- Ultra-efficient, half-bridge Class-D design
- Fully start/stop compliant – operational to 6.5V

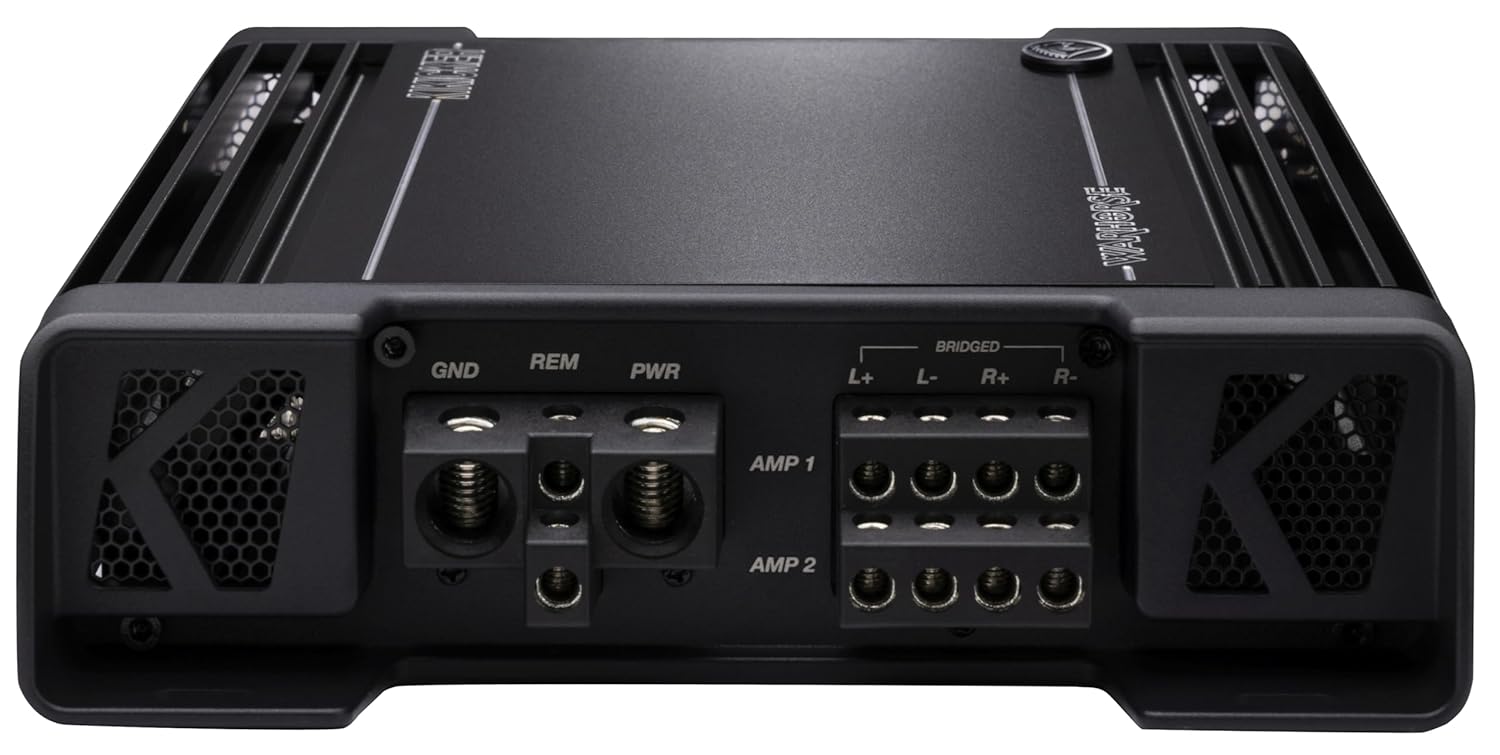

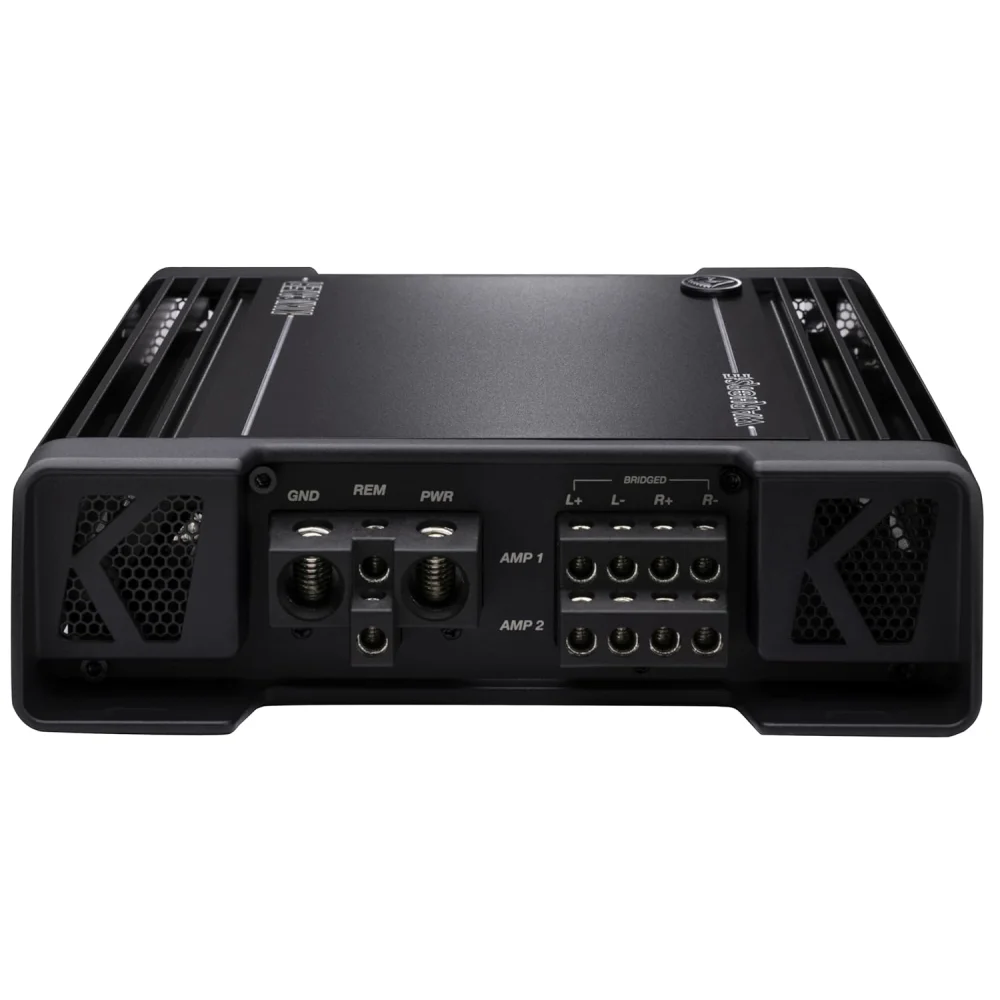

- 1/0 Power and Ground inputs to ensure you get the power you paid for
- Capable of daisy-chaining remote power across multiple amps
- Includes a heavy-duty, magnetic-mount diagnostic tool for monitoring voltage measurements and amp protection status
- Fully compatible with most factory or aftermarket source units (with FIT+™ differential inputs)
Specifications
| MODEL |
| WXA1000.4 |
| WARHORSE 1000.4 white paper with full tech graph data |
| 49WXA10004 White paper PDF |
| WARHORSE 1000.4 Dimensions |
| 49WXA10004 Product Dimensions PDF |
| *RMS Power (watts/ch) 2 Ohm Stereo (@14.4V, <1% THD) |
| 450x4 |
| *RMS Power (watts/ch) 4 Ohm Stereo (@14.4V, <1% THD) |
| 250x4 |
| *RMS Power (watts/ch) 4 Ohm Bridged Mono (@14.4V, <1% THD) |
| 900x2 |
| **Dynamic Power (watts) |
| 2000 |
| Frequency Response (Hz) |
| 10-20k |
| Signal-to-Noise Ratio (dB; A-weighted, re: rated power) |
| >90 |
| Signal-to-Noise Ratio (dB; ref: 1W output) |
| >70 |
| Input Sensitivity |
| low level 125mV-5V high level 1V-40V |

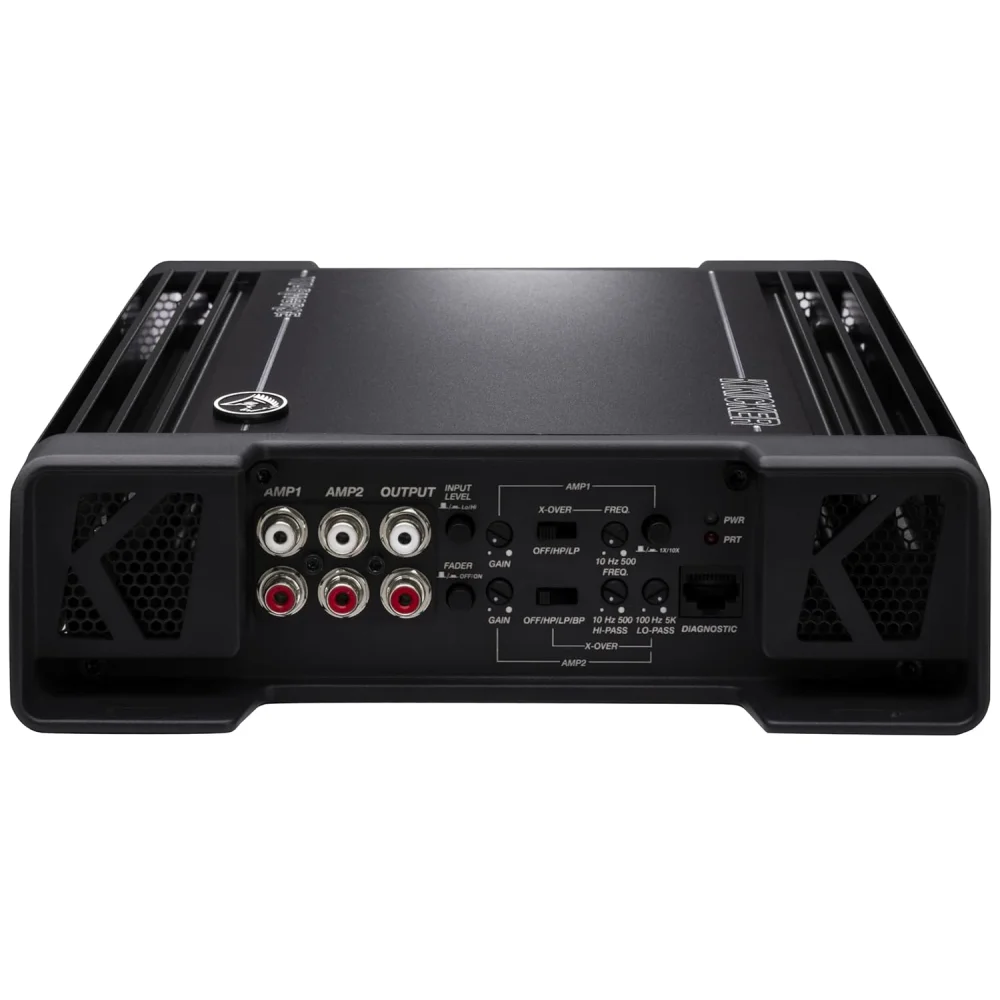

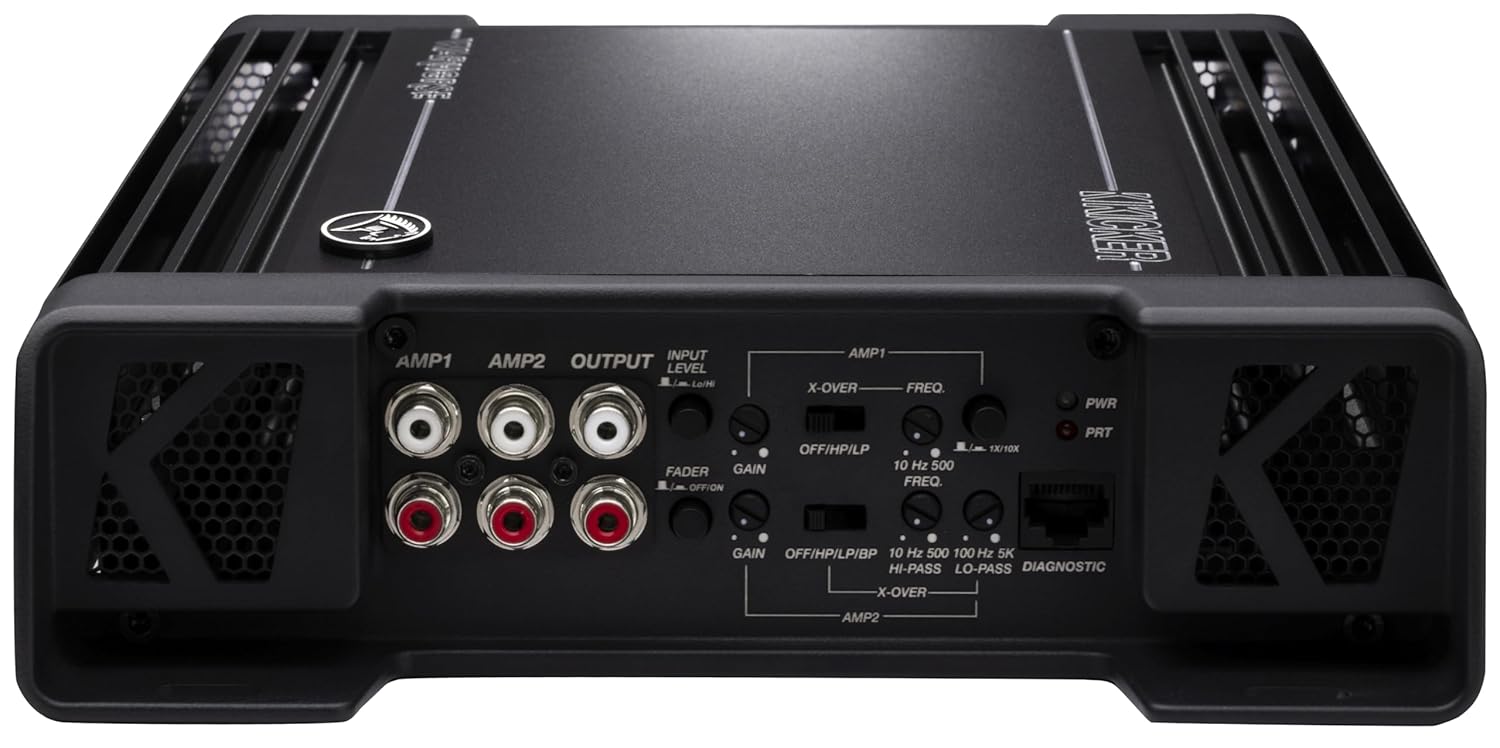

| Selectable Electronic Crossover - AMP 1 |
| Off/HP/LP; 24dB/octave BW, variable 10-5kHz w/ 10X switch; |
| Selectable Electronic Crossover - AMP 2 |
| Off/HP/LP/BP; 24dB/octave BW, lo-pass 100-5000Hz, hi-pass 10-500Hz |
| Dimensions (in, cm) |
| H – 2-9/16, 6.5 W – 9-1/8, 23.2 L – 15-3/8, 39.1 |
