Description

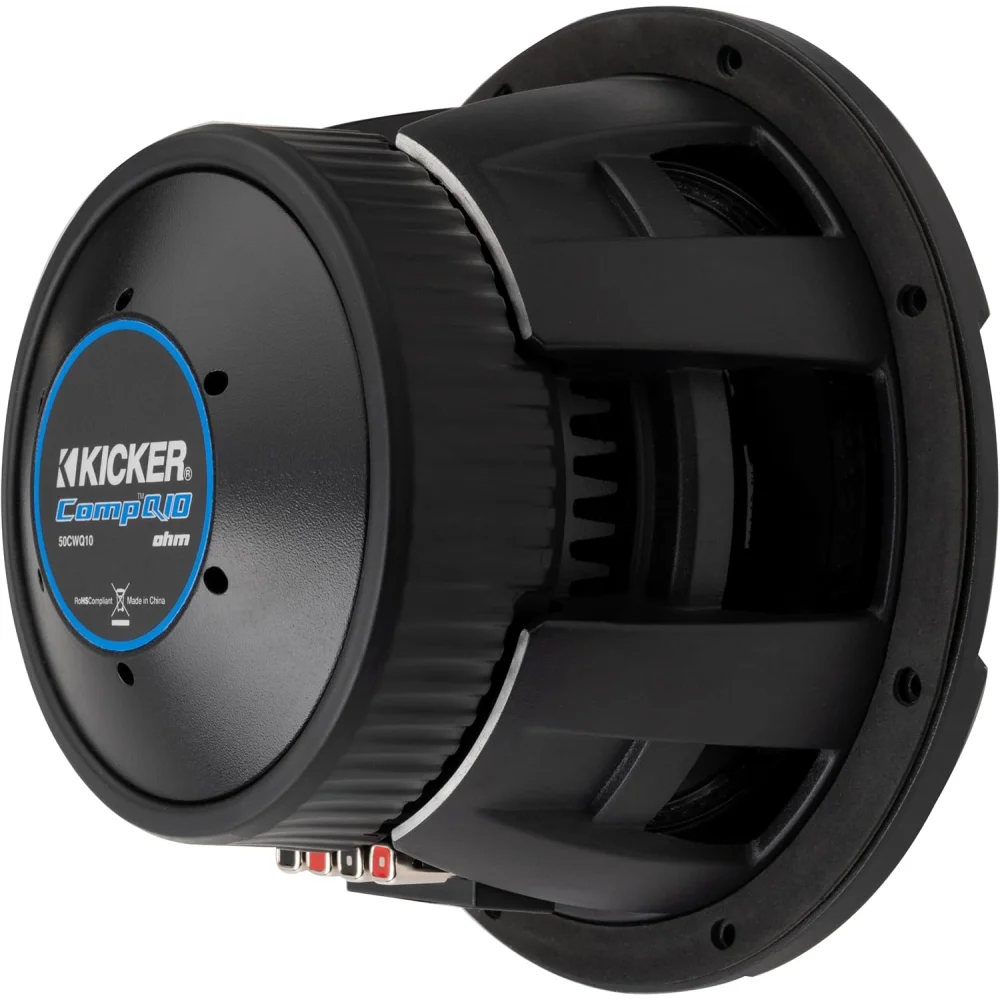

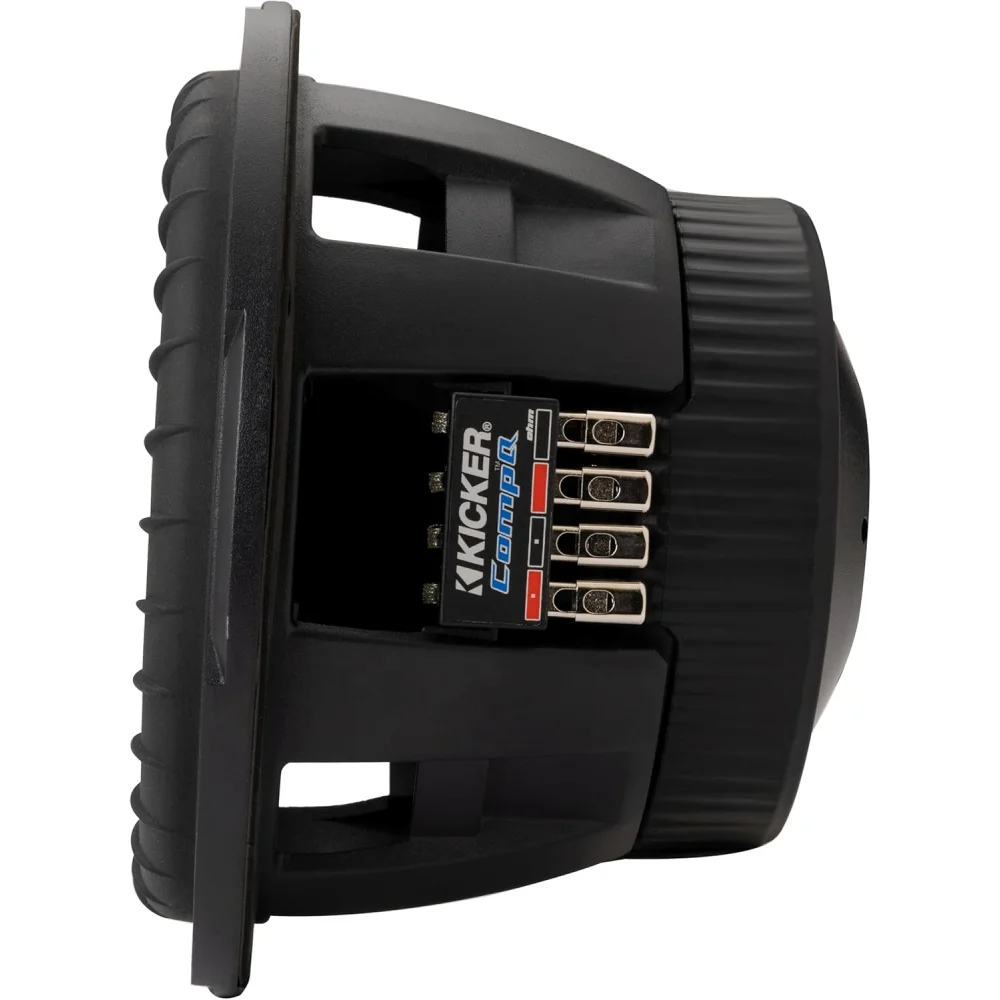

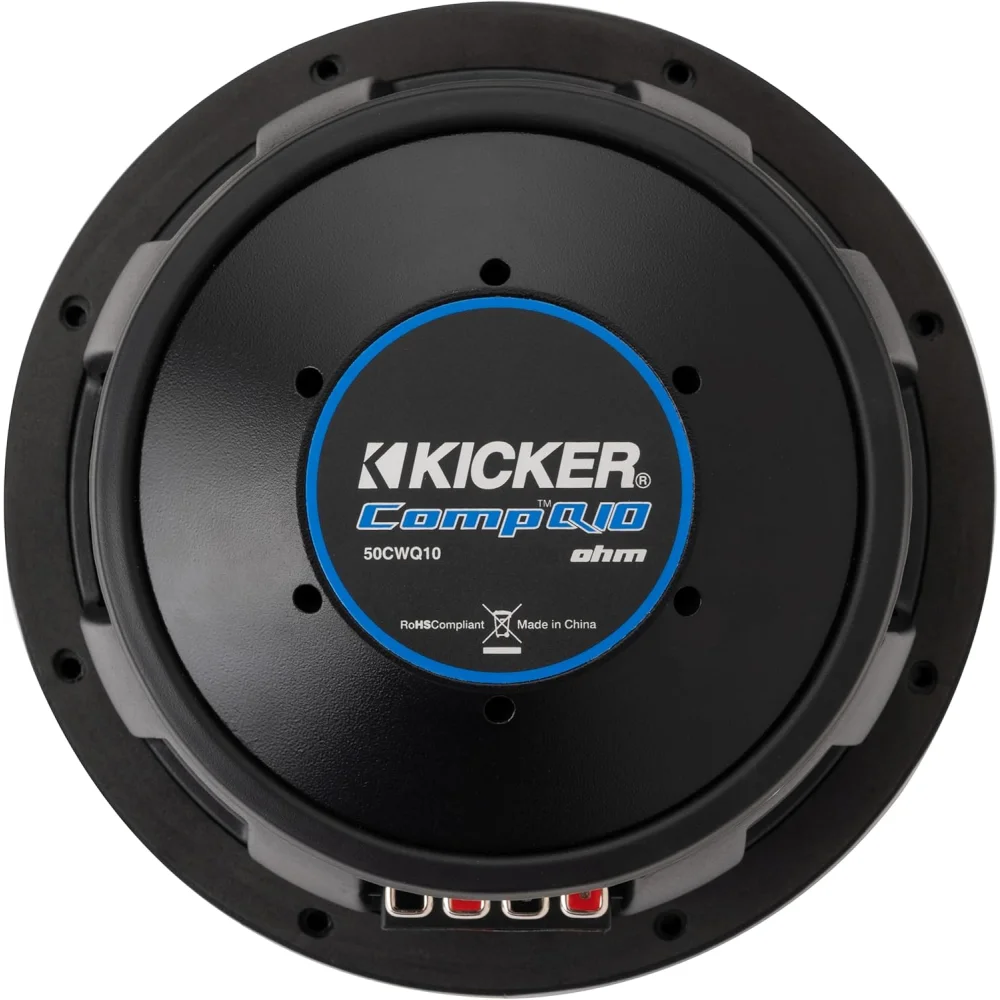

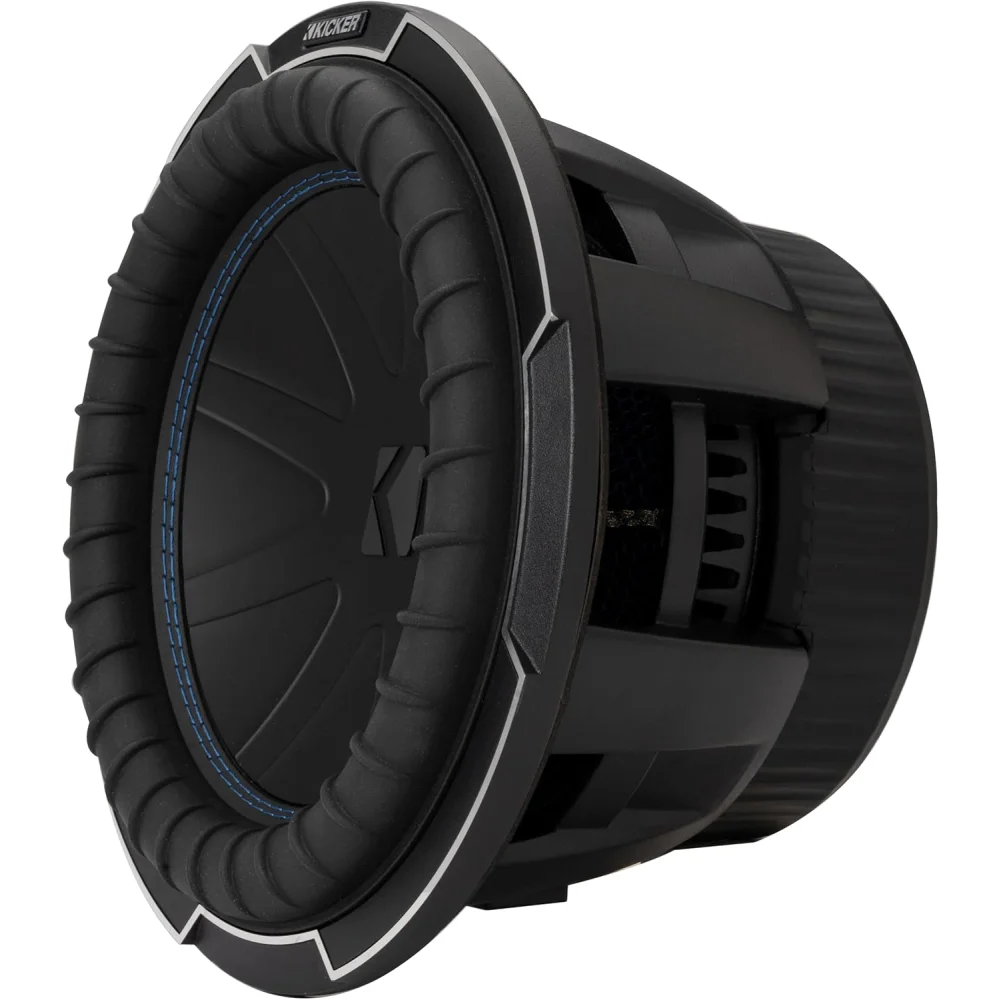

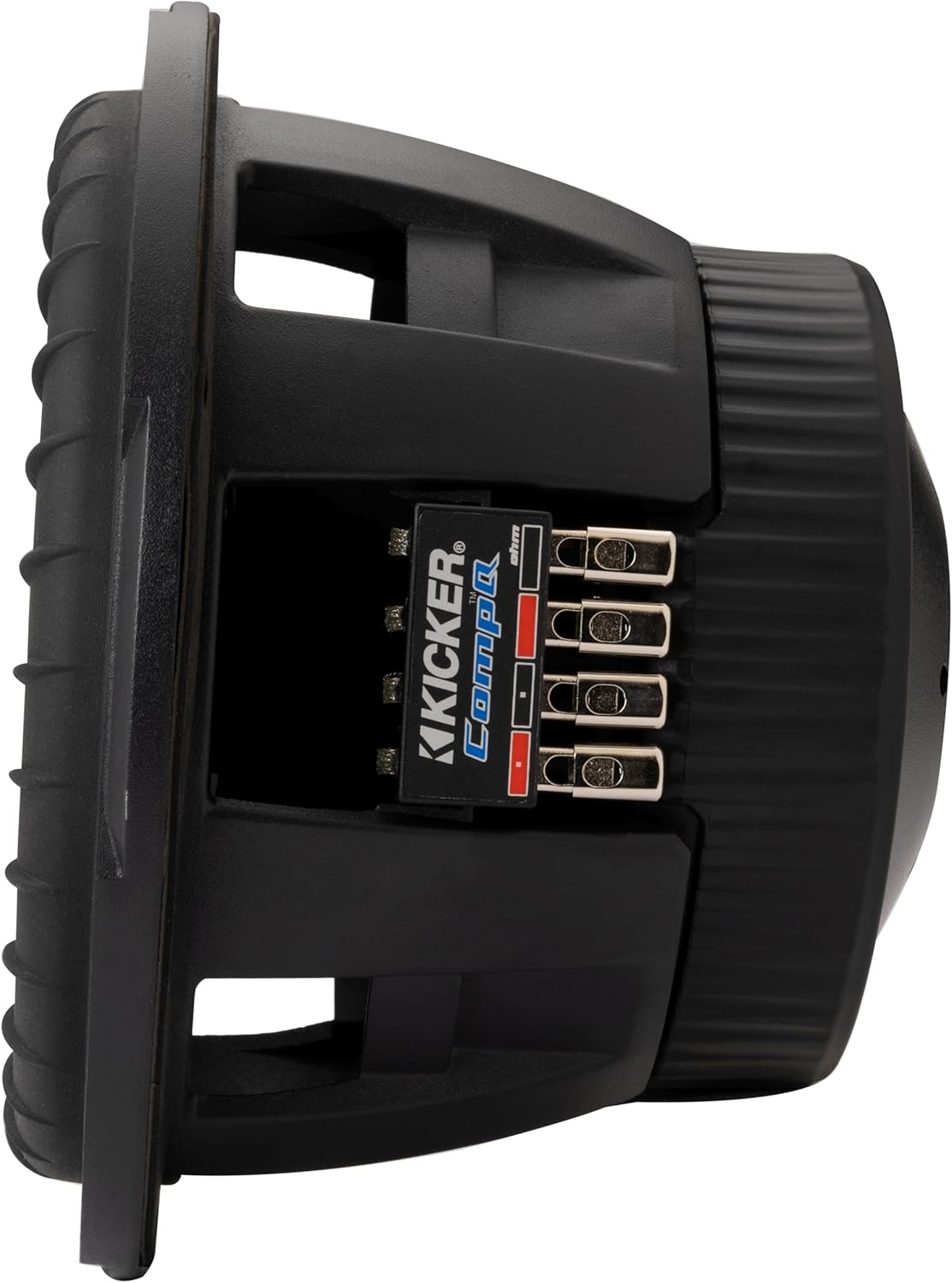

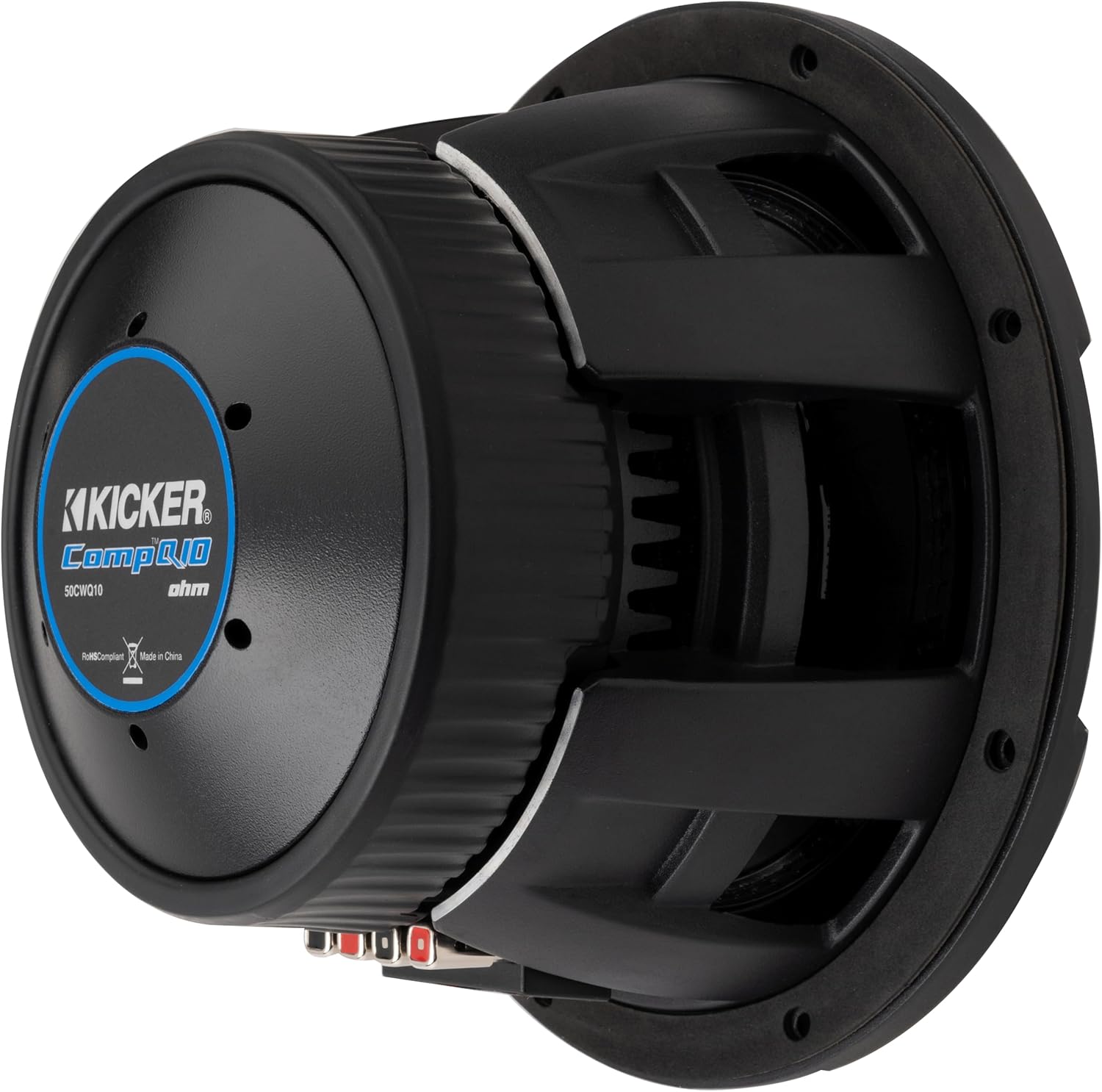

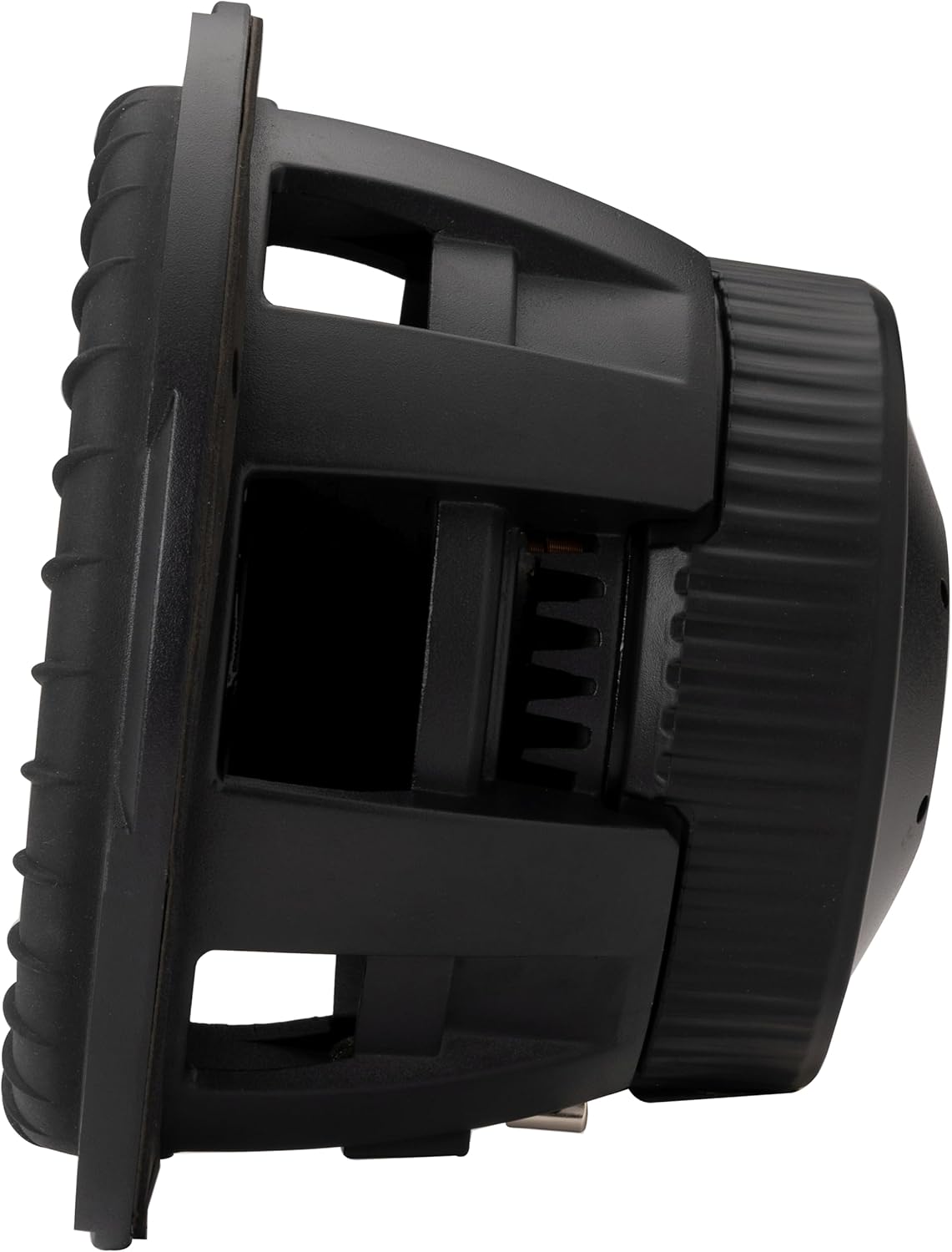

10" CompQ 4 Ohm
The KICKER CompQ™ Subwoofer delivers on all of the power, capacity and performance of its square counterpart L7™, only utilizing a round basket and cone.
SQL All the Way
The CompQ 10" Subwoofer is a perfect selection for strong, tight bass that delivers unparalleled accuracy, with extremely musical bass.
CompQ provides top sound quality with SPL output for an unrivaled SQL design. What more would you expect from KICKER’s best round subwoofer?
An advanced suspension and heat management system helps to keep the bass powerful, deep and consistent – all without a hint of distortion.
Stabilize

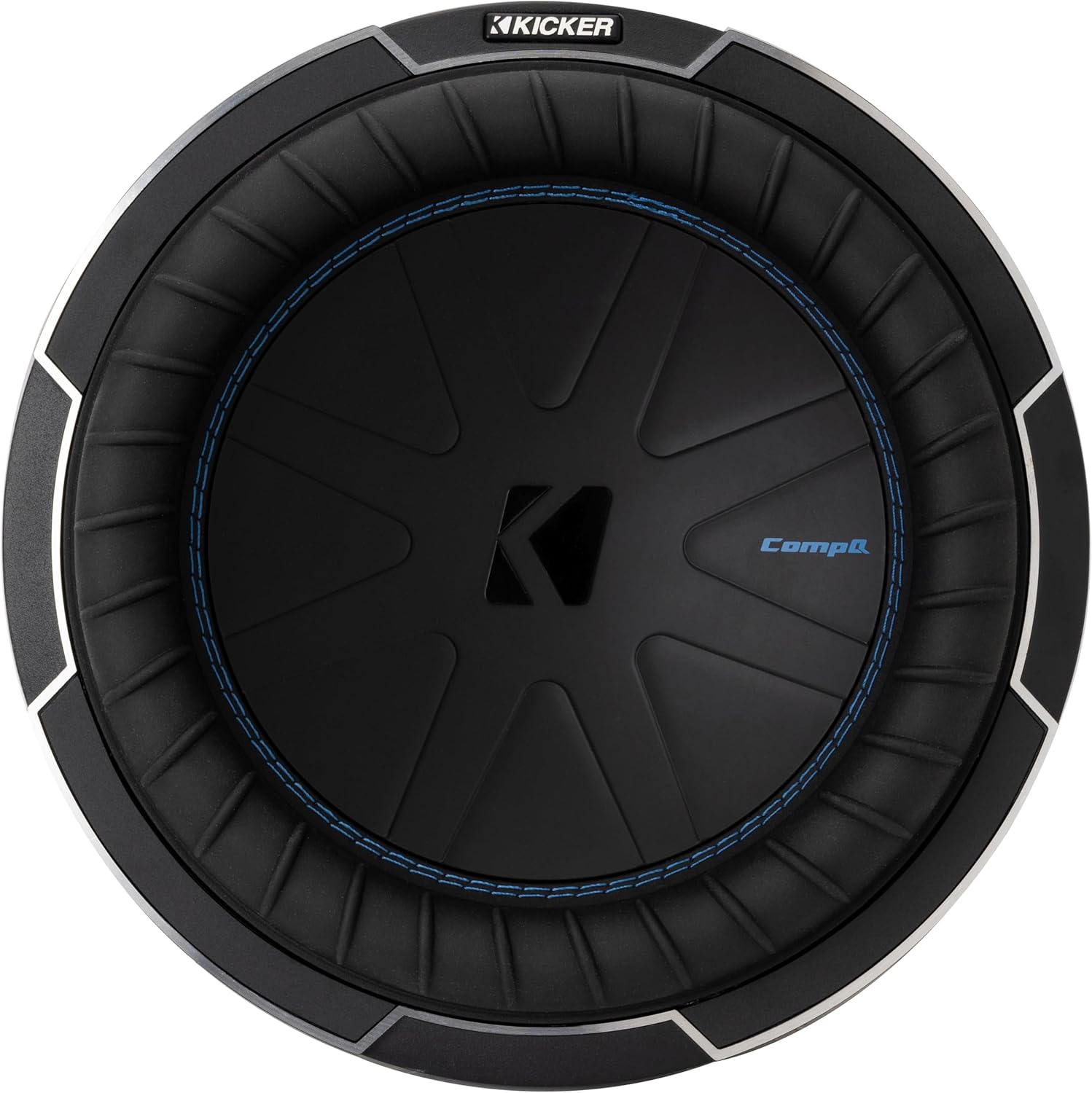

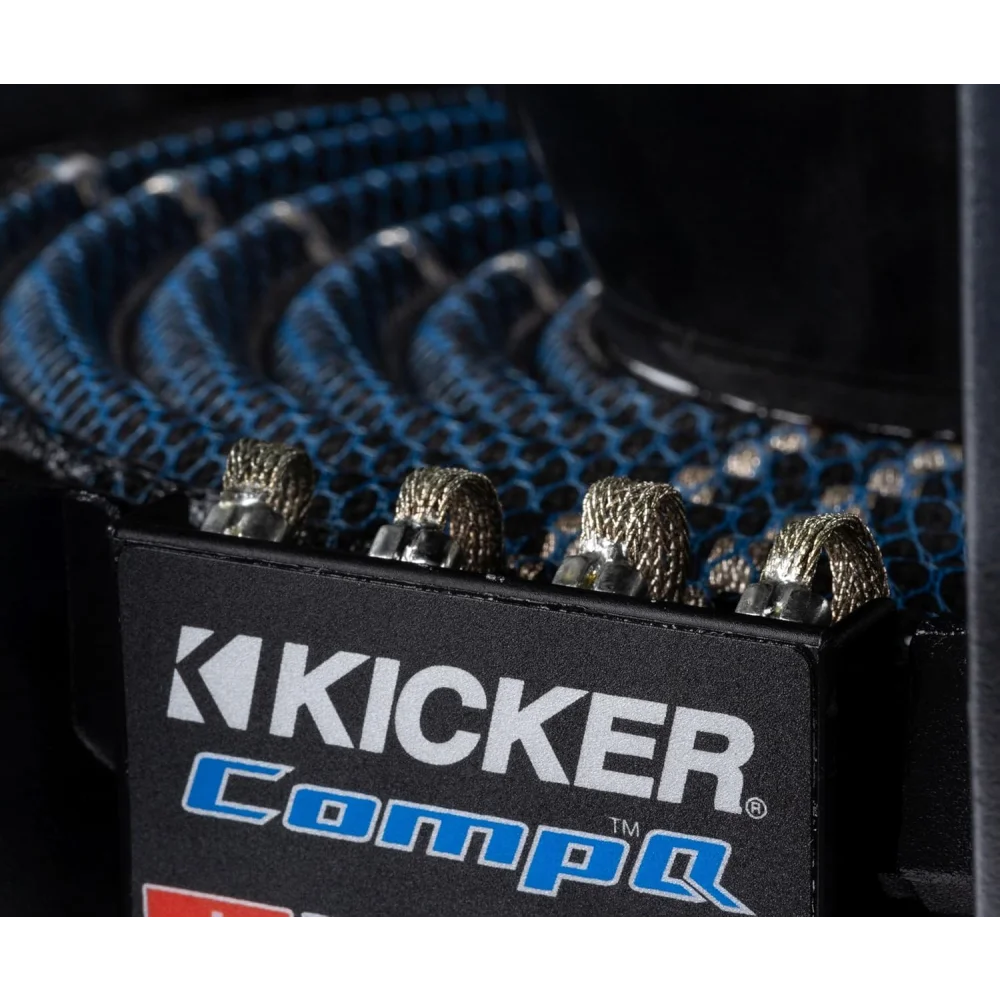

KICKER’s unique SoloKon™ cone-bracing technology ensures perfectly linear cone movement while the Blue Lace™ spider adds even more stability to the sub. You get unrivaled sonic accuracy and extraordinary volume.
The CompQ 10-Inch Subwoofer works best with a sealed or ported enclosure with 800 watts of recommended power. See below for more details.
Specifications
| Product Dimension Sheet |
| 51CWQ10 Dimensions |
| Woofer (in, mm) |
| 10, 25 |
| Impedance (Ohms) |
| 4 DVC |
| Recommended Amp Power (watts RMS) |
| 400-800 |
| Frequency Response (Hz) |
| 24-100 |
| Sensitivity (1W, 1m) |
| 84.5 |
| Xmax (mm) |
| 19.7 |
| Mounting Depth (in, mm) |
| 6-3/8, 16.2 |
| Mounting Diameter (in, mm) |
| 9-3/16, 23.4 |
|
Sealed Enclosure Specs
|
| Sealed Enclosure Volume Min (cu. ft., L) |
| 0.66, 18.7 |
|
Panel Dimensions for Minimum Sealed Enclosures using 3/4” (1.9cm) thick MDF
|
| Box Volume [ft³, L] |
.66 (18.7) |
| Panel A [in, cm] |
| 12x12, 30.5x30.5 |
| Panel B [in, cm] |
| 12x10.5, 30.5x26.7 |
| Panel C [in, cm] |
| 10.5x10.5, 26.7x26.7 |
| Sealed Enclosure Volume Max (cu. ft., L) |
| 1.25, 35.4 |
| Vented Enclosure Volume Min (cu. ft., L) |
| 1.25, 35.4 |
| Vented Enclosure Volume Max (cu. ft., L) |
| 2.25, 63.7 |
