Description

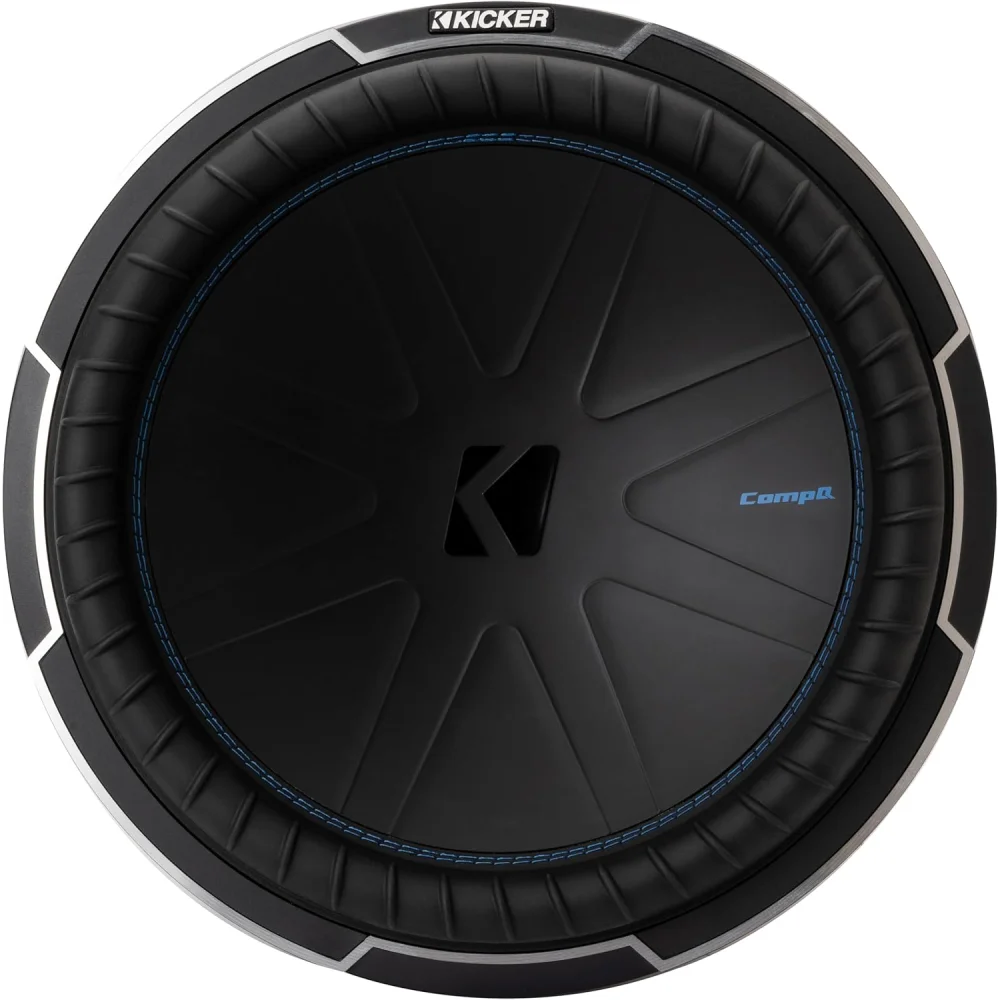

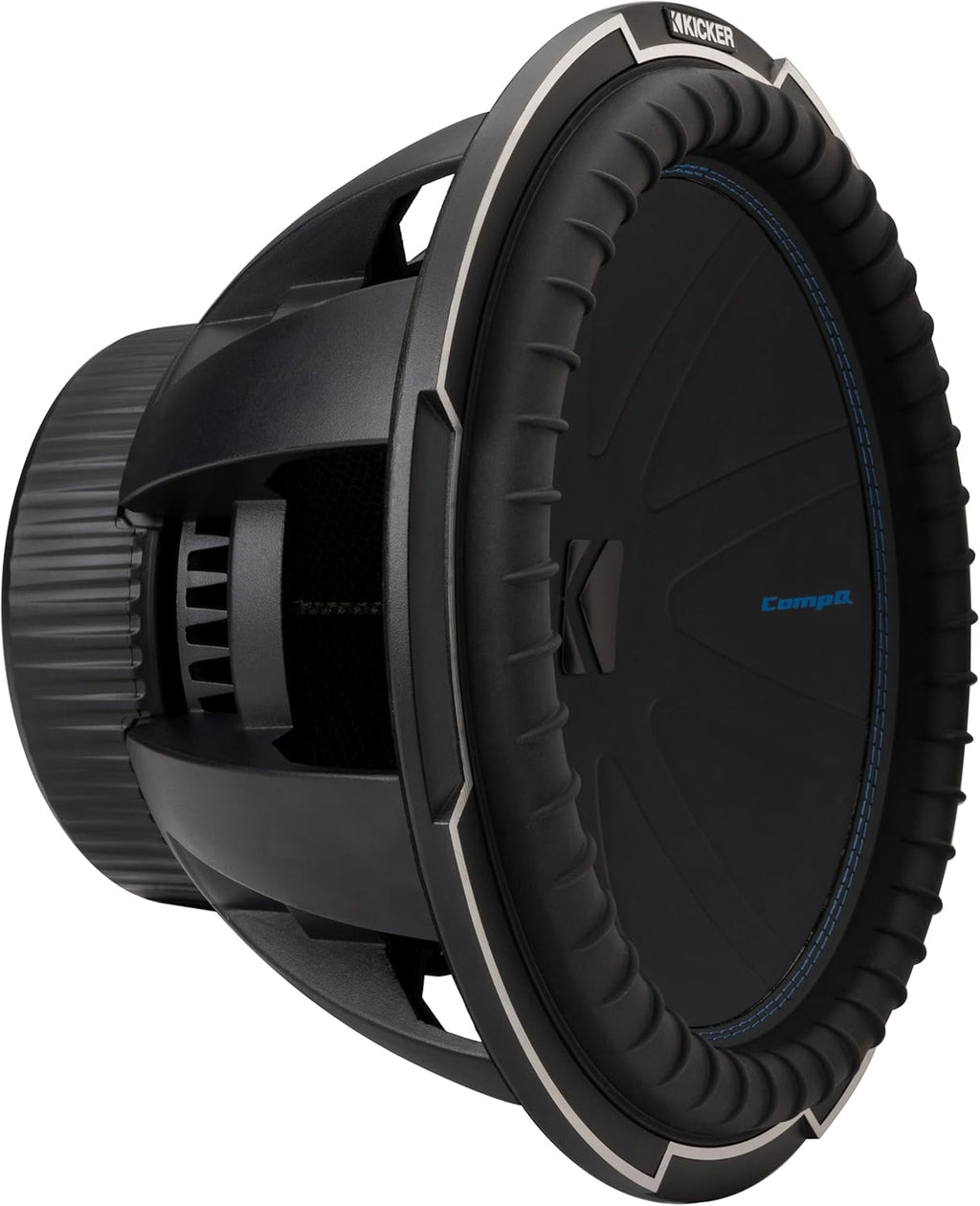

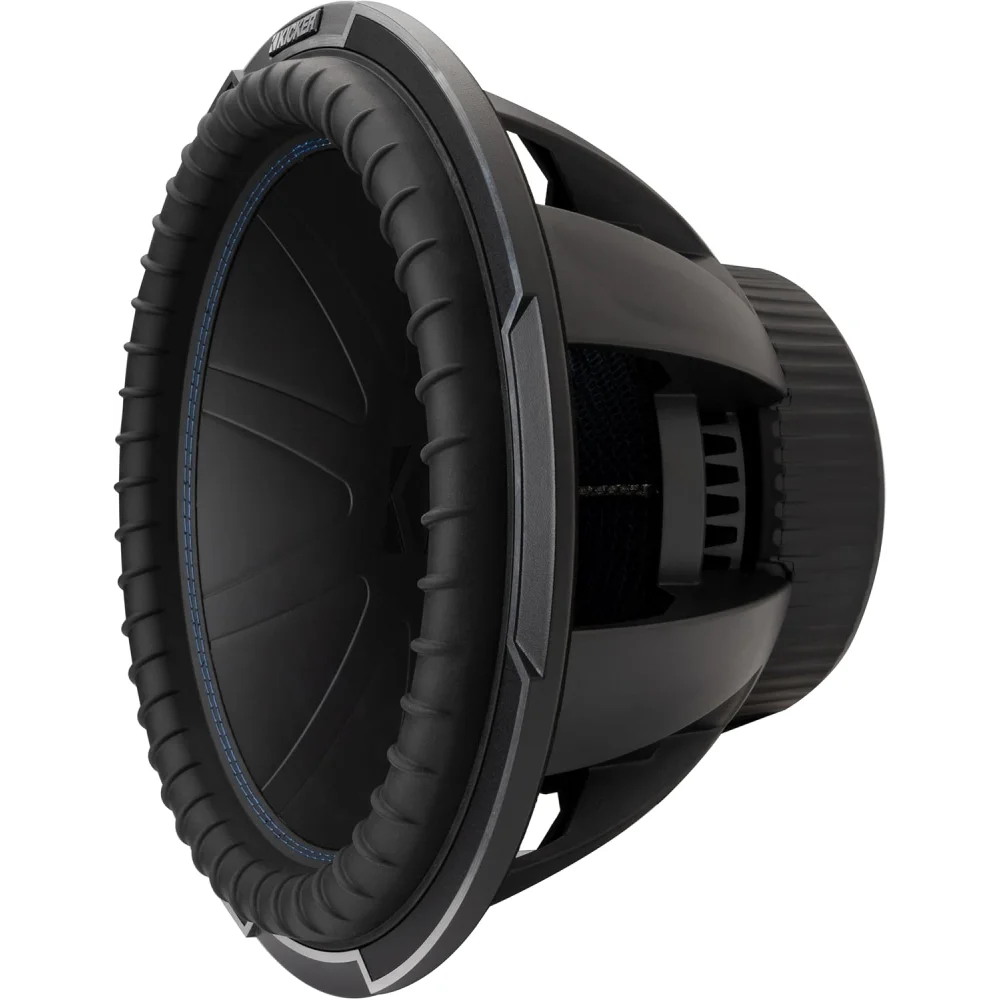

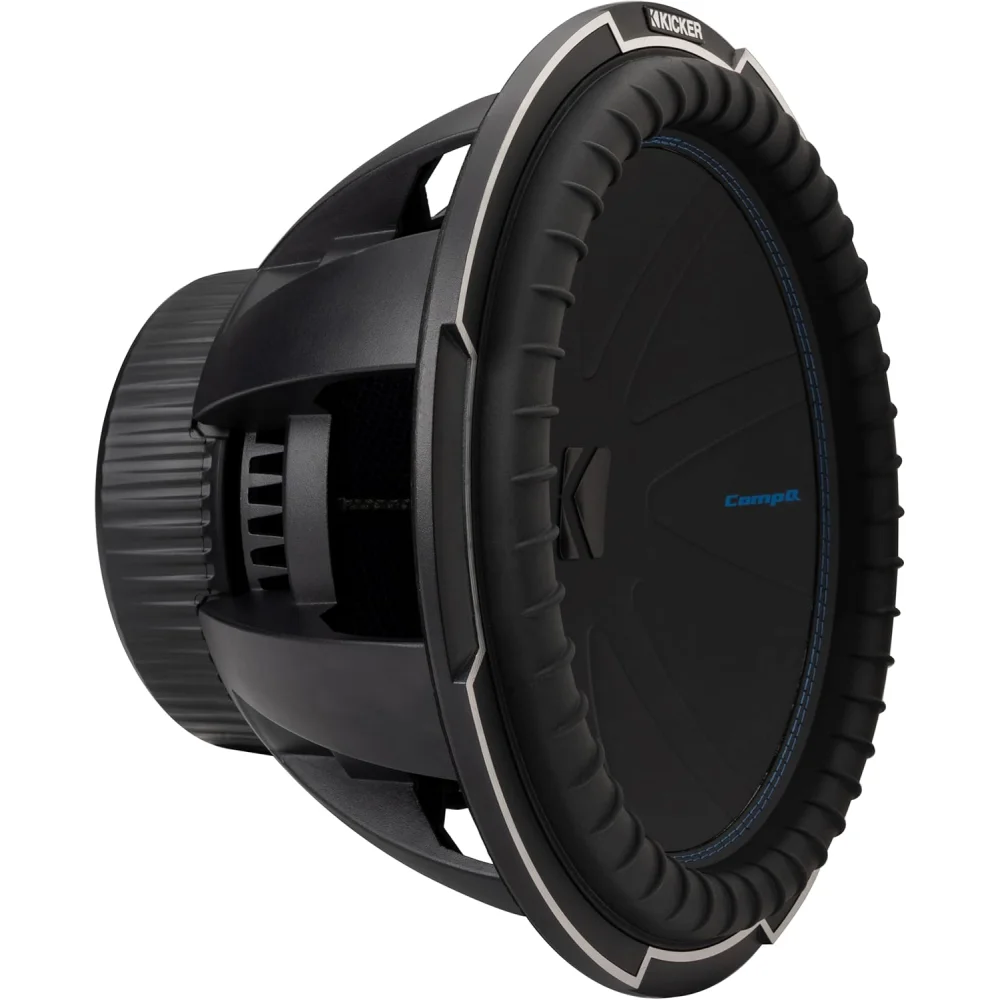

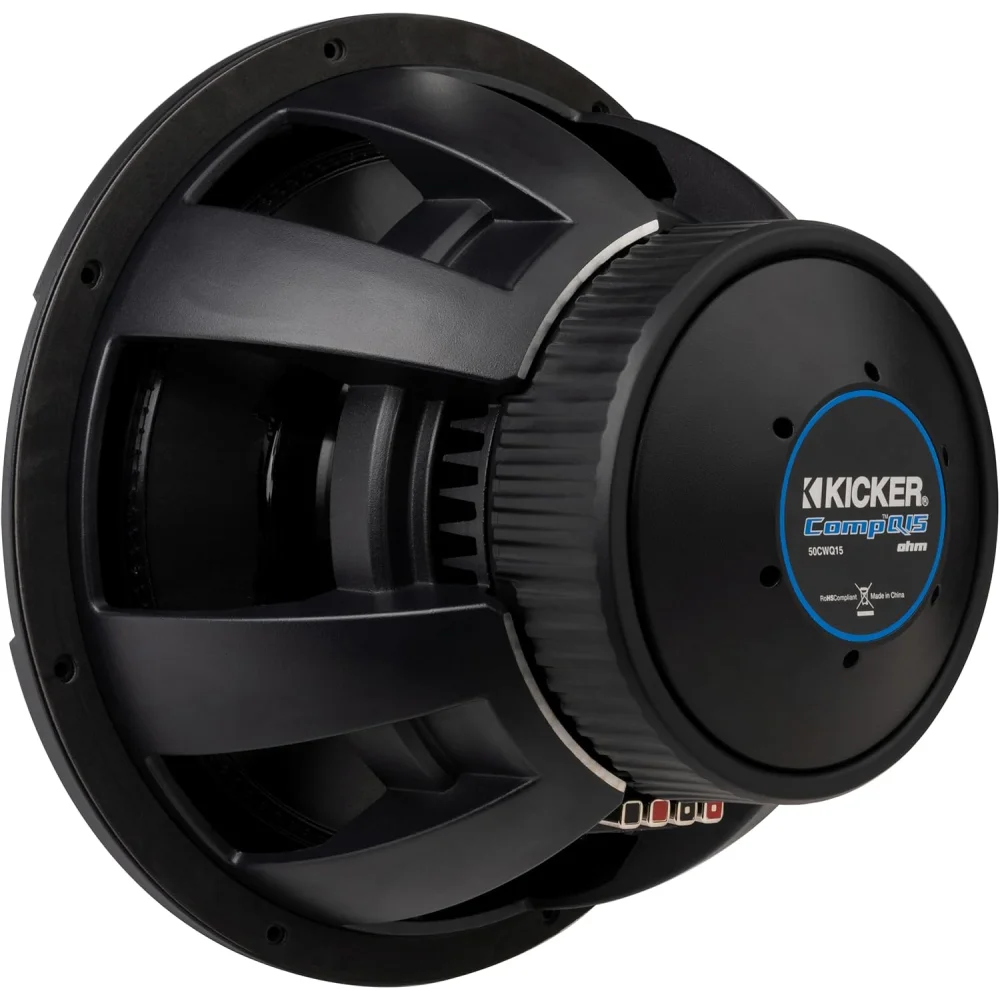

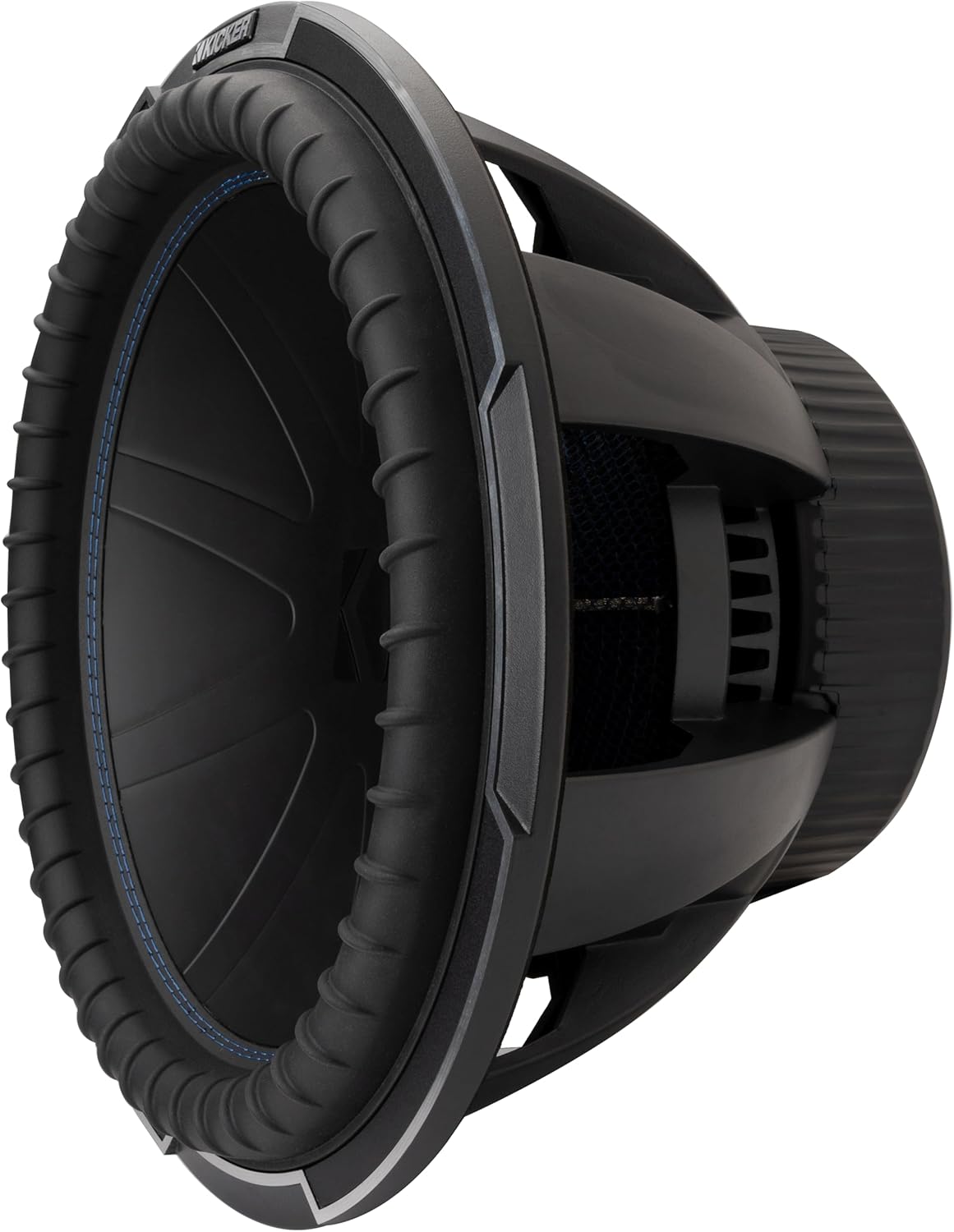

15" CompQ 2 Ohm

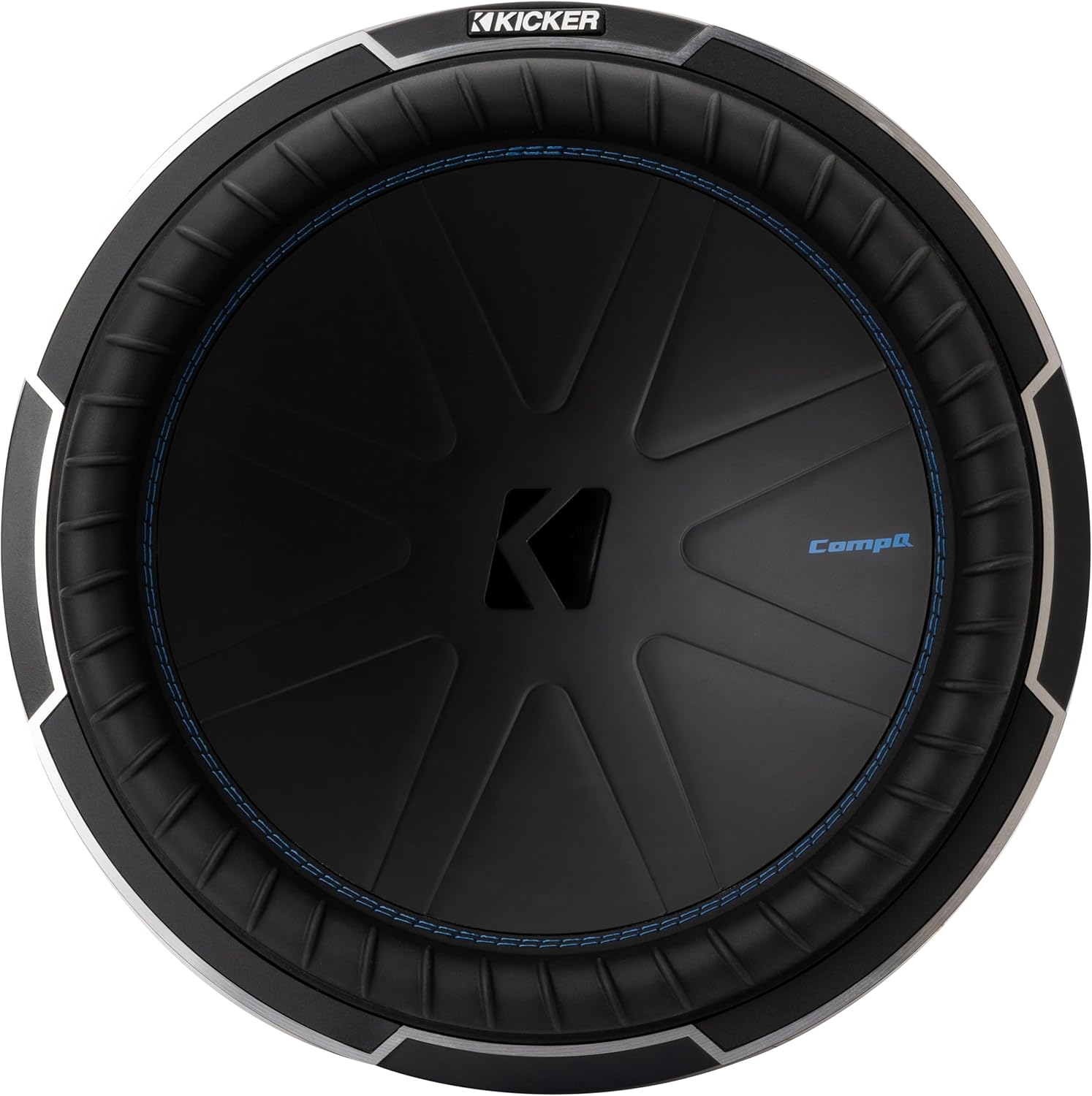

The KICKER CompQ™ Subwoofer delivers on all of the power, capacity and performance of its square counterpart L7™, only utilizing a round basket and cone.
SQL All the Way
The CompQ 15" Subwoofer is the pinnacle of our round speaker line, with nearly identical construction and performance as our L7 square subs.

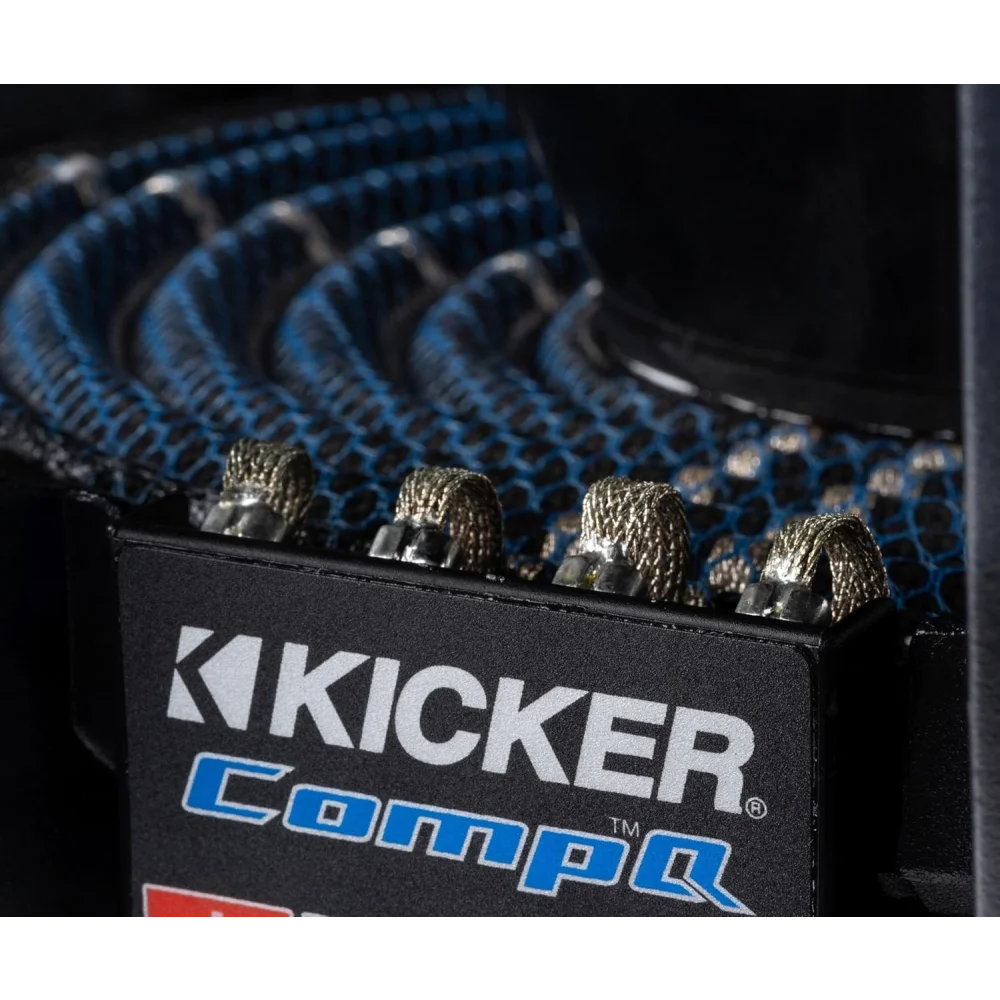

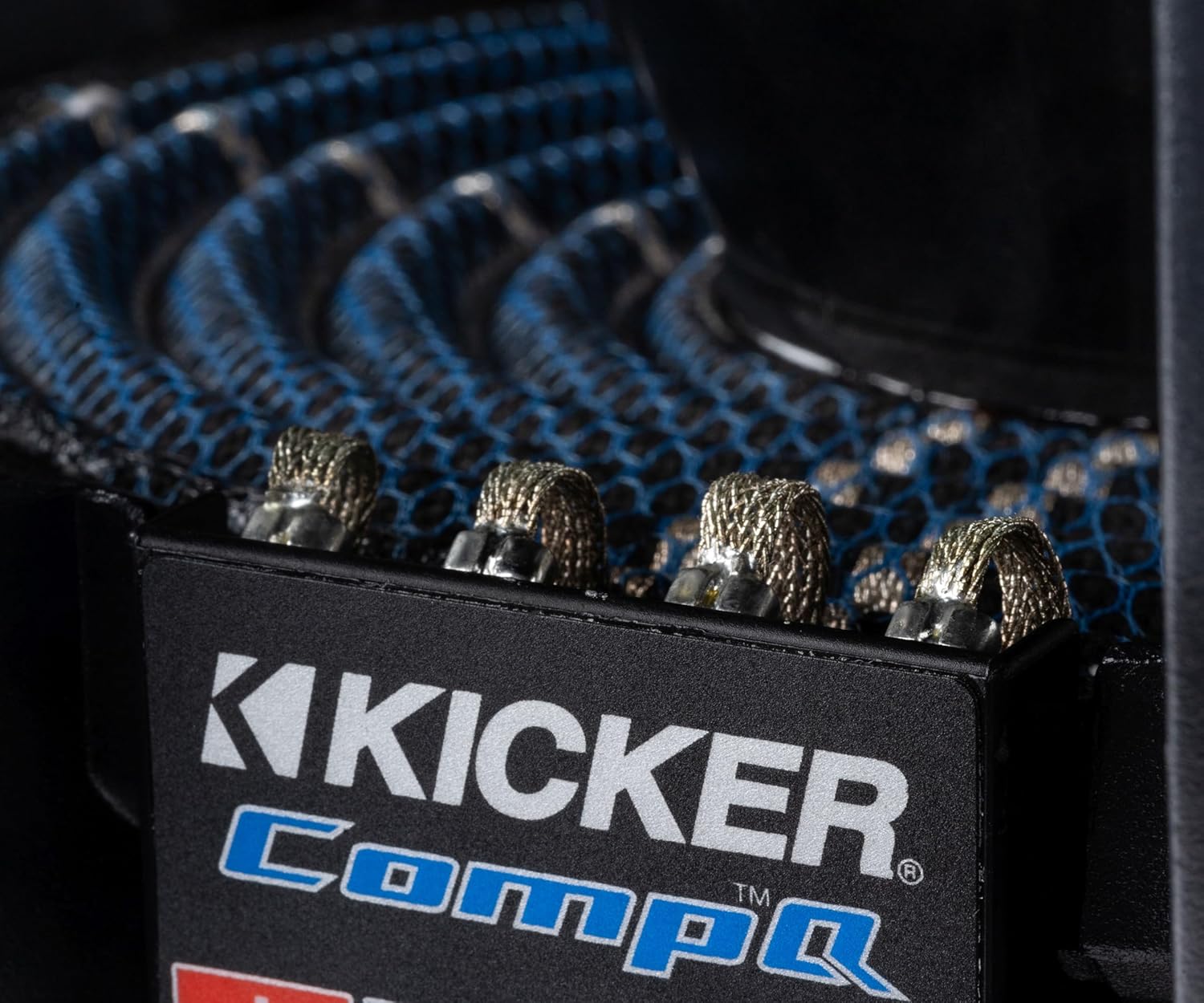

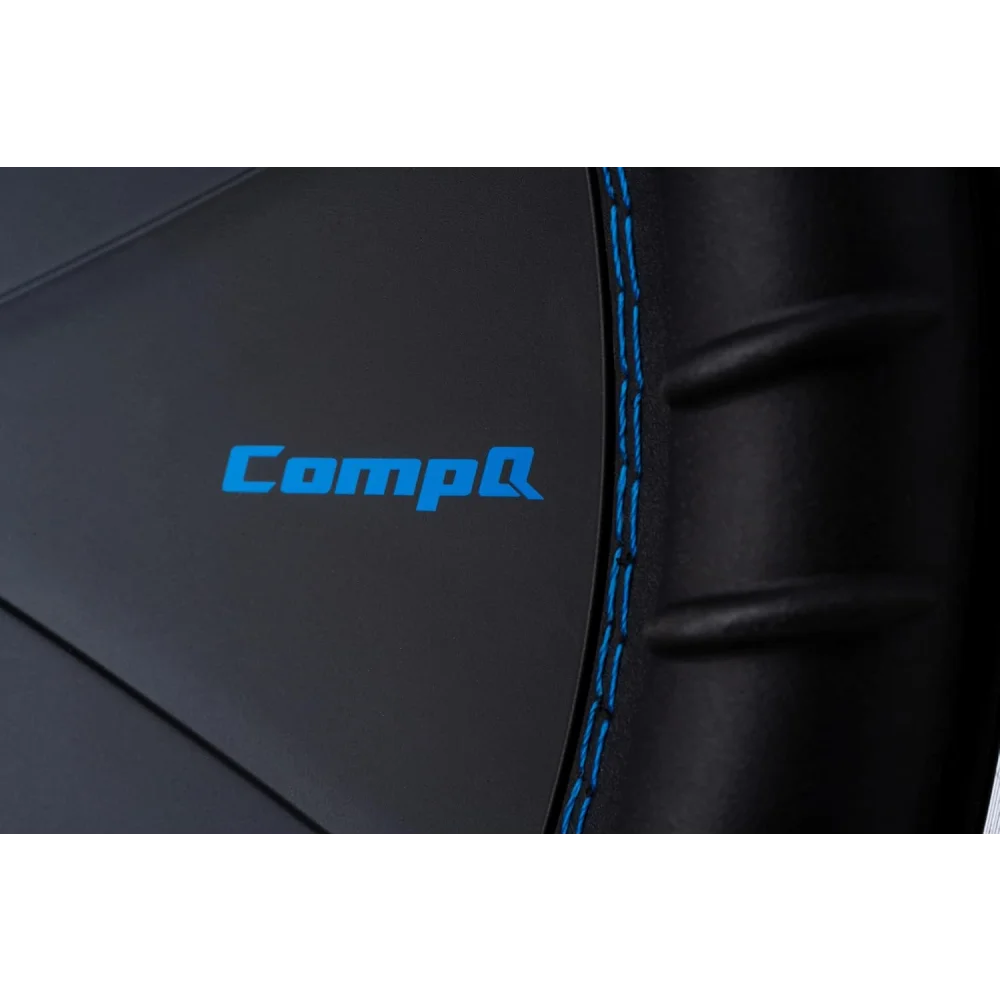

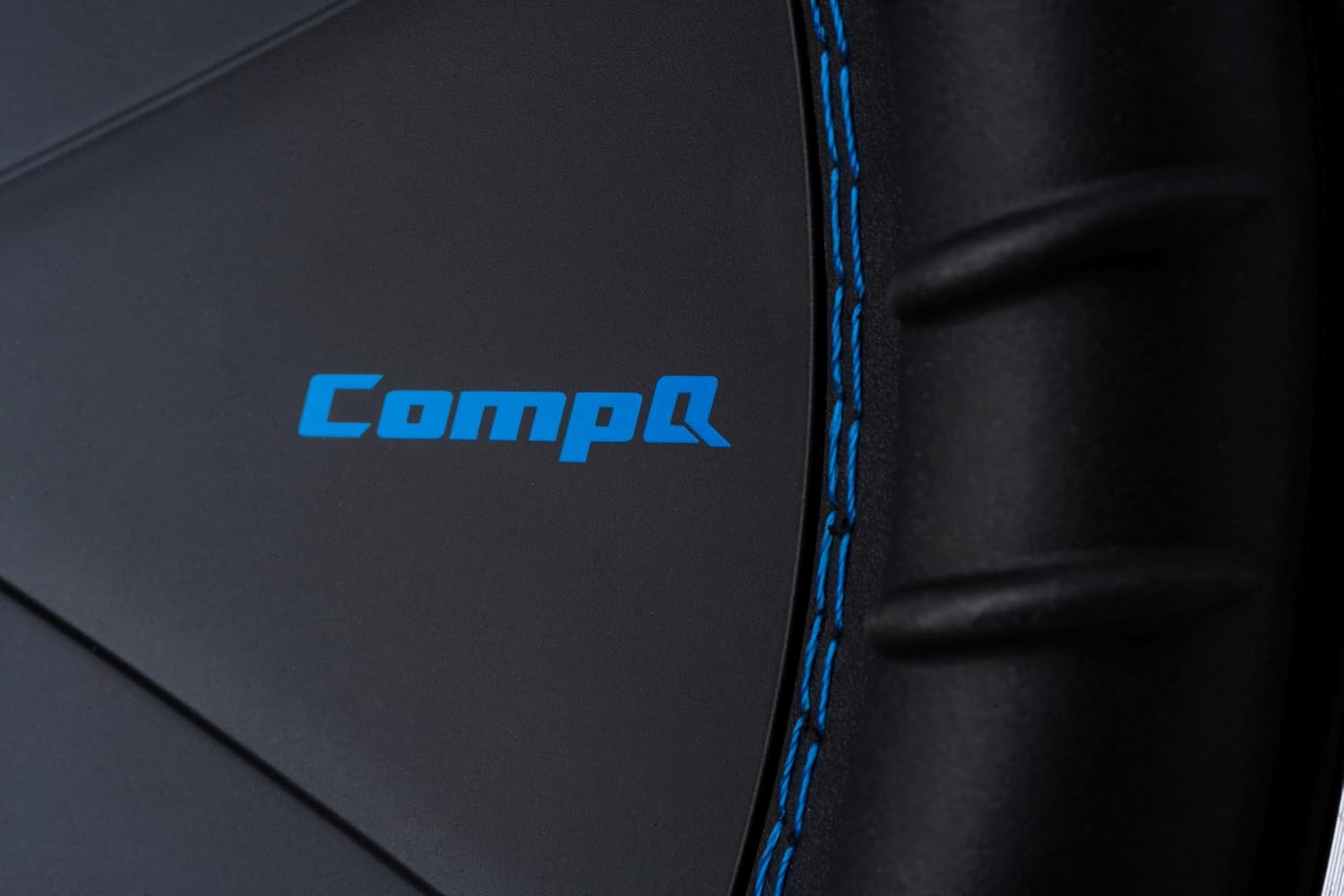

Built for high power handling and extremely accurate bass reproduction, this KICKER sub features Ribbed Santoprene® surrounds and a BlueLace™ large-diameter progressive roll spider for extreme flexibility at any volume level.
An advanced suspension and heat management system helps to keep the bass powerful, deep and consistent – all without a hint of distortion.
Stabilize
KICKER’s unique SoloKon™ cone-bracing technology ensures perfectly linear cone movement while the Blue Lace™ spider adds even more stability to the sub. You get unrivaled sonic accuracy and extraordinary volume.
The CompQ 15-Inch Subwoofer works best with a sealed or ported enclosure with 1200 watts of recommended power. See below for more details.
Specifications
| Product Dimension Sheet |
| 51CWQ15 Dimensions |
| Woofer (in, mm) |
| 15, 38 |
| Impedance (Ohms) |
| 2 DVC |
| Recommended Amp Power (watts RMS) |
| 600-1200 |
| Frequency Response (Hz) |
| 18-100 |
| Sensitivity (1W, 1m) |
| 88 |
| Xmax (mm) |
| 23.7 |
| Mounting Depth (in, mm) |
| 8-15/1, 22.6 |
| Mounting Diameter (in, mm) |
| 13-7/8, 35.2 |
|
Sealed Enclosure Specs
|
| Sealed Enclosure Volume Min (cu. ft., L) |
| 1.5, 42.5 |
|
Panel Dimensions for Minimum Sealed Enclosures using 3/4” (1.9cm) thick MDF
|
| Box Volume [ft³, L] |
1.5, 42.5 |
| Panel A [in, cm] |
| 16.5x16.5, 41.9x41.9 |
| Panel B [in, cm] |
| 16.5x11.5, 41.9x29.2 |
| Panel C [in, cm] |
| 15x11.5, 38.1x29.2 |
| Sealed Enclosure Volume Max (cu. ft., L) |
| 6.0, 170 |
| Vented Enclosure Volume Min (cu. ft., L) |
| 3.0, 85 |
| Vented Enclosure Volume Max (cu. ft., L) |
| 6.0, 170 |
