Description

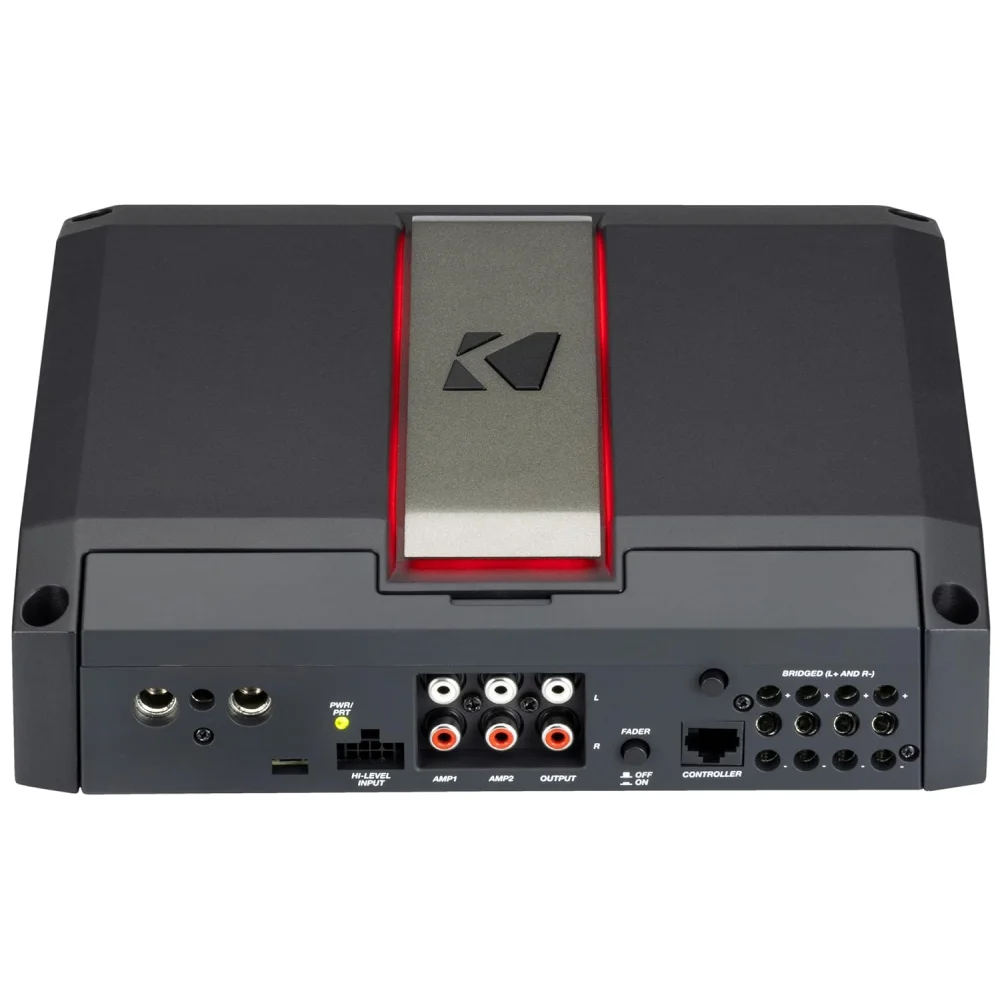

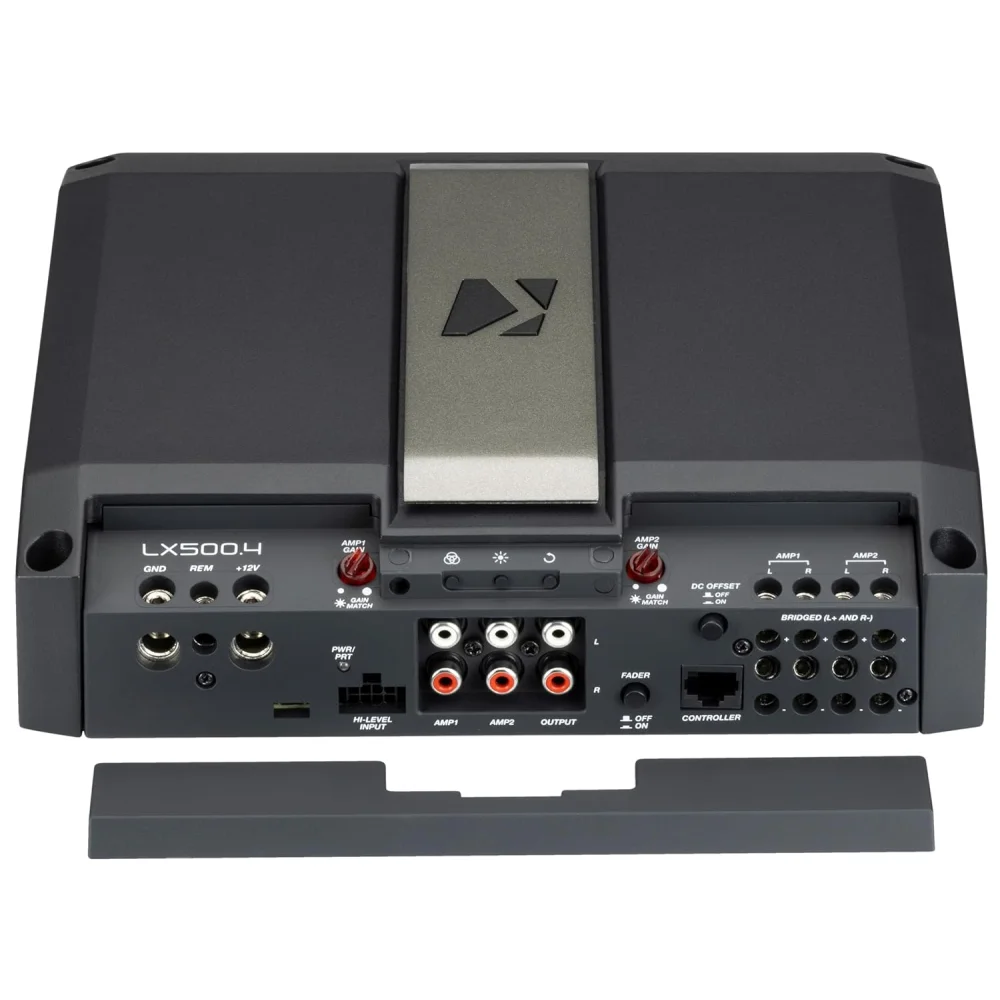

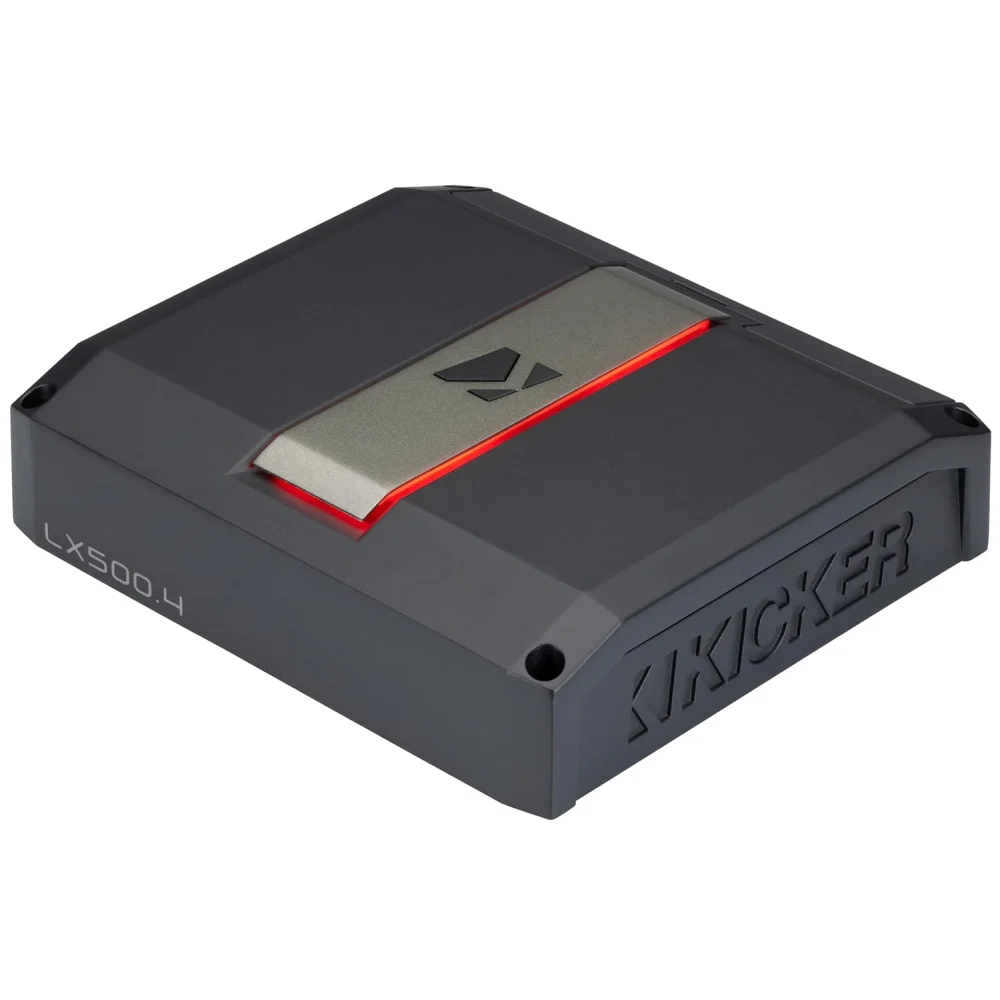

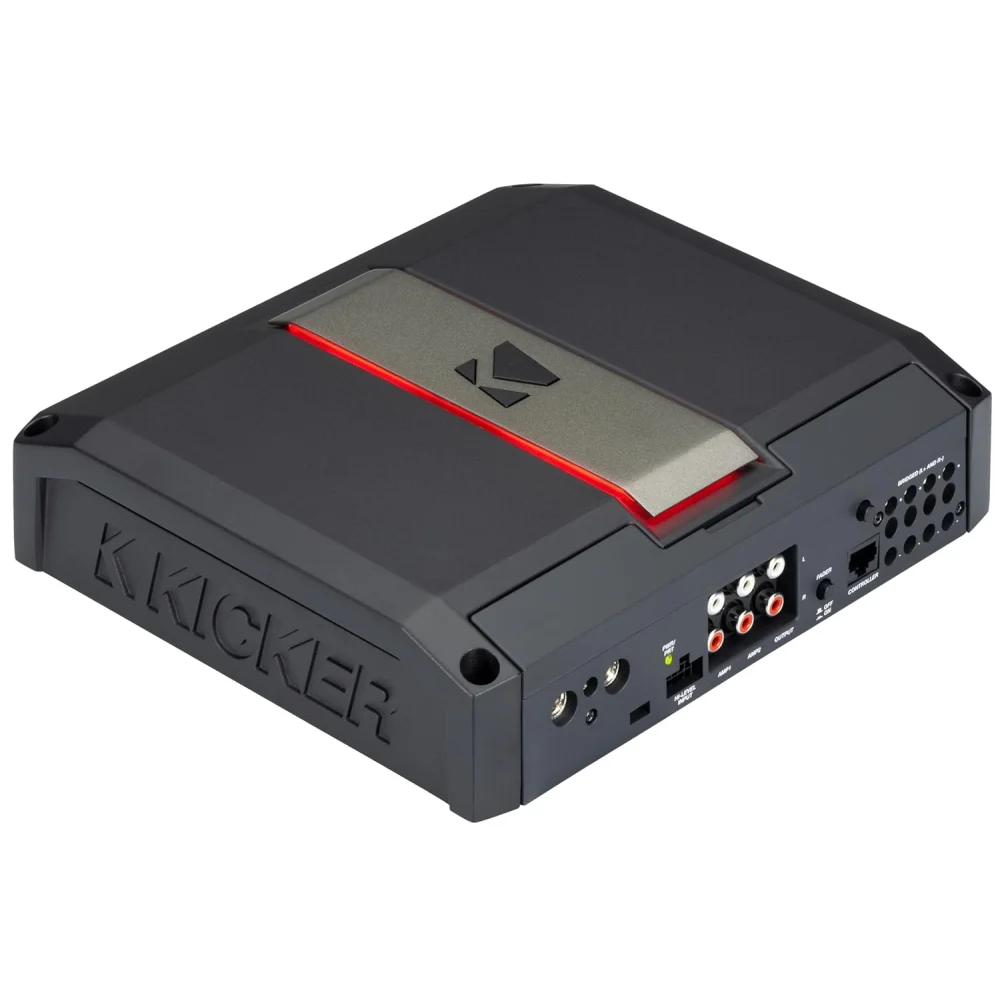

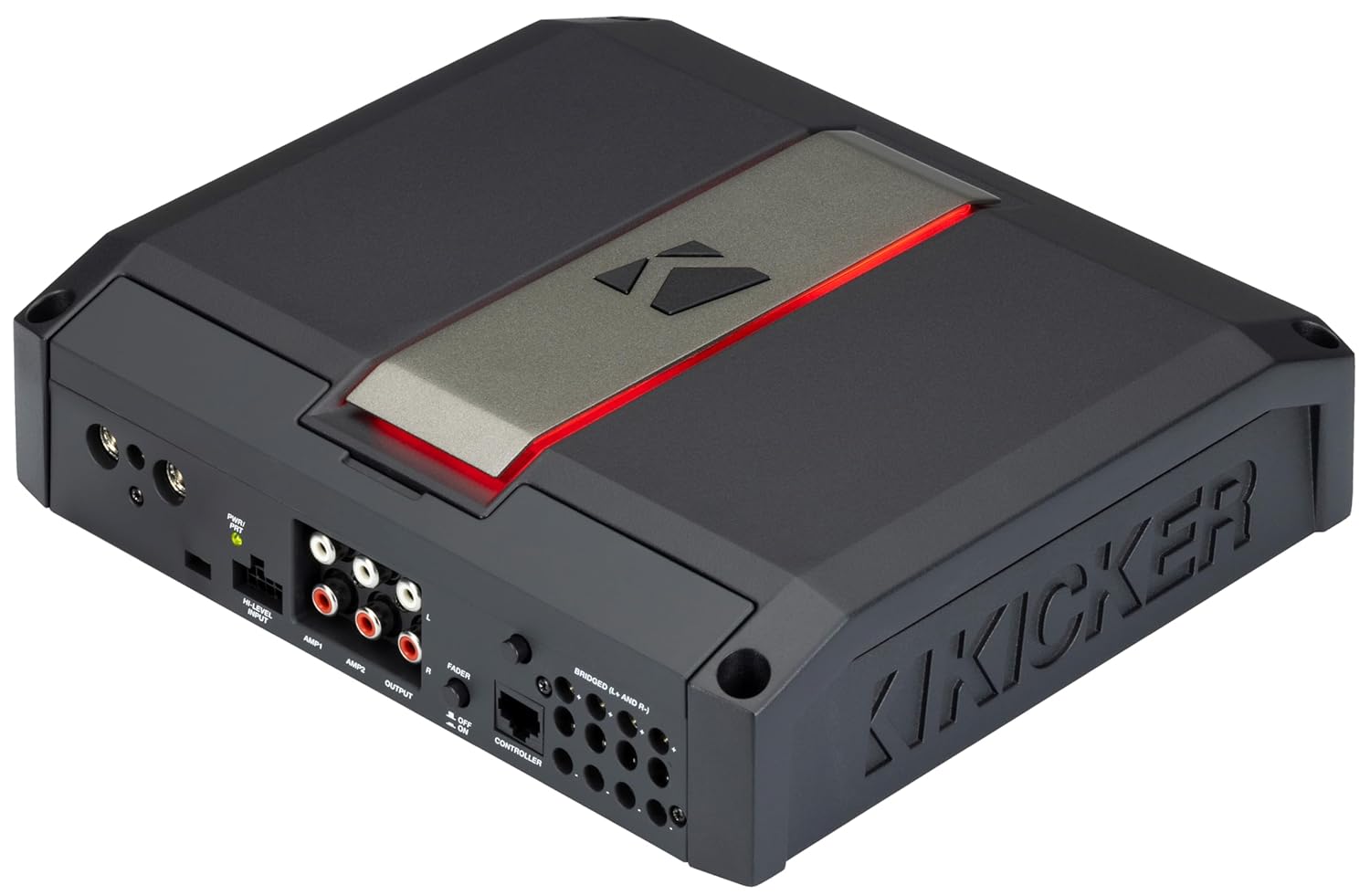

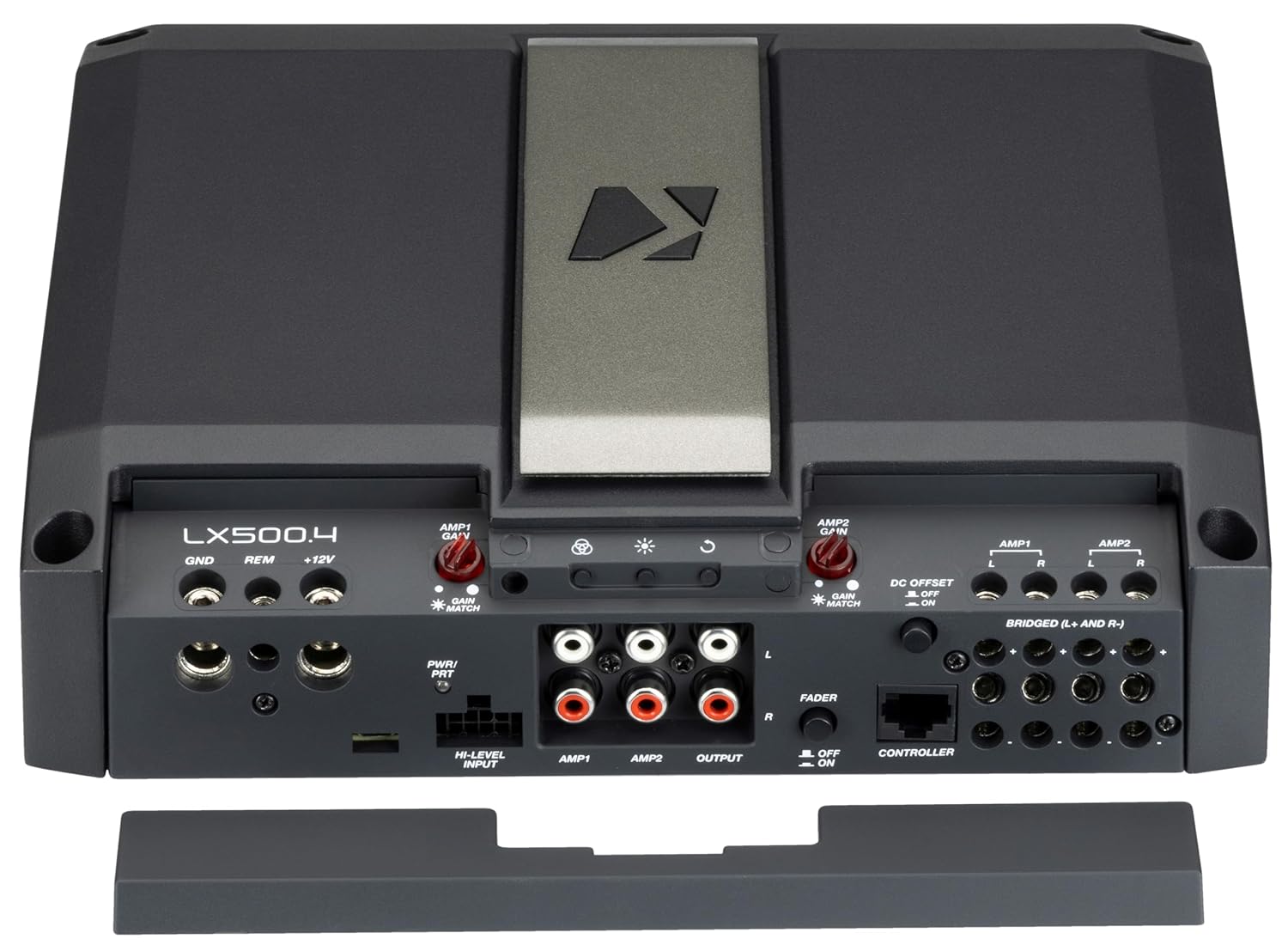

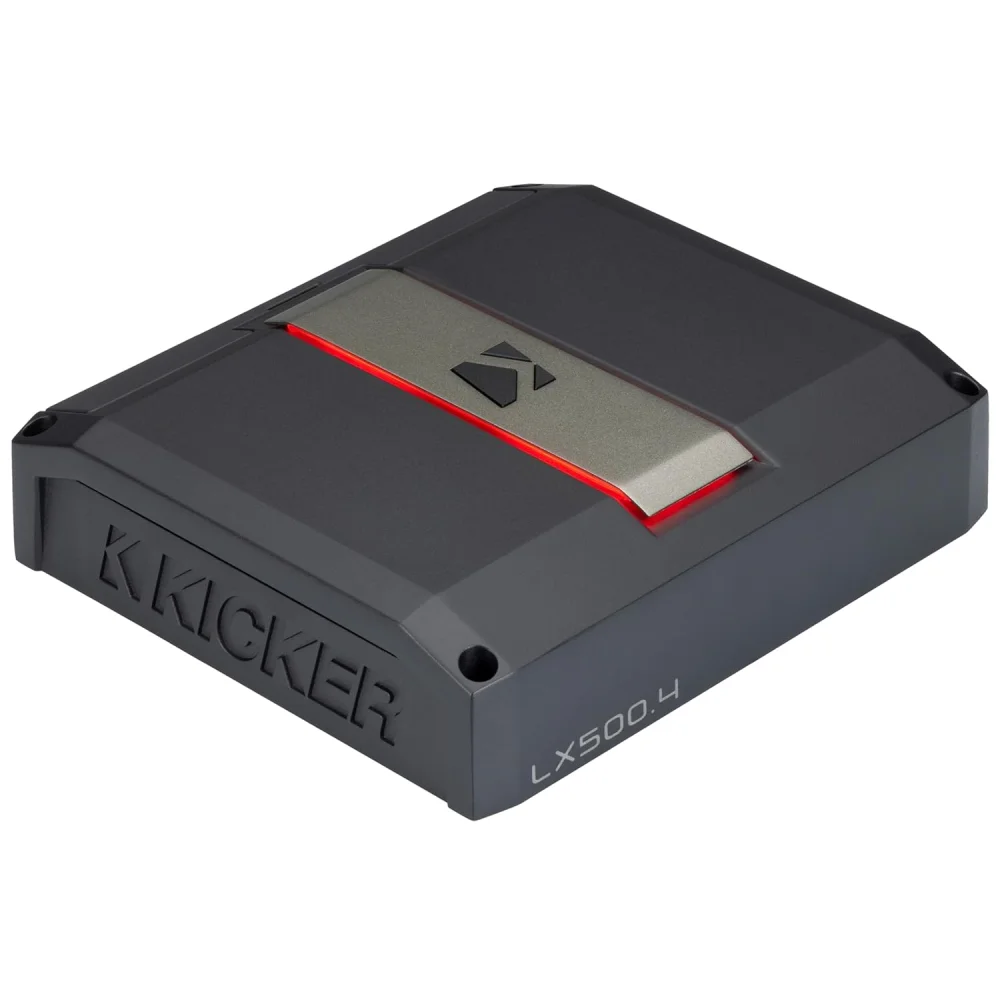

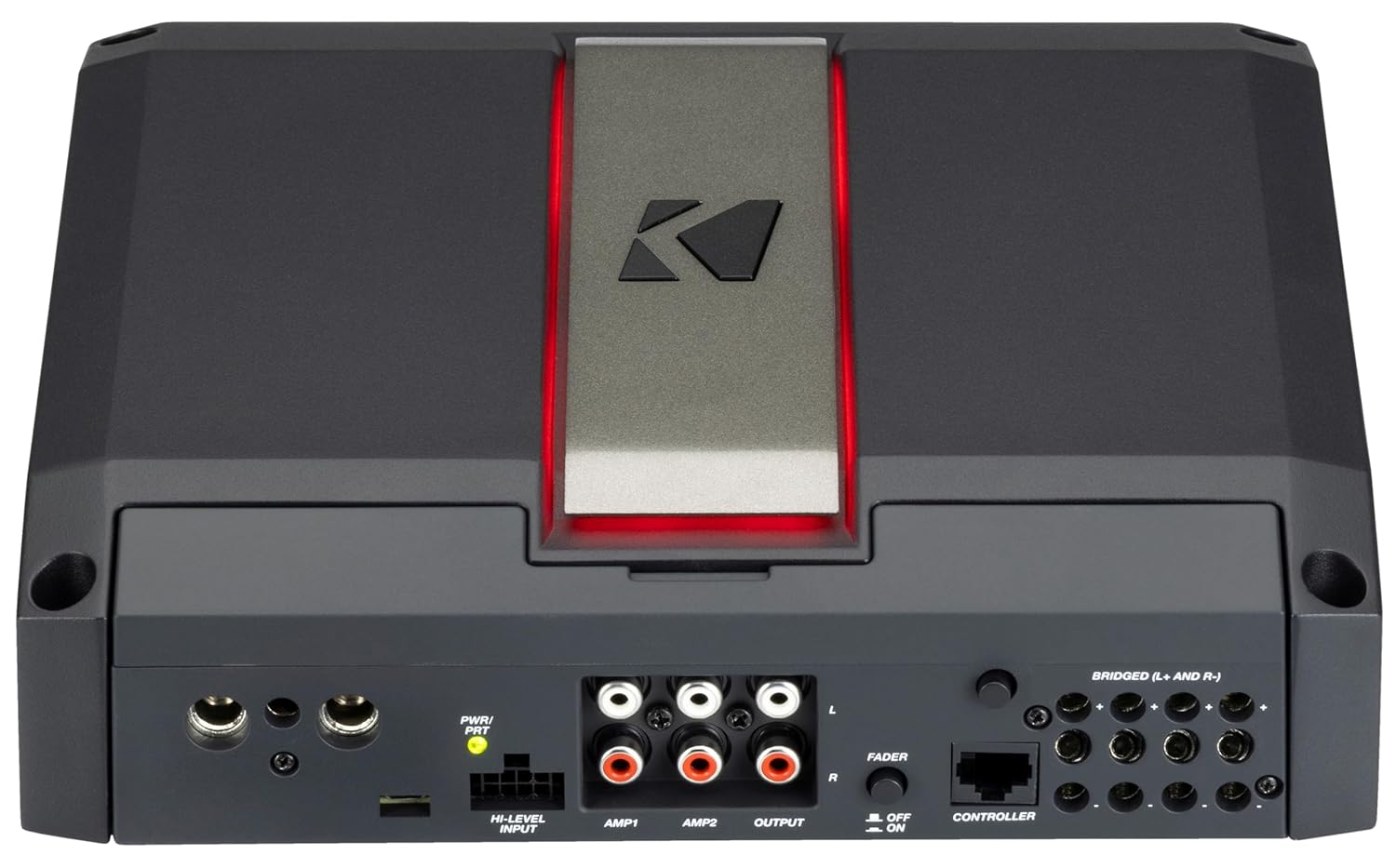

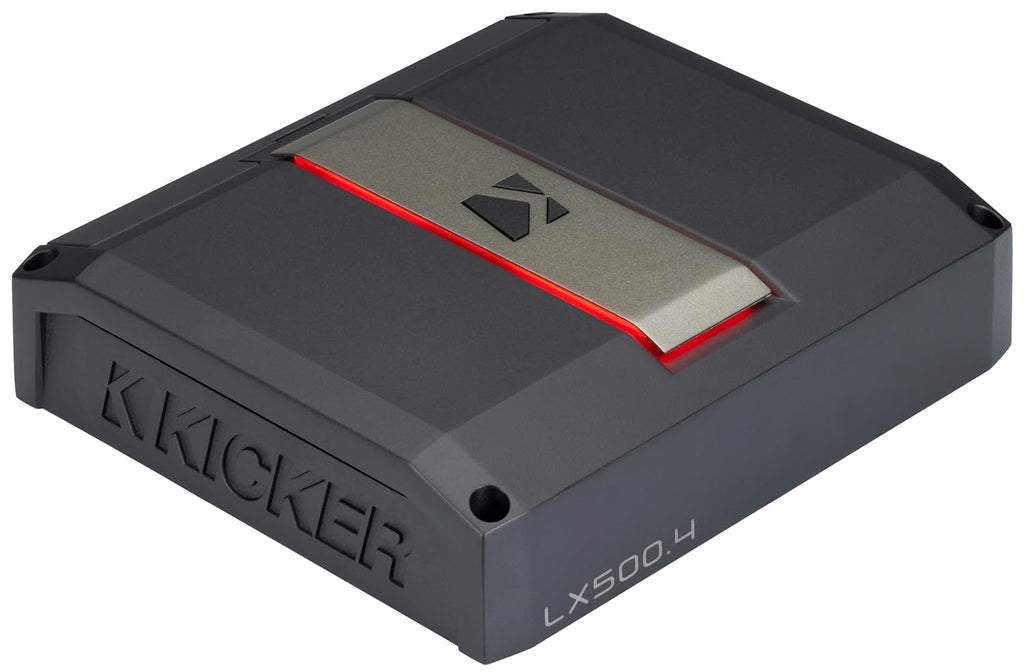

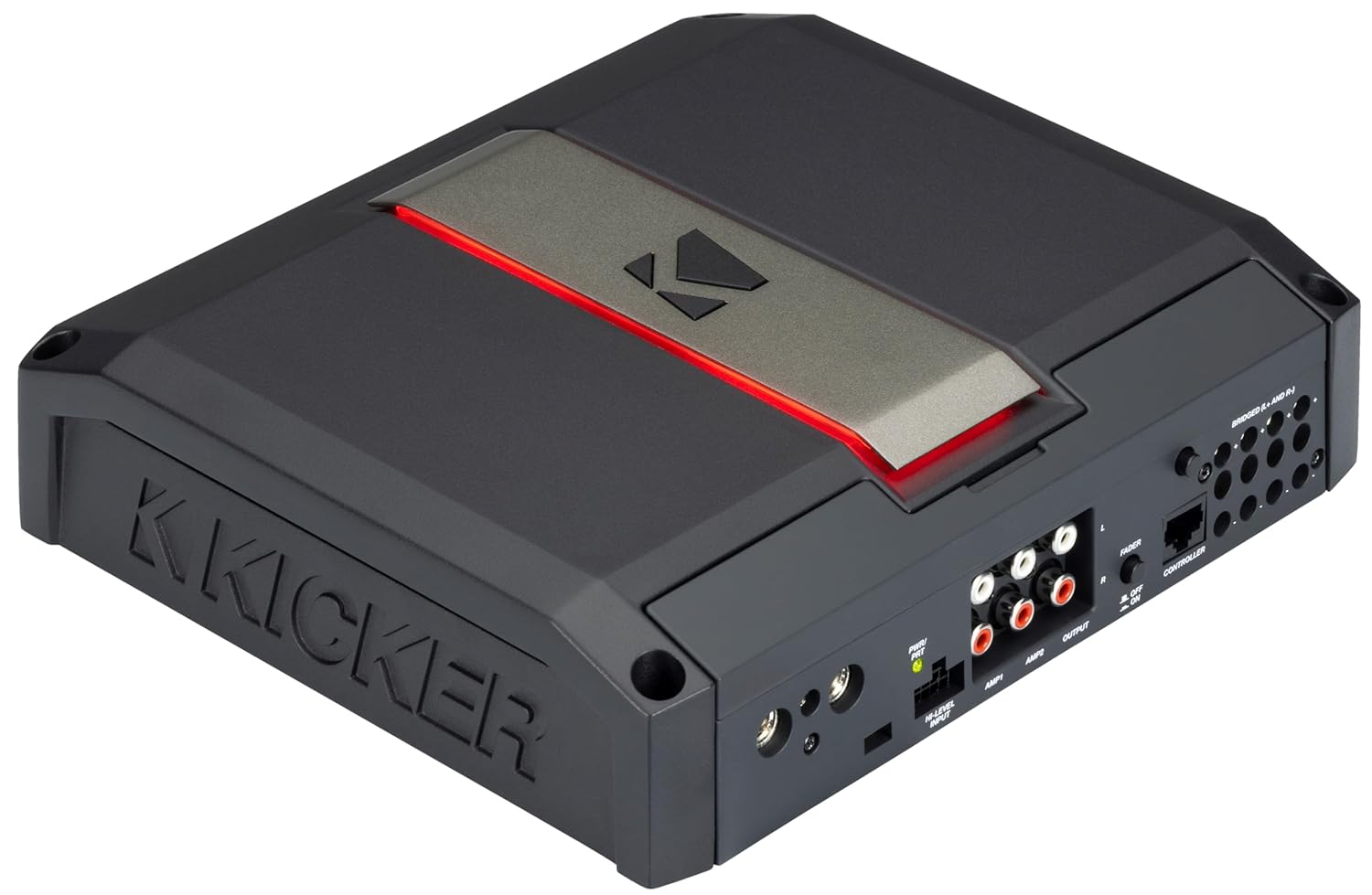

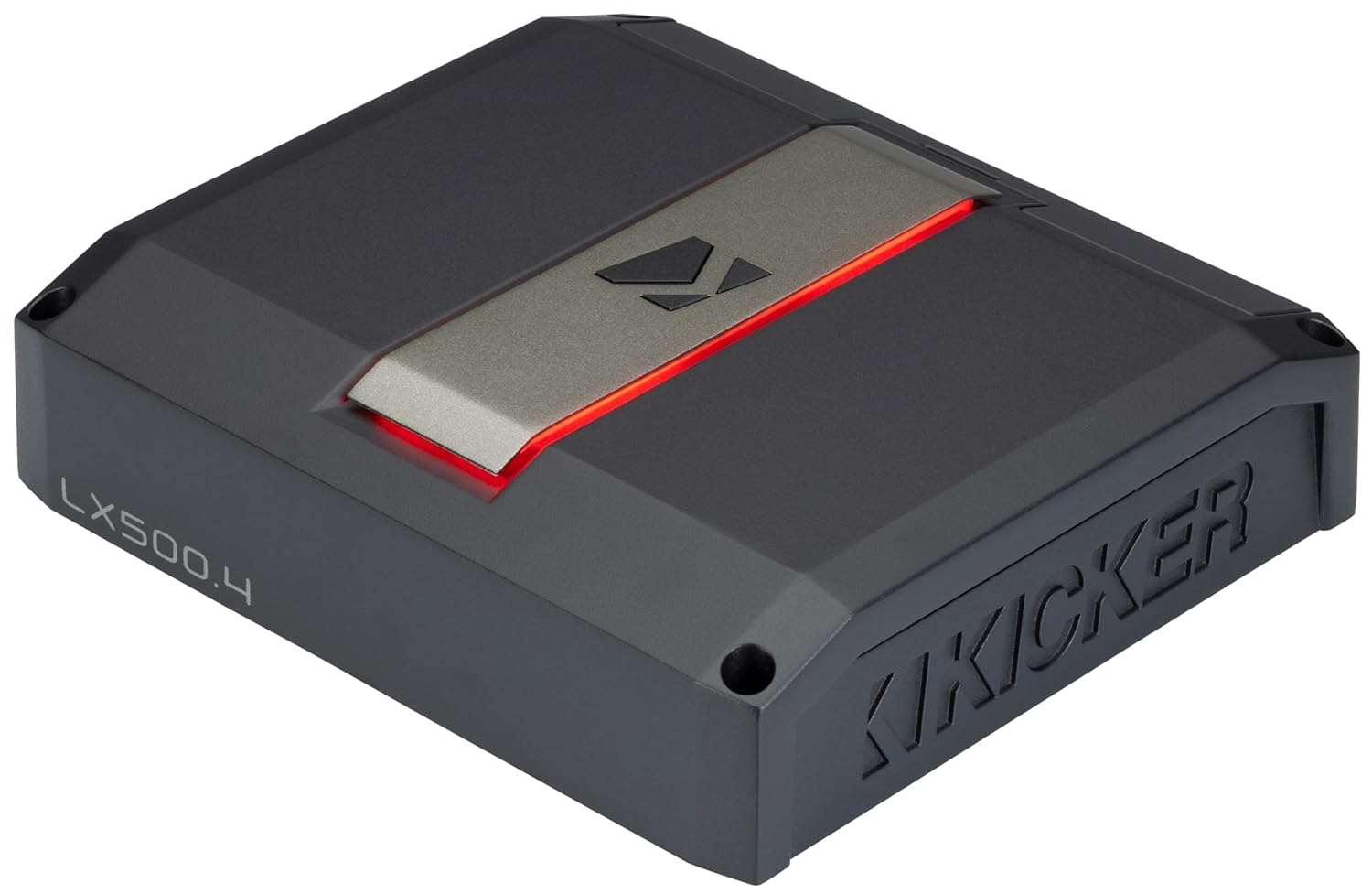

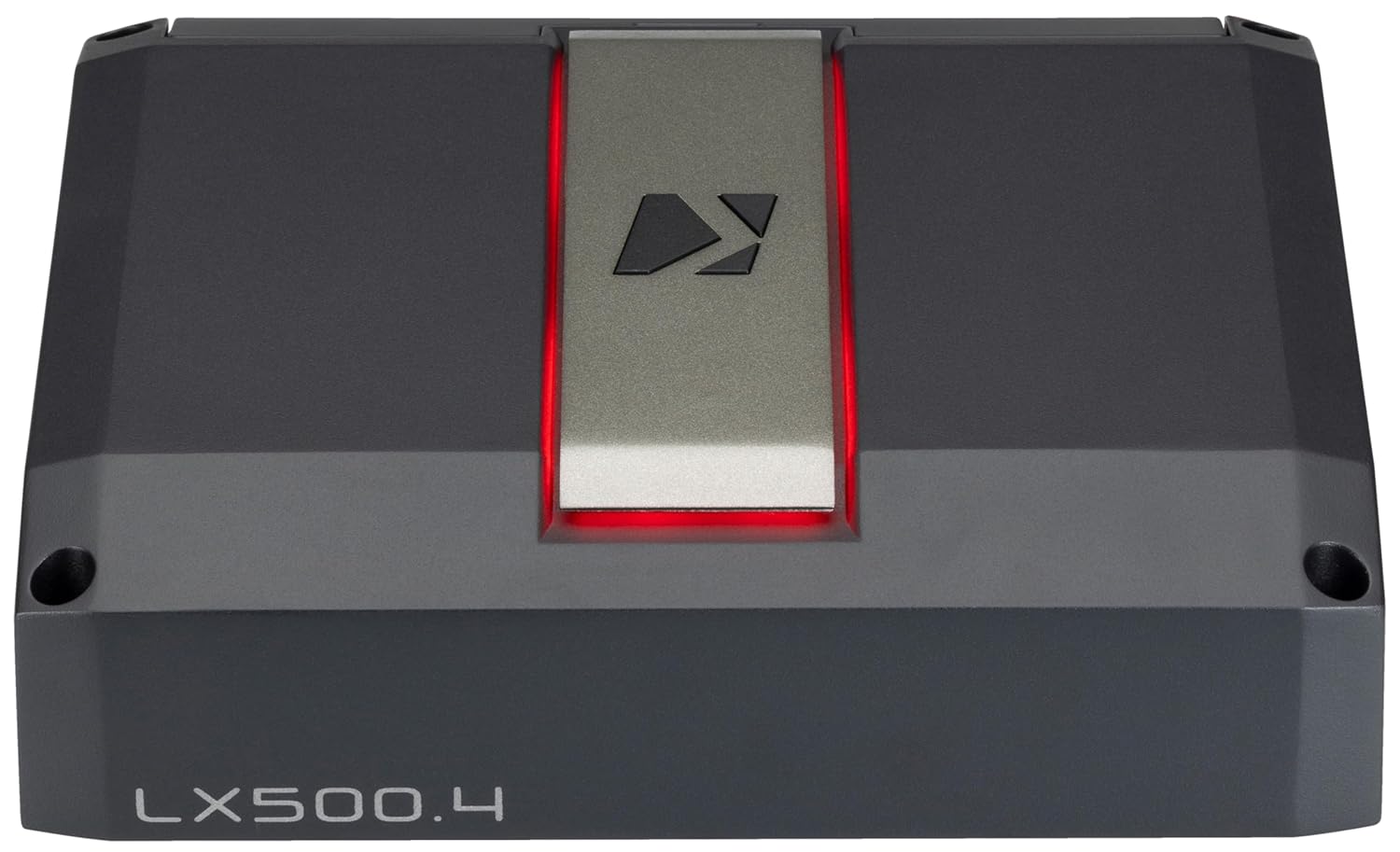

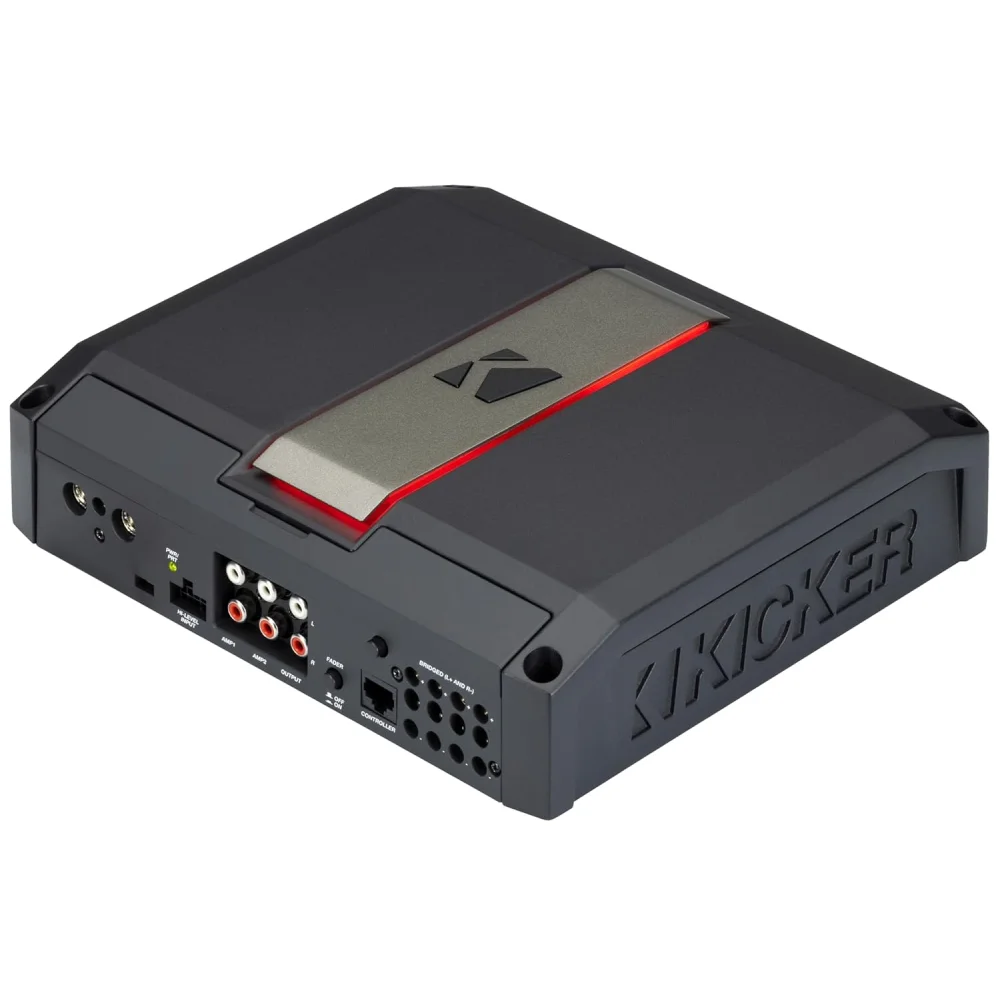

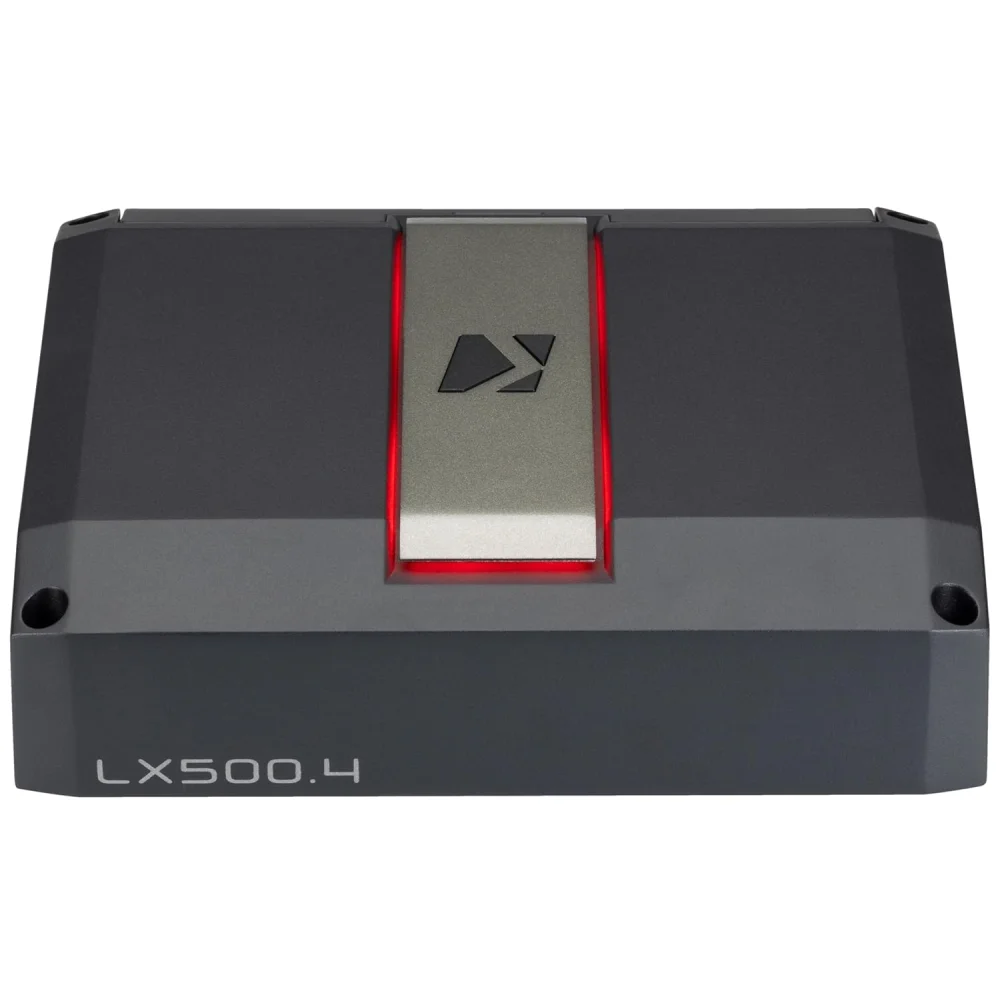

LX 500.4
The KICKER LX-Series is a perfect marriage of SQL design and high-powered output, utilizing feedback from the industry to deliver the most requested features while maintaining the highest performance possible. All multi-channel amplifiers are bridgeable and come with a wired control center (LXCC).
From the Ground Up
The LX-Series represents KICKER’s high-power premium amplifier line designed in-house from the ground up:
- Incrementally dial in entire system with the included LX Control Center
- Class-D design for lower current draw, longer playing times, and lower operating temperatures
- Gain-match LEDs show you perfect gain setting
- Customize the appearance with reversible center panel and choice of 11 RGB LED accent colors
- Comes with FIT+™ technology, accepting low- and high-level signals up to 40V, with full differential inputs created to eliminate unwanted noise
- LX features choice of turn-on modes and a bevy of protections for thermal, circuit, and voltage

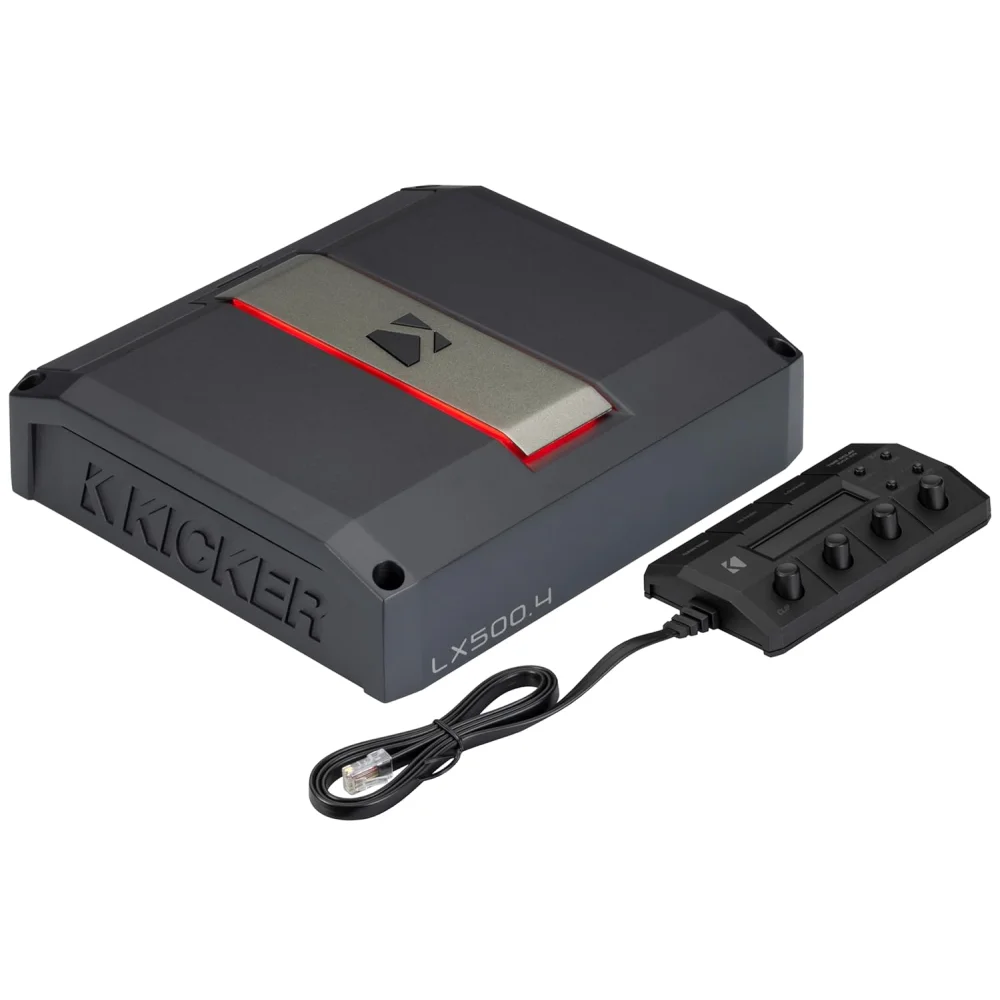

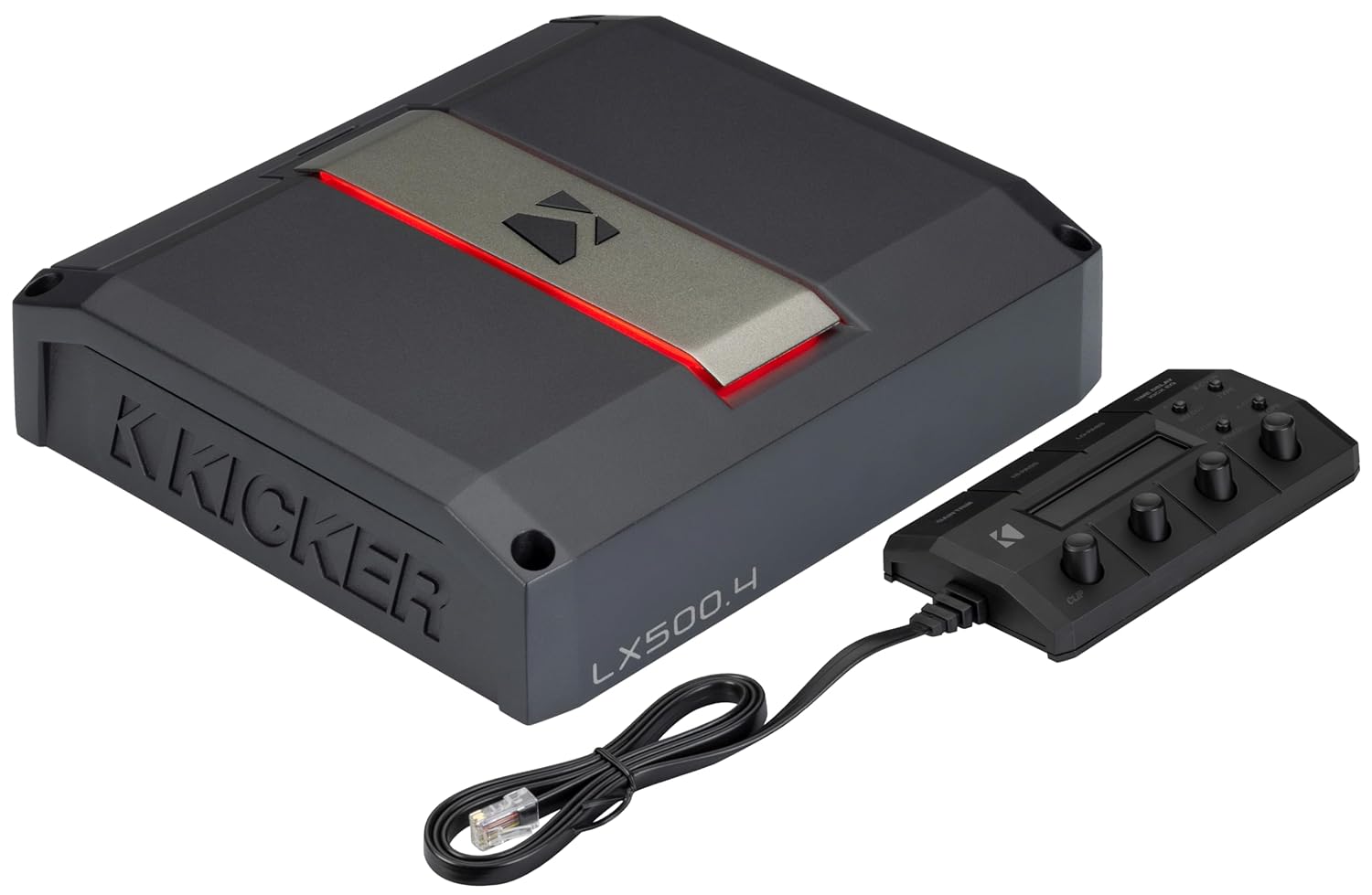

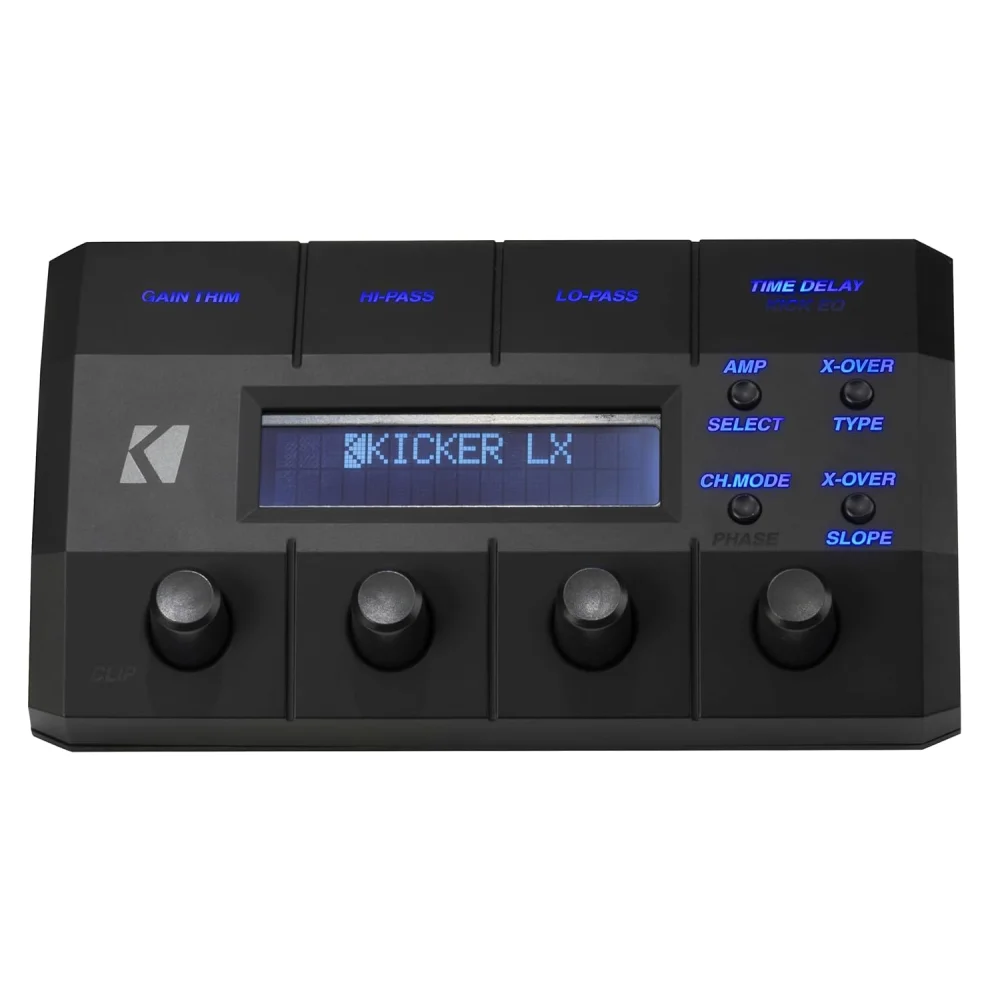

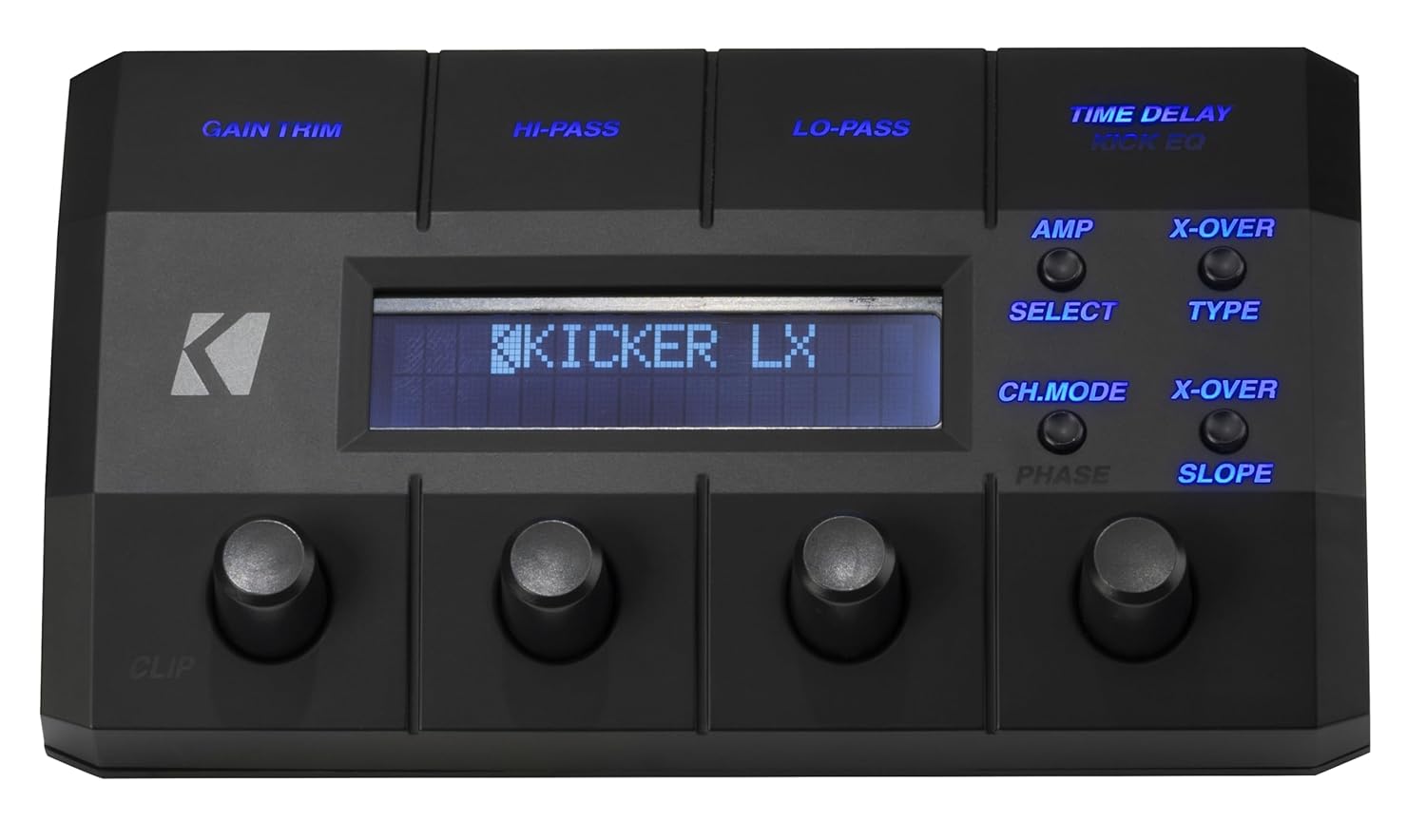

Comes with the LX CONTROL CENTER (LXCC)
- Provides fine-tuning control and diagnostic readouts for battery voltage, amp temperature, and protection status
- Features DSP control of: gain trim, LED output clip indication, selectable crossover type and slope, variable crossover ranges
- DSP control of left-channel time delay on stereo channels
Specifications
| LX 500.4 White Paper |
| 51LX5004 Whitepaper PDF |
| RMS Power [Watts/Channel] @ 14.4V |
| 2Ω Stereo: 225 x 4 4Ω Stereo: 125 x 4 4Ω Bridged: 450 x 2 |
| Dynamic Power [Watts] |
| 1100 |
| Frequency Response [Hz] |
| 20–20k |
| Signal-to-Noise Ratio (a-weighted, re: rated power) |
| >95dB |
| Signal-to-Noise Ratio (ref: 1W output) |
| >75dB |
| Dimensions [in, cm] |
| Height: 2-3/8 (6 cm) Width: 8-7/16 (21.4 cm) Length: 9-7/16 (24 cm) |
| Input Sensitivity |
| High level 1V–40V Low level 125mV–5V |
| Variable Electronic Crossover |
| 24dB/octave Linkwitz-Riley Each channel pair Off/HP/LP/BP: • HP: 20–5kHz • LP: 40–5kHz Selectable Topology: 12, 18, or 24dB/oct Butterworth; 12 or 24dB/oct Linkwitz-Riley |
| KickEQ+™ |
| Not applicable for LX500.4 (no sub channel) |
| Warranty |
| When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of TWO (2) YEARS from date of original purchase. |
