Description

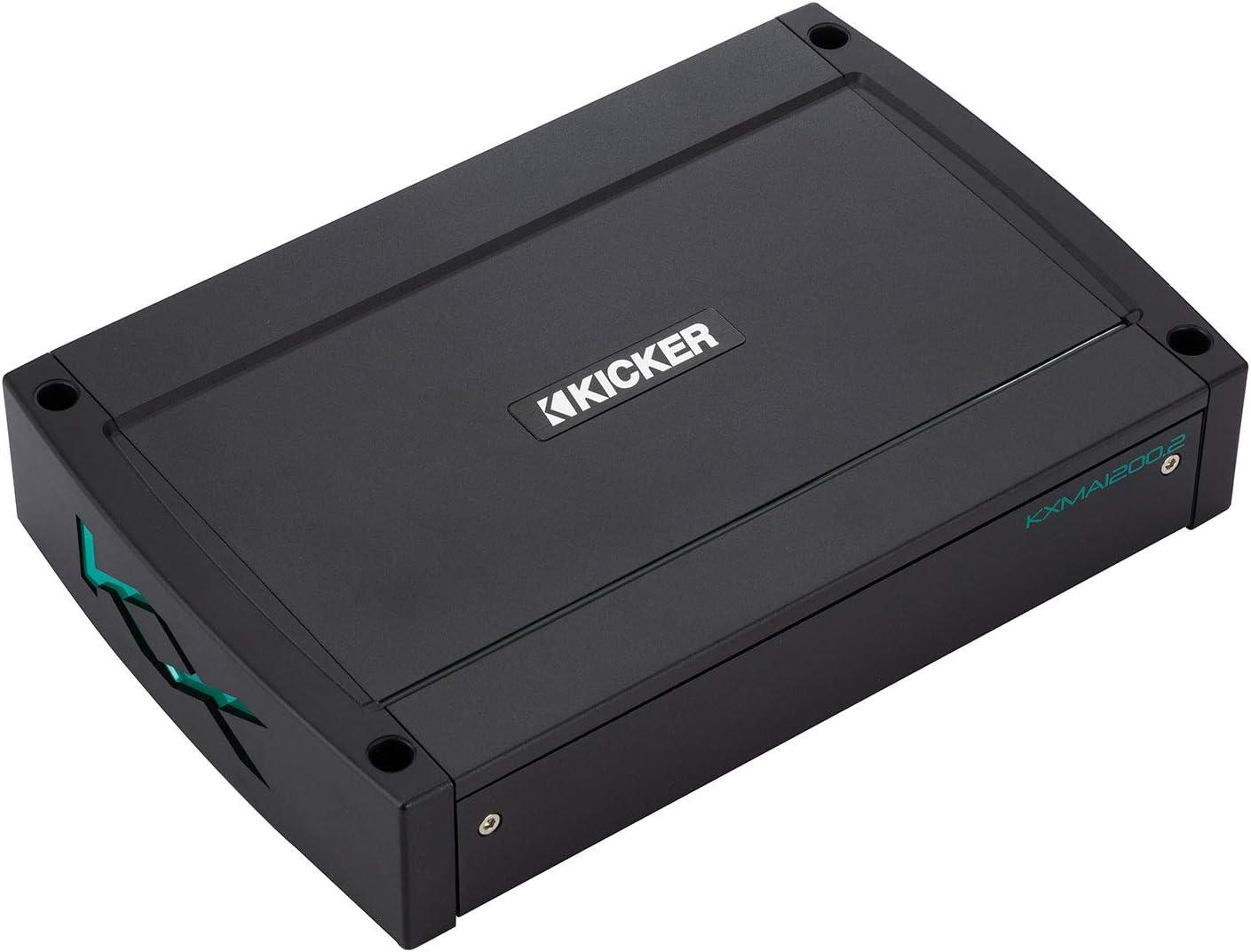

KXMA1200.2 Marine Amplifier
Gain, crossover and bass-boost controls are protected behind a gasket-sealed panel, as is the control cover hiding the settings, creating a water-resistant barrier to key controls. KickEQ™ delivers as much as an 6dB of extra bump with a simple turn of the knob. A powerful 24dB crossover is also included, letting you quickly tune your system to perfection.
- Class D Amplifier
- Gain Control With "Gain Match" LED Indicator
- FIT2™ (Fail-safe Integration Technology) Circuitry
- Variable 24dB Crossover
- DSP-Controlled Preamp
- KickEQ™ 6dB Variable Bass Boost

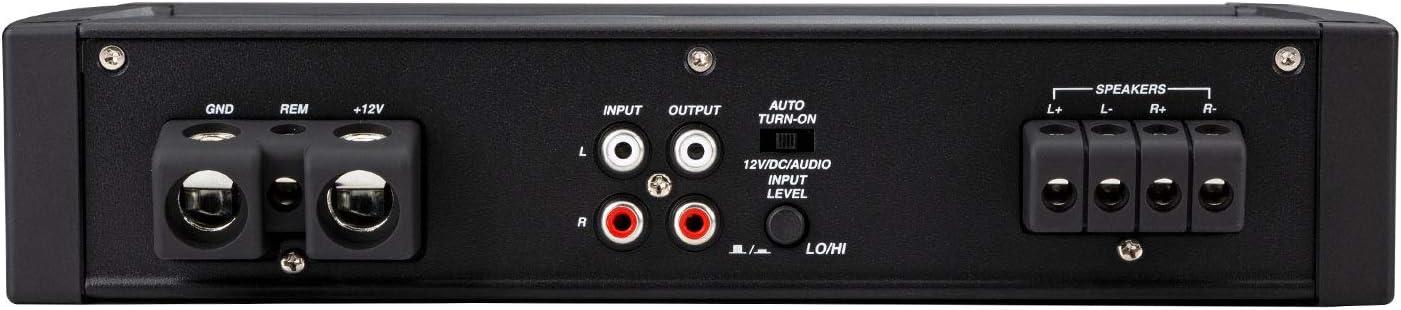

- ABYC/NMMA-Compliant Power Terminals
- Conformal-Coated Circuit Boards
- Easy Access to Settings behind Gasket-Sealed Cover Panel
- Black Anodized Aluminum Chassis

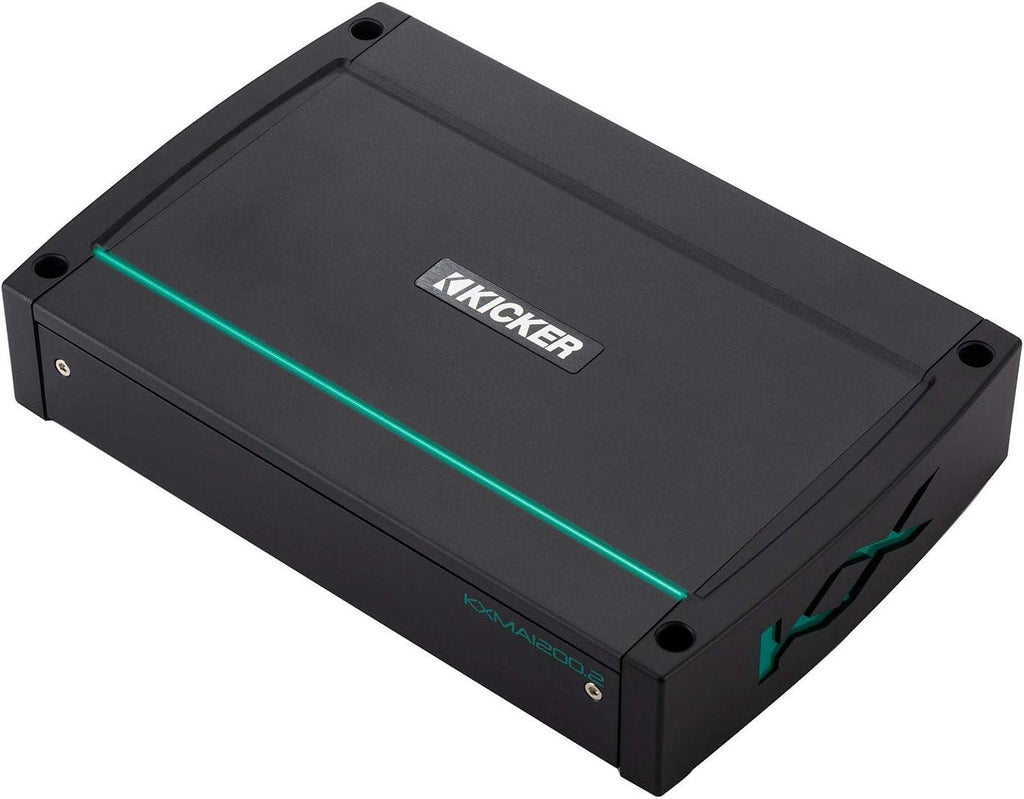

- Top-Mounted, Teal LED Light Pipe
- Stainless-Steel Mounting Hardware Included
This KXMA amplifier delivers as much as 600 watts into two full-range channels. See below for more details.
Real Marine™
The KICKER Real Marine standard means your amplifier is purpose-built for your boat. Every KXMA (and KMA)-Series amp comes complete with anti-corrosive speaker, power and RCA terminals, stainless-steel screws, conformal-coated circuit boards and ABYC/NMMA-compliant power connections. KICKER products also undergo rigorous testing to ensure they meet or exceed marine industry standards for UV, humidity and saltwater exposure. This unparalleled commitment to engineering quality and maritime safety is why our products truly are "Real Marine."
Specifications
POWER [watts/ch], 2 OHM STEREO |
600 X 2 |
POWER [watts/ch], 4 OHM STEREO |
300 X 2 |
DYNAMIC POWER [watts]: |
1500 |
DIMENSIONS [in] all models 2-1/8H x 8-5/16W x ___L |
11-3/16 |
DIMENSIONS [cm] all models 5.4H x 21.0W x ___L |
28.4 |
FREQUENCY RESPONSE [Hz] |
10-20k, +0/-1dB |
INPUT SENSITIVITY |
High Level 250mV-10V, Low Level 125mV-5V |
SIGNAL-TO-NOISE RATIO |
>95dB, a-weighted, re: rated power |
ACTIVE CROSSOVER |
24dB/octave, Off/variable high pass 10-500Hz, variable low pass 40-500Hz (400-5kHz w/ 10x switch), band pass capable |
KickEQ™ BOOST |
Variable 0-6dB, centered @ 40Hz |
