Description

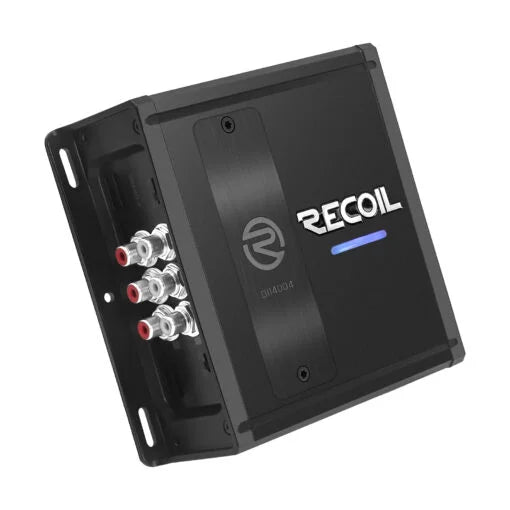

💥 DII400.4 Ultra-Compact Full-Range Class-D 4-Channel Amplifier 💥
🚗 Max Power & Performance
🔊 Peak Power: 800 Watts
🎶 RMS Power:
100W x 4 @ 2Ω (14.4V)
60W x 4 @ 4Ω (14.4V)
200W x 2 (Bridged) @ 4Ω (14.4V)
⚡ 2-4Ω Stable & Bridgeable for versatile configurations.
🛠️ Key Features
🎛️ Versatile Inputs: RCA level & speaker-level compatibility.
🔄 Turn-On Modes: Choose from REM, VOX, or DC activation.
🔗 RCA Pass-Through Outputs: Simplifies system expansion.
🔒 4-Way Protection Circuit: Thermal, voltage, speaker, and short-circuit safeguards.
🔀 2/4 Channel Input Switch: Adaptable for various setups.
✨ Smart Design for Enhanced Control
💡 Top-Mounted LED Clip Indicator: Real-time performance monitoring.
🎚️ Accessible Controls: Easily adjust gain, LPF, HPF, crossover, and more beneath a protective cover.
🌊 Engineered for Endurance
🛡️ Conformal-Coated Circuit Board: Protects against dust and moisture, ideal for:
Powersports 🛵
Marine 🛥️
Golf Carts 🏌️♂️
Bikes 🚴♂️
❄️ Highly Efficient Heatsinks: Keep the amplifier cool and running efficiently.
📏 Ultra-Compact Dimensions
Size: 5.55″ x 5.37″ x 2.09″ (141mm x 136.5mm x 53mm)
📊 Specifications
Frequency Response: 10Hz – 24kHz
Signal-to-Noise Ratio: 85dB
Efficiency @ 4Ω: 78%
Input Sensitivity: 0.2V – 12V
High-Pass Filter: 30Hz – 300Hz
Low-Pass Filter: 30Hz – 300Hz
Fuse Rating (ATC): 40A
📝 Why Choose the DII400.4?
Built with the latest Class-D technology, the DII400.4 offers incredible efficiency and power in a compact, sleek package. Perfect for systems requiring both full-range and bridged configurations, it delivers reliability, durability, and stunning audio performance in even the harshest environments.
🔥 Power your system with the DII400.4 today! 🔥
