Description
Features
- High efficiency full range Class D Technology
- Audiophile Grade tiffany RCA connectors
- ACT- adaptive Low-Pass, High-Pass filter on Ch 1-2
- ACT - adaptive Low-Pass, Band-Pass, High-Pass filter on Ch 3-4
- SESI- Signal Evaluation status indicator

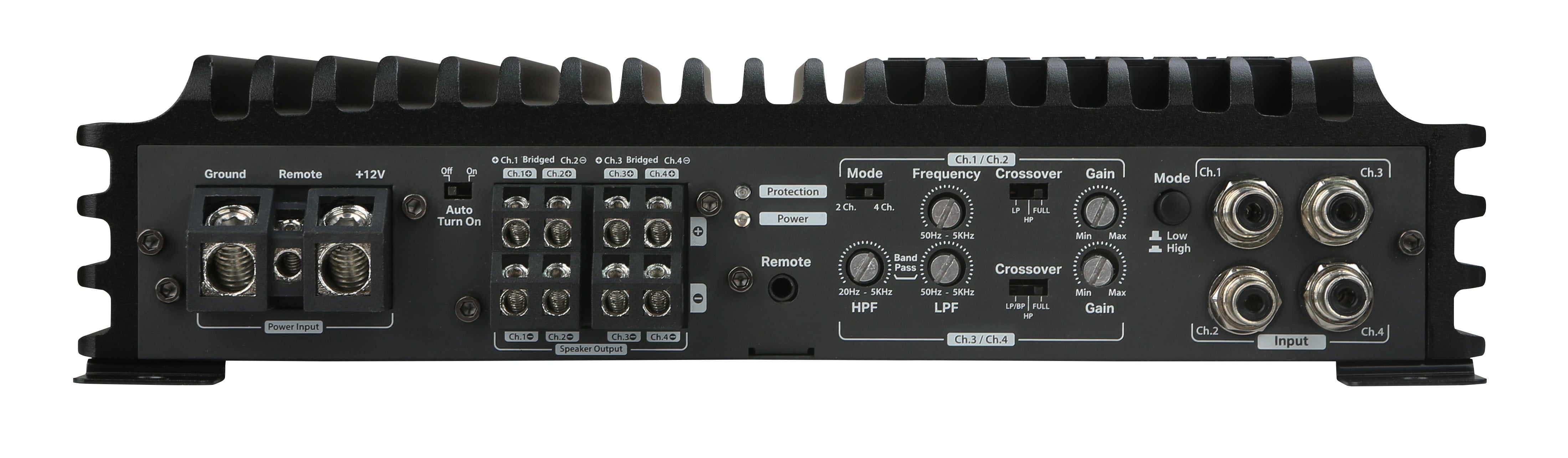

- Direct Connect Speaker Outputs
- Large Gauge Power Wire Inputs
- APC - Audio Circuit Protection
Specifications
- 4 x 165 Watts @ 4 ohms
- 4 x 250 Watts @ 2 ohms
- 2 x 350 Watts @ 4ohms (Bridged)
- Ch 1/2 High Pass Filter Variable: 50 Hz - 5K Hz
- Ch 1/2 Low Pass Filter Variable: 50 Hz - 5K Hz
- Ch 3/4 High Pass Filter Variable: 20 Hz - 5K Hz
- Ch 3/4 Low Pass Filter Variable: 50Hz - 5K Hz
- Working Voltage: 9- 16 Volts
- Frequency Response: 20Hz - 20KHz
- Signal to Noise Ratio: <92dB
- Damping Factor @ 100Hz - 4volts/4-ohms <66
- Selectable Low Level Input ranges : 450MV - 8V

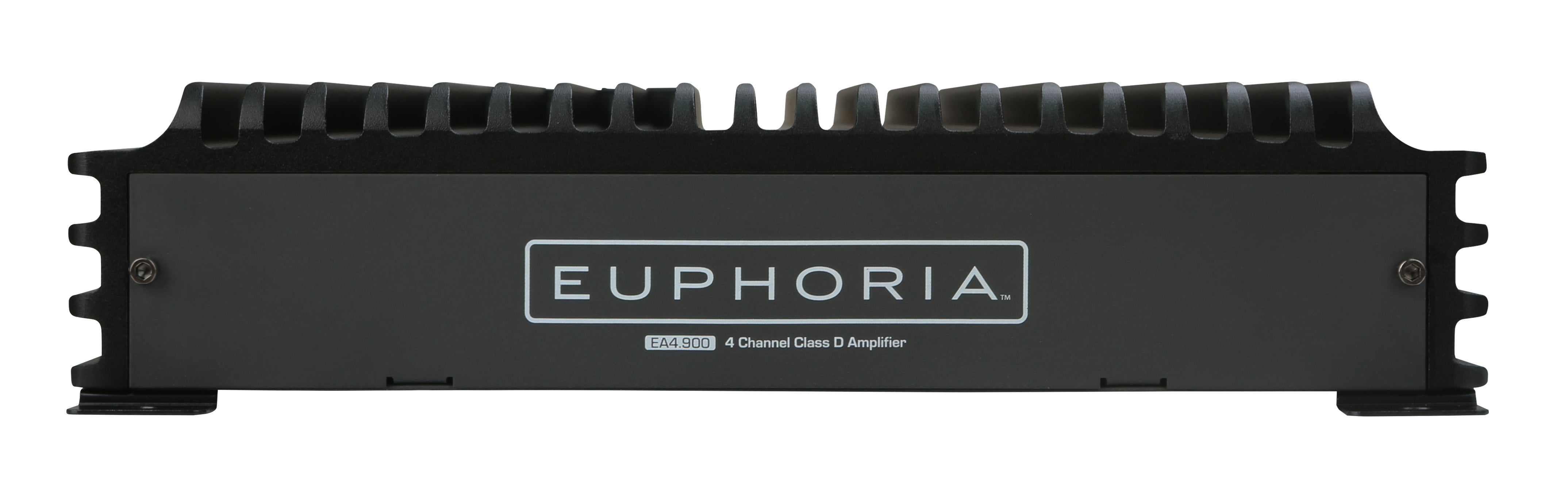

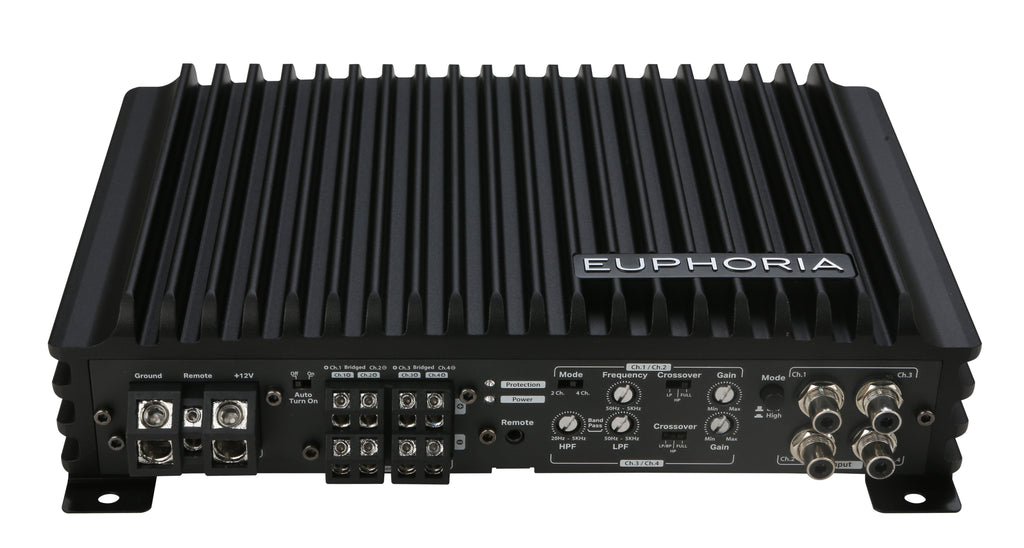

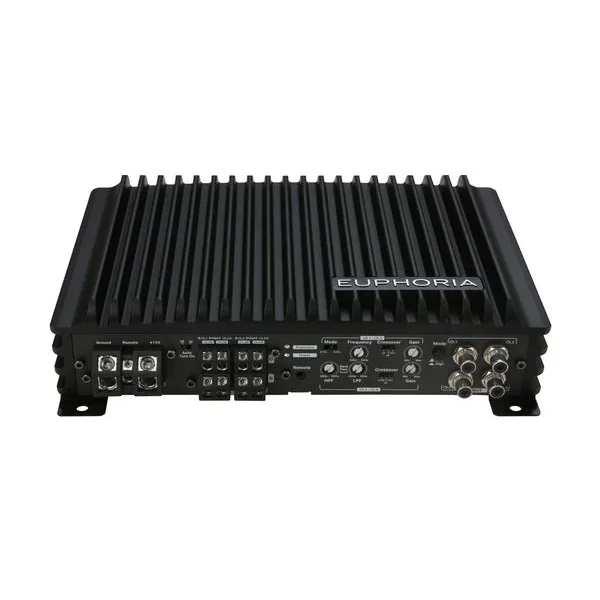

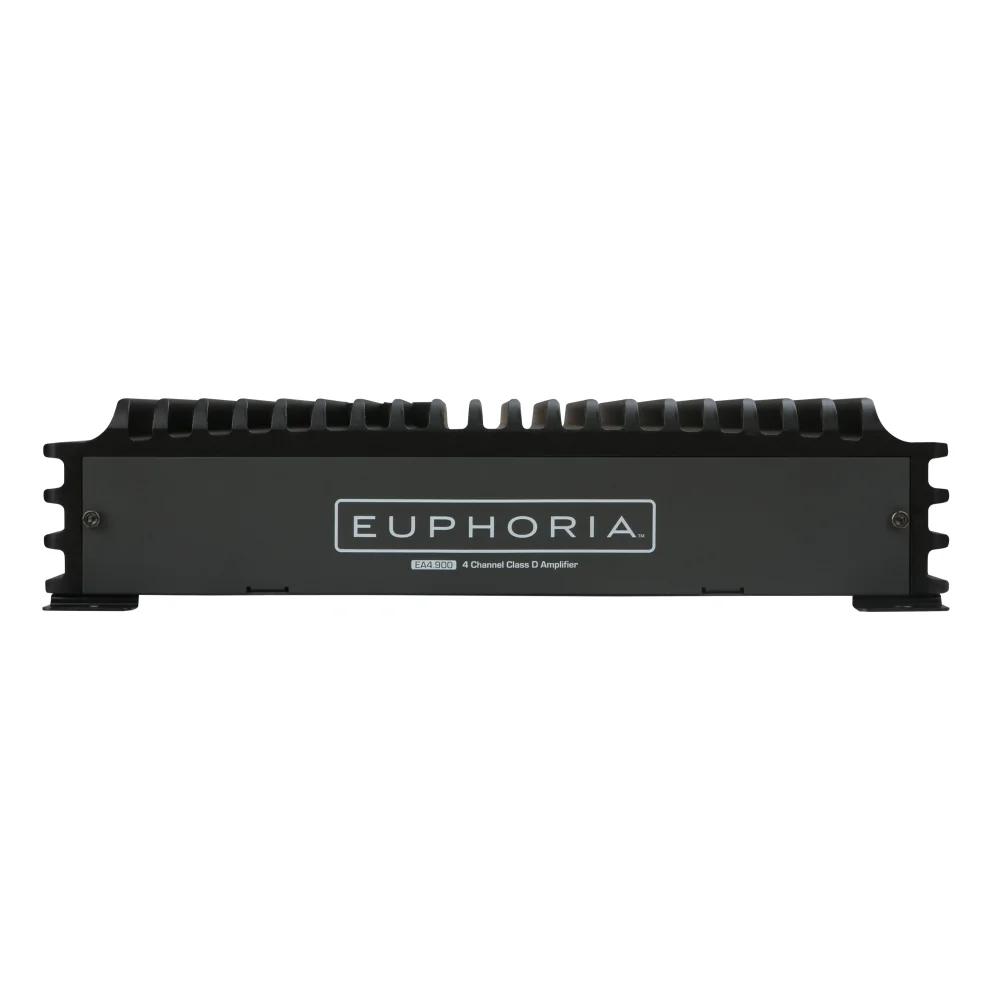

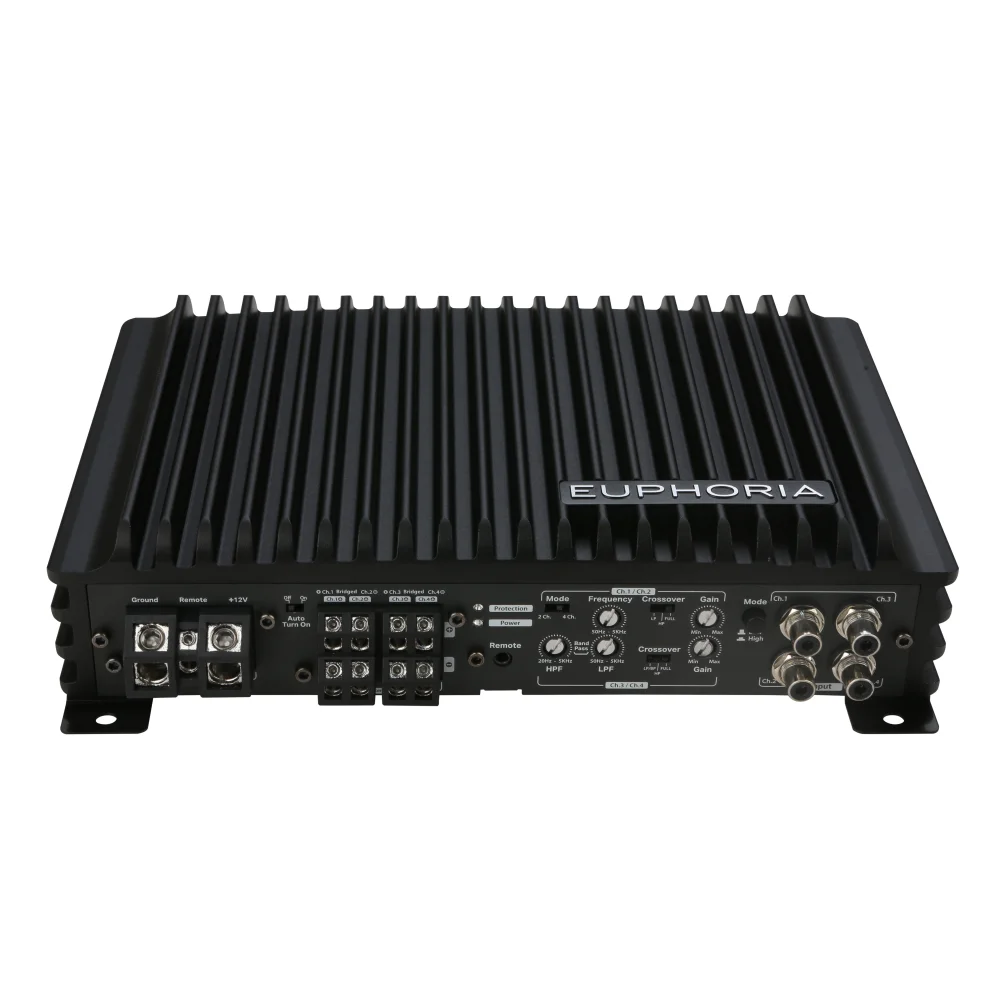

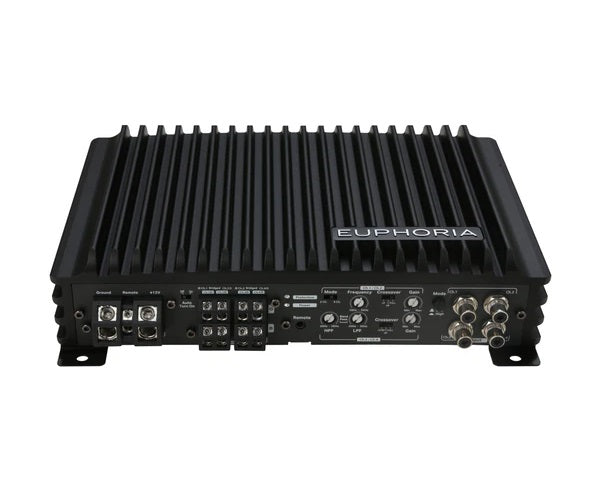

Description

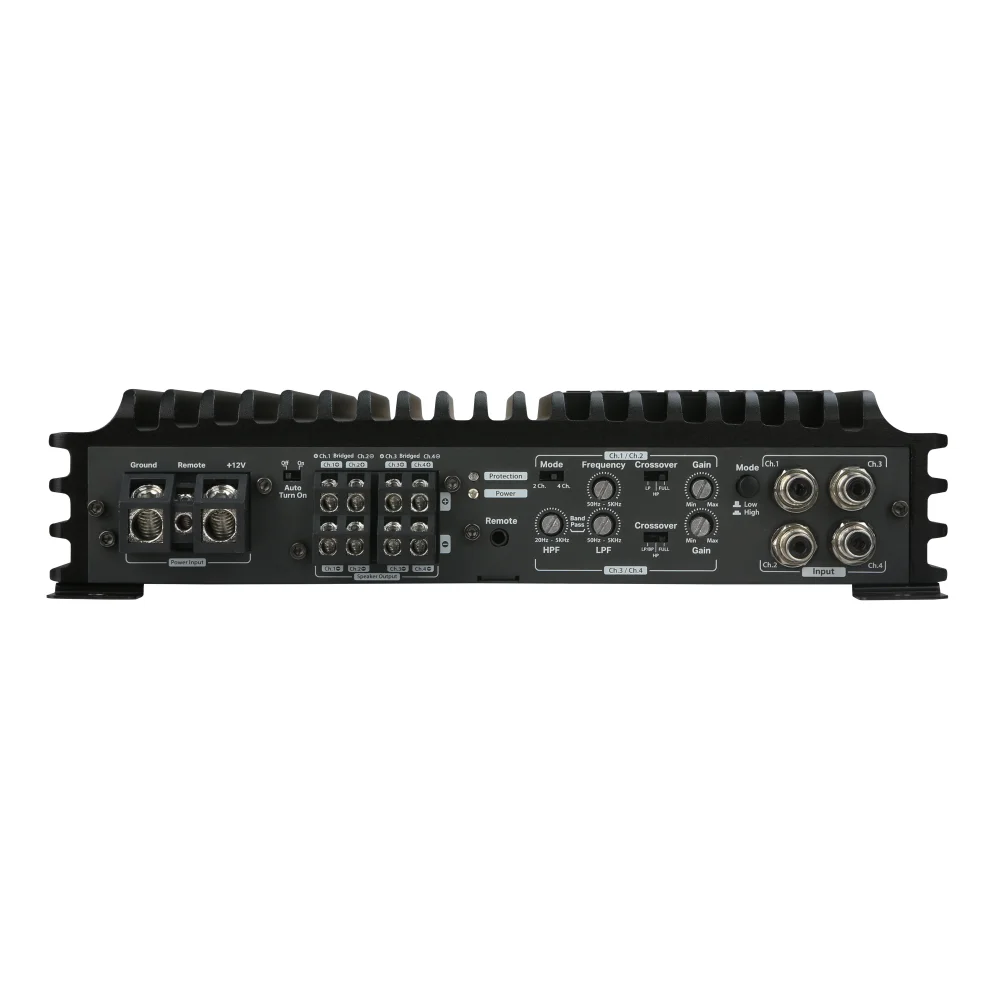

For those who demand premium sound, the Euphoria EA4.900 4-channel amplifier is your ultimate solution. Designed for both audiophiles and casual listeners, it offers dynamic, high-performance audio. Key Features: • Power Output: 165W x 4 at 4 ohms, 250W x 4 at 2 ohms, delivering clear, full-range sound. • Bridgeable Design: Easily drive a subwoofer for enhanced low-end performance. • High-Efficiency Class D Design: Ideal for modern electrical systems. • Adaptive Crossover: Fine-tune your audio for optimal sound. • Precision Tuning: Metal potentiometers ensure stable settings. • 4-Layer PCB: Delivers cleaner, more accurate sound. • Compact Design: Easy to install without compromising on power. Elevate your car audio experience with the Euphoria EA4.900 for sound like never before.
Product Manual
Product Manual PDF
