Description
Features
- High efficiency full range Class D Technology
- Audiophile Grade tiffany RCA connectors

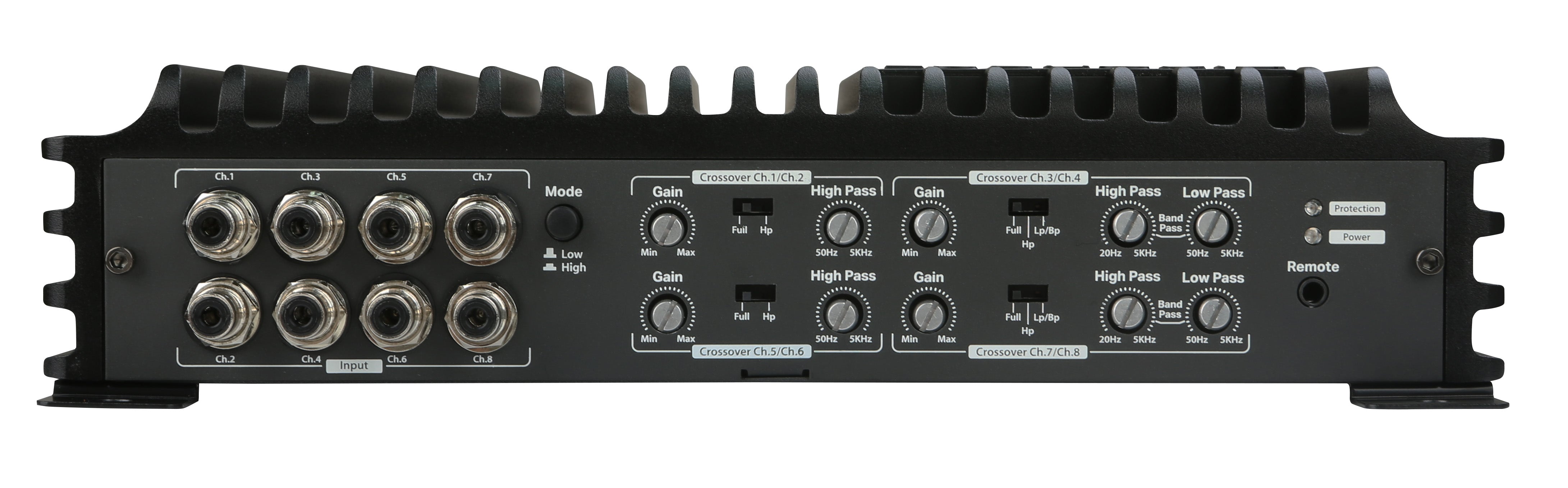

- ACT-adaptive High-Pass filter on Ch 1-2 , 5-6
- ACT-adaptive Low-Pass, Band-Pass, High-Pass filter on Ch 3-4 , 7-8

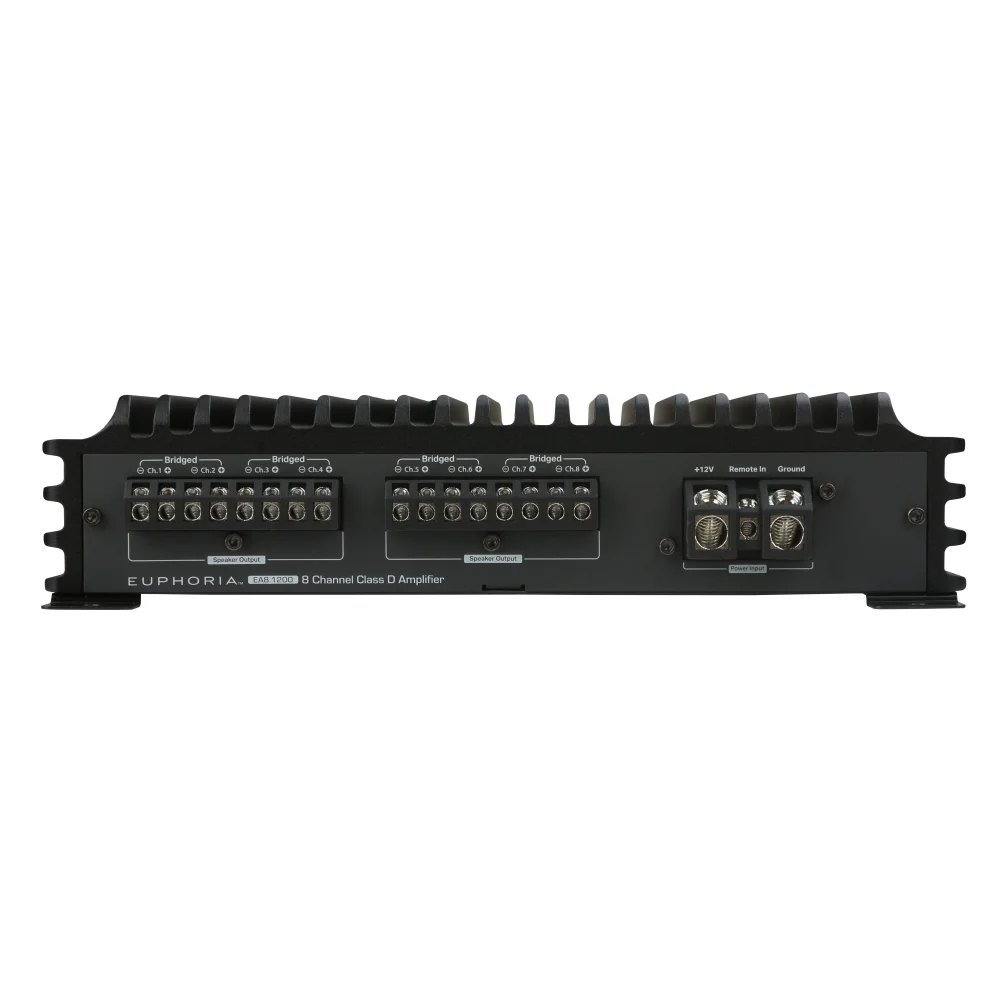

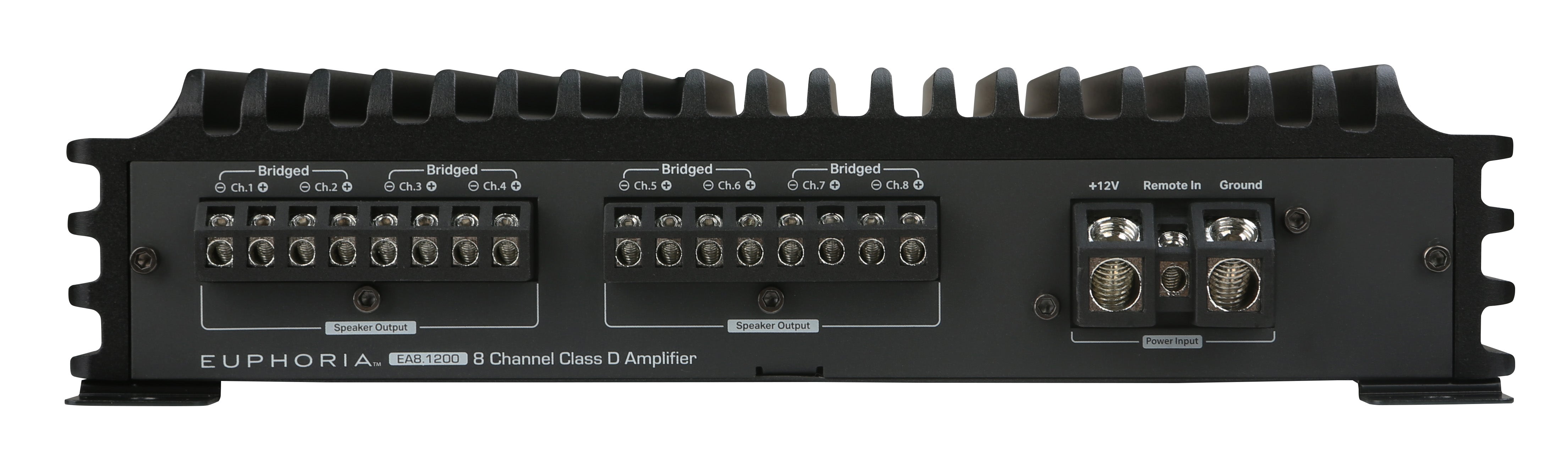

- Direct Connect Speaker Outputs
- Large Gauge Power Wire Inputs
- APC-Audio Circuit Protection
- SESI-Operation status indicator
Specifications
- 8 x 125 Watts @ 4 ohms
- 8 x 200 Watts @ 2 ohms
- 4 x 300 Watts @ 4ohm (Bridged)
- Ch 1/2 High Pass Filter Variable: 50 Hz - 5K Hz
- Ch 3/4 High Pass Filter Variable: 20 Hz - 5K Hz
- Ch 3/4 Low Pass Filter Variable: 50 Hz - 5K Hz
- Ch 5/6 High Pass Filter Variable: 50 Hz - 5K Hz
- Ch 7/8 High Pass Filter Variable: 20 Hz - 5K Hz
- Ch 7/8 Low Pass Filter Variable: 50 Hz - 5K Hz
- Working Voltage: 9- 16 Volts
- Frequency Response: 20Hz - 50KHz
- Signal to Noise Ratio: <92dB
- Damping Factor @ 100Hz - 4volts/4-ohms <100
- Selectable Low Level Input ranges : 400MV - 6.75V
Description

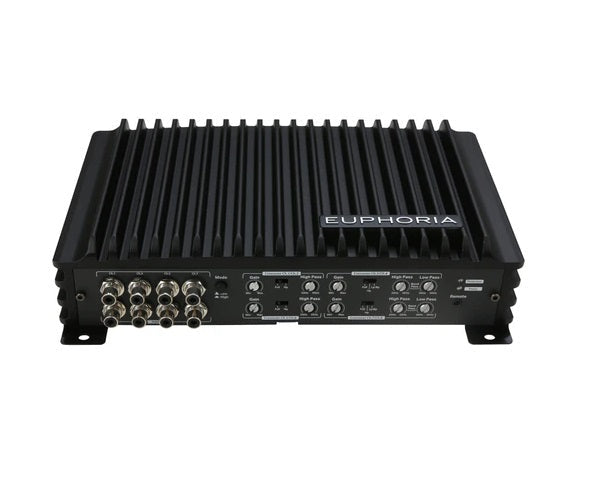

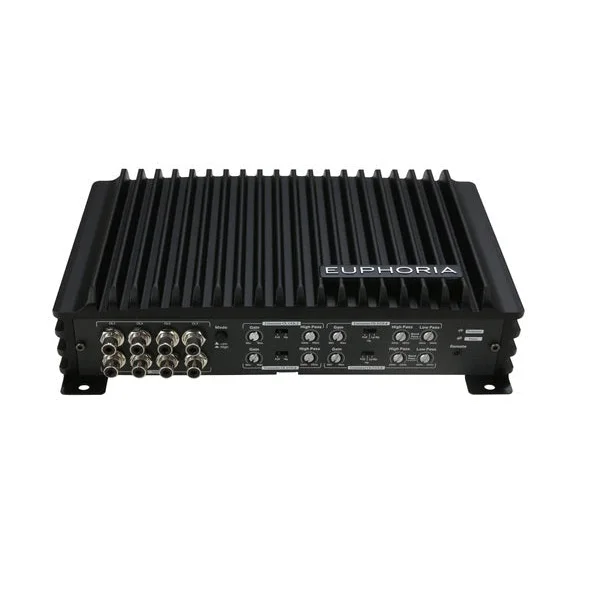

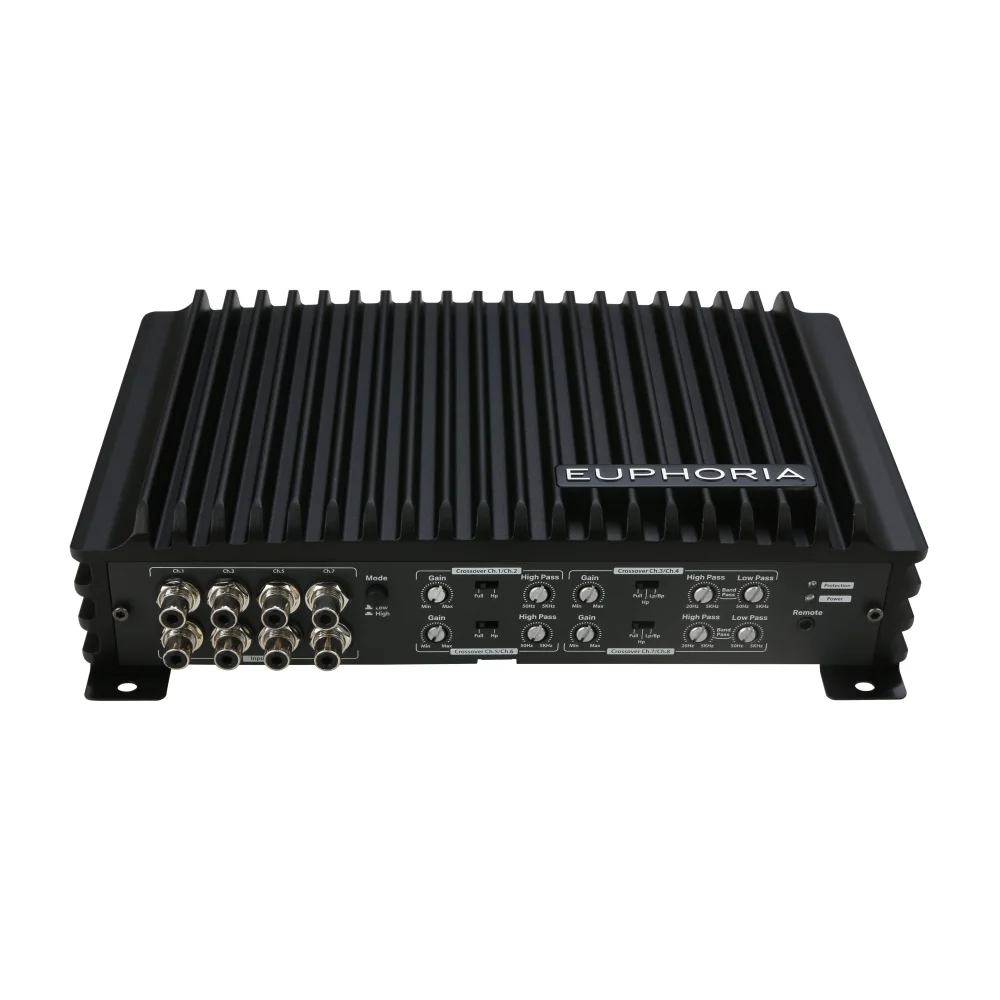

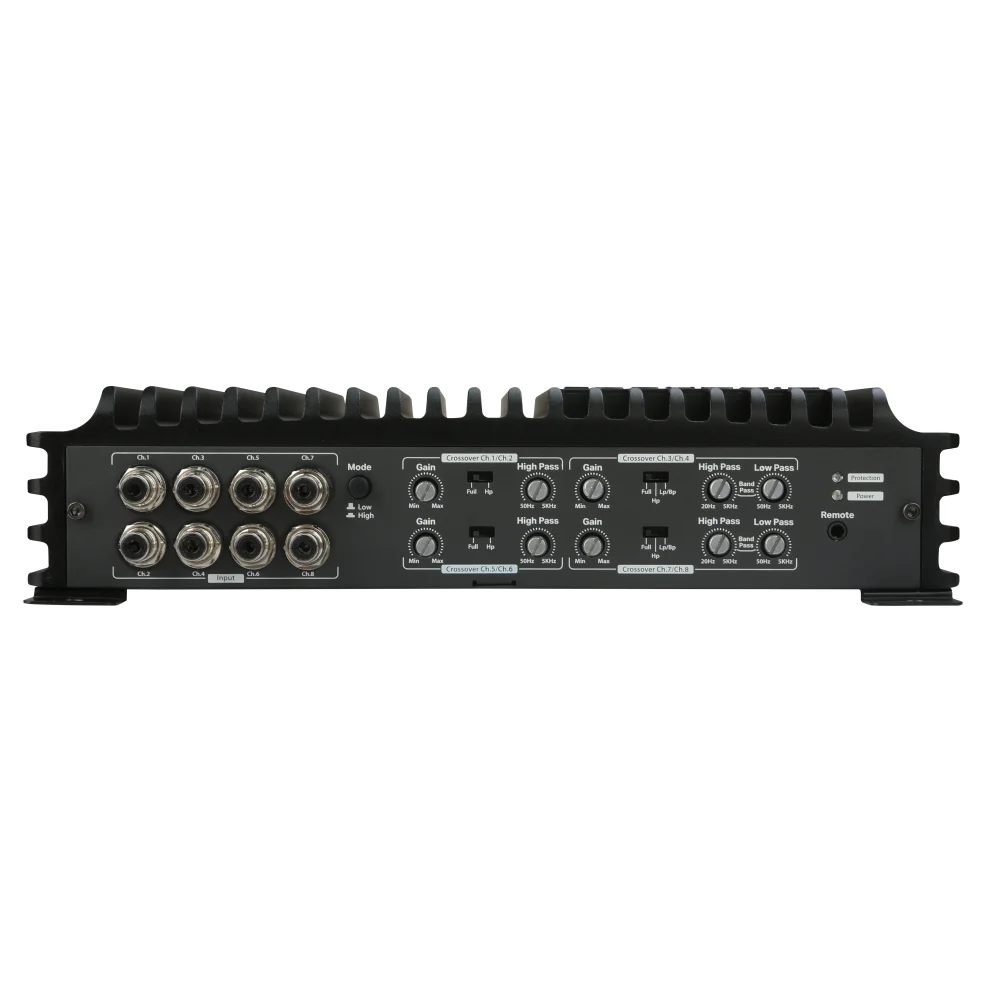

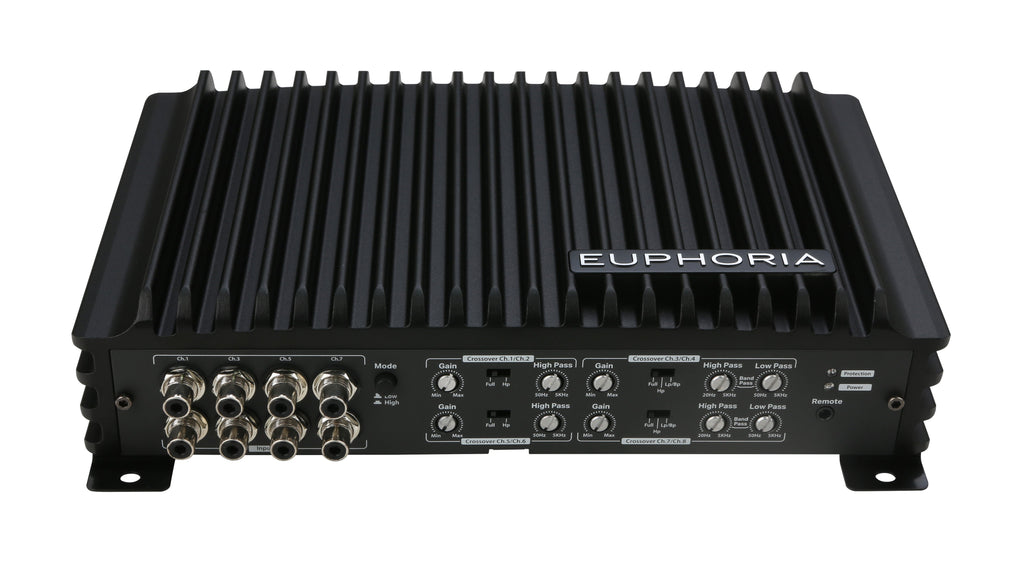

For those who demand premium sound, the Euphoria EA8.1200 8-channel amplifier is your ultimate solution. Designed for both audiophiles and casual listeners, it offers dynamic, high-performance audio.
Key Features:
• Power Output: 125W x 8 at 4 ohms, 200W x 8 at 2 ohms, delivering clear, full-range sound.
• Bridgeable Design: Easily drive a subwoofer for enhanced low-end performance.
• High-Efficiency Class D Design: Ideal for modern electrical systems.
• Adaptive Crossover: Fine-tune your audio for optimal sound.
• Precision Tuning: Metal potentiometers ensure stable settings.
• 4-Layer PCB: Delivers cleaner, more accurate sound.

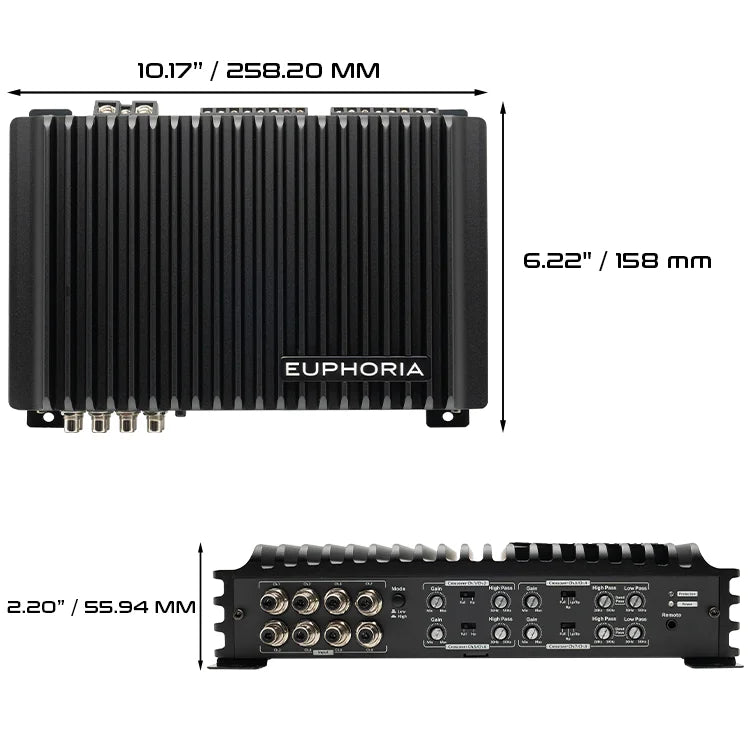

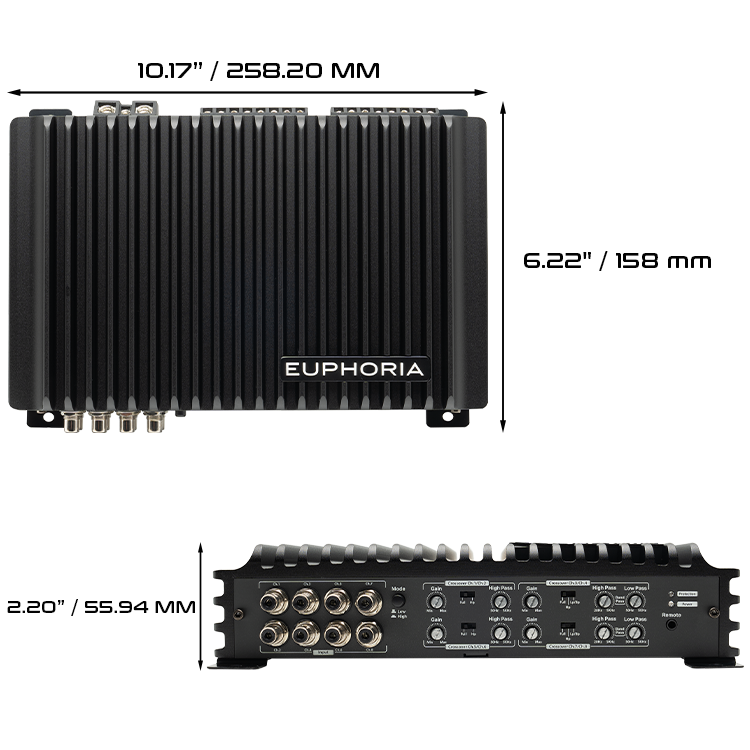

• Compact Design: Easy to install without compromising on power.
Elevate your car audio experience with the Euphoria EA8.1200 for sound like never before.
Product Manual
Product Manual PDF
