Description
Features:
- 10″ Neodymium Series Mid Bass
- 2.5″ (63.5mm) Midrange Voice Coil

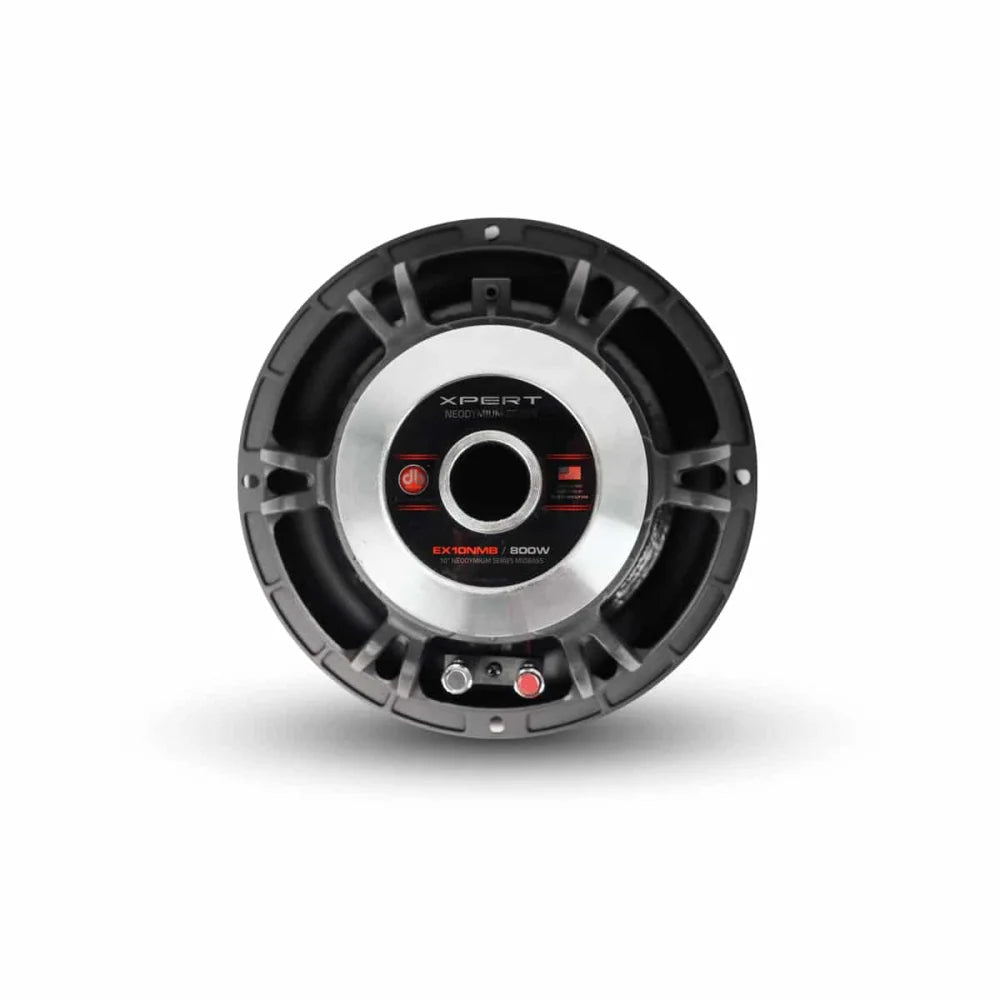

- Neodymium 12 Piece Radially Equalized Magnet Assembly
- IP52 Rated Paper Cone with Treated Rubber Surround

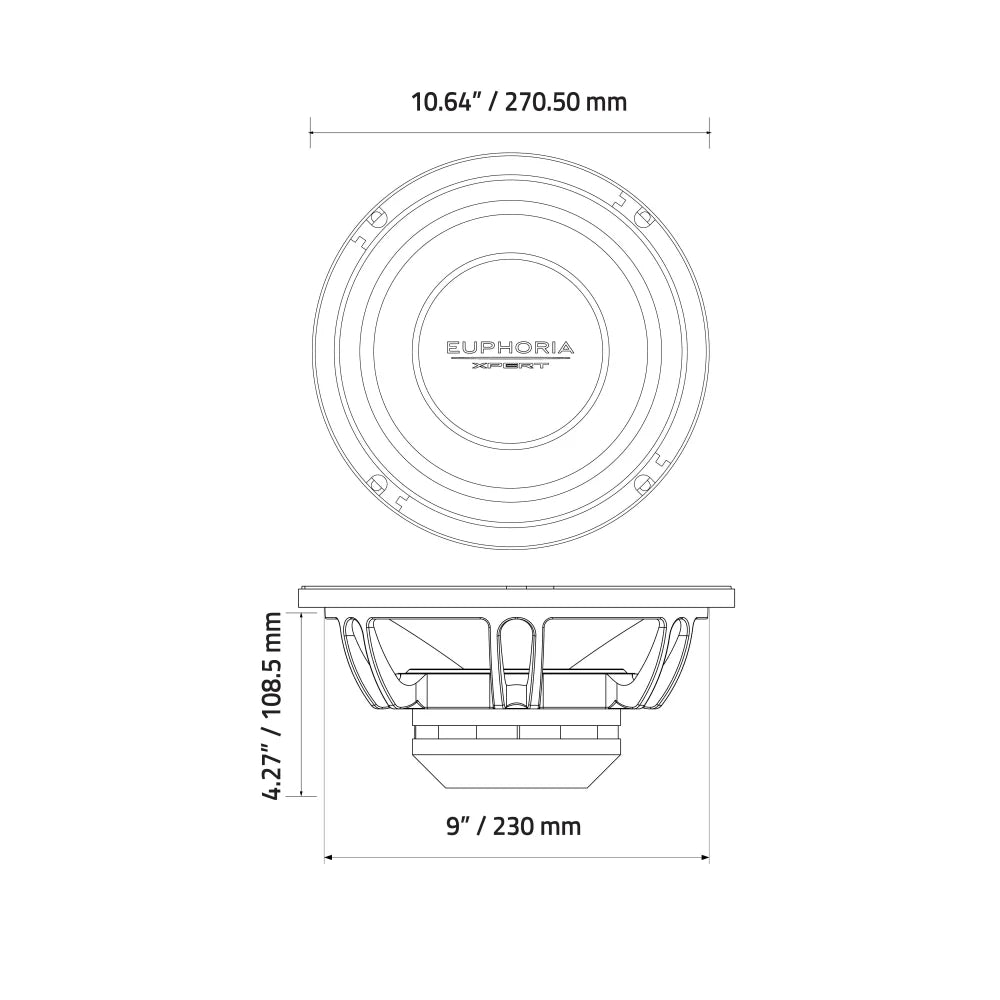

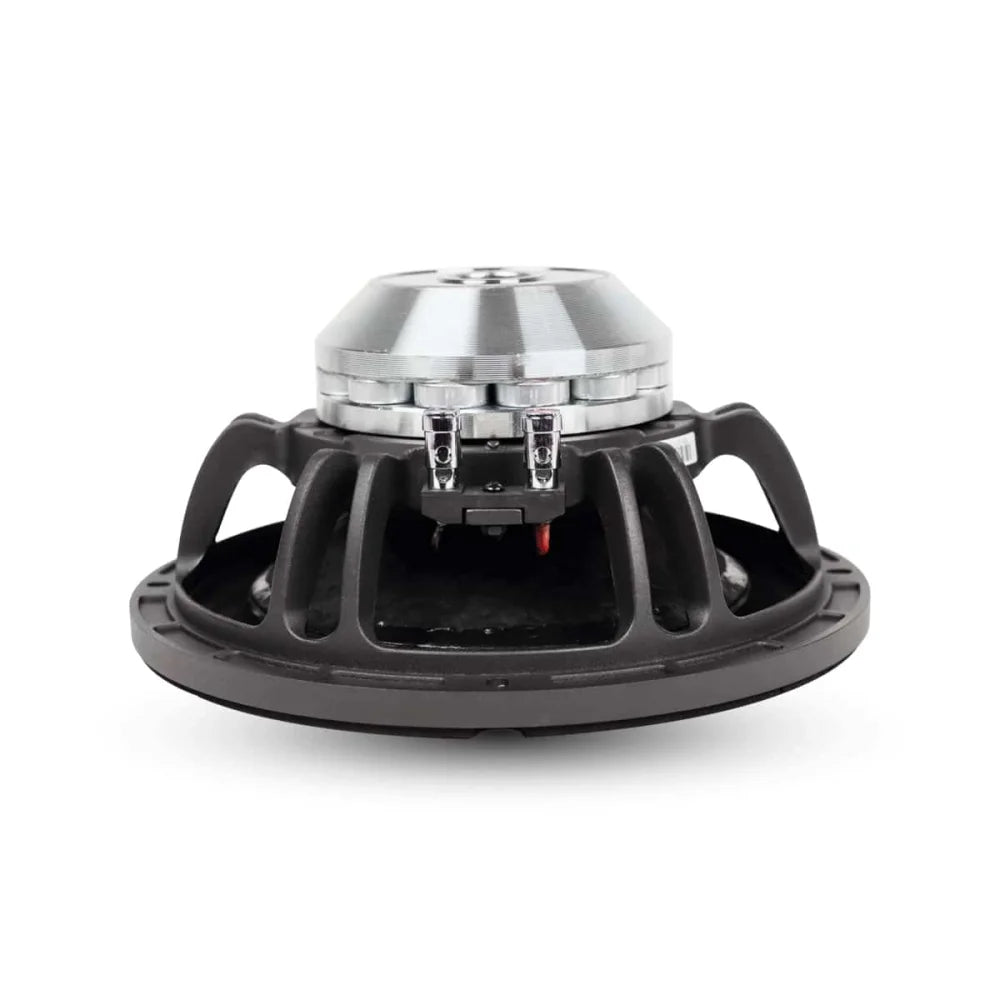

- Die-cast aluminum Basket with Radial Venting Dimensions
Specifications:
| Resonant Frequency (fs) | 40Hz |
|---|---|
| D.C. Voice Coil Resistance (Re) | 3Ω |
| Mechanical Quality Factor (Qms) | 2.913 |
| Electrical Quality Factor (Qes) | 0.485 |
| Total Quality Factor (Qts) | 0.416 |
| Compliance Equivalent Volume (Vas) | 25.94L |
| Mechanical Compliance (Cms) | 167.735 mm/N |
| Nominal Impedance | 4Ω |
| Power Handling | 400 Watts |
| Dynamic Wattage | 800 Watts |
| Sensitivity (1w/1m) | 92 dB |
| Voice Coil Diameter | 2.5″ (63.5mm) |
Description

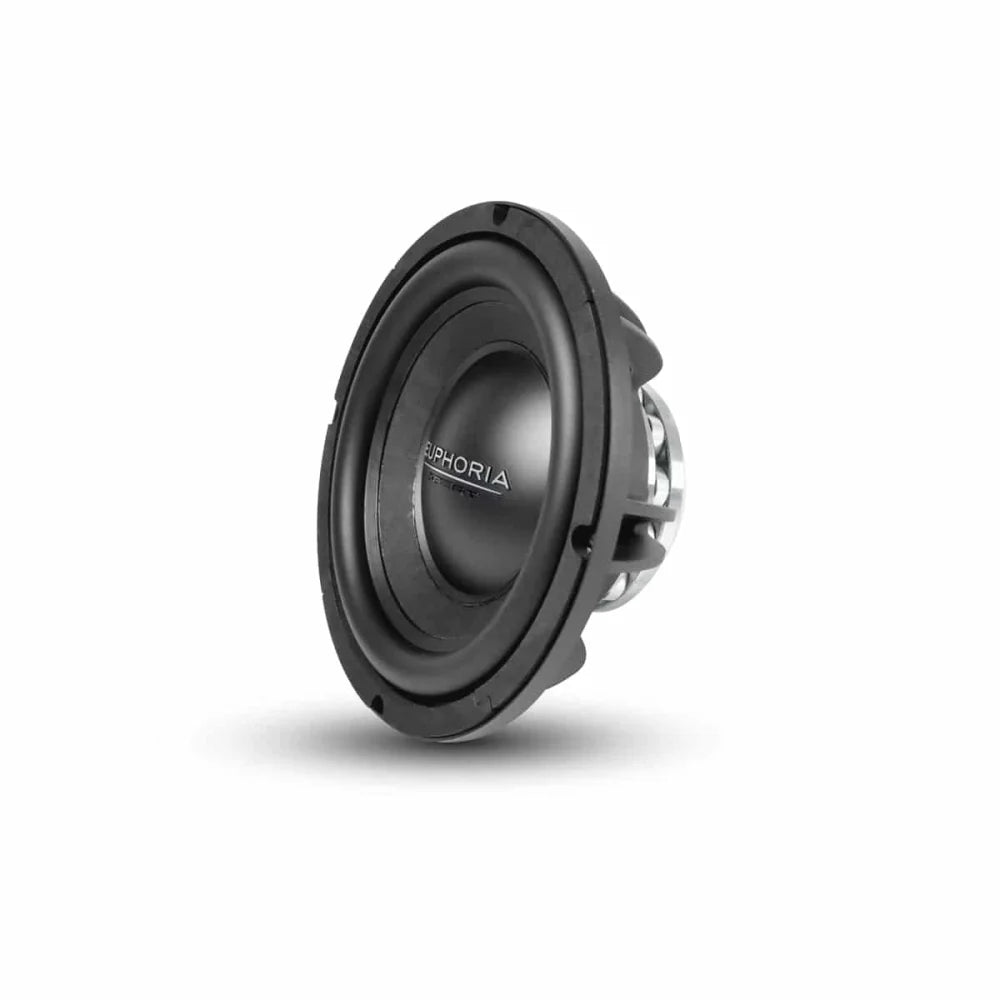

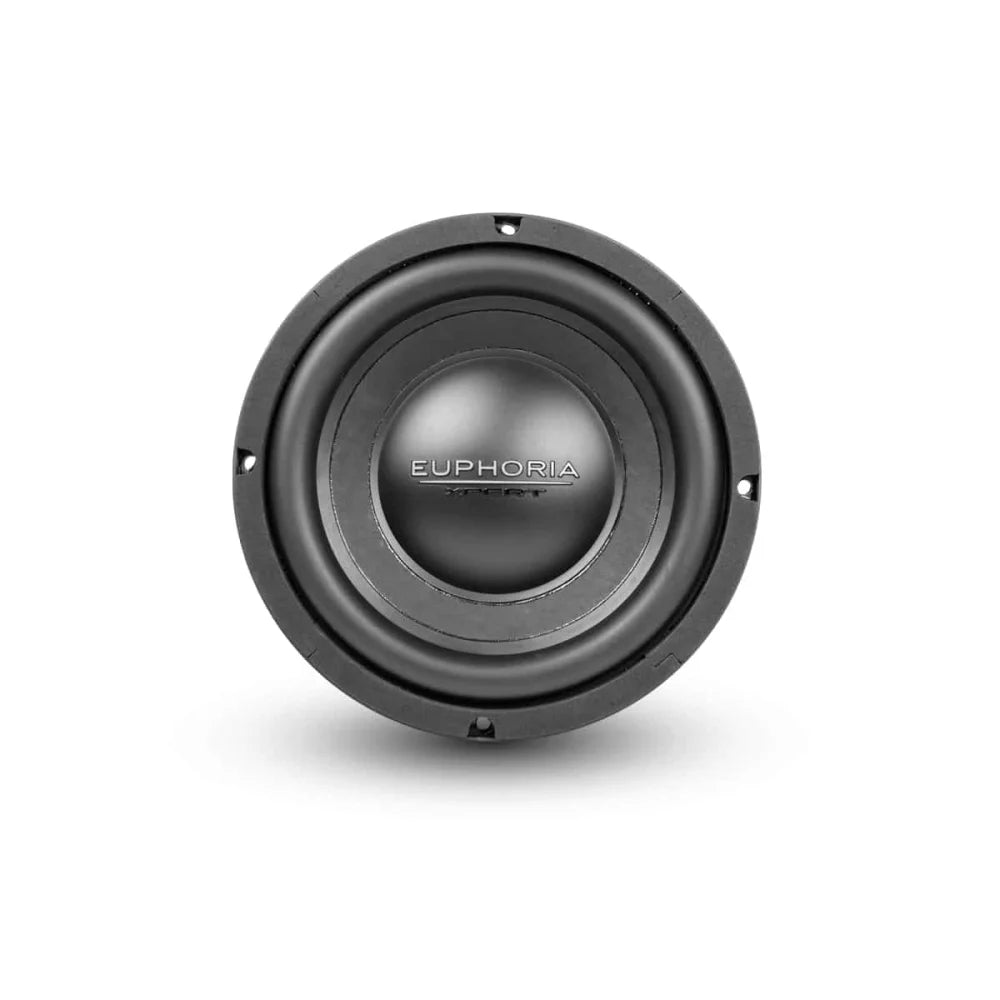

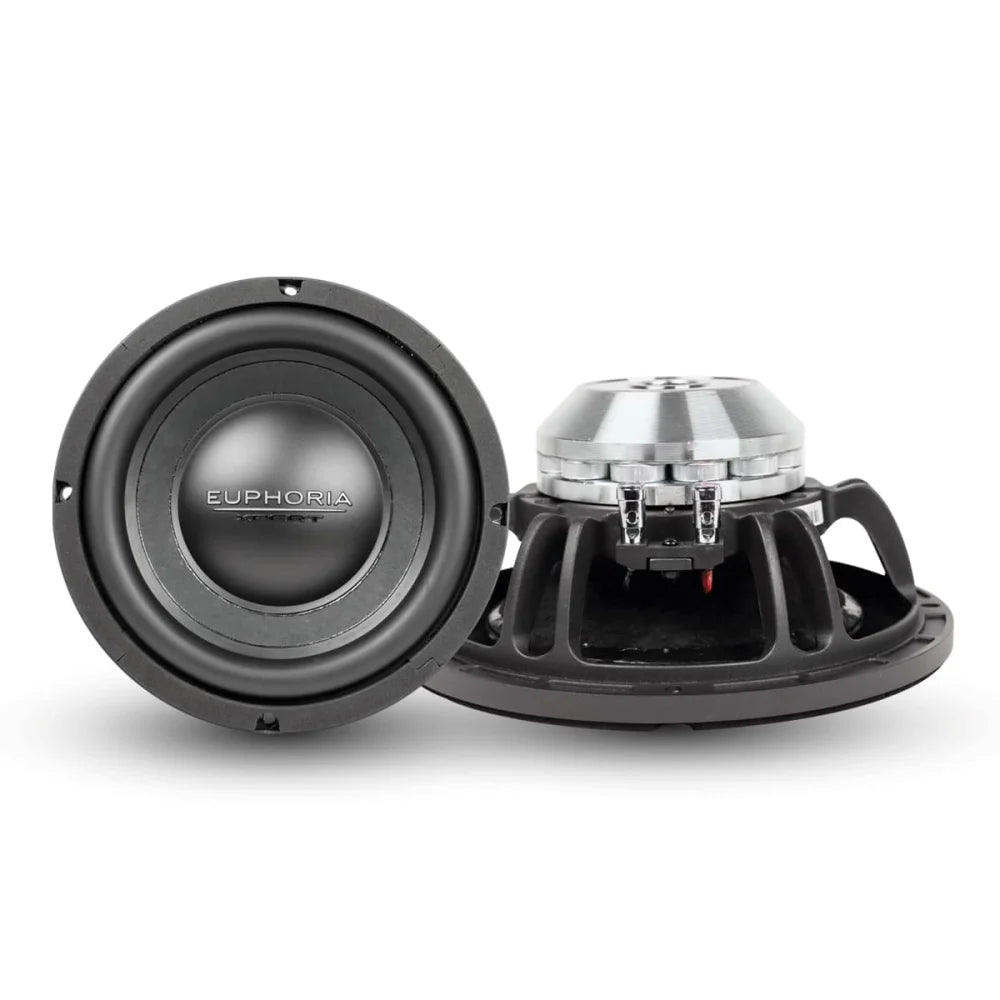

Experience the XPERT sound revolution with the EX10NMB 10in Die-Cast NEO Mid bass Driver!
Elevate your audio experience with the XPERT EX10NMB 10in Die-Cast NEO Mid bass Driver. This powerhouse of sound features a Neodymium 12 Piece Radially Equalized Magnet Assembly that ensures exceptional magnetic strength and clarity. With an IP52 Rated Paper Cone and Treated Rubber Surround, it promises durability and superior sound quality. The Die-Cast Aluminum Basket with Radial Venting enhances cooling and longevity. Boasting a Frequency Response of 45Hz - 2000KHz and a Sensitivity of 92dB, it delivers precise, powerful sound. Whether you're looking to amplify your music or upgrade your audio system, the EX10NMB offers unparalleled performance with its 800 Watts Max Power and 400 Watts Nominal Power. Embrace innovation with the XPERT NEO MID-BASS series and transform your sound experience today.
Elevate your audio experience with the XPERT EX10NMB 10in Die-Cast NEO Mid bass Driver. This powerhouse of sound features a Neodymium 12 Piece Radially Equalized Magnet Assembly that ensures exceptional magnetic strength and clarity. With an IP52 Rated Paper Cone and Treated Rubber Surround, it promises durability and superior sound quality. The Die-Cast Aluminum Basket with Radial Venting enhances cooling and longevity. Boasting a Frequency Response of 45Hz - 2000KHz and a Sensitivity of 92dB, it delivers precise, powerful sound. Whether you're looking to amplify your music or upgrade your audio system, the EX10NMB offers unparalleled performance with its 800 Watts Max Power and 400 Watts Nominal Power. Embrace innovation with the XPERT NEO MID-BASS series and transform your sound experience today.
Recone Available
If you would like to purchase the recone for this product, please email support@dbdrive.net
Product Manual
Product Manual PDF
