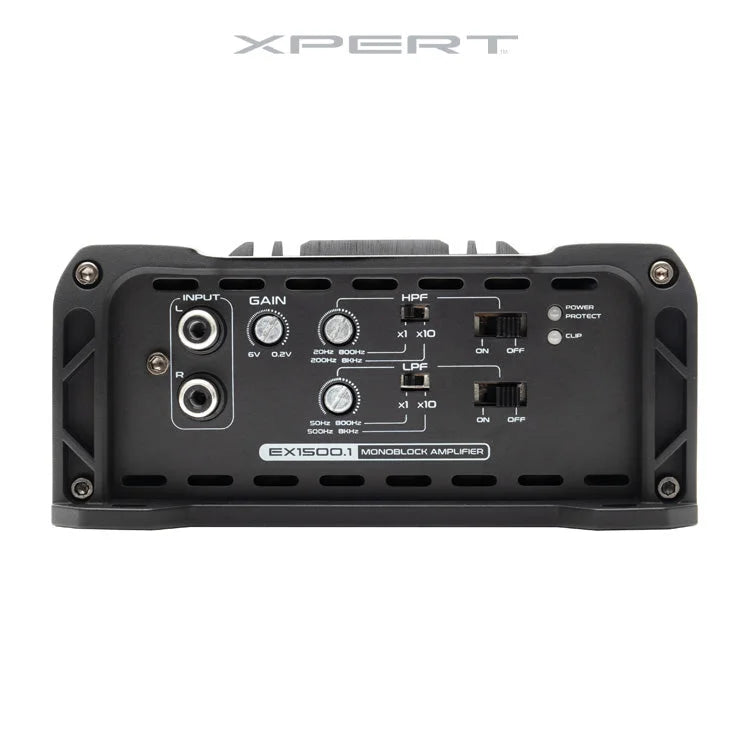

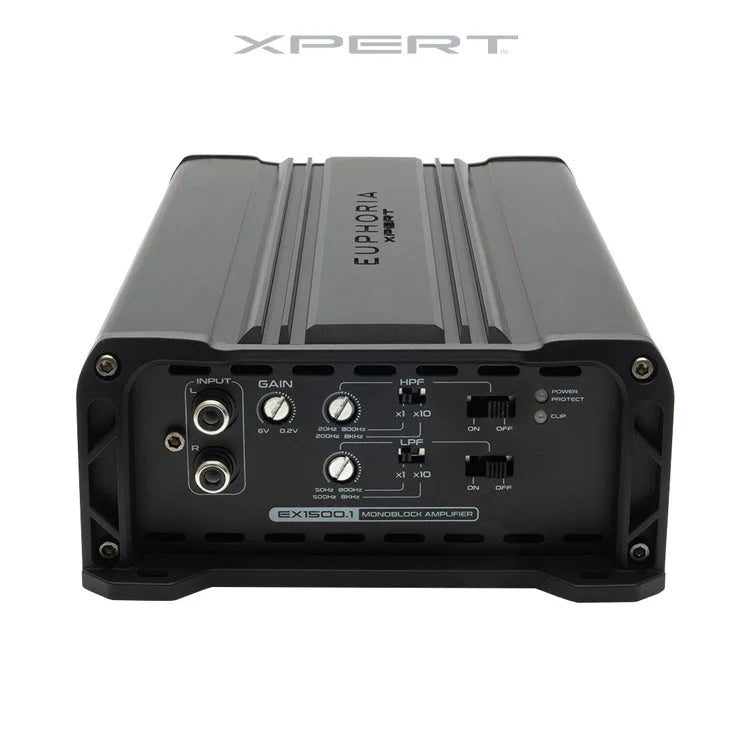

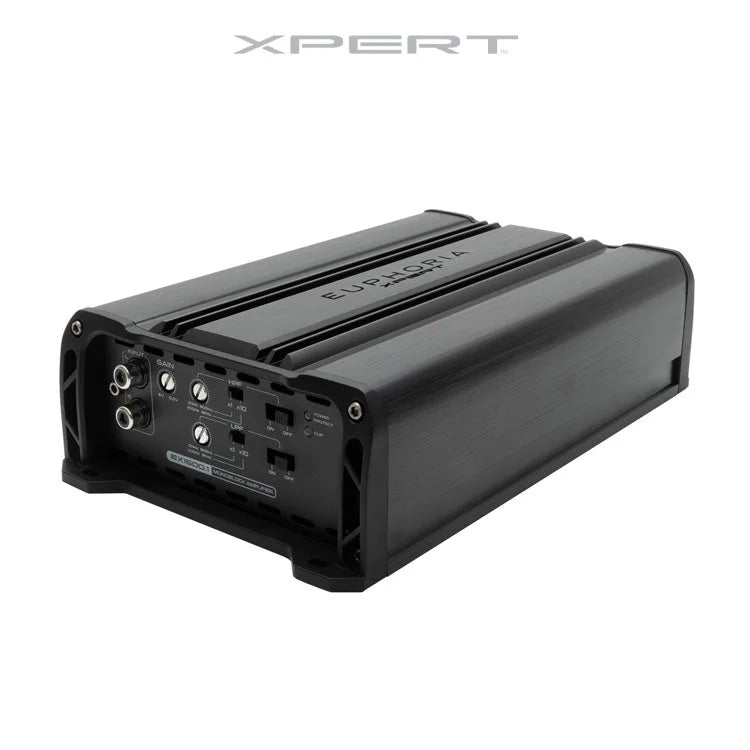

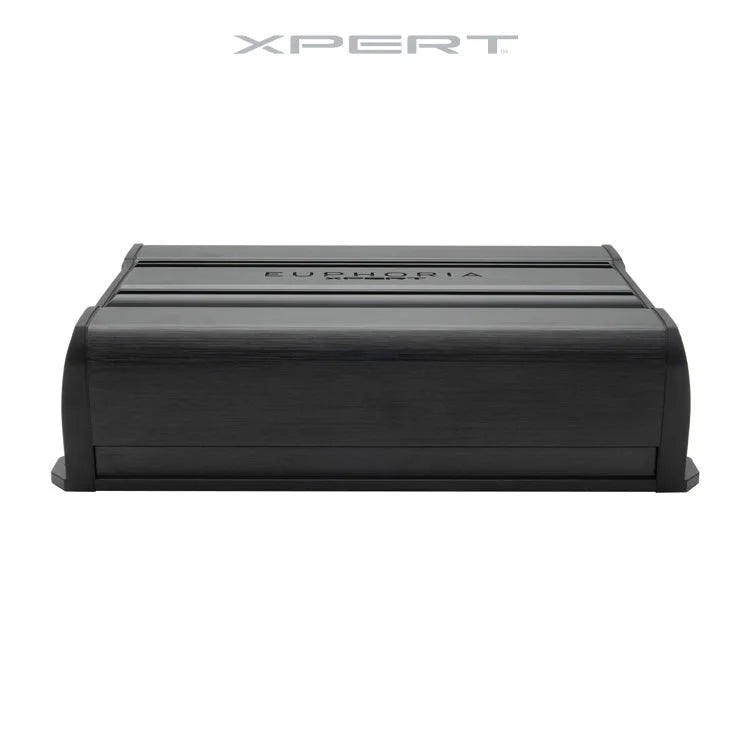

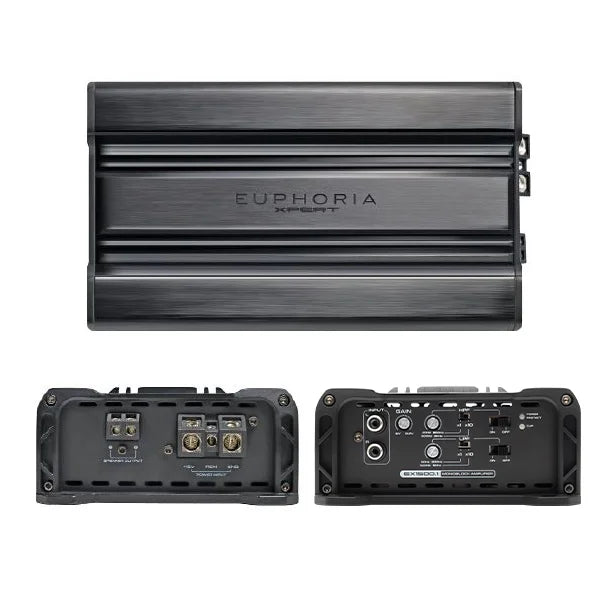

🔊 EX1500.1 – Full-Range Class-D Monoblock Amplifier 🔊

💥 Massive power output, ultra-compact design—built to crush with precision and protection.

✨ Features

• 🎚 ACT – Adaptive Crossover Technology — total tuning control

• ⚡ High-Efficiency Full-Range Class-D Tech — optimized output, minimal heat

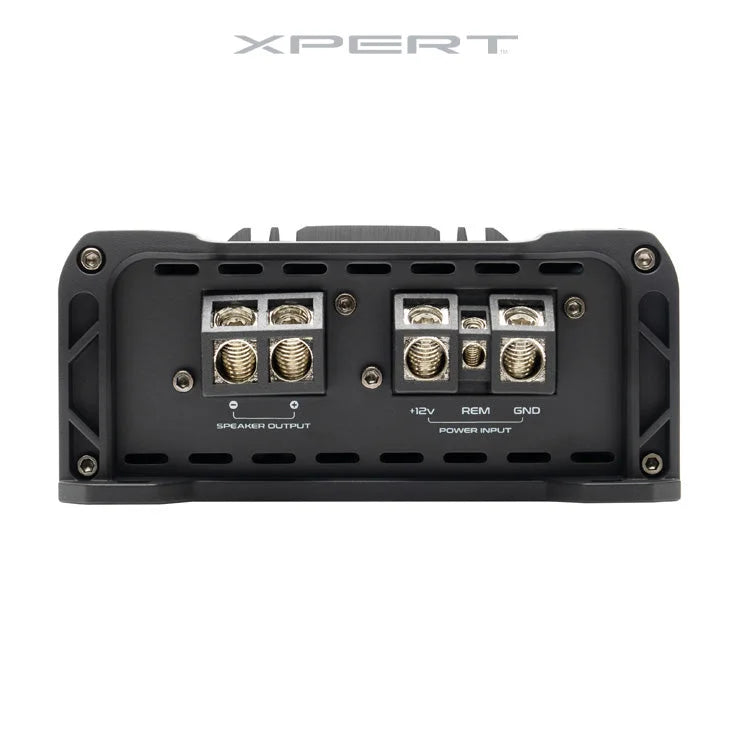

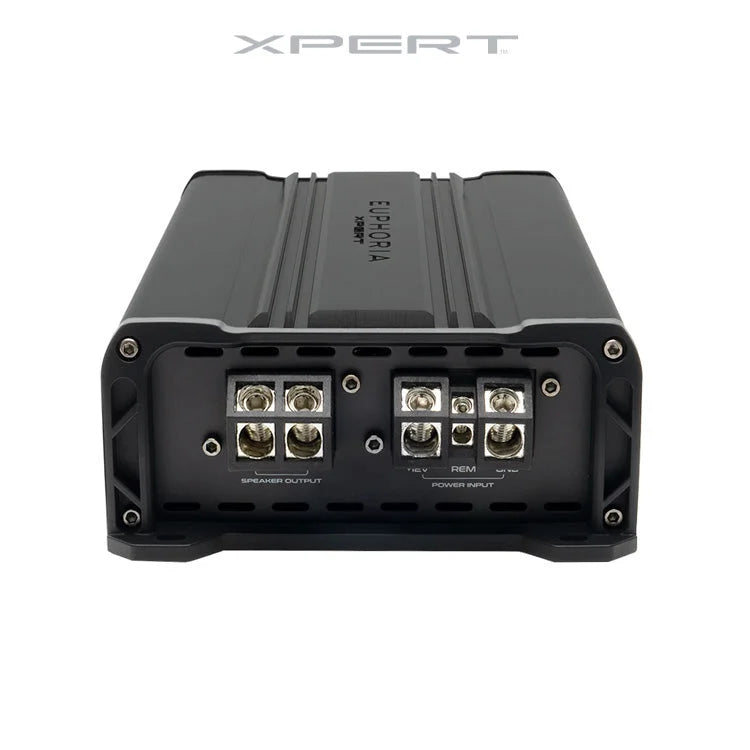

• 🔧 Direct-Connect Speaker Terminals — solid, no-fuss connections

• 🔌 Large-Gauge Power Wire Inputs — handles serious current flow

• 🛡 APC – Audio Protection Circuit — safeguards your system

• 💡 SESI – Signal Evaluation Status Indicator — instant diagnostics
  SMS Car Audio

📊 Specifications (at 14.4 V / 1% THD)

• 🔊 1 × 1500 W @ 1 Ω

• 🔊 1 × 750 W @ 2 Ω

• 🔊 1 × 325 W @ 4 Ω

• ⚡ Working Voltage: 10 V – 16 V

• 🎵 Frequency Response: 10 Hz – 20 kHz

• 🔇 Signal-to-Noise Ratio: < 95 dB

• 🎯 Damping Factor @ 4 Ω (1 kHz): > 91

• 🎛 Low-Level Input: 6 V – 0.2 V

🔎 Adjustable Filters

• HPF Ranges: 20 Hz – 800 Hz / 200 Hz – 8 kHz

• LPF Ranges: 50 Hz – 800 Hz / 500 Hz – 8 kHz

• Minimum Working Impedance: 1 Ω
  SMS Car Audio

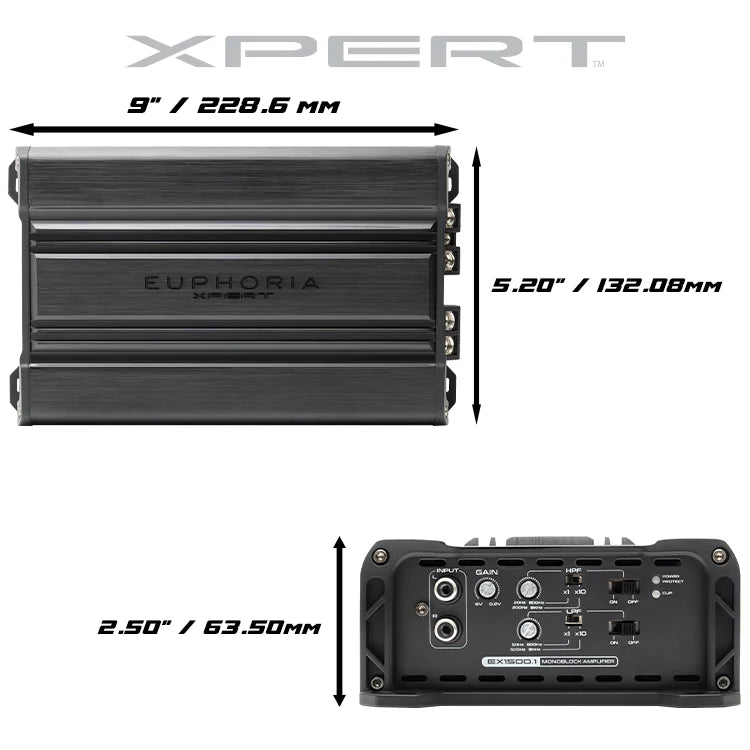

📐 Dimensions

• Length: 9″ / 228.6 mm

• Width: 5.20″ / 132.08 mm

• Height: 2.50″ / 63.50 mm
