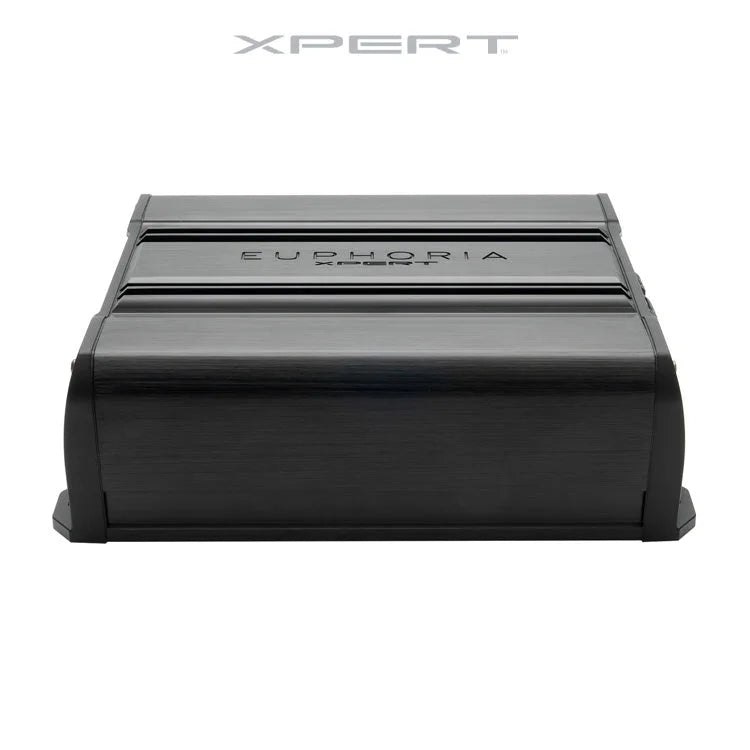

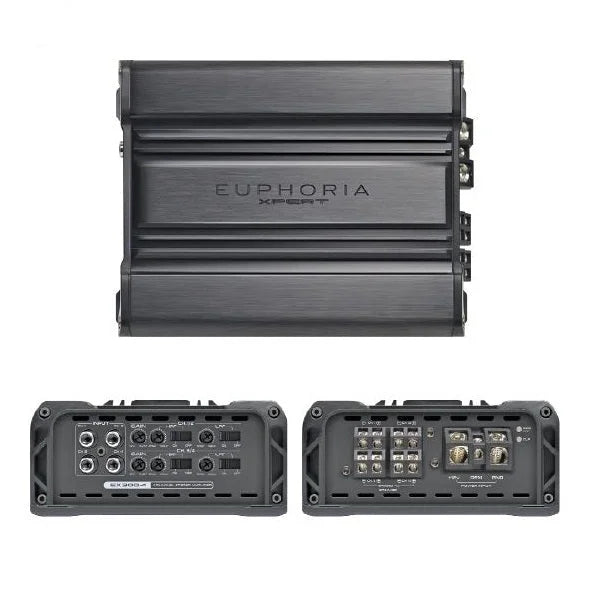

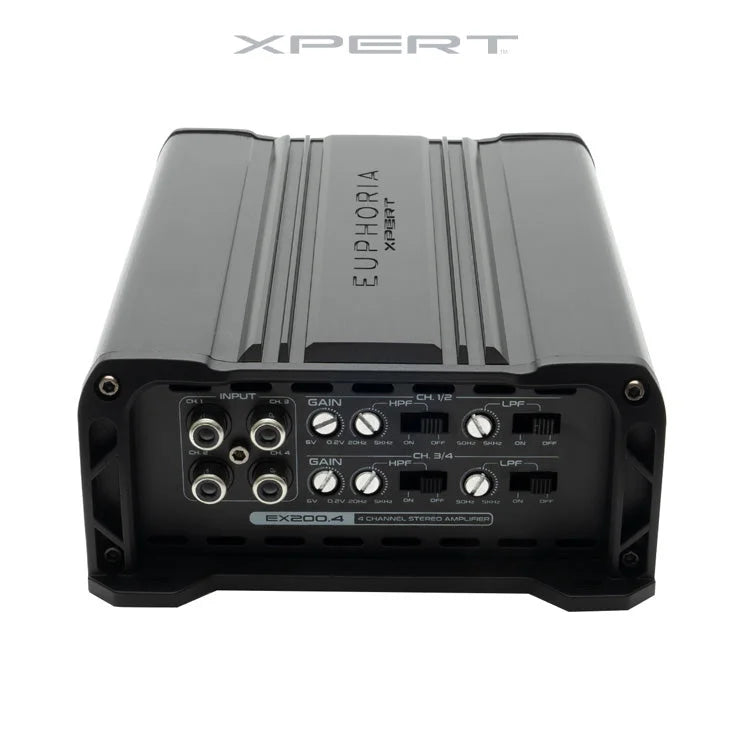

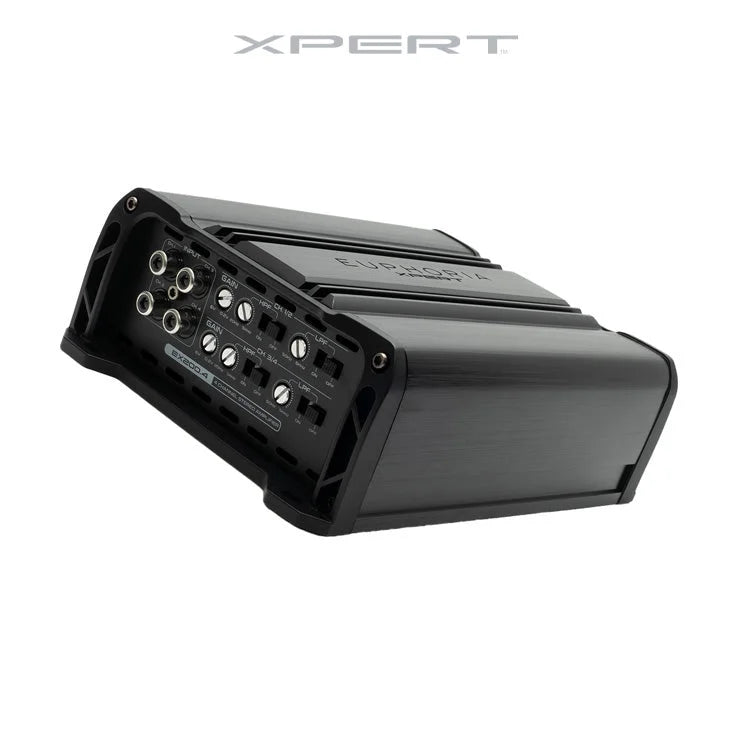

🔊 EX200.4 – 4-Channel Full-Range Class-D Amplifier 🔊

💥 Small footprint, massive output! Built for efficiency, reliability, and clean power in any setup.

✨ Features

• 🔊 4-Channel Class D Circuitry – compact, powerful & efficient

• 🎚️ ACT – Adaptive Crossover Technology – precision tuning made easy

• ⚡ High-Efficiency Full-Range Class D Tech – max power, less heat

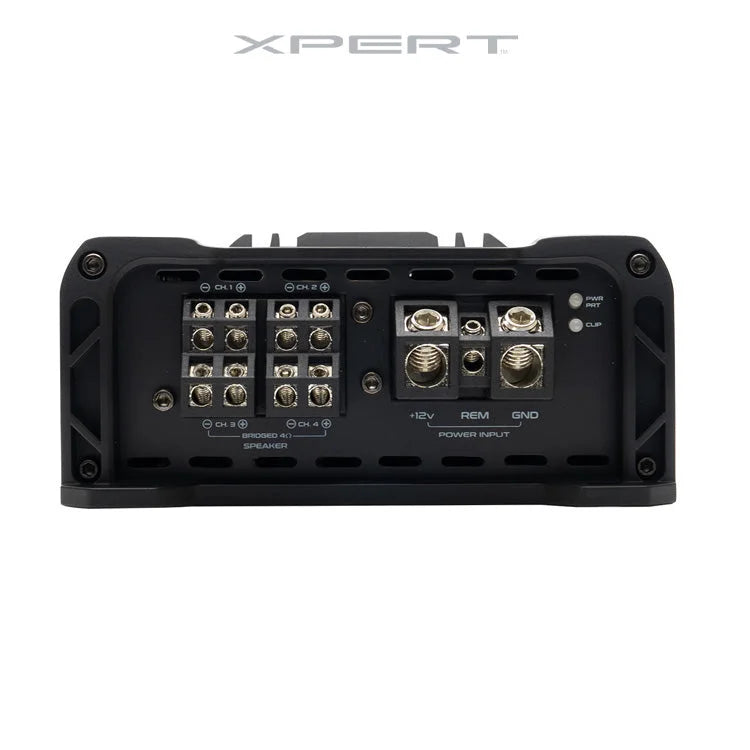

• 🔧 Direct-Connect Speaker Terminals – secure & solid connections

• 🔌 Large-Gauge Power Wire Inputs – supports serious current flow

• 🛡️ APC – Audio Protection Circuit – built-in system safeguards

• 💡 SESI – Signal Evaluation Status Indicator – quick system check

📊 Specifications (at 14.4V / 1% THD)

• 🔊 4 × 200W @ 4Ω

• 🔊 4 × 300W @ 2Ω

• 🔊 2 × 400W @ 4Ω (Bridged)

• ⚡ Working Voltage: 10V – 16V

• 🎵 Frequency Response: 10Hz – 20kHz

• 🔇 Signal-to-Noise Ratio: >95dB

• 🎯 Damping Factor @ 4Ω (1kHz): >101

• 🎛️ Low-Level Input: 6V – 0.2V

🔎 Adjustable Filters

• 🎚️ Ch 1/2 HPF: 20Hz – 5kHz

• 🎚️ Ch 1/2 LPF: 50Hz – 5kHz

• 🎚️ Ch 3/4 HPF: 20Hz – 5kHz

• 🎚️ Ch 3/4 LPF: 50Hz – 5kHz

• 📉 Minimum Working Impedance: 2Ω Stereo

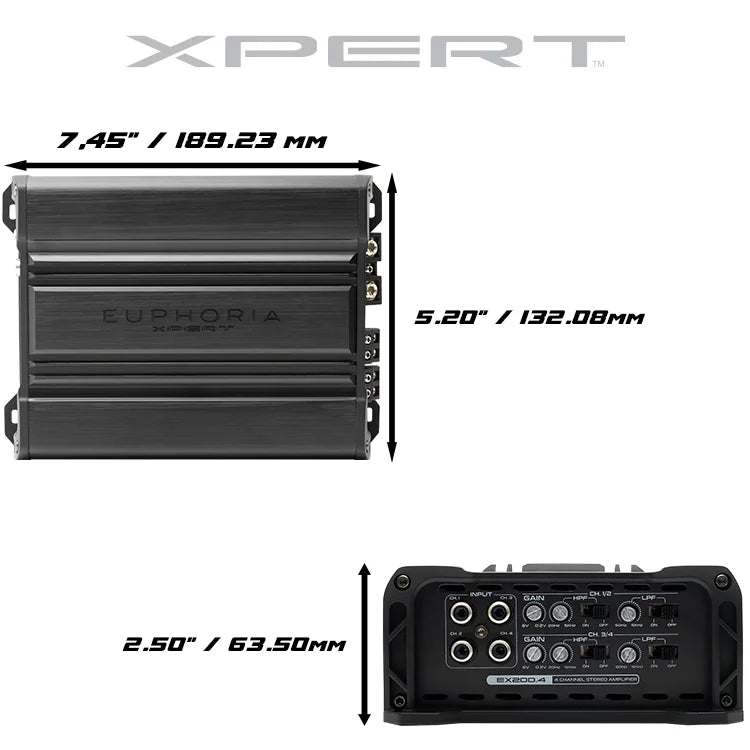

📐 Dimensions

• 📏 Length: 7.45″ / 189.23mm

• 📏 Width: 5.20″ / 132.08mm

• 📏 Height: 2.50″ / 63.50mm
