🔊 EX3000.1 – Full-Range Class-D Monoblock Amplifier 🔊

💥 Extreme power in a compact chassis! Built to push serious watts with clean, efficient output.

✨ Features

• 🎚️ ACT – Adaptive Crossover Technology – flexible tuning for any build

• ⚡ High-Efficiency Full-Range Class D – more power, less heat

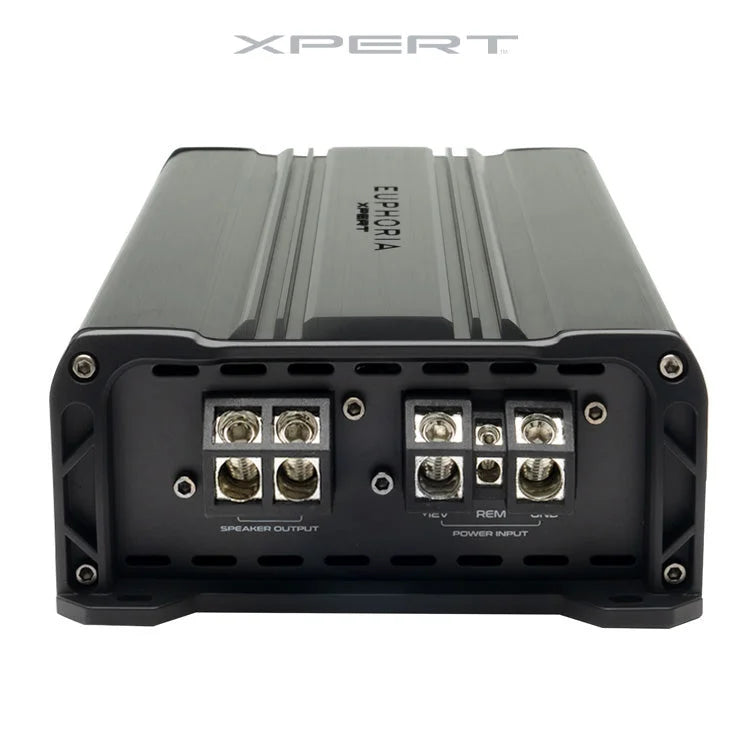

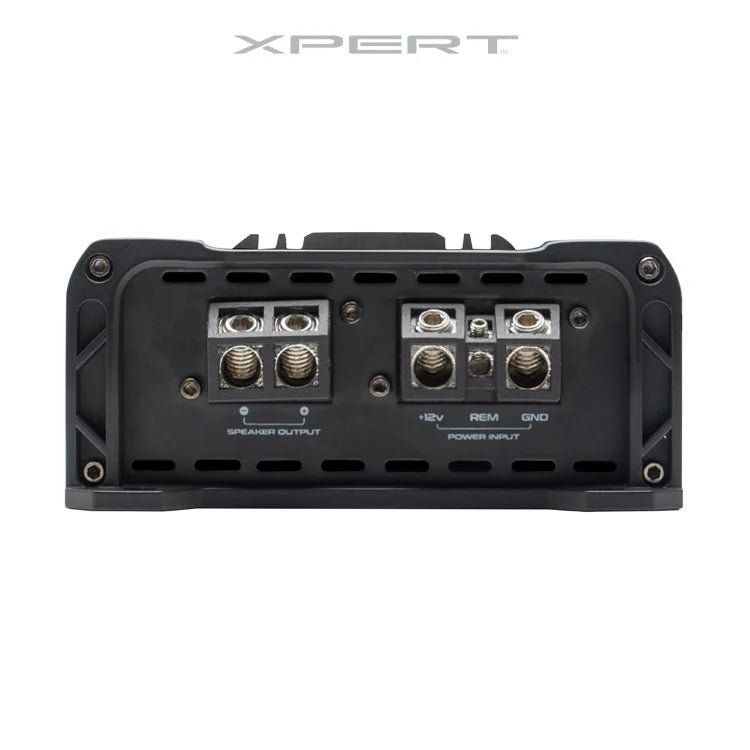

• 🔧 Direct-Connect Speaker Terminals – secure, reliable wiring

• 🔌 Large-Gauge Power Wire Inputs – supports heavy current draw

• 🛡️ APC – Audio Protection Circuit – keeps your system safe

• 💡 SESI – Signal Evaluation Status Indicator – quick system check

📊 Specifications (at 14.4V / 1% THD)

• 🔊 1 × 3000W @ 1Ω

• 🔊 1 × 1500W @ 2Ω

• 🔊 1 × 750W @ 4Ω

• ⚡ Working Voltage: 10V – 16V

• 🎵 Frequency Response: 10Hz – 20kHz

• 🔇 Signal-to-Noise Ratio: >95dB

• 🎯 Damping Factor @ 4Ω (1kHz): >53

• 🎛️ Low-Level Input: 6V – 0.2V

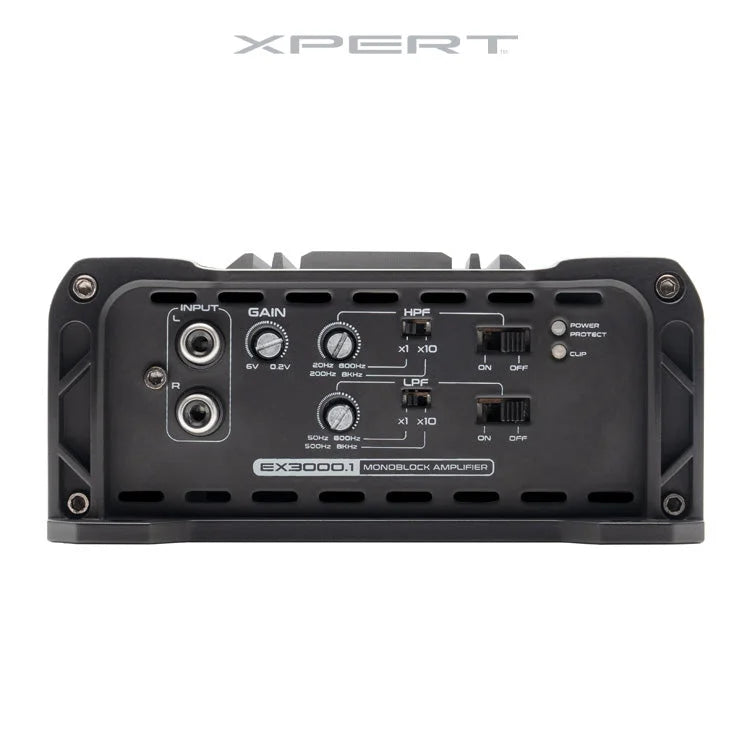

🔎 Adjustable Filters

• 🎚️ HPF Ranges: 20Hz – 800Hz / 200Hz – 8kHz

• 🎚️ LPF Ranges: 50Hz – 800Hz / 500Hz – 8kHz

• 📉 Minimum Working Impedance: 1Ω

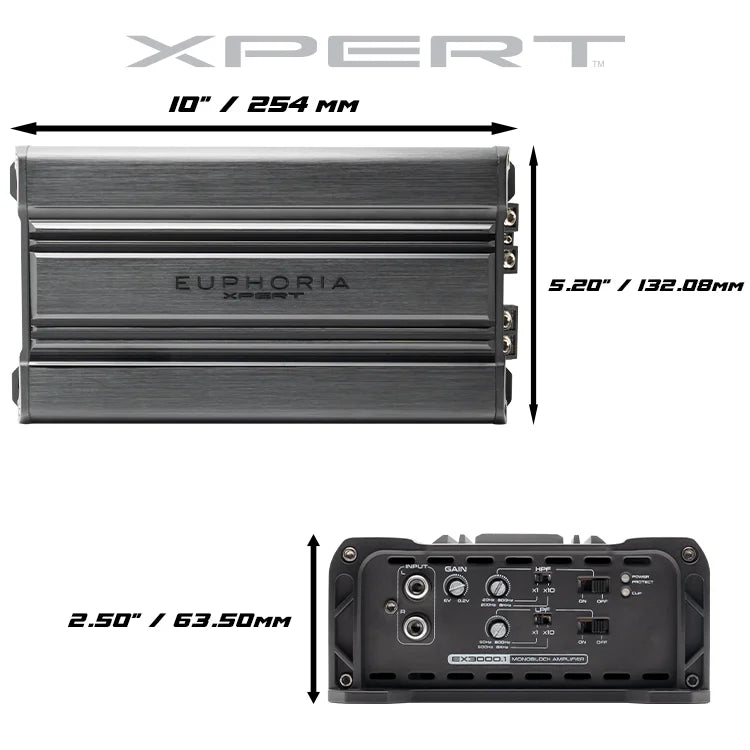

📐 Dimensions

• 📏 Length: 10″ / 254mm

• 📏 Width: 5.20″ / 132.08mm

• 📏 Height: 2.50″ / 63.50mm
