Description
Features
- 6.5″ 2-Way Carbon Fiber Loudspeaker
- 2.0″ (51mm) Midrange Voice Coil
- 10 Neodymium Ring Magnet Assembly
- Rear Mounted Full Sized Compression Driver
- IP54 Rated Weather Resistant Carbon Fiber Cone with Rubber Surround
- Die-Cast Aluminum Basket with Radial Venting
- 1.4″(36mm) Polyester Tweeter Diaphragm
- Wide Dispersion Conical HF Waveguide

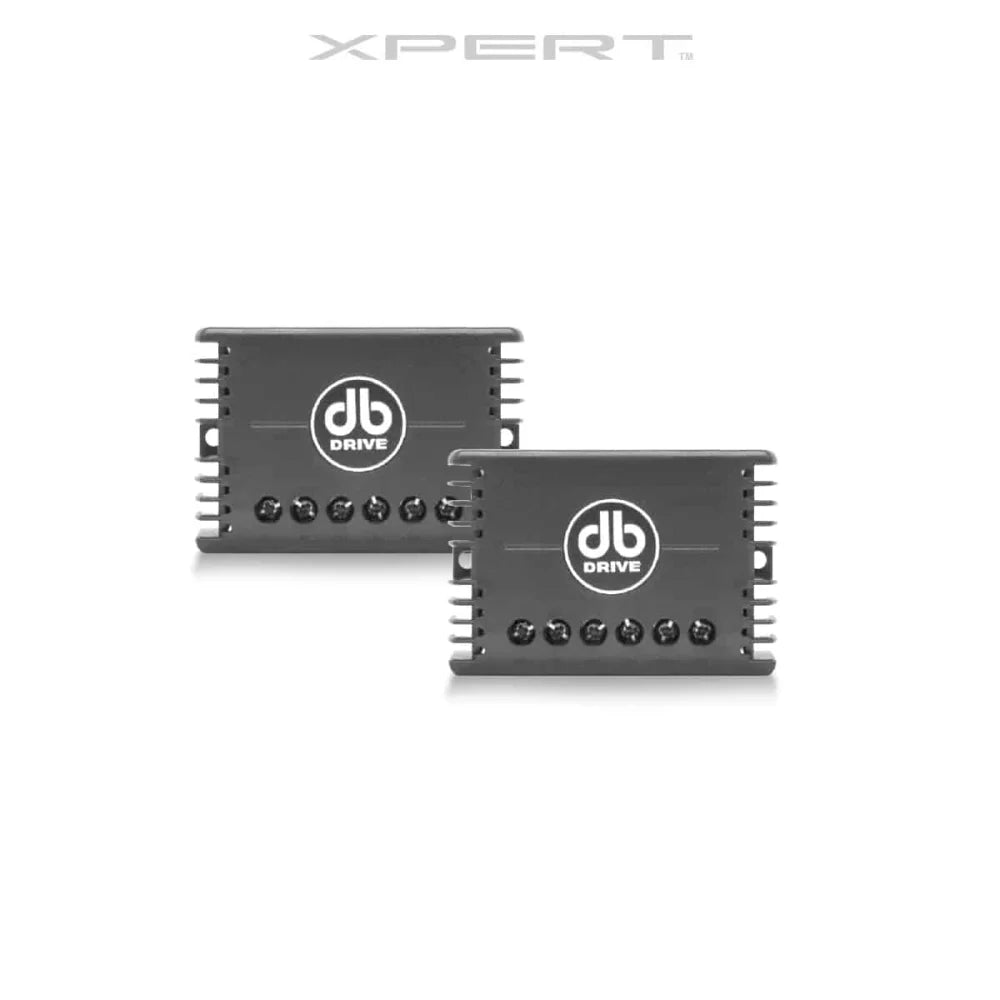

- 12dB Passive Crossover Included
- Protective Grills Included
Specifications
| Resonant Frequency (fs) | 61.2Hz |
|---|---|
| D.C. Voice Coil Resistance (Re) | 3.2Ω |
| Mechanical Quality Factor (Qms) | 4.82 |
| Electrical Quality Factor (Qes) | 0.32 |
| Total Quality Factor (Qts) | 0.30 |
| Compliance Equivalent Volume (Vas) | 6.3L |
| Mechanical Compliance (Cms) | 0.28 mm/N |
| Nominal Impedance | 4Ω |
| Power Handling | 400 Watts |
| Dynamic Wattage | 800 Watts |
| Sensitivity (1w/1m) | 105.7 dB |
| Voice Coil Diameter | 2.0″ (51mm) |
Product Manual
Product Manual PDF
Description
Turn up the volume with XPERT's EX6NCD-CF: The speaker that speaks volumes!
Get ready to experience sound like never before with the XPERT EX6NCD-CF speaker! This innovative piece of audio technology is designed to impress with its Neodymium Magnet Assembly and a rear-mounted full-sized compression driver, ensuring powerful and clear audio output. The IP54 rated weather-resistant carbon fiber cone with rubber surround and die-cast aluminum basket with radial venting means that this speaker is built to last, come rain or shine. With a wide dispersion conical HF waveguide and 12dB passive crossover, your audio experience will be smooth and uninterrupted. The included protective grills ensure your speaker stays safe, while the 60Hz - 20KHz frequency response and 5.2Ω impedance promise top-notch performance. Measuring at 6.5 inches with a 2-inch voice coil and a 1.4-inch polyester tweeter diaphragm, the EX6NCD-CF is the perfect blend of size and power. Elevate your sound game with XPERT today!
Get ready to experience sound like never before with the XPERT EX6NCD-CF speaker! This innovative piece of audio technology is designed to impress with its Neodymium Magnet Assembly and a rear-mounted full-sized compression driver, ensuring powerful and clear audio output. The IP54 rated weather-resistant carbon fiber cone with rubber surround and die-cast aluminum basket with radial venting means that this speaker is built to last, come rain or shine. With a wide dispersion conical HF waveguide and 12dB passive crossover, your audio experience will be smooth and uninterrupted. The included protective grills ensure your speaker stays safe, while the 60Hz - 20KHz frequency response and 5.2Ω impedance promise top-notch performance. Measuring at 6.5 inches with a 2-inch voice coil and a 1.4-inch polyester tweeter diaphragm, the EX6NCD-CF is the perfect blend of size and power. Elevate your sound game with XPERT today!
Recone Available
EXNCD-RC : Replacement Tweeter Diaphragm For EXNCDs
EX6NCD-CF-MRC : Replacement Diaphragm For EX6NCD-CF Mid
