Description
Features
- 8″ 2-Way Carbon Fiber Loudspeaker
- 2.0″ (51mm) Midrange Voice Coil
- 10 Neodymium Ring Magnet Assembly

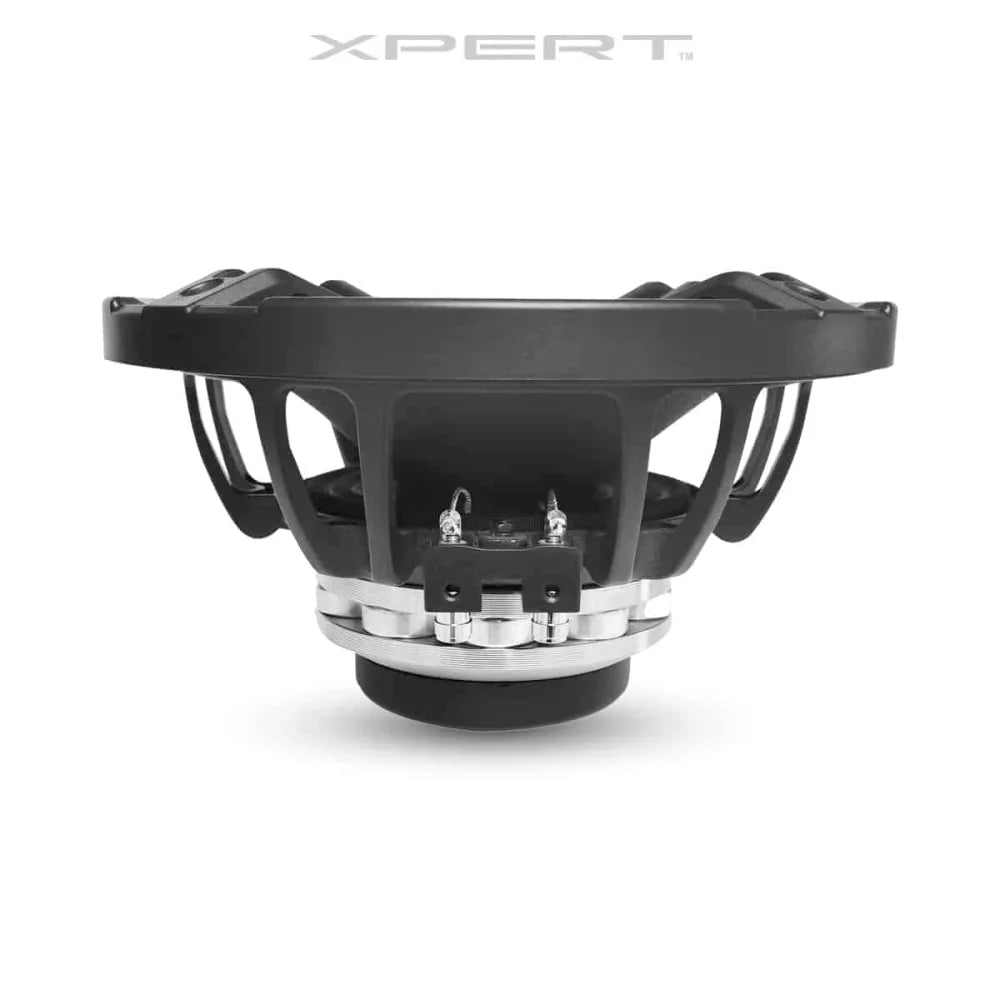

- Rear Mounted Full Sized Compression Driver
- IP54 Rated Weather Resistant Carbon Fiber Cone with Rubber Surround
- Die-Cast Aluminum Basket with Radial Venting
- 1.4″(36mm) Polyester Tweeter Diaphragm
- Wide Dispersion Conical HF Waveguide

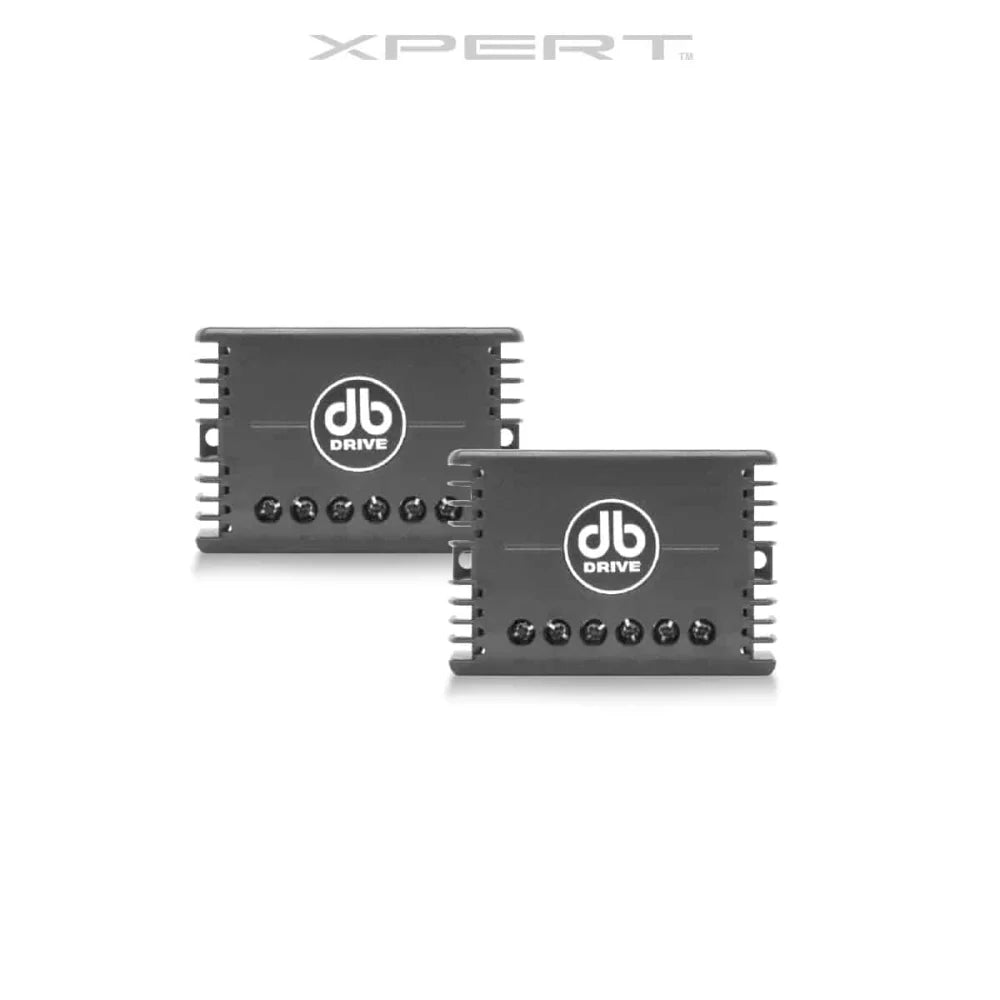

- 12dB Passive Crossover Included
- Protective Grills Included
Specifications
| Resonant Frequency (fs) | 66.2Hz |
|---|---|
| D.C. Voice Coil Resistance (Re) | 3.2Ω |
| Mechanical Quality Factor (Qms) | 6.16 |
| Electrical Quality Factor (Qes) | 0.47 |
| Total Quality Factor (Qts) | 0.44 |
| Compliance Equivalent Volume (Vas) | 18.1L |
| Mechanical Compliance (Cms) | 0.27 mm/N |
| Nominal Impedance | 4Ω |
| Power Handling | 450 Watts |
| Dynamic Wattage | 900 Watts |
| Sensitivity (1w/1m) | 105.7 dB |
| Voice Coil Diameter | 2.0″ (51mm) |
Product Manual
Product Manual PDF
Description
Turn up the XPERT-ise in your audio experience!

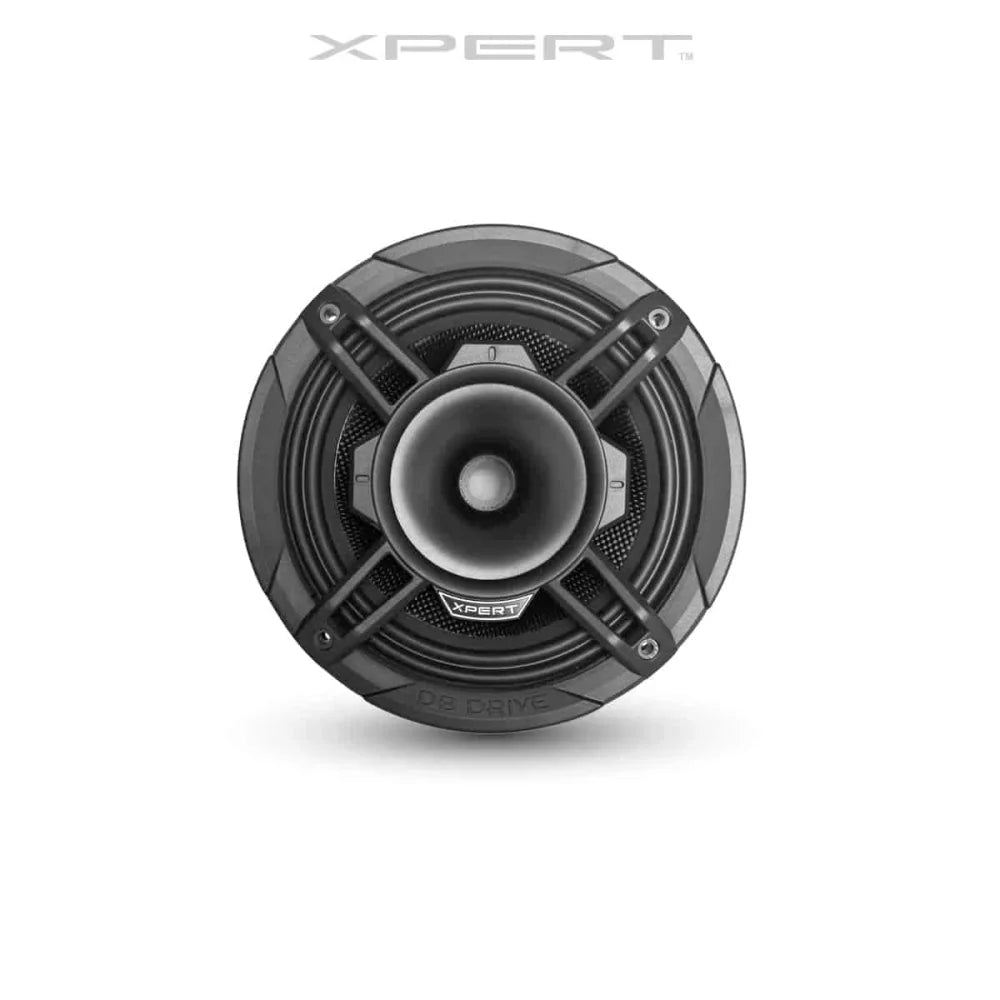

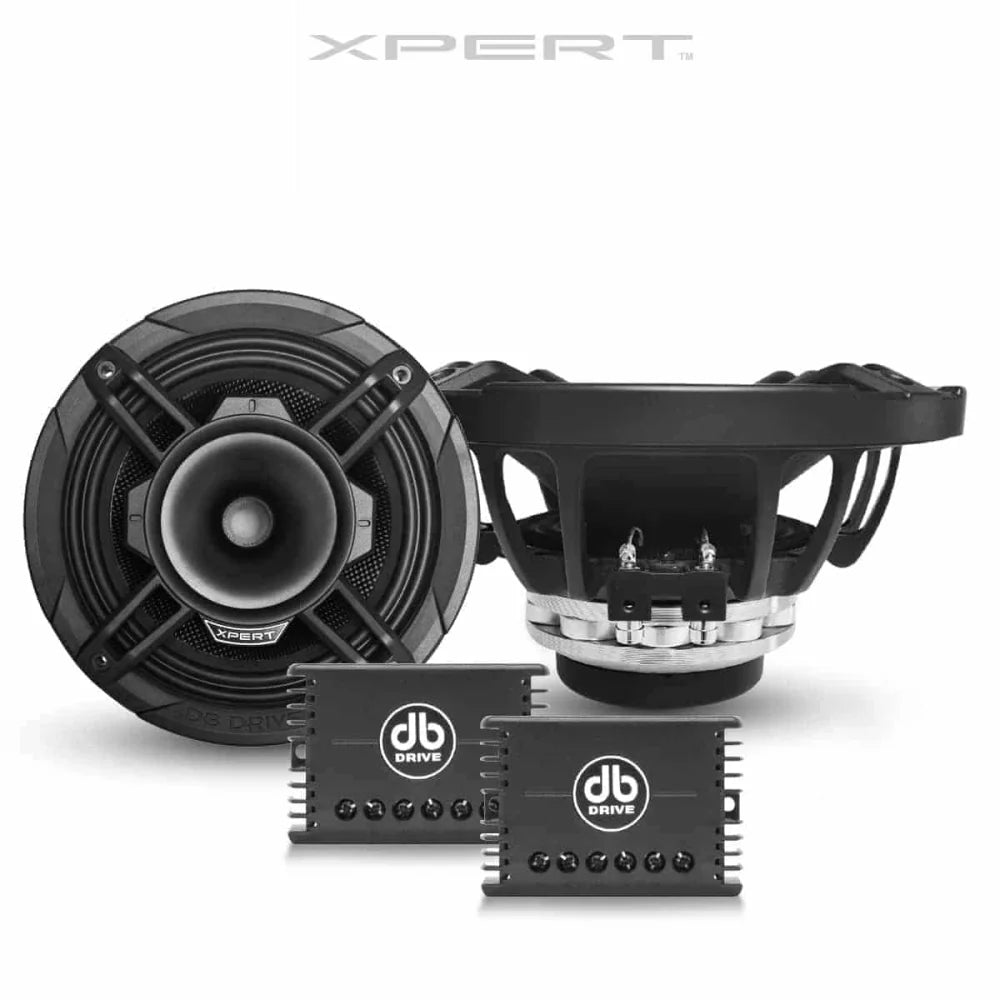

Introducing the XPERT EX8NCD-CF: the ultimate 8-inch NEO Mid Speaker with Compression Driver and Passive Crossover. This speaker is designed to revolutionize your audio setup with its cutting-edge features. Boasting a powerful neodymium magnet assembly and a rear-mounted full-sized compression driver, it delivers crystal-clear sound with wide dispersion thanks to the conical HF waveguide. The IP54-rated weather-resistant carbon fiber cone ensures durability, while the 1.4” polyester tweeter diaphragm adds a touch of sophistication to your high frequencies. With a frequency response of 50Hz to 20KHz and an impedance of 4Ω, this speaker is engineered to provide an immersive sound experience. The die-cast aluminum basket with radial venting keeps your speaker cool, even during intense sessions. Plus, the included protective grills and 12dB passive crossover make installation a breeze. Elevate your sound system with the XPERT EX8NCD-CF and experience the pinnacle of audio innovation.
Introducing the XPERT EX8NCD-CF: the ultimate 8-inch NEO Mid Speaker with Compression Driver and Passive Crossover. This speaker is designed to revolutionize your audio setup with its cutting-edge features. Boasting a powerful neodymium magnet assembly and a rear-mounted full-sized compression driver, it delivers crystal-clear sound with wide dispersion thanks to the conical HF waveguide. The IP54-rated weather-resistant carbon fiber cone ensures durability, while the 1.4” polyester tweeter diaphragm adds a touch of sophistication to your high frequencies. With a frequency response of 50Hz to 20KHz and an impedance of 4Ω, this speaker is engineered to provide an immersive sound experience. The die-cast aluminum basket with radial venting keeps your speaker cool, even during intense sessions. Plus, the included protective grills and 12dB passive crossover make installation a breeze. Elevate your sound system with the XPERT EX8NCD-CF and experience the pinnacle of audio innovation.
Recone Available
EXNCD-RC : Replacement Tweeter Diaphragm For EXNCDs
EX8NCD-CF-MRC : Replacement Diaphragm For EX8NCD-CF Mid
