Description
Features
| 2.0" (51mm) Midrange Voice Coil |
| Neodymium Ring Magnet Assembly |
| IP65 Rated Weather Resistant Carbon Fiber Cone |
| Die-Cast Aluminum Basket with Radial Venting |
| Sold in Pairs |
Specifications
| HF - Power Handling AES: 15 Watts* |
| HF - Dynamic Wattage: 30 Watts |
| LF - Power Handling AES: 300 Watts* |
| LF - Dynamic Wattage: 600 Watts |
| Combined Frequency Response: 50Hz - 17KHz |
| HF - Sensitivity (1w/1m): 99.3dB |
| LF - Sensitivity (1w/1m): 91.3dB |
| Nominal Impedance: 4Ω |
| Recommended HF Crossover Frequency 4.2KHz @ 24db |
| LP - TS PARAMETERS |
| FS: 68.074 Hz |
| Re: 3 Ohms |
| Qms: 1.982 |
| Qes: 0.374 |
| Qts: 0.315 |
| Cms: .189.252 mm/N |
| Mms: 28.883 gr |
| BL: 9.951 N/A |
| SPL: 99.3 dB |
| Vas: 10.331 L |
| Dimensions |
| Overall Diameter: 8.29"/ 210.50 mm |
| Mounting Depth: 3.78"/ 96 mm |
| Cutout Diameter: 7.09"/ 180 mm |
Description

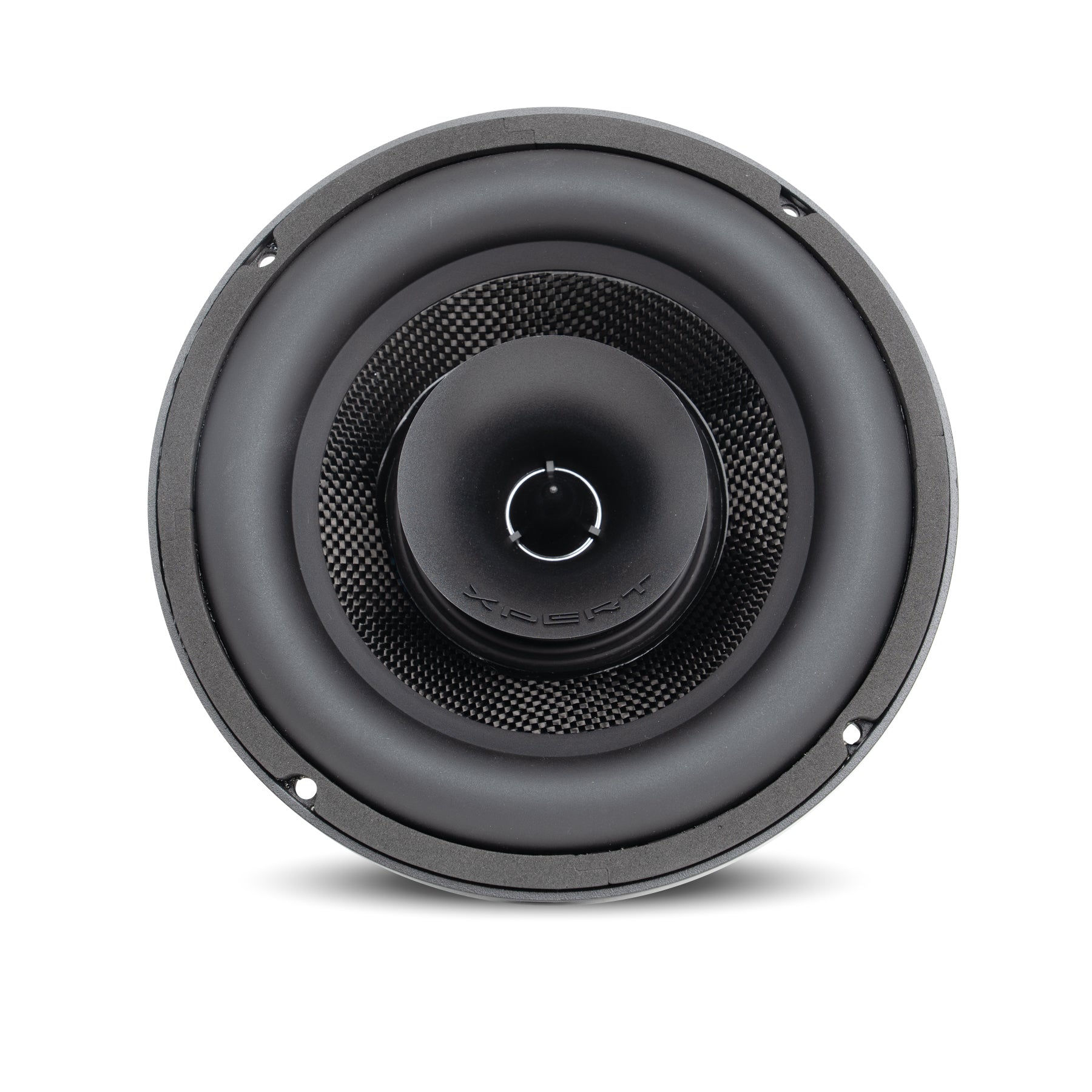

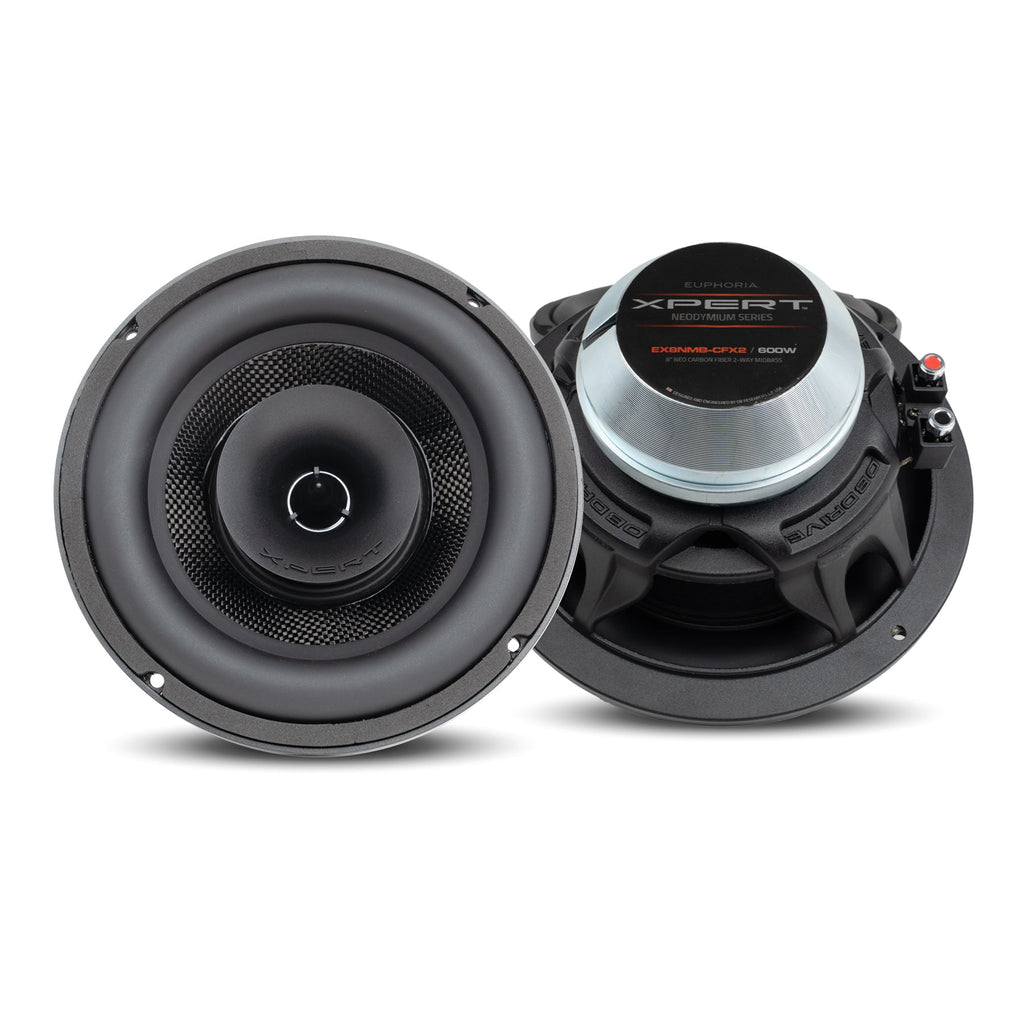

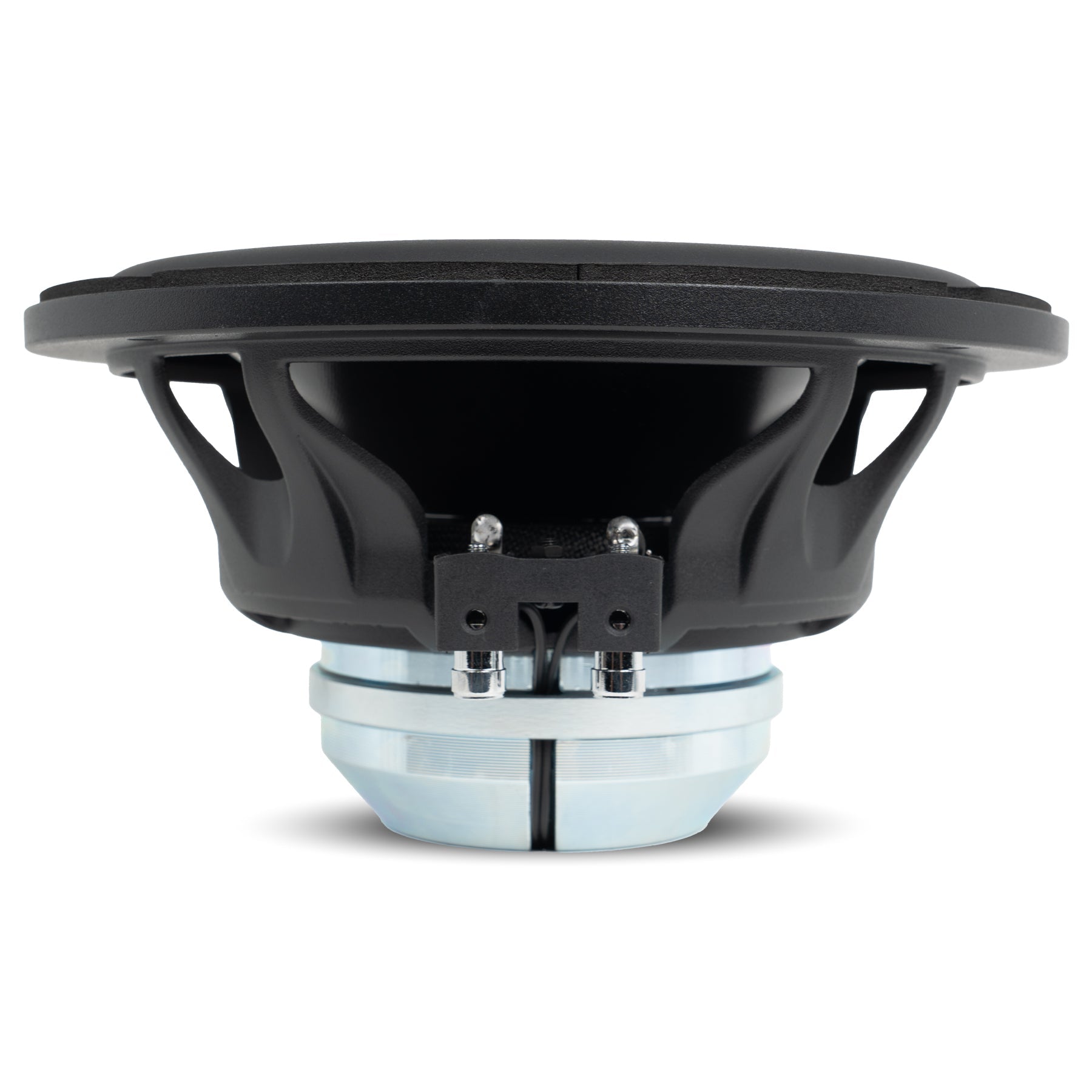

Engineered for unmatched clarity and power, the EX8NMB-CFX2 is built to deliver precise midbass and smooth high-frequency performance in one compact design. Featuring a lightweight neodymium ring magnet assembly and a 2.0" midrange voice coil, this driver combines efficiency with raw power handling, making it ideal for high-performance car audio and pro audio applications.
The IP65-rated carbon fiber cone ensures durability against water, dust, and harsh conditions, while the die-cast aluminum basket with radial venting keeps the system cool and distortion-free even under extreme loads. With an impressive combined frequency response from 50Hz – 17kHz, it delivers deep midbass punch and crystal-clear highs with accuracy.
Rated at 300W AES (600W peak) for low frequencies and 15W AES (30W peak) for high frequencies, the EX8NMB-CFX2 handles demanding setups with ease. Its exceptional sensitivity—99.3 dB (HF) and 91.3 dB (LF)—ensures maximum output with minimal power.
