Features
- 2” (51 mm) Midrange Voice Coil
- 10 Neodymium Ring Magnet Assembly
- IP65 Rated Weather Resistant Carbon
- Fiber Cone with Rubber Surround
- Heavy Gauge Stamped Steel Basket
Specifications
| Nominal Basket Size |
8" (203.2 mm) |
| Resonant Frequency (fs) |
74.4Hz |
| D.C. Voice Coil Resistance (Re) |
3.2Ω |
| Mechanical Quality Factor (Qms) |
8.81 |
| Electrical Quality Factor (Qes) |
0.54 |
| Total Quality Factor (Qts) |
0.51 |
| Compliance Equivalent Volume (Vas) |
8.0L |
| Mechanical Compliance (Cms) |
0.13 mm/N |
| Nominal Impedance |
4Ω |
| Power Handling |
300 Watts |
| Dynamic Wattage |
600 Watts |
| Sensitivity (1w/1m) |
99.7 dB |
| Voice Coil Diameter |
2.0″ (51mm) |
Product Manual
Product Manual PDF
Description

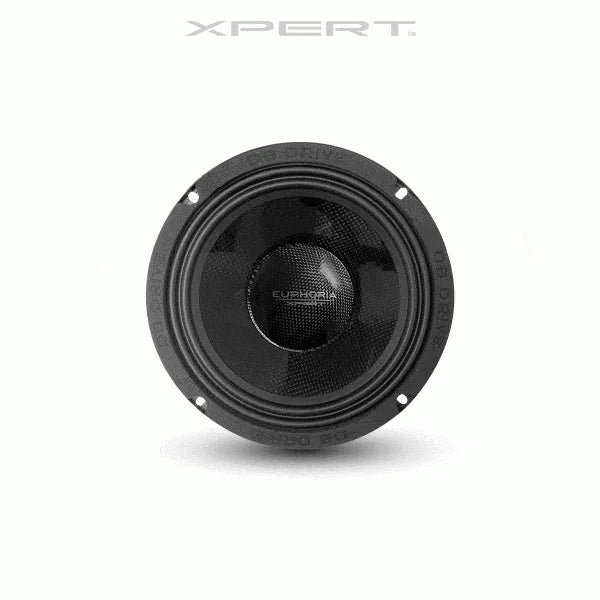

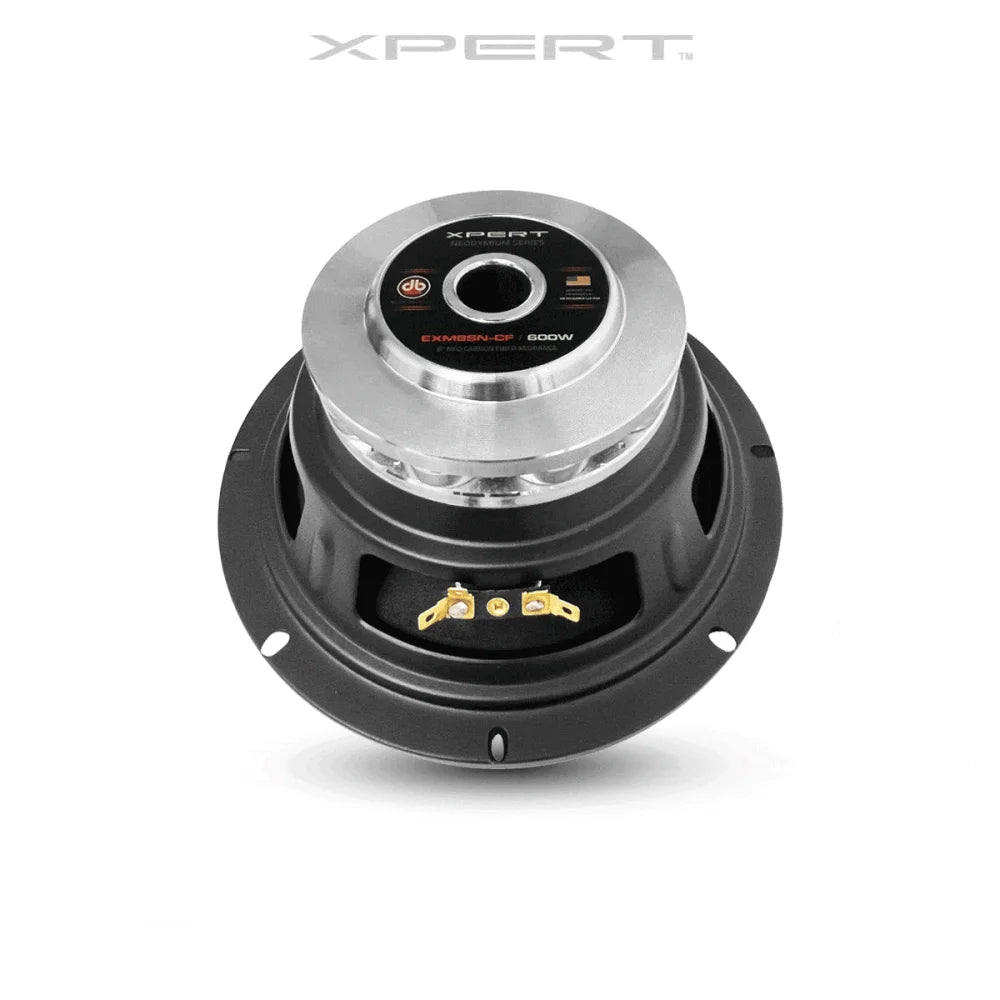

Feel the Power of Precision with XPERT's EXM8SN-CF Mid-Range!
Introducing the XPERT NEO MID-RANGE EXM8SN-CF, where innovation meets performance! This 8-inch (20.3cm) marvel boasts a 2-inch (51mm) voice coil and features a robust 10 Neodymium Ring Magnet Assembly, ensuring you experience unparalleled sound clarity and power. Designed with an IP65-rated weather-resistant carbon fiber cone and a durable rubber surround, it's built to withstand the toughest conditions while delivering pristine audio. The heavy gauge stamped steel basket adds a layer of durability, making it a reliable choice for any audio enthusiast. With a 4Ω impedance, it seamlessly integrates into your audio setup. Elevate your sound game with the EXM8SN-CF and let every note resonate with precision and power!
