Description
Features
- ATC – Audiophile Grade Tiffany RCA Connectors
- ACT – Adaptive Crossover Technology
- High efficiency Class D Technology
- Direct Connect Speaker Terminals
- 0 Gauge Power Wire Inputs
- APC – Audio Protection Circuit
- SESI – Signal Evaluation Status Indicator
- Bass Remote with status indicator
- CHM – Collective Heat Management
- DRIVE-LINK- for easy multi-linking of two like amplifiers
Specifications
| Rated Power @14.4 Volts | |
|---|---|
| 1 x 3500 Watts @ 1Ω | |
| 1 x 1750 Watts @ 2Ω | |
| 1 x 875 Watts @ 4Ω | |
| SPECIFICATIONS | |
| Working Voltage | 9 - 16 Volts |
| Frequency Response | 14Hz - 273KHz |
| Signal to Noise Ratio | <96dB |
| Damping Factor | 327dB< |
| Low Level Input | 6V - 0.2V |
| Subsonic Filter | 10Hz - 50Hz |
| Bass Boost | 0-dB - 12dB |
| Low Pass Filter Variable | 35Hz - 250KHZ |
| Minimum Working Impedance | 1 Ohms |
Description

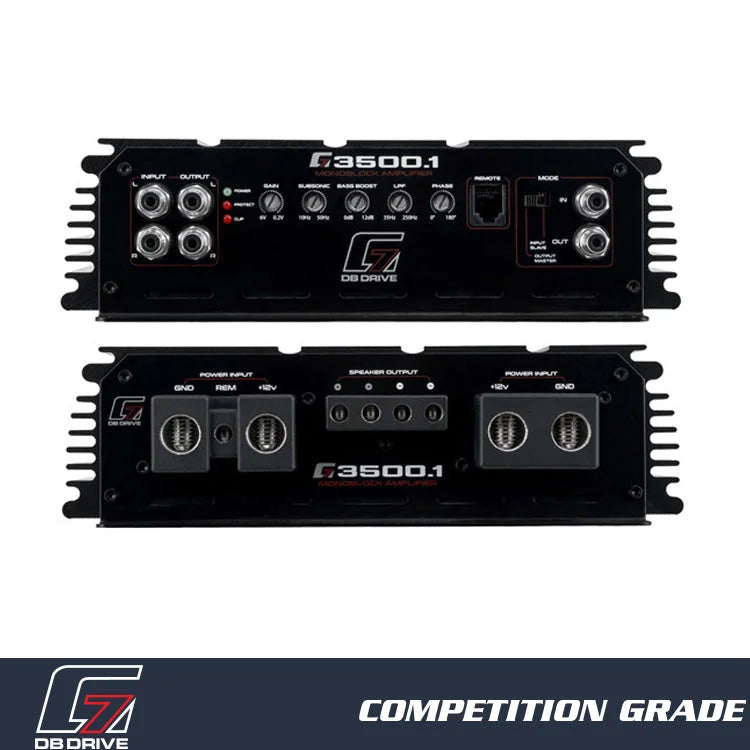

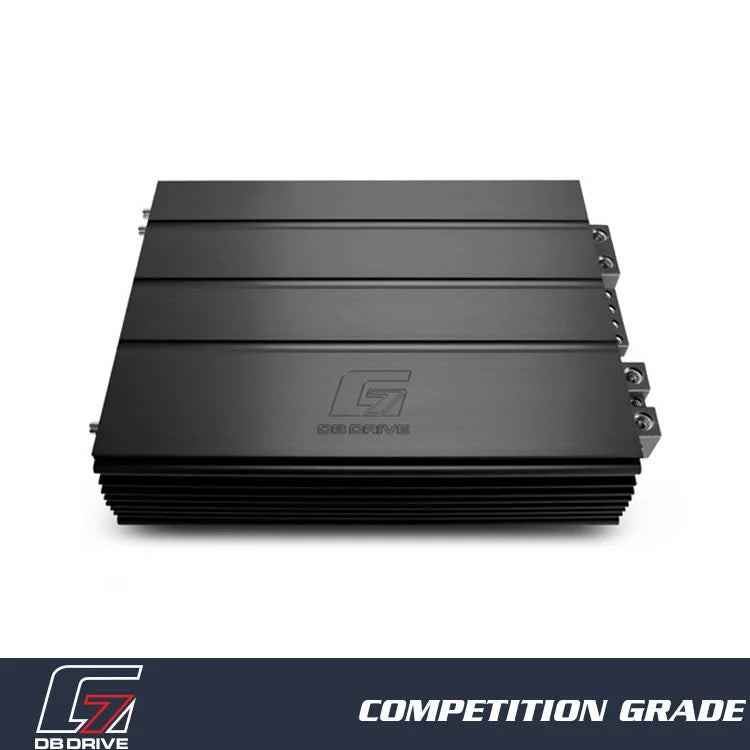

Power up your sound system with the incredible G7 3500.1 Class D Mono Amplifier! This powerhouse is designed for true audiophiles, featuring ATC – Audiophile Grade Tiffany RCA Connectors and ACT – Adaptive Crossover Technology for unparalleled sound quality. With high-efficiency Class D Technology, Direct Connect Speaker Terminals, and Dual 0 Gauge Power Wire Inputs, you can expect a seamless and powerful audio experience. The G7 also boasts SESI – Signal Evaluation Status Indicator and a Bass Remote with a status indicator to keep you in control. The CHM – Collective Heat Management and APC – Audio Protection Circuit ensure your amplifier stays cool and protected, even during the most intense sessions. Plus, with DRIVE-LINK for easy multi-linking of two amplifiers and a frequency response of 14Hz – 273Hz, the G7 3500.1 is built to handle any challenge. Rated at a whopping 3500 Watts at 1Ω, it’s ready to bring your music to life. Don’t settle for ordinary – elevate your sound experience with the G7 3500.1 Class D Mono Amplifier!
Product Manual
Product Manual PDF
