Description
|

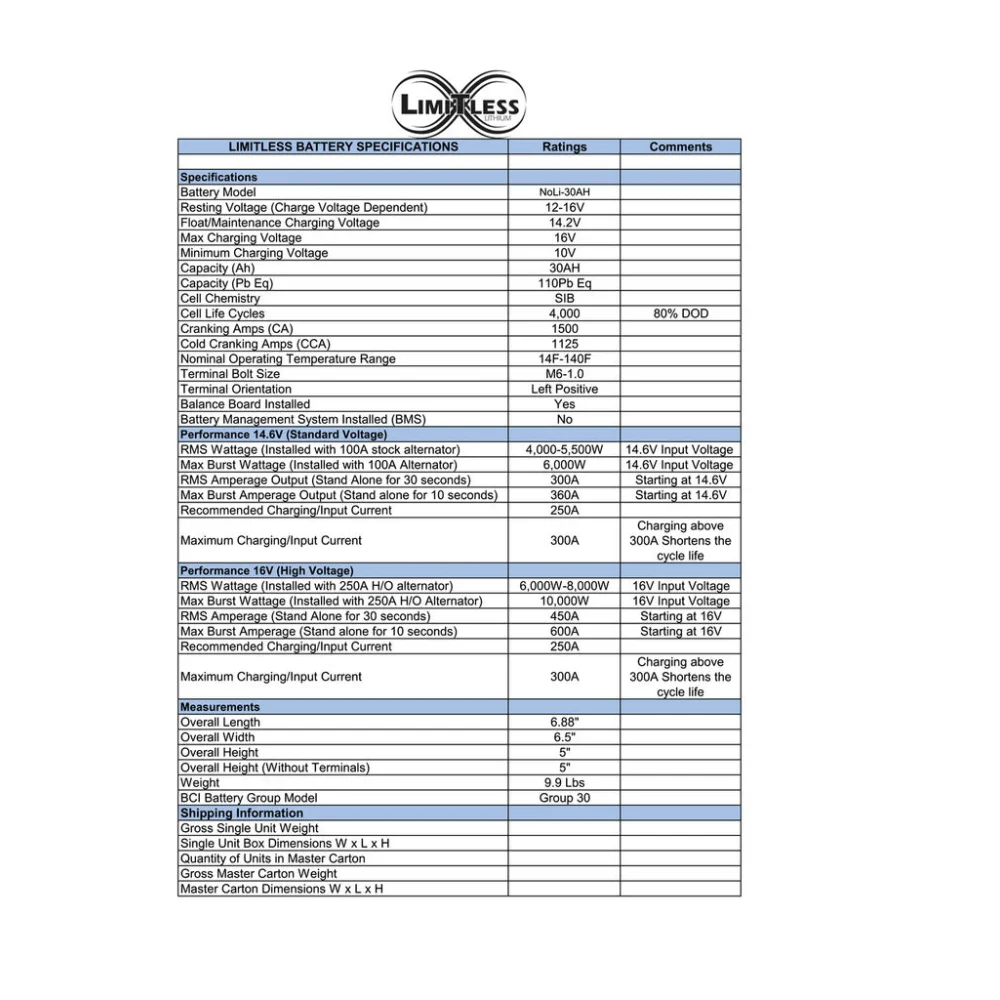

LIMITLESS BATTERY SPECIFICATIONS |
Ratings |
Comments |
|
|
|
|
|
|
|
|
Battery Model |
NoLi-30AH |
|
|
Resting Voltage (Charge Voltage Dependent) |
12-16V |
|
|
Float/Maintenance Charging Voltage |
14.2V |
|
|
Max Charging Voltage |
16V |
|
|
Minimum Charging Voltage |
10V |
|
|
Capacity (Ah) |
30AH |
|
|
Capacity (Pb Eq) |
110Pb Eq |
|
|
Cell Chemistry |
SIB |
|
|
Cell Life Cycles |
4,000 |
80% DOD |
|
Cranking Amps (CA) |
1500 |
|
|
Cold Cranking Amps (CCA) |
1125 |
|
|
Nominal Operating Temperature Range |
14F-140F |
|
|
Terminal Bolt Size |
M6-1.0 |
|
|
Terminal Orientation |
Left Positive |
|
|
Balance Board Installed |
Yes |
|
|
Battery Management System Installed (BMS) |
No |
|
|
|
|
|
RMS Wattage (Installed with 100A stock alternator) |
4,000-5,500W |
14.6V Input Voltage |
|
Max Burst Wattage (Installed with 100A Alternator) |
6,000W |
14.6V Input Voltage |
|
RMS Amperage Output (Stand Alone for 30 seconds) |
300A |
Starting at 14.6V |
|
Max Burst Amperage Output (Stand alone for 10 seconds) |
360A |
Starting at 14.6V |
|
Recommended Charging/Input Current |
250A |
|
|
Maximum Charging/Input Current |
300A |
Charging above 300A Shortens the cycle life |
|
|
|
|
RMS Wattage (Installed with 250A H/O alternator) |
6,000W-8,000W |
16V Input Voltage |
|
Max Burst Wattage (Installed with 250A H/O Alternator) |
10,000W |
16V Input Voltage |
|
RMS Amperage (Stand Alone for 30 seconds) |
450A |
Starting at 16V |
|
Max Burst Amperage (Stand alone for 10 seconds) |
600A |
Starting at 16V |
|
Recommended Charging/Input Current |
250A |
|
|
Maximum Charging/Input Current |
300A |
Charging above 300A Shortens the cycle life |
|
|
|
|
Overall Length |
6.88" |
|
|
Overall Width |
6.5" |
|
|
Overall Height |
5" |
|
|
Overall Height (Without Terminals) |
5" |
|
|
W eight |
9.9 Lbs |
|
|
BCI Battery Group Model |
Group 30 |
