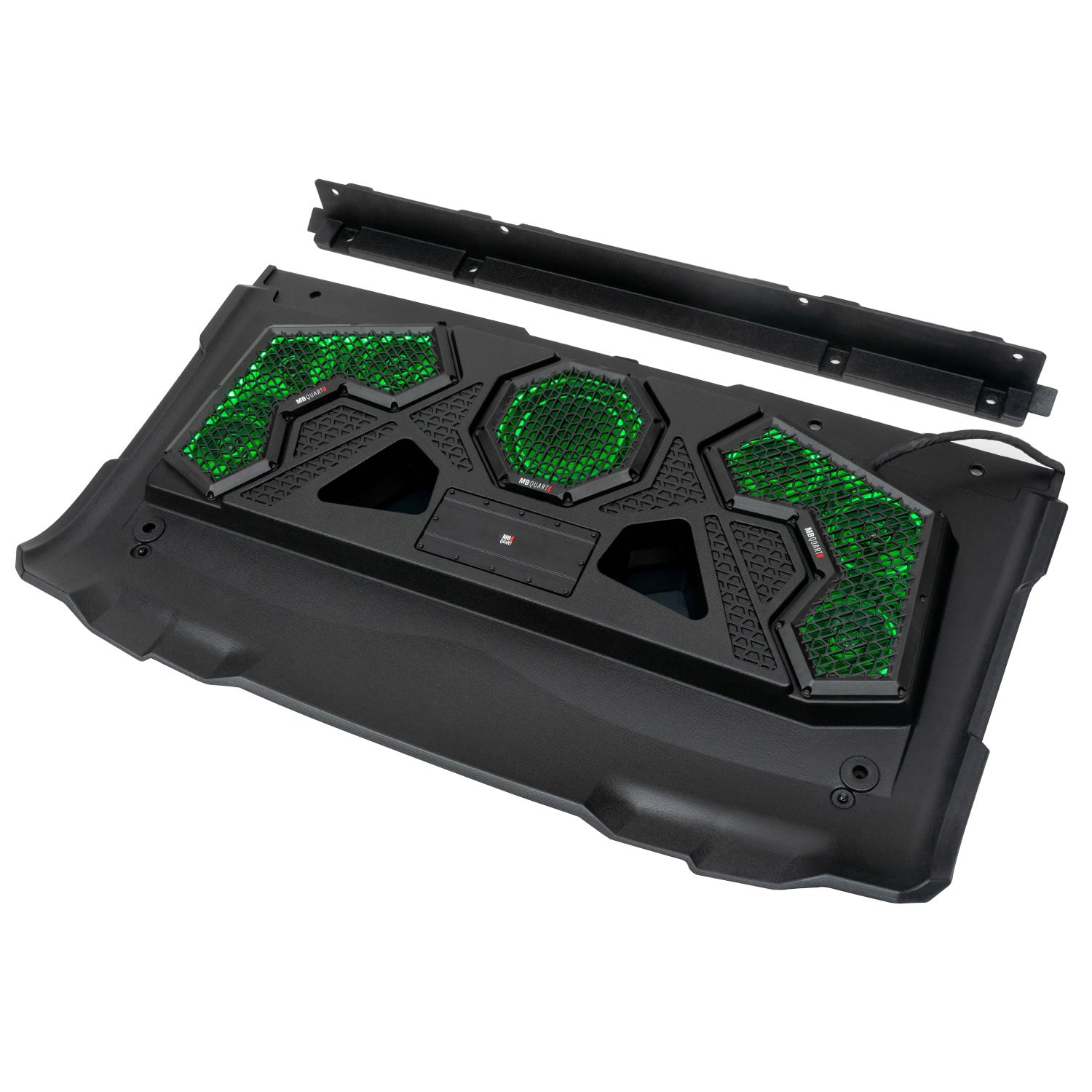

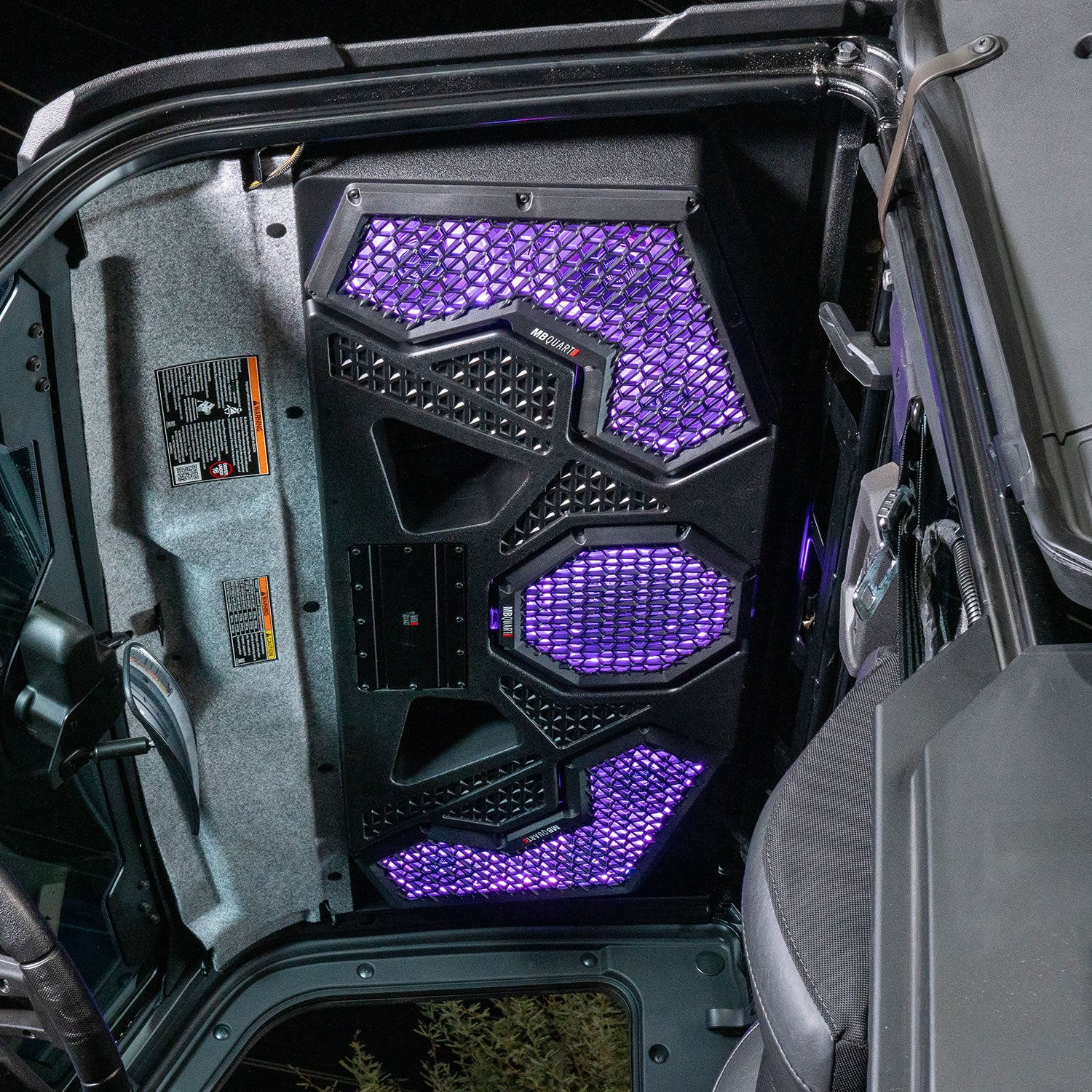

🎵 MB Quart MBQRG2-S7R – 500W 7-Speaker Polaris RANGER Audio Roof w/ 7" LED Source & 45" Light Bar
Give your Polaris RANGER 1000 / XP 1000 serious sound without giving up cabin space.

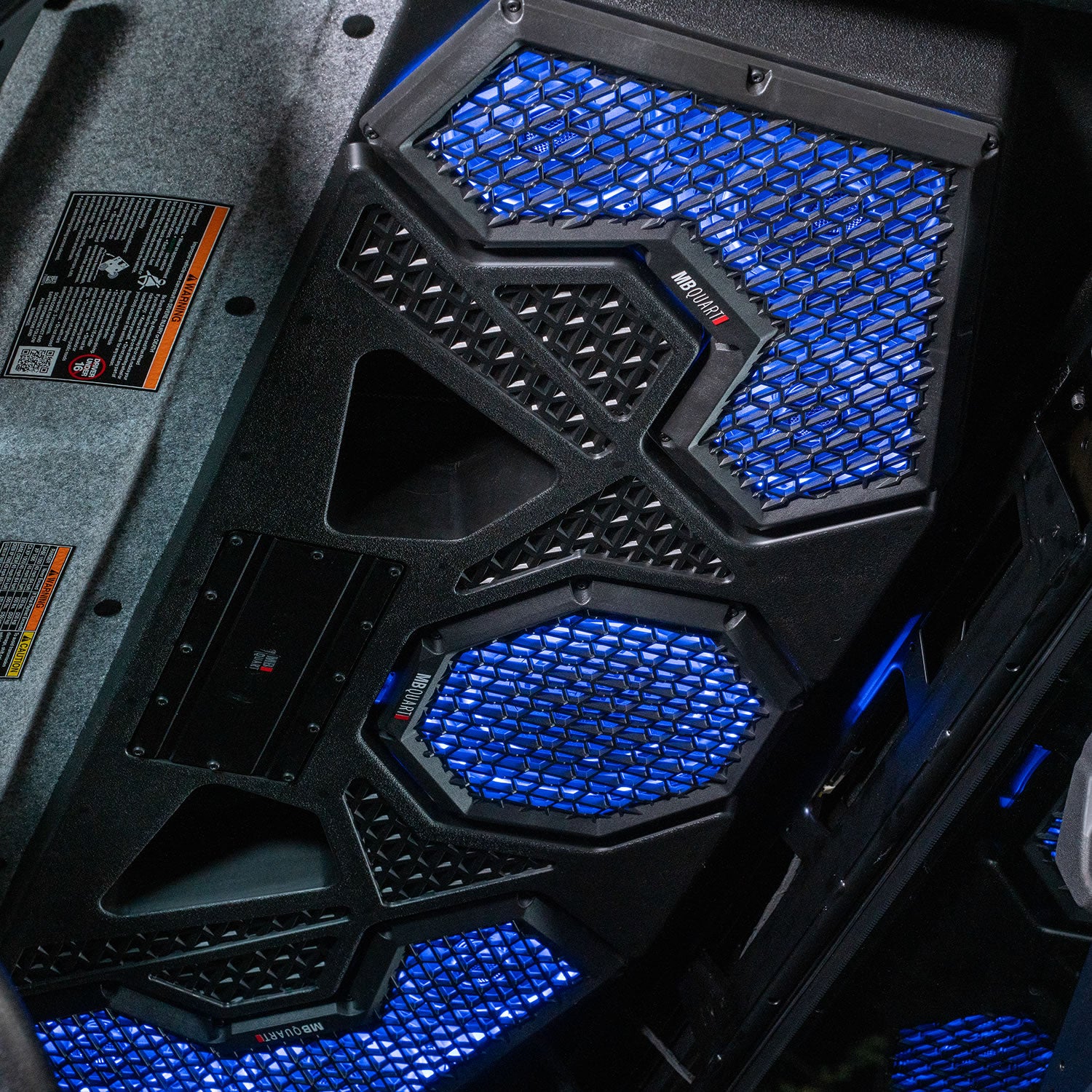

The MB Quart MBQRG2-S7R is a complete, vehicle-specific
500 watt, 7-speaker audio roof with a dash-mounted
GMR7V1 7" waterproof touchscreen source unit (with Apple® CarPlay®),
six 6.5" powersports coaxials, a 10" subwoofer, a 5-channel amplifier, and an integrated
45" RGB LED light bar — all built into a high-impact HDPE roof.
🔥 Key Highlights
- 💥 500W total system power – single 5-channel Class-D amp drives all seven speakers.
- 🔊 7-speaker audio roof – six 6.5" coaxials + one 10" subwoofer for full-range sound and real bass.
- 📱 GMR7V1 7" waterproof touchscreen with Apple® CarPlay®, AM/FM/WB, Bluetooth, dual video inputs & more.

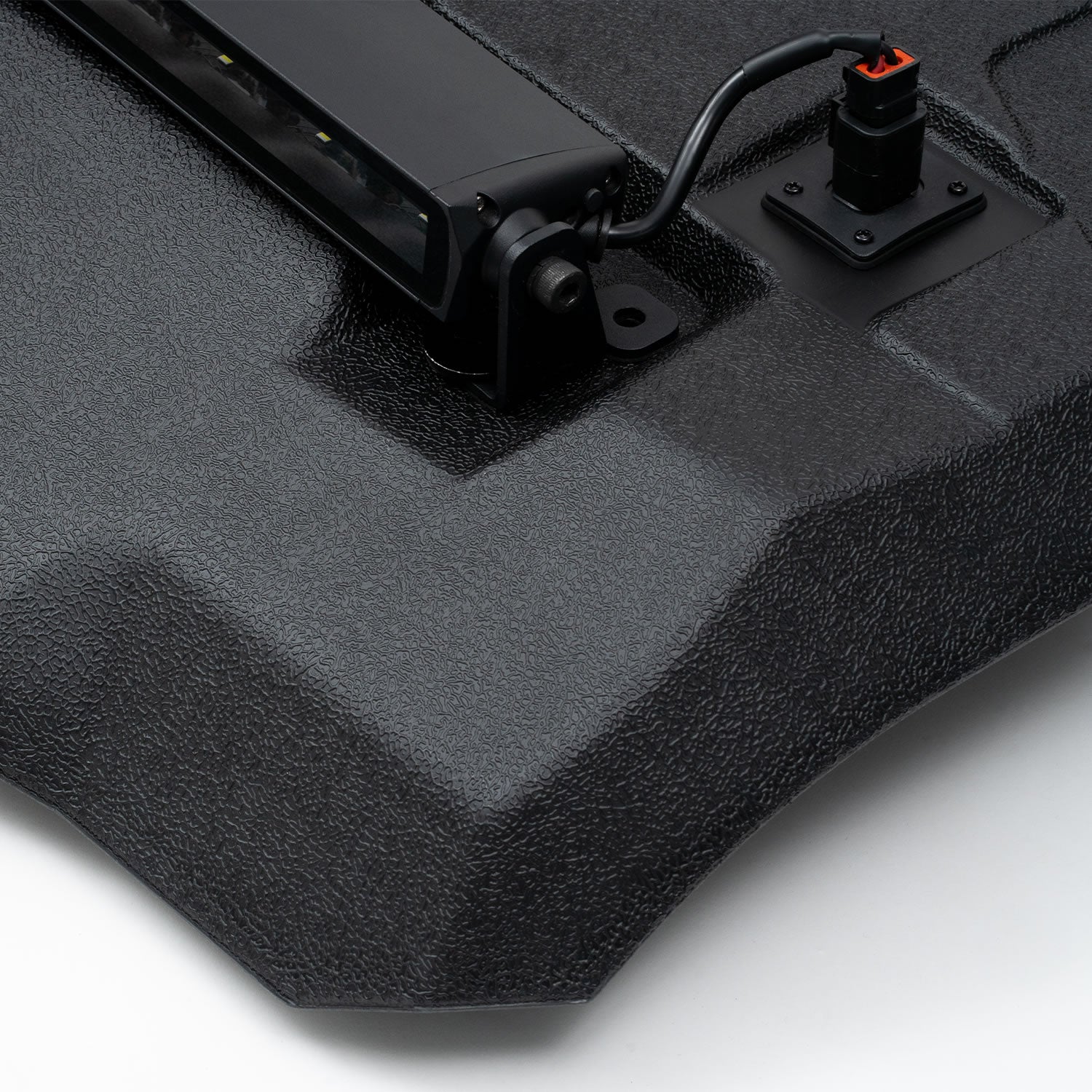

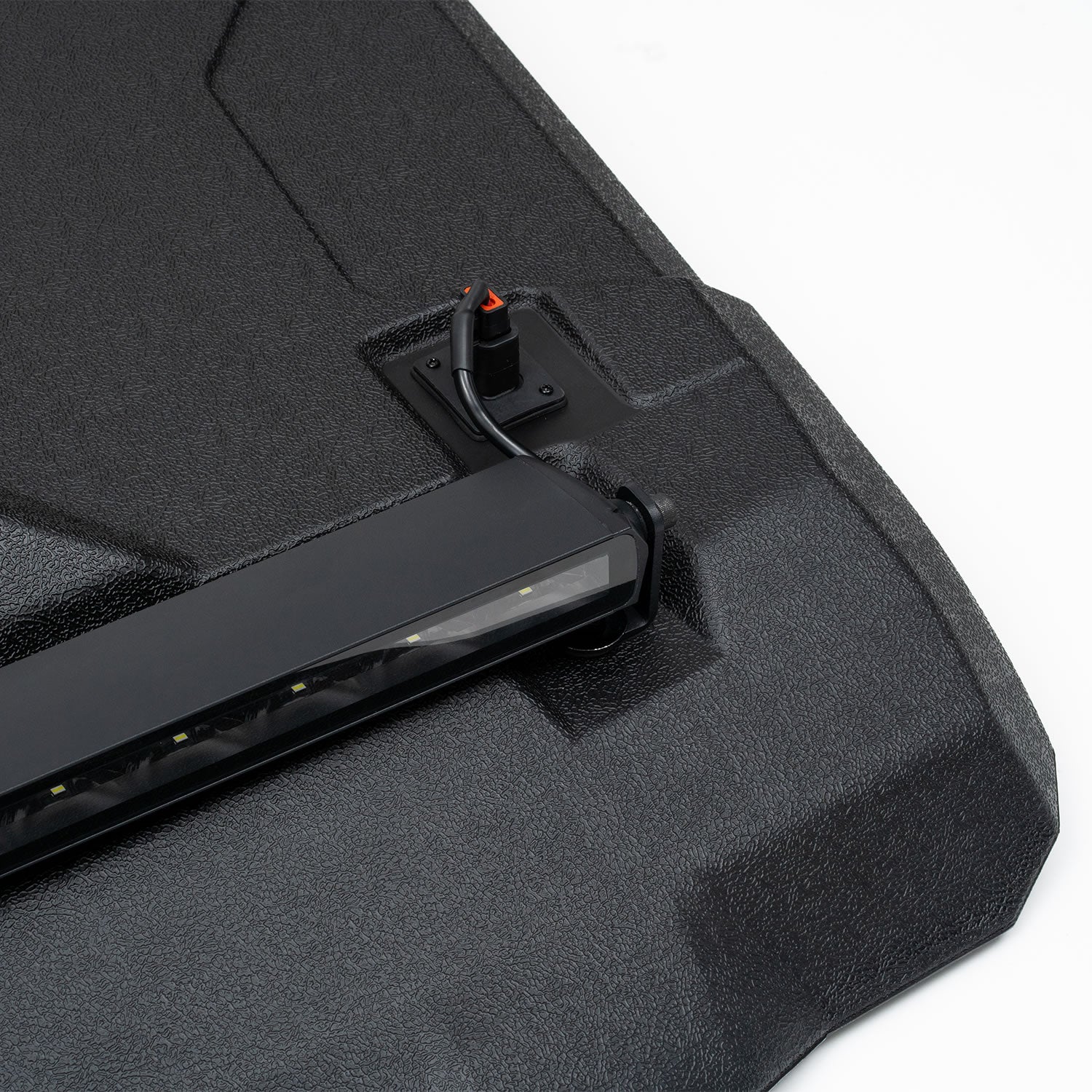

- 🌈 Integrated 45" half-optic RGB LED light bar – long-range trail lighting plus color accent.
- 💧 IPX67-rated, marine-grade design – built for mud, water, dust and rough off-road use.
- 🧩 Vehicle-specific HDPE composite roof enclosure for Polaris RANGER 1000 / XP 1000 (2018-current).
- 🔌 Plug-and-play Pulse power harness with pre-measured wiring to minimize install guesswork.
- 🕒 Quick installation on OEM roll cage with basic hand tools (two-person lift recommended).
🔊 System Breakdown

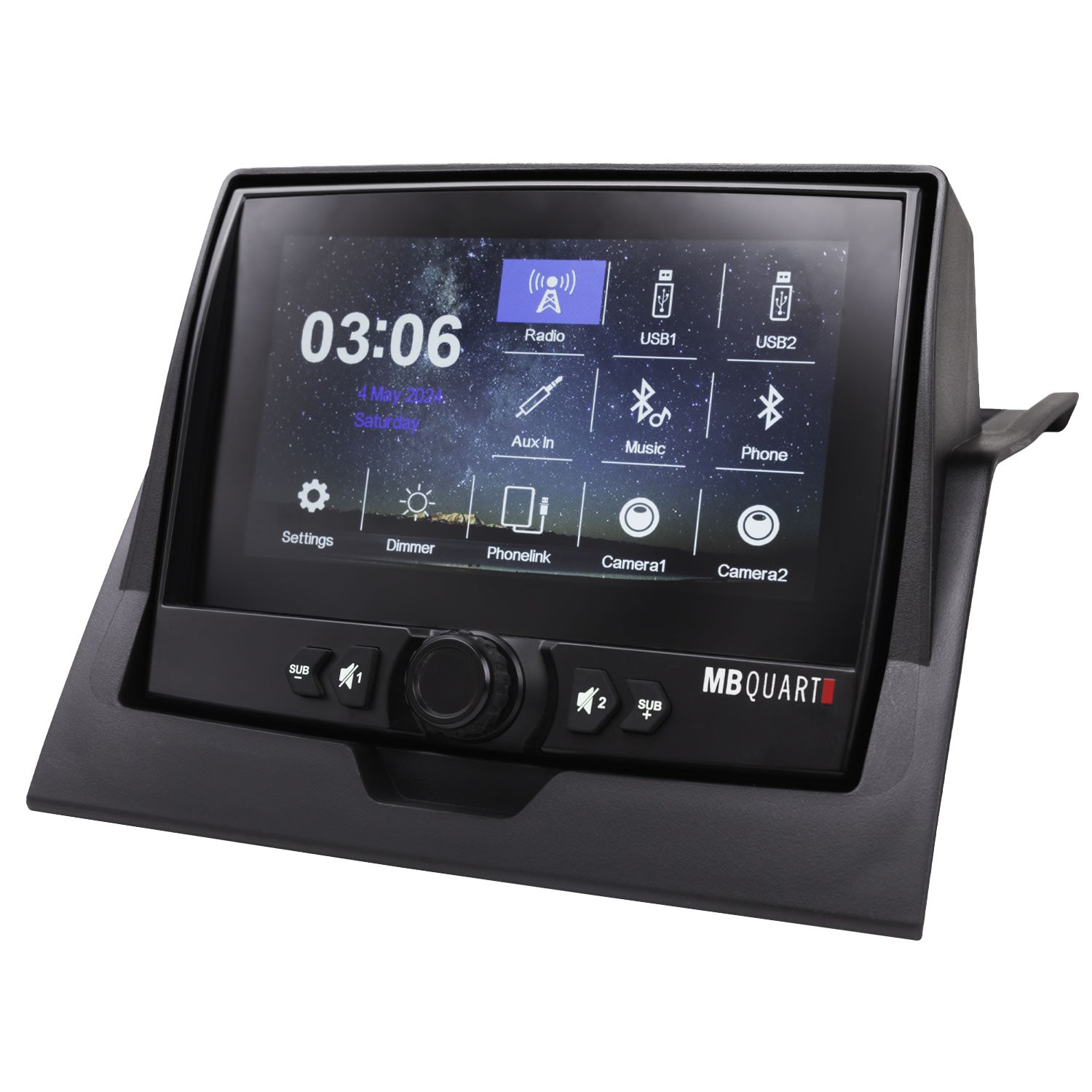

🎚 GMR7V1 7" Touchscreen Source Unit
- Apple® CarPlay® integration for calls, music, maps, and messaging right from the dash.
- AM / FM / Weather Band / Bluetooth® audio sources built in.
- Integrated RGB lighting controller for the roof’s LEDs and 45" light bar.
- Built-in auxiliary switching system to control added accessories from the screen.
-
Dual-zone audio control for balancing cabin and subwoofer levels.
-
Dual video inputs + 1 video output (works with the included backup camera).
- Two USB-A inputs, one aux input, and pre-amp outputs for expansion.
- Control via master volume knob, 4 hard keys, and capacitive touchscreen.

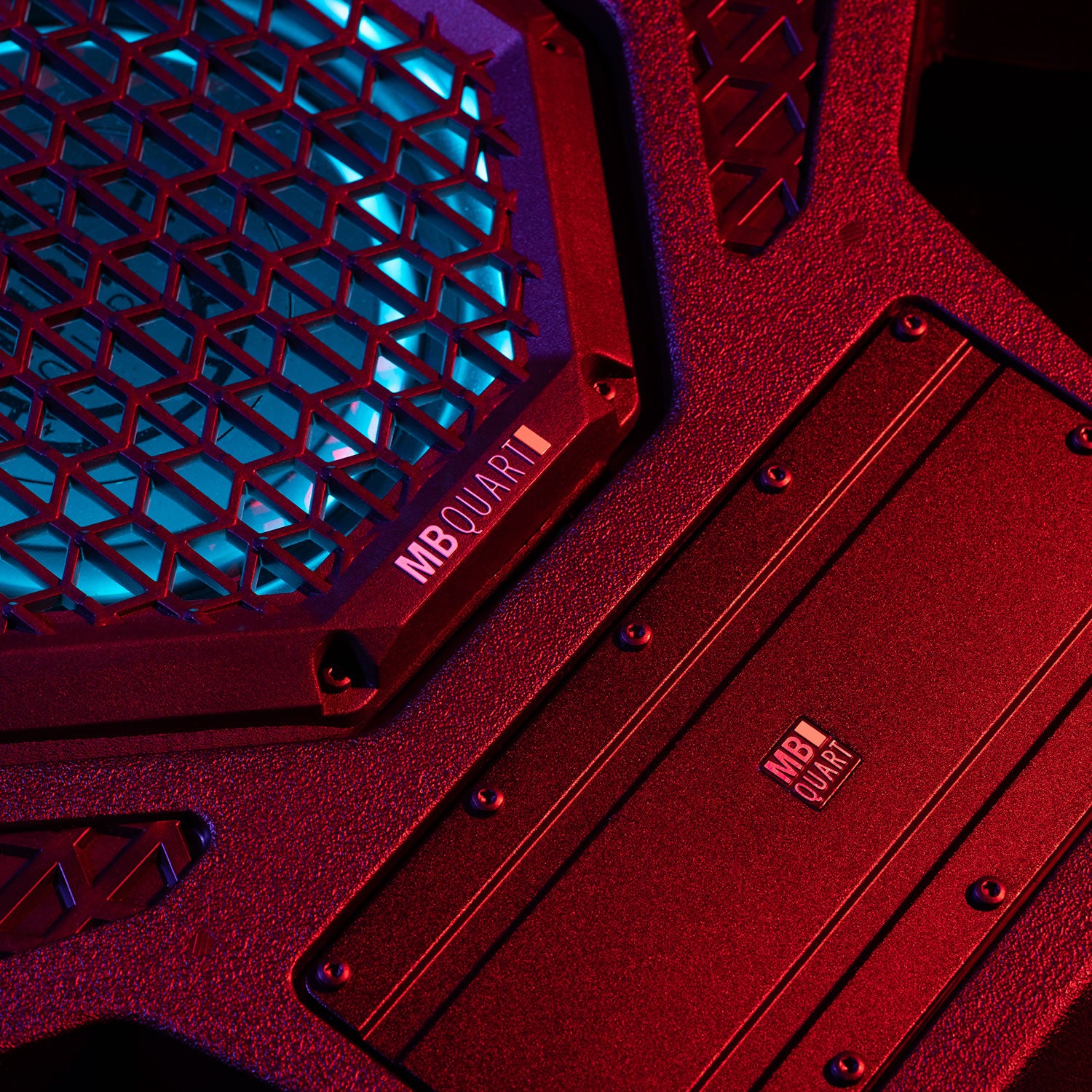

⚡ Amplification
-
500W 5-channel full-range Class-D amplifier engineered for UTV environments.
- Drives six full-range speakers plus the dedicated 10" sub with clean, efficient power.

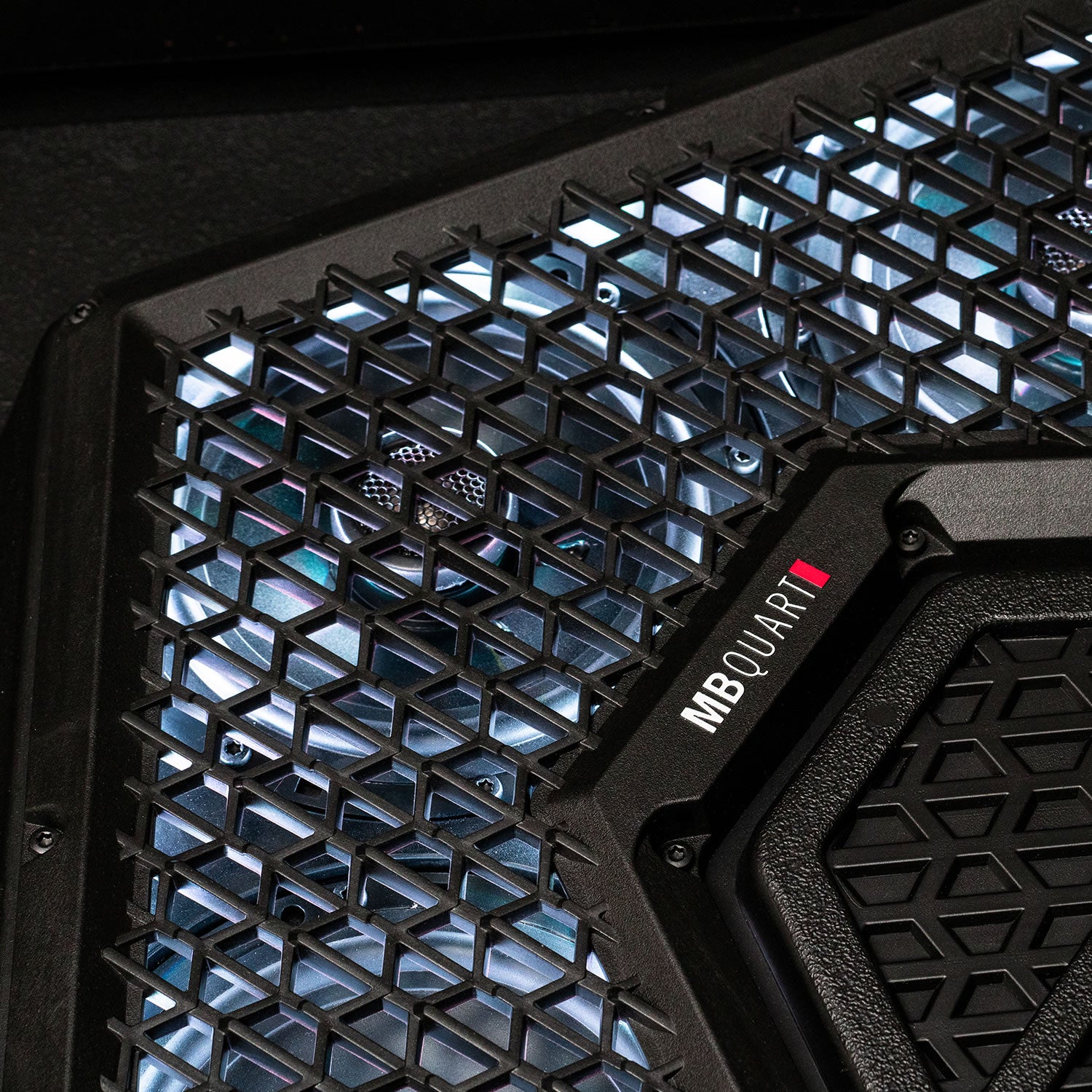

🎼 Full-Range Speakers
-
Six 6.5" powersports-specific coaxial speakers tuned for open-air cabins.
-
Composite midrange cones for deep, accurate midbass.
-
0.75" titanium dome tweeters deliver crisp highs that cut through wind, engine, and trail noise.

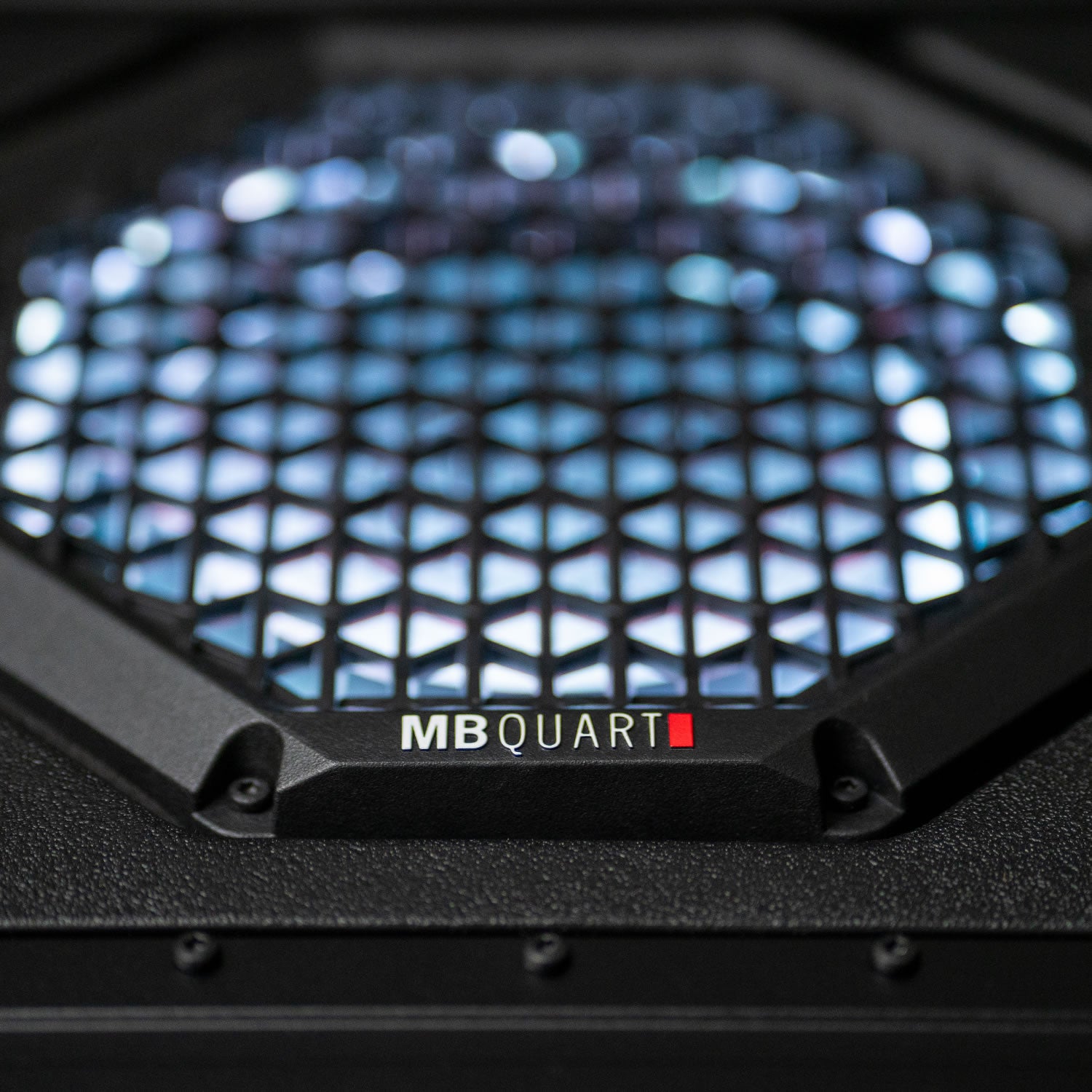

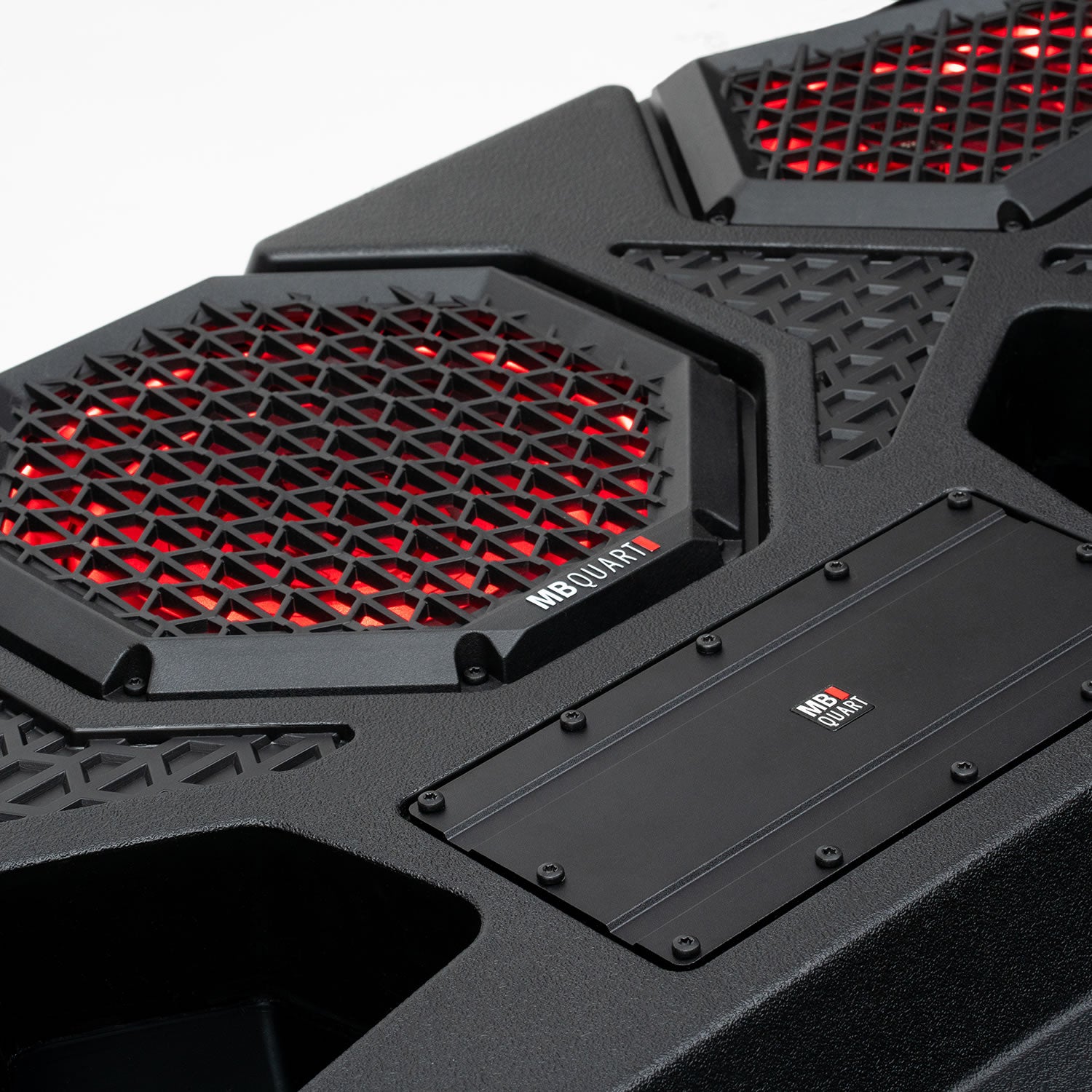

🔊 Subwoofer
-
One 10" powersports-specific subwoofer built into the roof assembly.
- Designed for strong low-frequency output without sacrificing floor or bed space.

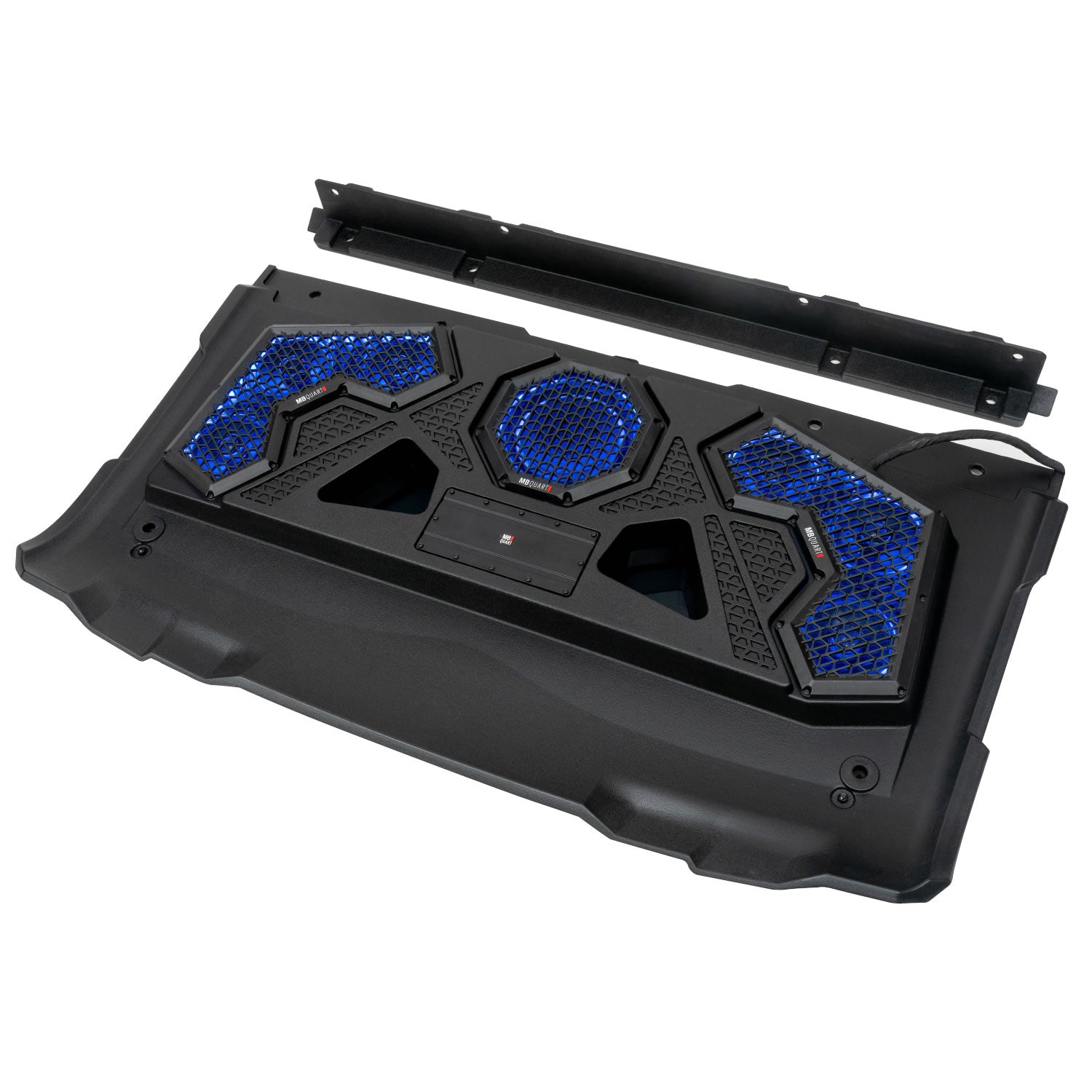

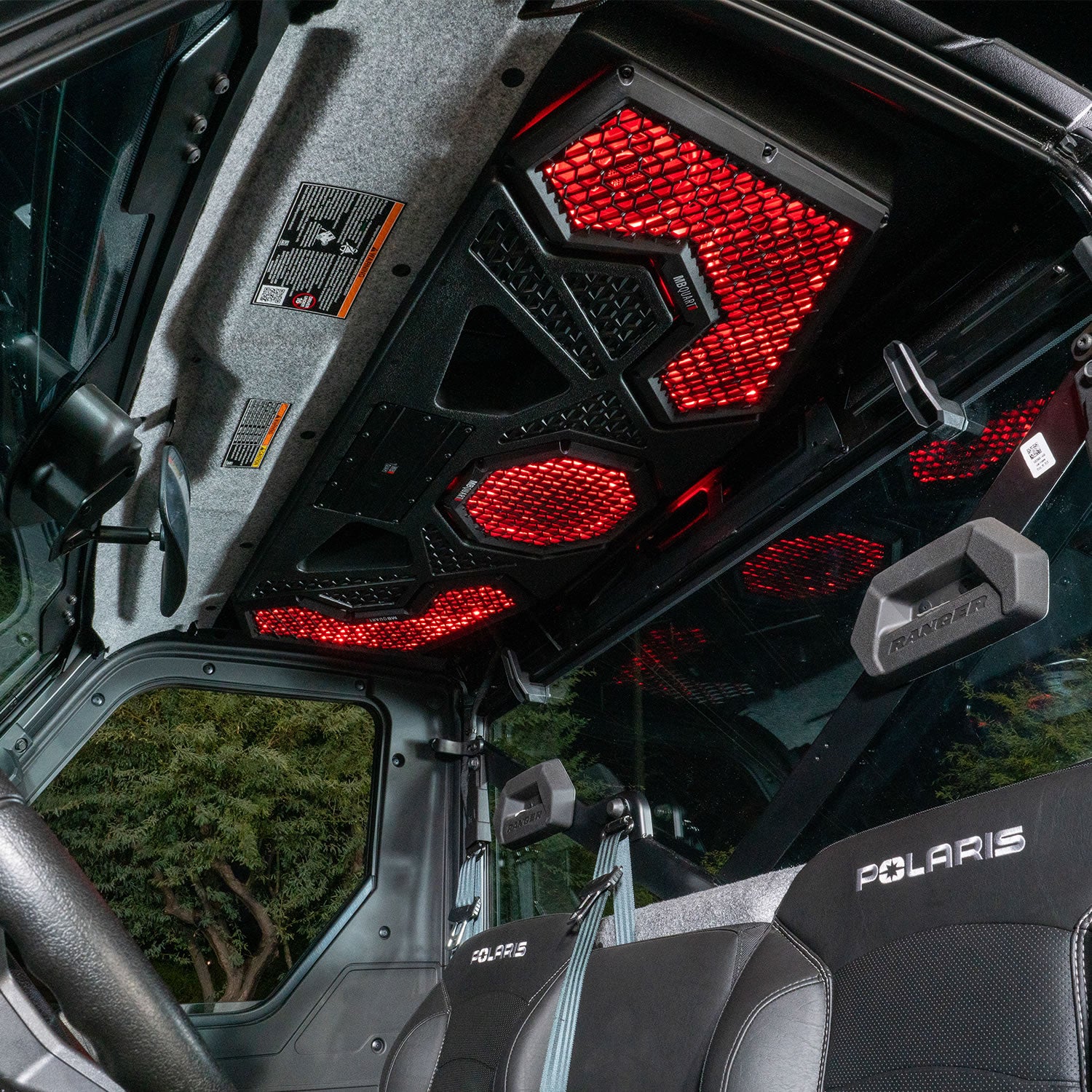

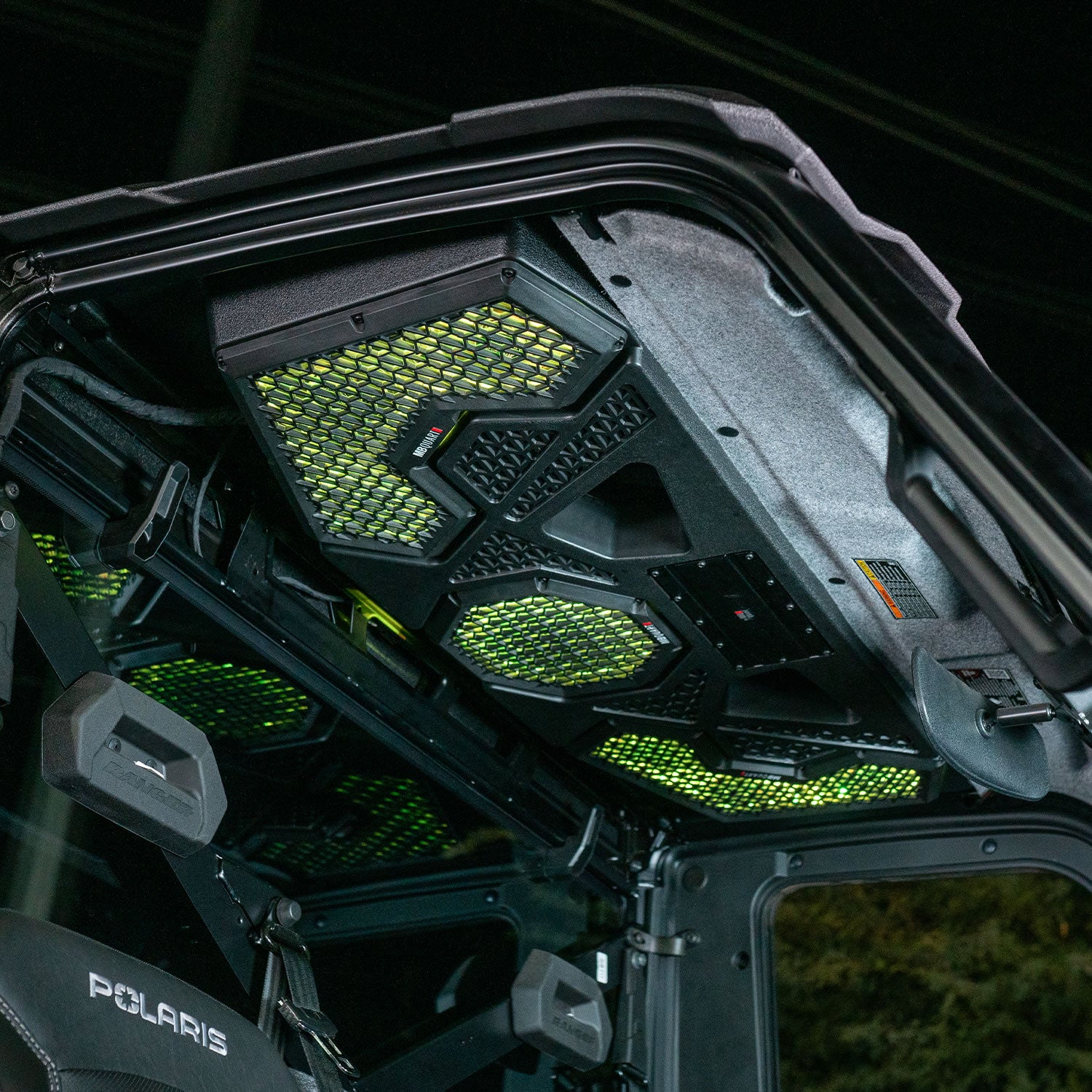

🏗 Enclosure & Construction
-
High-impact HDPE composite roof enclosure for strength and weather resistance.
- Vehicle-specific mold and mounting for the OEM Polaris RANGER roll cage.
- Integrated RGB LED lighting and 45" light bar for both function and style.
📡 Connectivity & Control
-
Bluetooth® 5.0 wireless audio streaming.
-
Secure Simple Pairing™ for fast, stable device connection.
-
Memory Sync remembers the last connected device and auto reconnects when in range.
- Bluetooth range up to ~32 ft (line-of-sight).
- Two USB-A jacks for music/firmware and charging.
📊 Technical Specifications
| Model |
MBQRG2-S7R |
| System Type |
All-in-one UTV audio roof |
| Total Power |
500 watts (single 5-channel Class-D amplifier) |
| Speakers |
6 × 6.5" coaxial speakers + 1 × 10" subwoofer (7 speakers total) |
| Source Unit |
GMR7V1 7" waterproof touchscreen with Apple® CarPlay® |
| Frequency Response |
20 Hz – 20 kHz (system) |
| Bluetooth Version |
5.0 (Secure Simple Pairing™) |
| Bluetooth Range |
Up to ~32 ft |
| Inputs |
2 × USB-A, 1 × Aux, 2 × video in, 1 × video out, pre-amp outputs |
| Light Bar |
45" half-optic RGB LED light bar (integrated) |
| IP Rating |
IPX67 (marine grade) |
| Color |
Black |
| Enclosure Material |
High-impact HDPE composite |
| Weight |
Approx. 79.5 lbs (roof assembly) |
| Overall Dimensions |
Approx. 71" × 8.75" × 39" |
| Warranty |
1-Year (manufacturer) |
| Condition |
New |

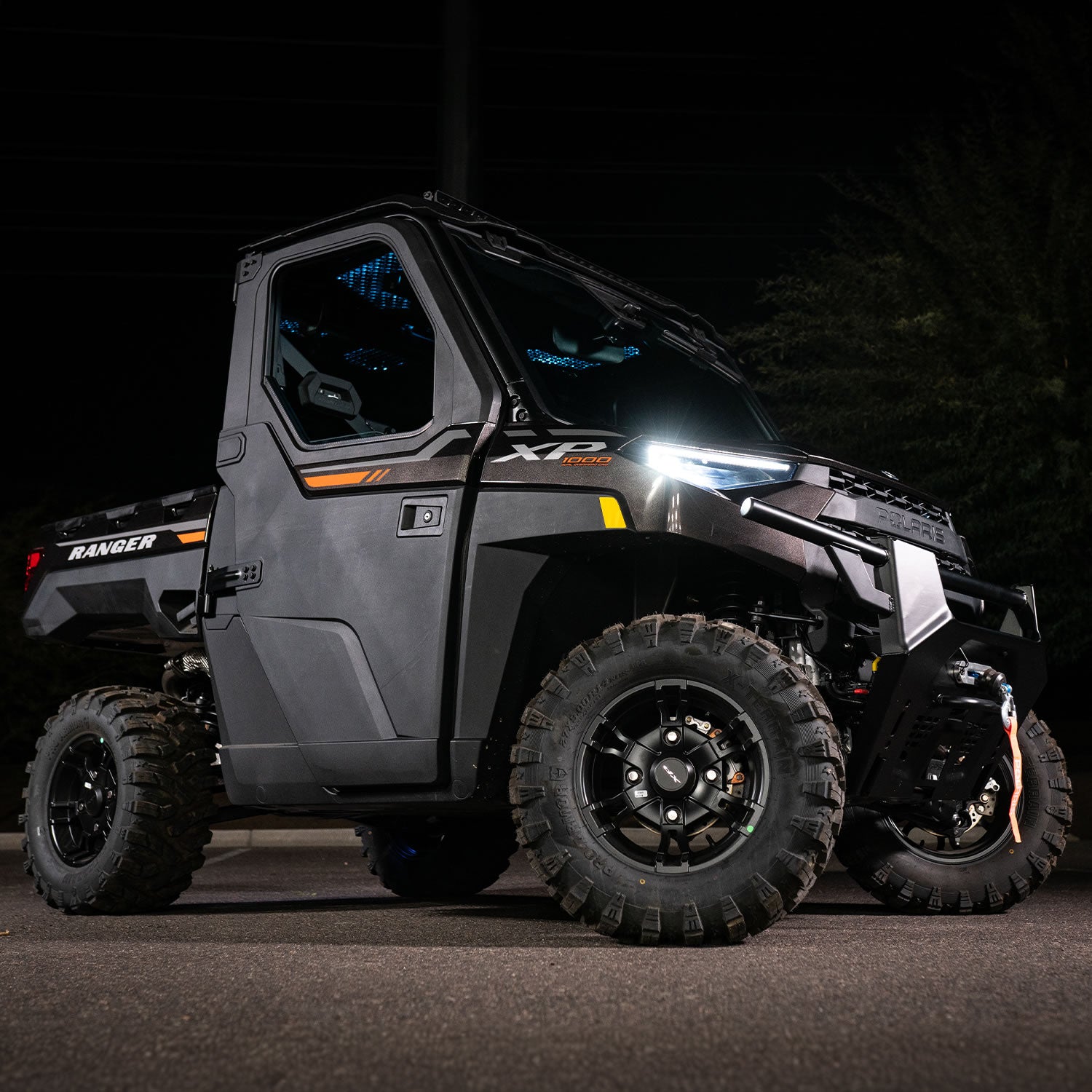

🚙 Vehicle Fitment
Designed specifically for:
- 2018-current Polaris RANGER 1000 – all models
- 2018-current Polaris RANGER XP 1000 – all models
Fits OEM roll cage only. Not compatible with factory Ride Command roof/audio packages.
🛠 Installation & Wiring
- Mounts directly to the factory RANGER roll cage using the included brackets and hardware.
- Includes plug-and-play Pulse power harness with pre-measured wiring – no cutting or splicing into the dash for standard installs.
- Designed for a clean, OEM-style install with minimal fabrication.
- Two-person lift recommended due to the size and weight of the roof assembly.

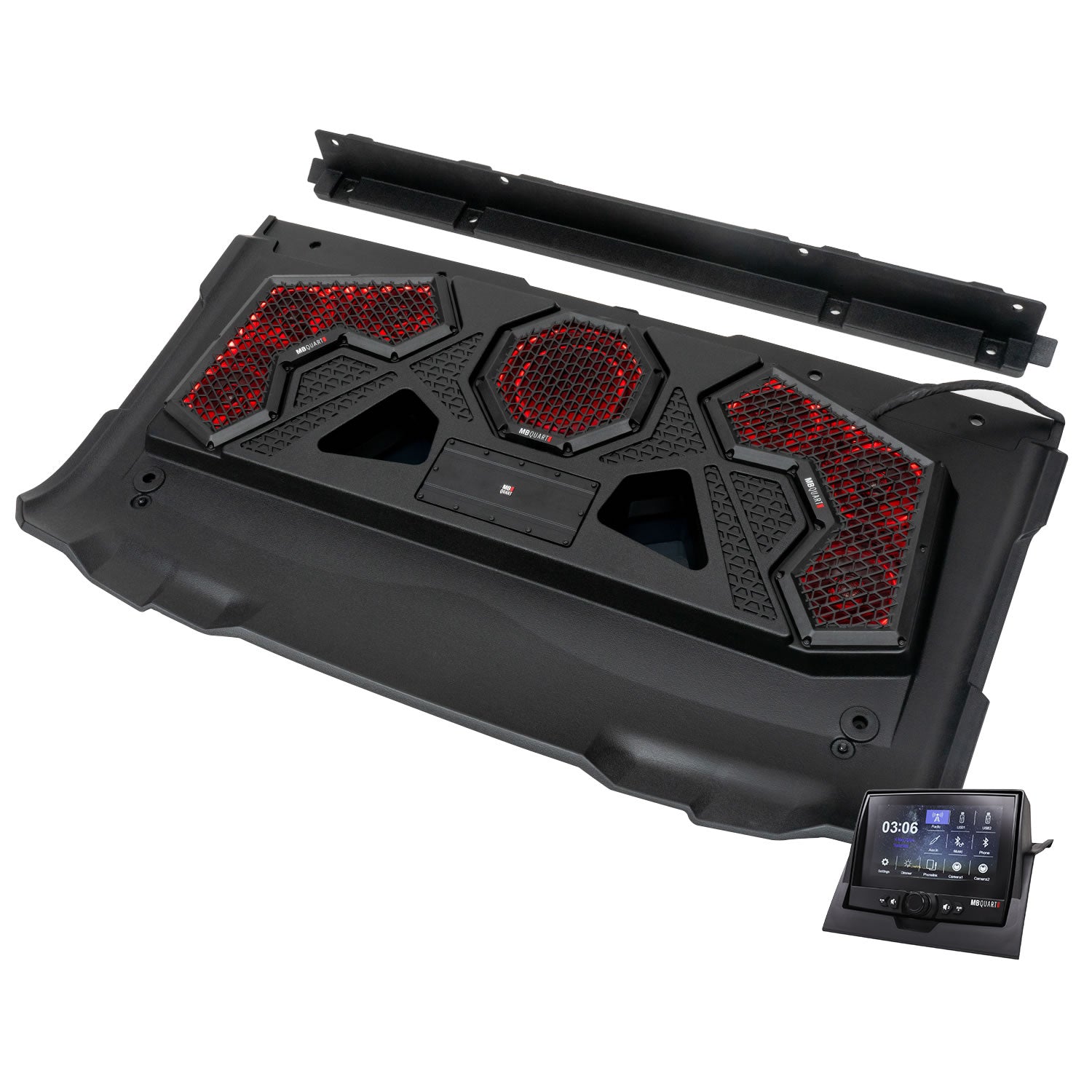

📦 What’s Included
- Complete MBQRG2-S7R Polaris RANGER audio roof assembly.
- Pre-installed GMR7V1 7" touchscreen source unit.
- Pre-installed 6 × 6.5" powersports coaxial speakers.
- Pre-installed 1 × 10" powersports subwoofer.
- Pre-installed 500W 5-channel Class-D amplifier.
-
45" integrated half-optic RGB LED light bar.
- Pulse plug-and-play power harness and signal wiring.
- Mounting brackets and hardware for OEM roll cage.

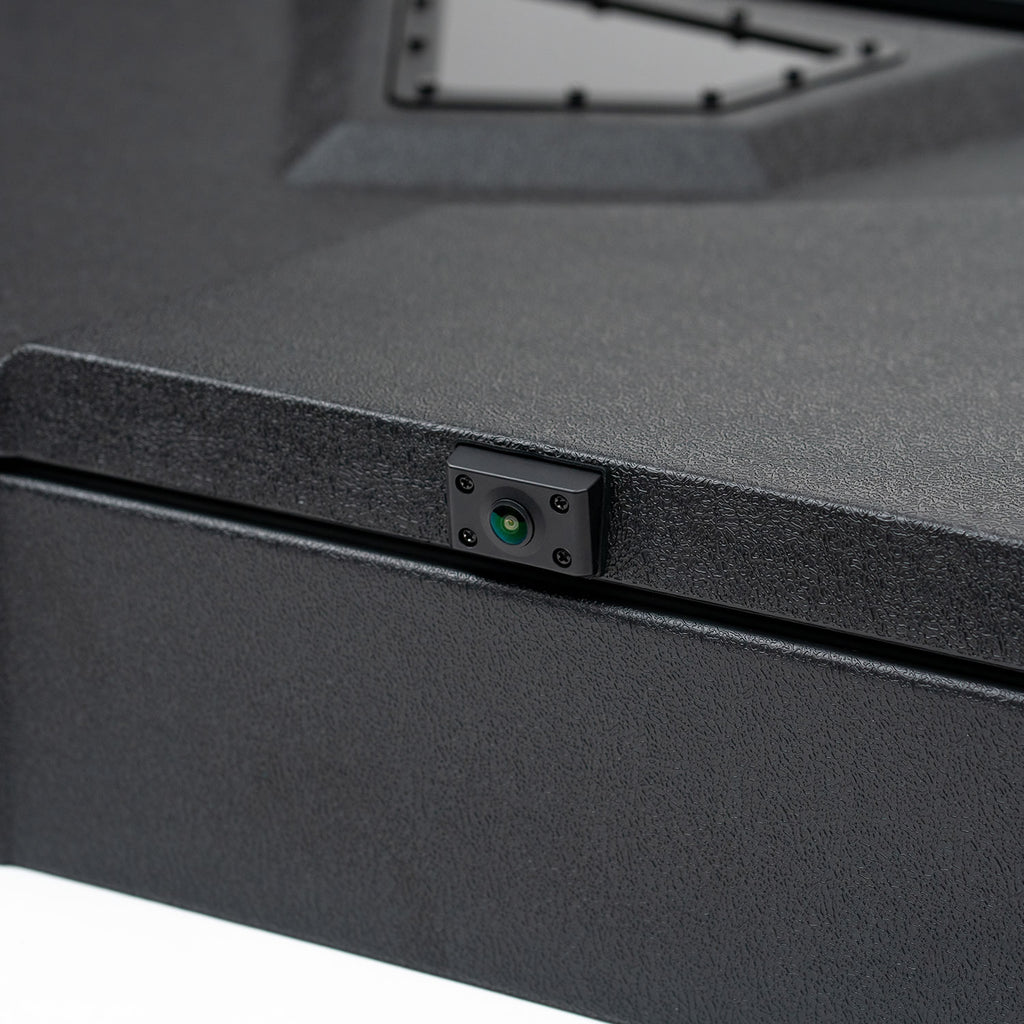

- Backup camera (150° wide-angle) and required cabling (where included by MB Quart).
- Owner’s / installation manual.
🎯 Ideal For
- RANGER owners wanting a single-box, factory-style audio + lighting solution with minimal install hassle.
- Trail, ranch, and work rigs that need clear music, strong midbass, and real subwoofer output without losing space.
- Anyone who wants Apple® CarPlay®, backup camera, RGB lighting and a 45" light bar integrated into one system.
Note: Always verify fitment for your exact year/model RANGER before ordering and follow all installation and safety guidelines. Professional installation is recommended for best performance and reliability.
