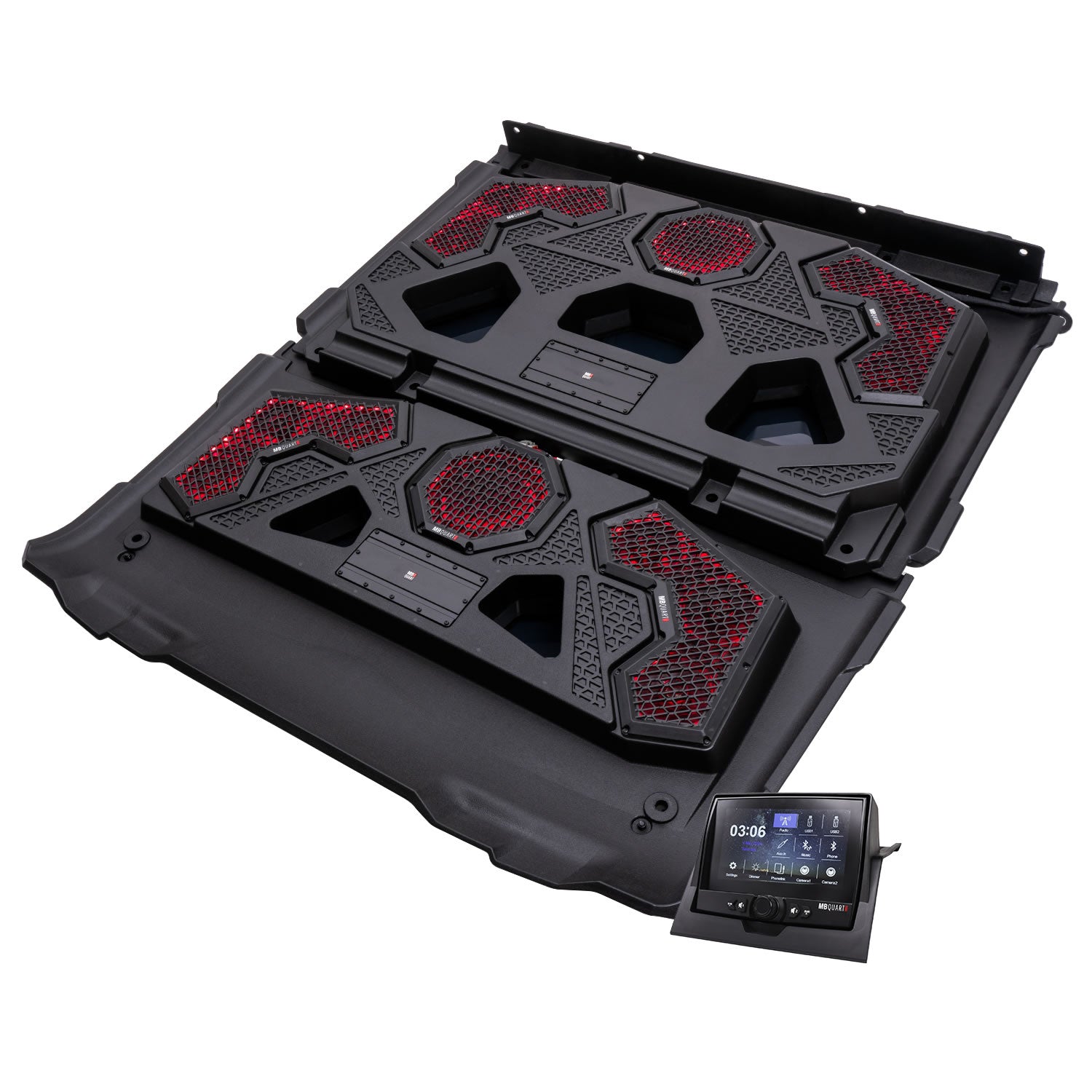

🎵 MB Quart MBQRG4-S14R – 1000W 14-Speaker Polaris RANGER Audio Roof w/ 7" LED Source & 45" Light Bar
Turn your Polaris RANGER 1000 / XP 1000 (2018-current) into a rolling concert.
The MB Quart MBQRG4-S14R is a complete, vehicle-specific
1000 watt, 14-speaker audio roof with a built-in
GMR7V1 7" waterproof touchscreen source unit (with Apple® CarPlay®),
dual 500W 5-channel amplifiers, dual 10" subwoofers, and a
45" integrated RGB light bar. Just bolt it up, plug it in, and ride.
🔥 Key Highlights
- 💥 1000W total system power – two 500W 5-channel Class-D amps drive all 14 speakers.

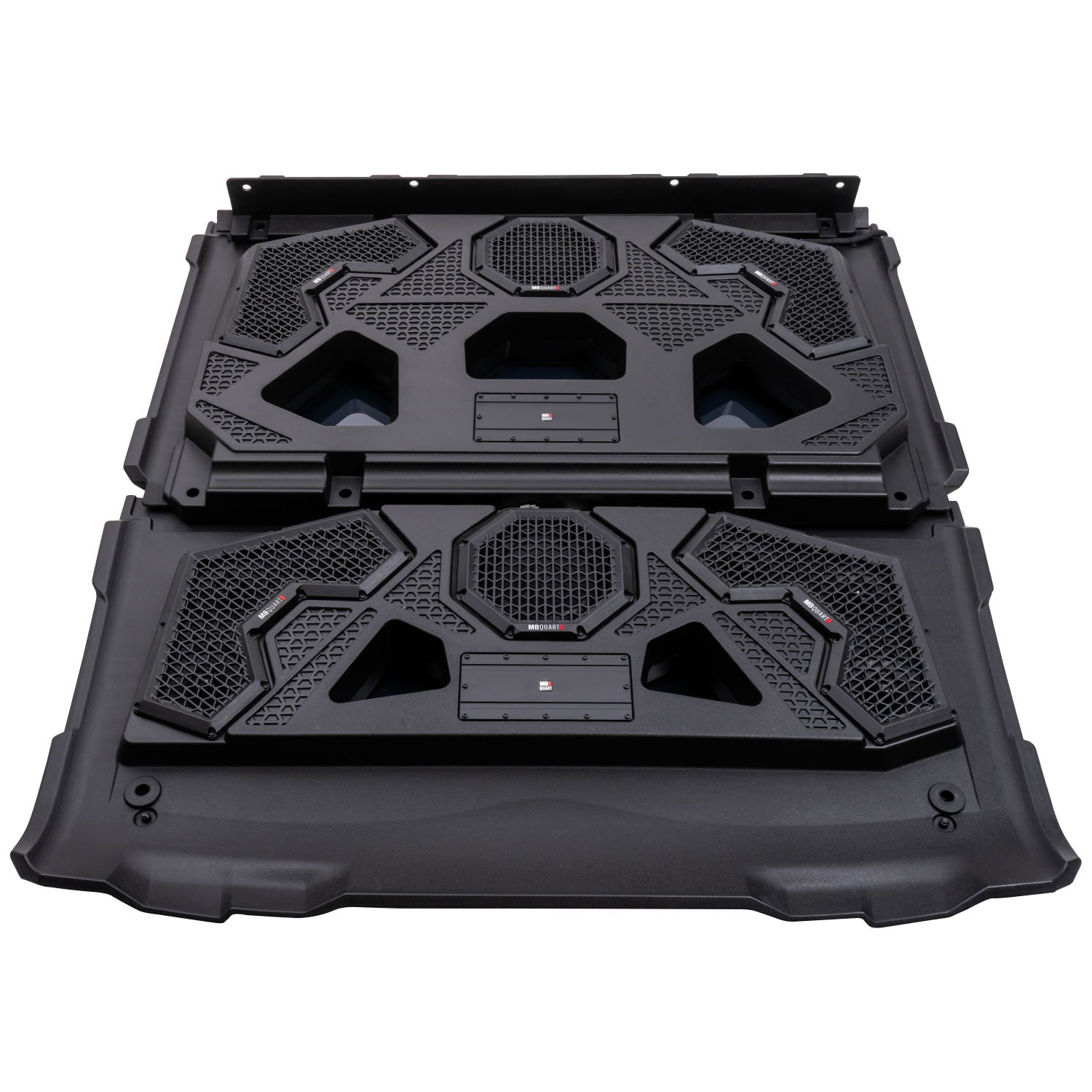

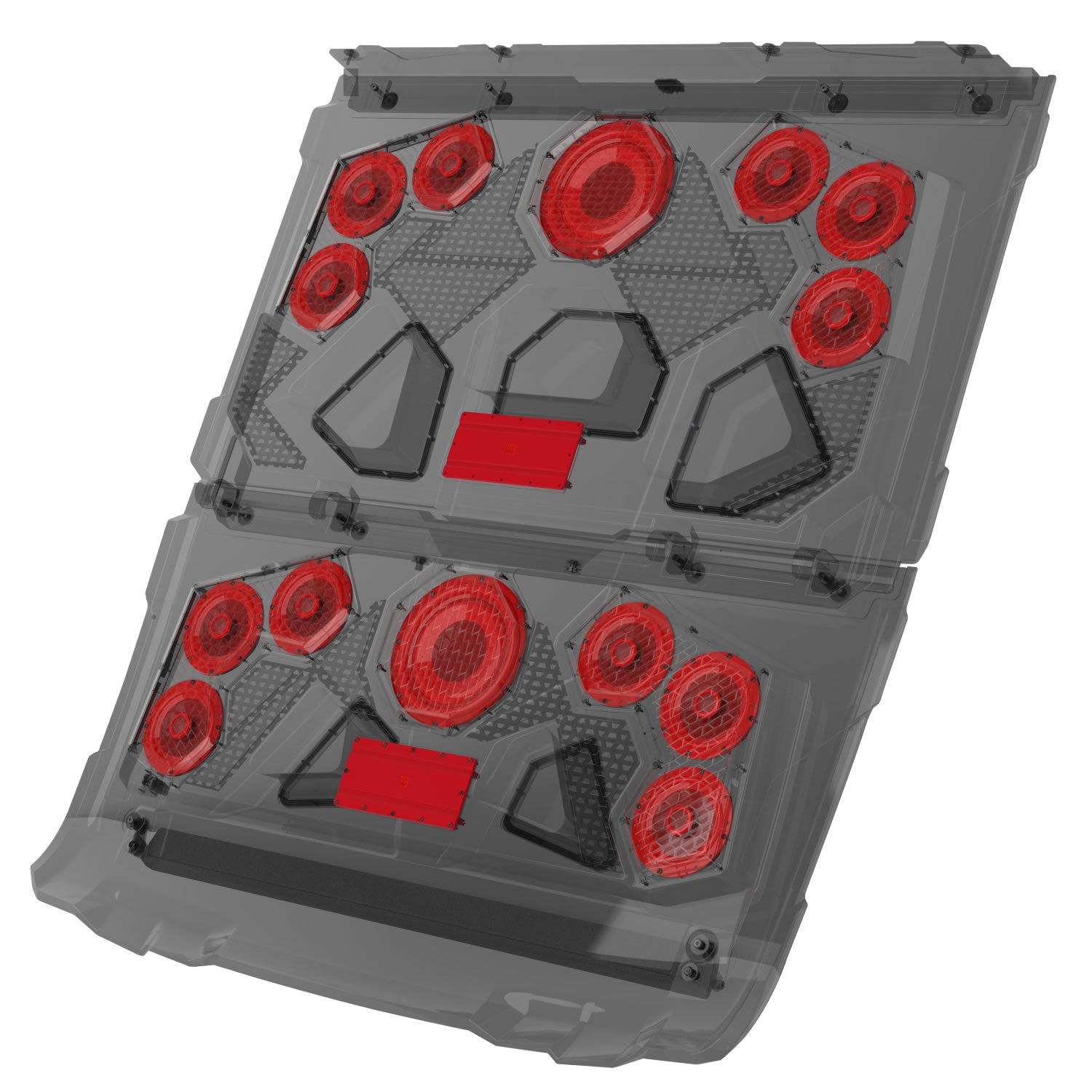

- 🔊 14-speaker audio roof – twelve 6.5" coaxials + two 10" high-output subwoofers.
- 📱 GMR7V1 7" waterproof touchscreen with Apple® CarPlay®, AM/FM/WB, Bluetooth, dual video inputs & more.

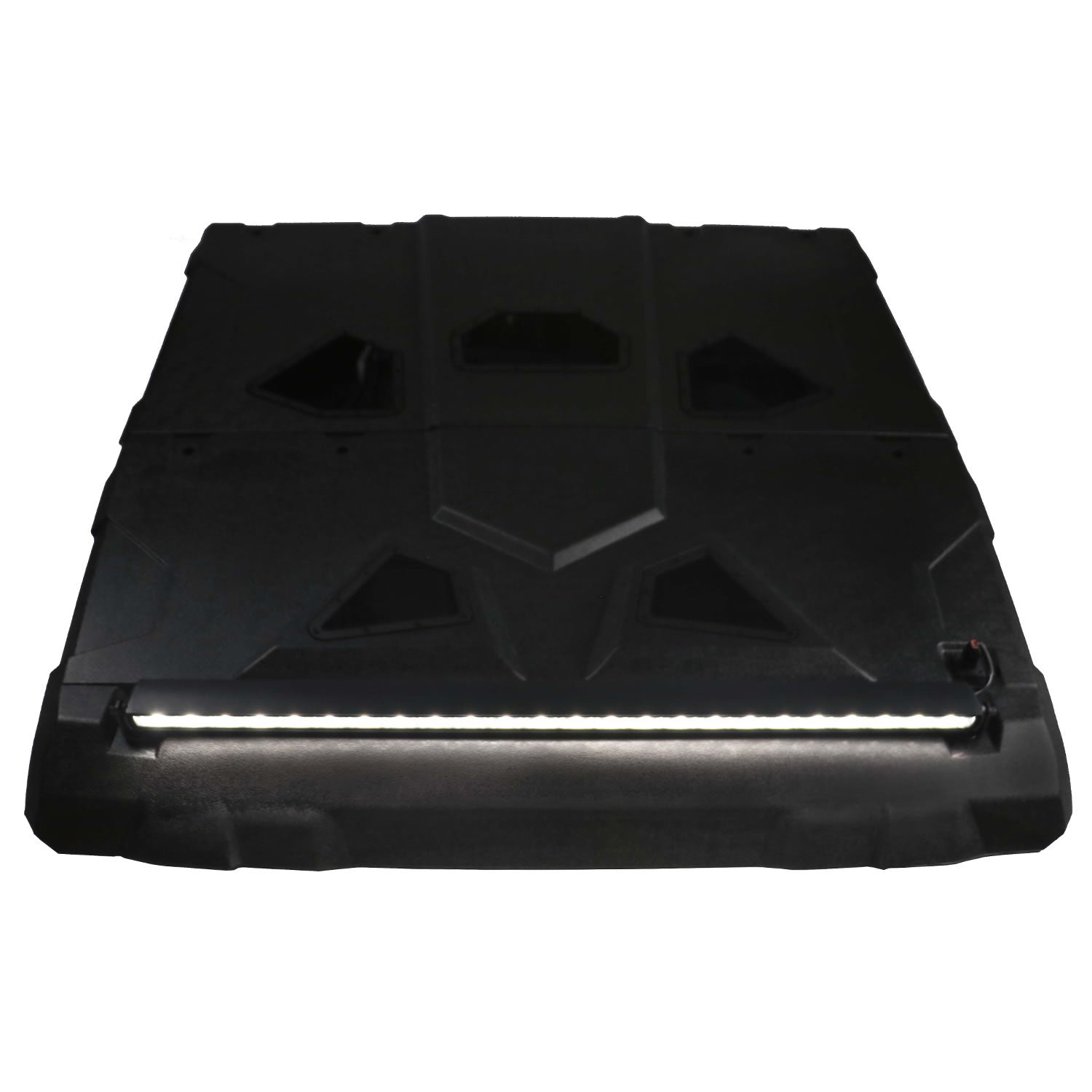

- 🌈 Integrated 45" RGB LED light bar – half-optic bar with onboard RGB control.
- 💧 IPX67 marine-grade protection – built for mud, water, dust and trail abuse.
- 🧩 Vehicle-specific HDPE composite roof enclosure for Polaris RANGER 1000 / XP 1000 (2018-current).
- 🔌 Plug-and-play Pulse power harness with pre-measured wiring – minimal guesswork.
- 🕒 Approx. 1-hour install with basic hand tools (when mounted to OEM roll cage).
🔊 System Breakdown

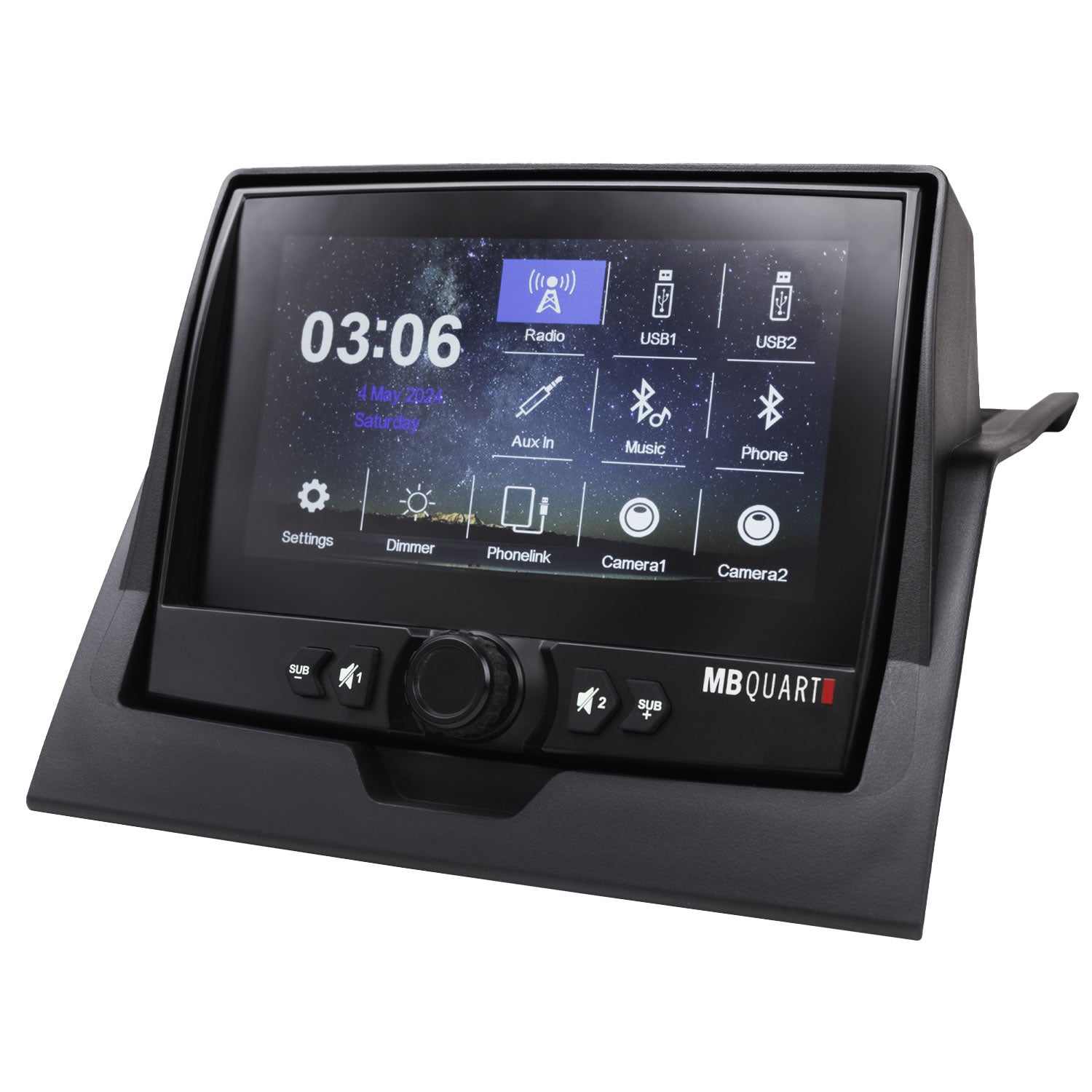

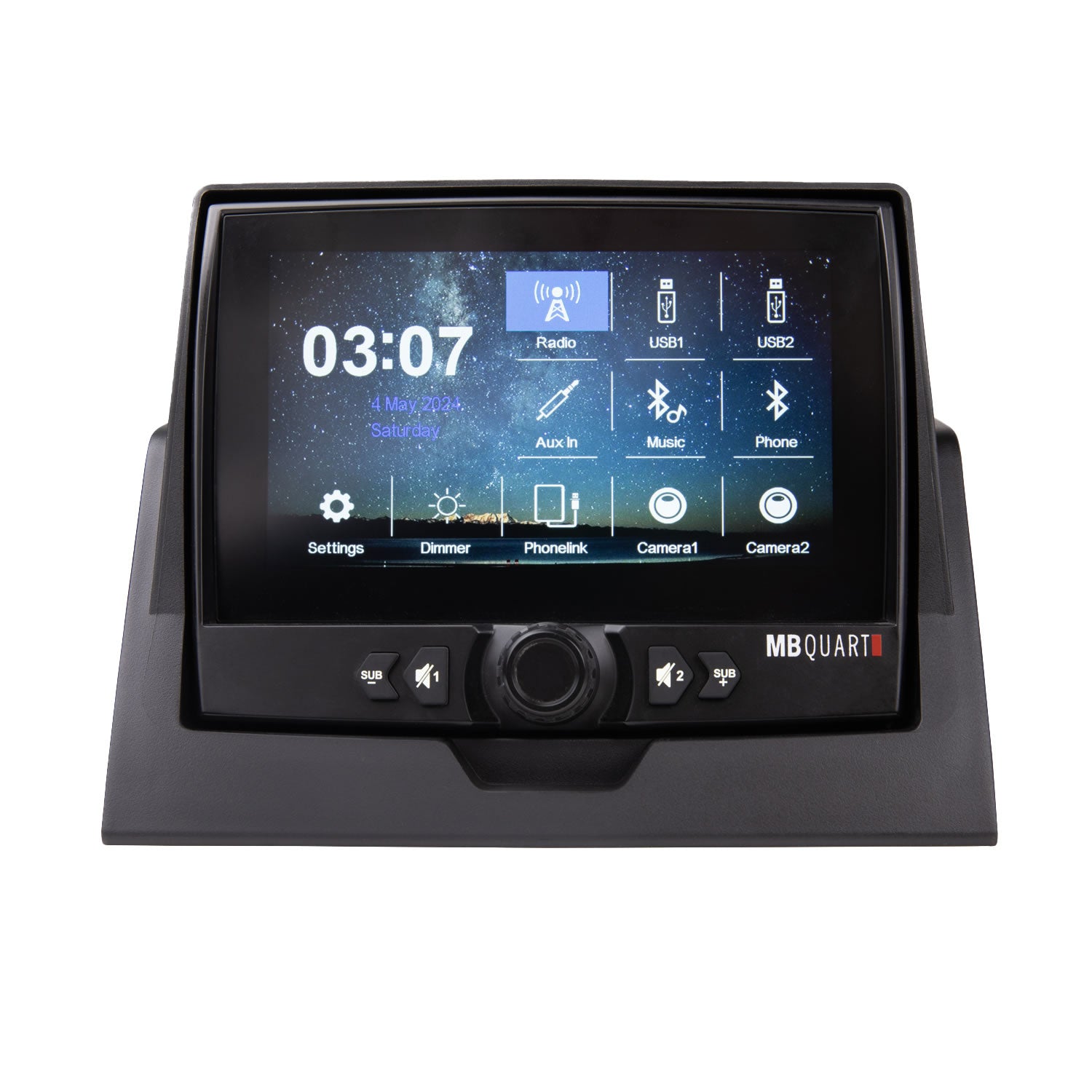

🎚 GMR7V1 7" Touchscreen Source Unit
- Apple® CarPlay® integration for calls, music, maps, and messaging.
- AM / FM / Weather Band / Bluetooth® audio.
- Built-in RGB lighting controller for the roof’s LEDs and light bar.
- Dual-zone audio control for front/rear or cabin/sub tuning.
-
Dual video inputs + 1 video output (includes a 150° wide-angle backup camera).
- Two USB inputs (Type-A), one aux input, and pre-amp outputs for expansion.
- Onboard auxiliary switching system to control accessories from the screen.
- Control via master volume knob, 4 hard keys, and capacitive touchscreen.

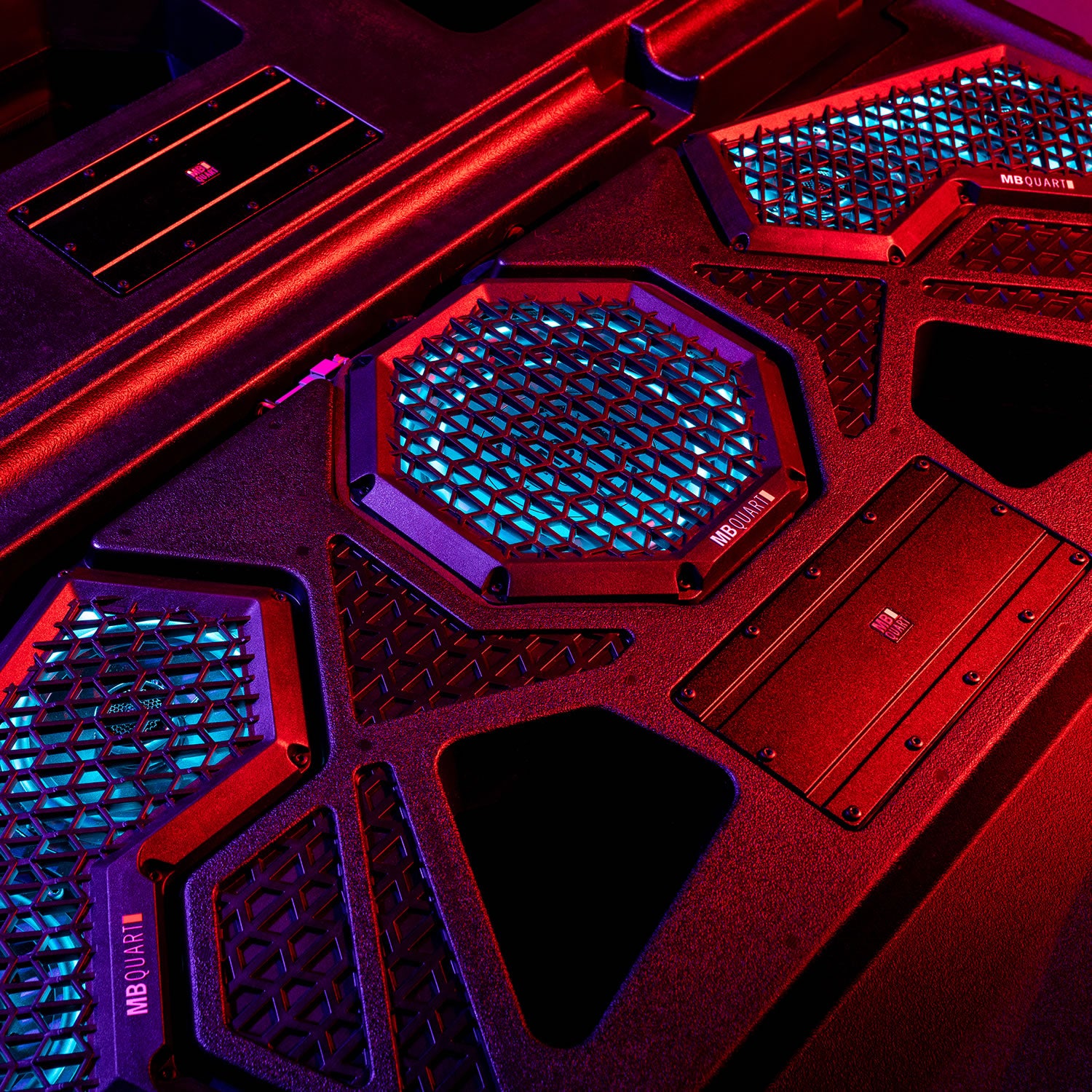

⚡ Amplification
-

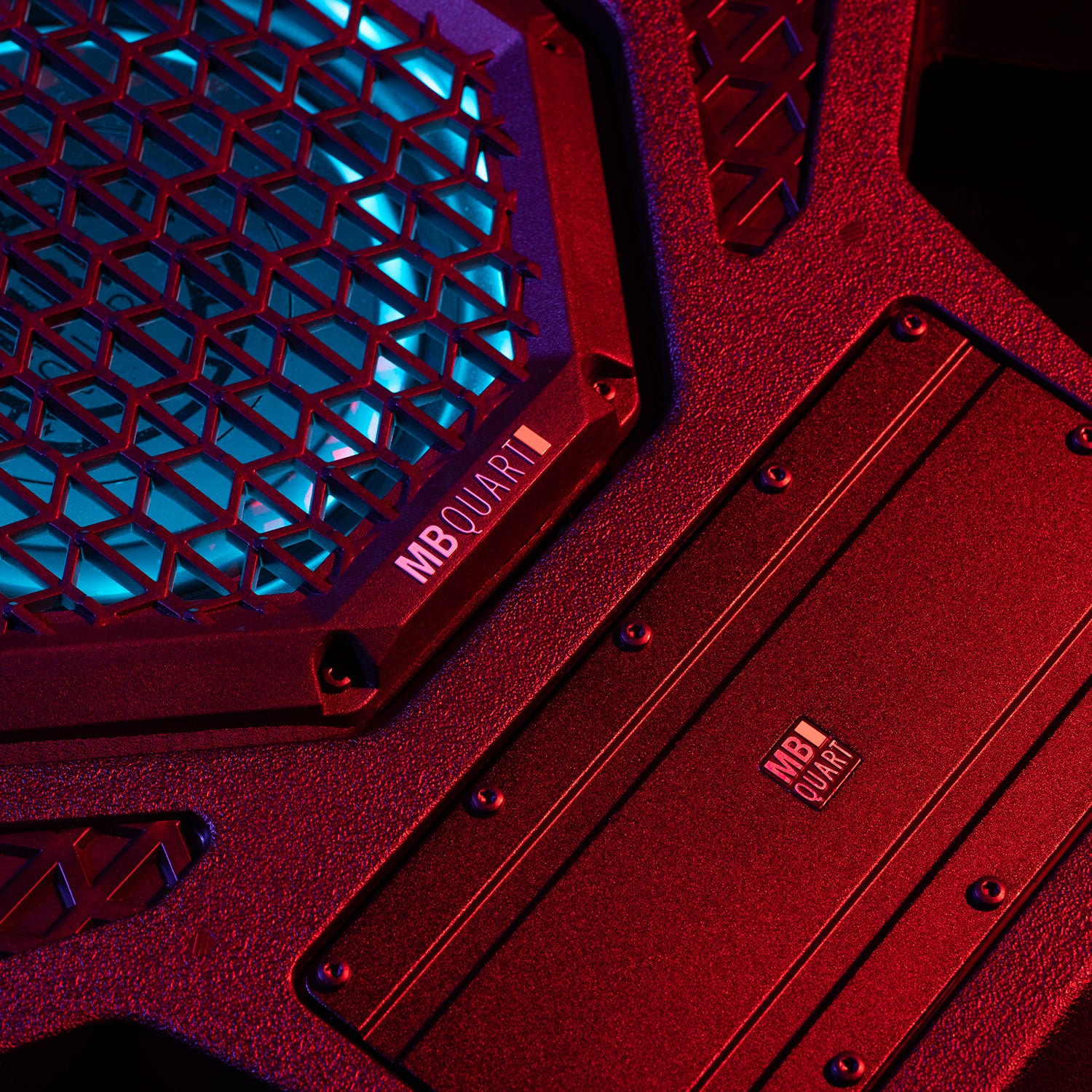

Two 500W 5-channel full-range Class-D amplifiers engineered for powersports use.
- Optimized to drive the twelve 6.5" coaxials plus the dual 10" subs with headroom.

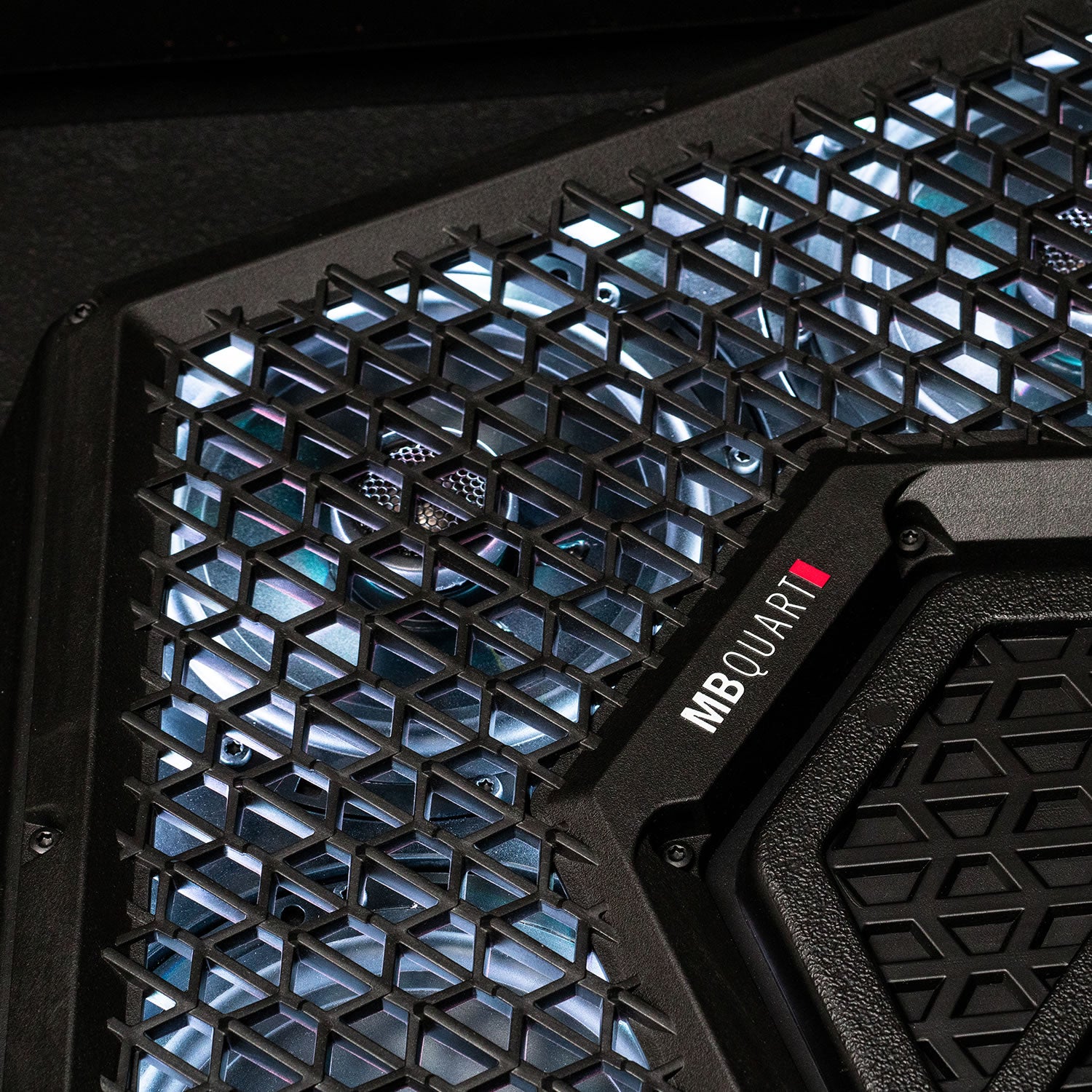

🎼 Full-Range Speakers
-
Twelve 6.5" coaxials specifically tuned for UTV / open-air environments.
- Composite midrange design for deep, accurate midbass.
-
0.75" titanium dome tweeters for crisp, high-frequency detail that cuts through wind and engine noise.
🔊 Subwoofers
-

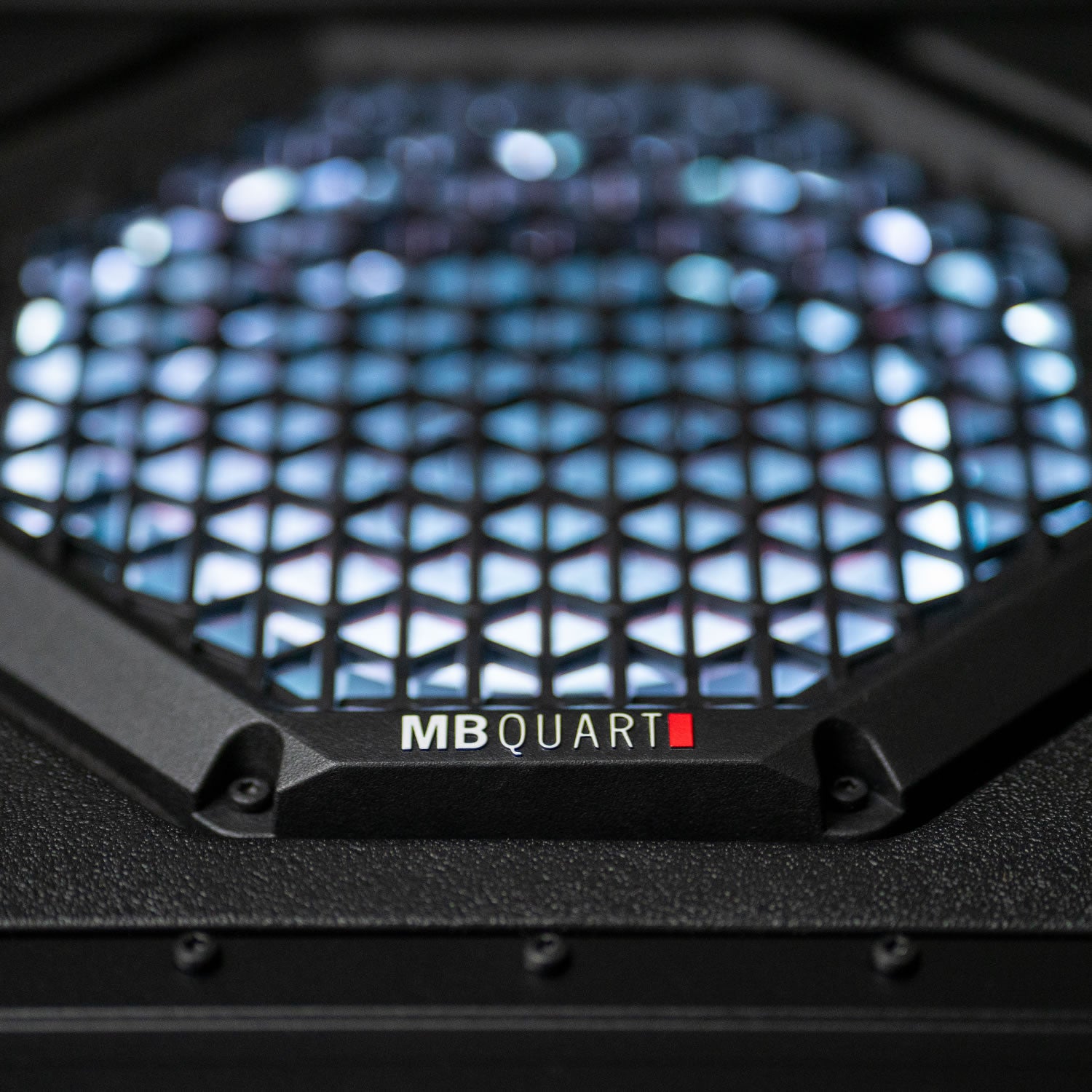

Two 10" high-output, application-specific subwoofers built into the roof.
- Designed to deliver strong low-frequency output in a UTV cabin without giving up floor space.

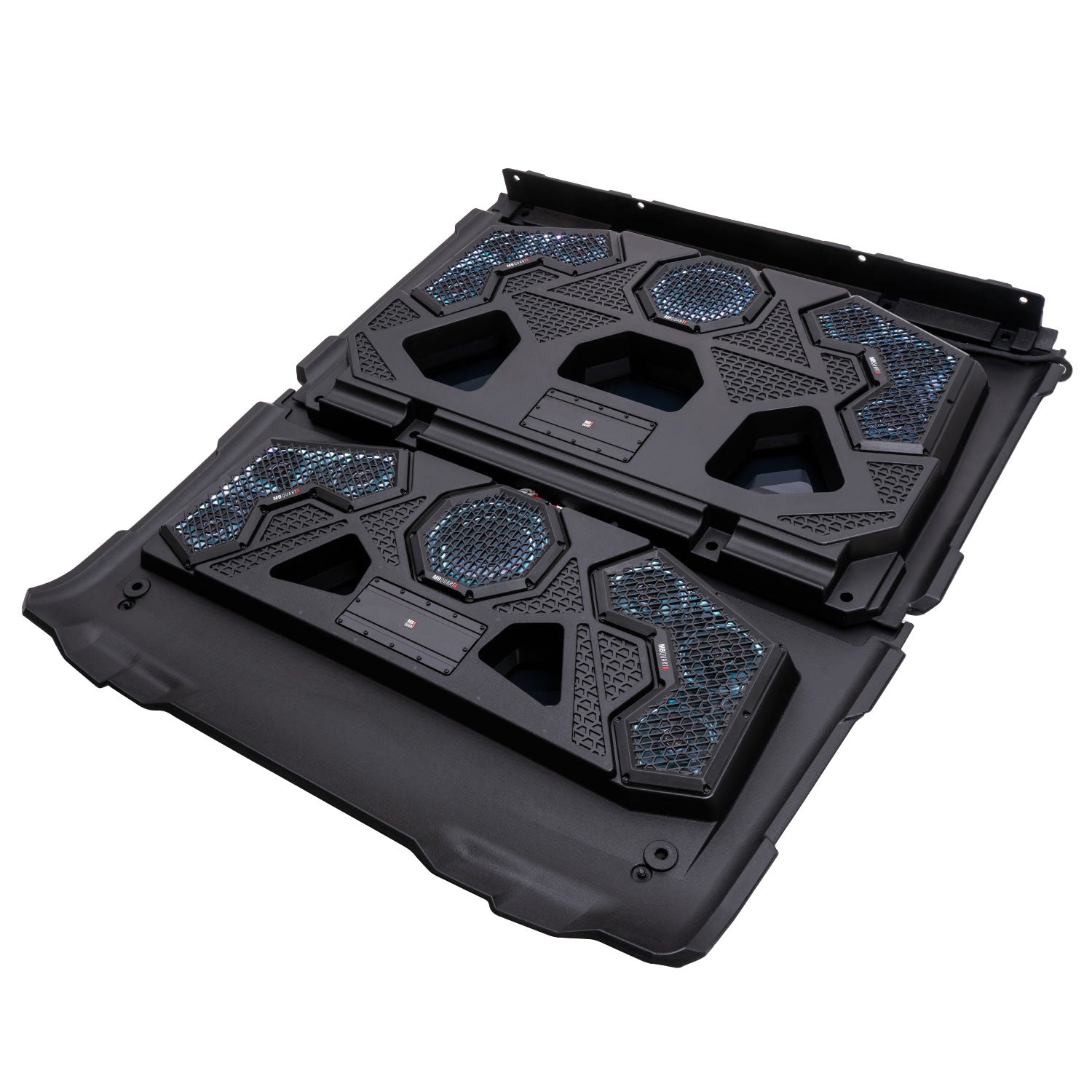

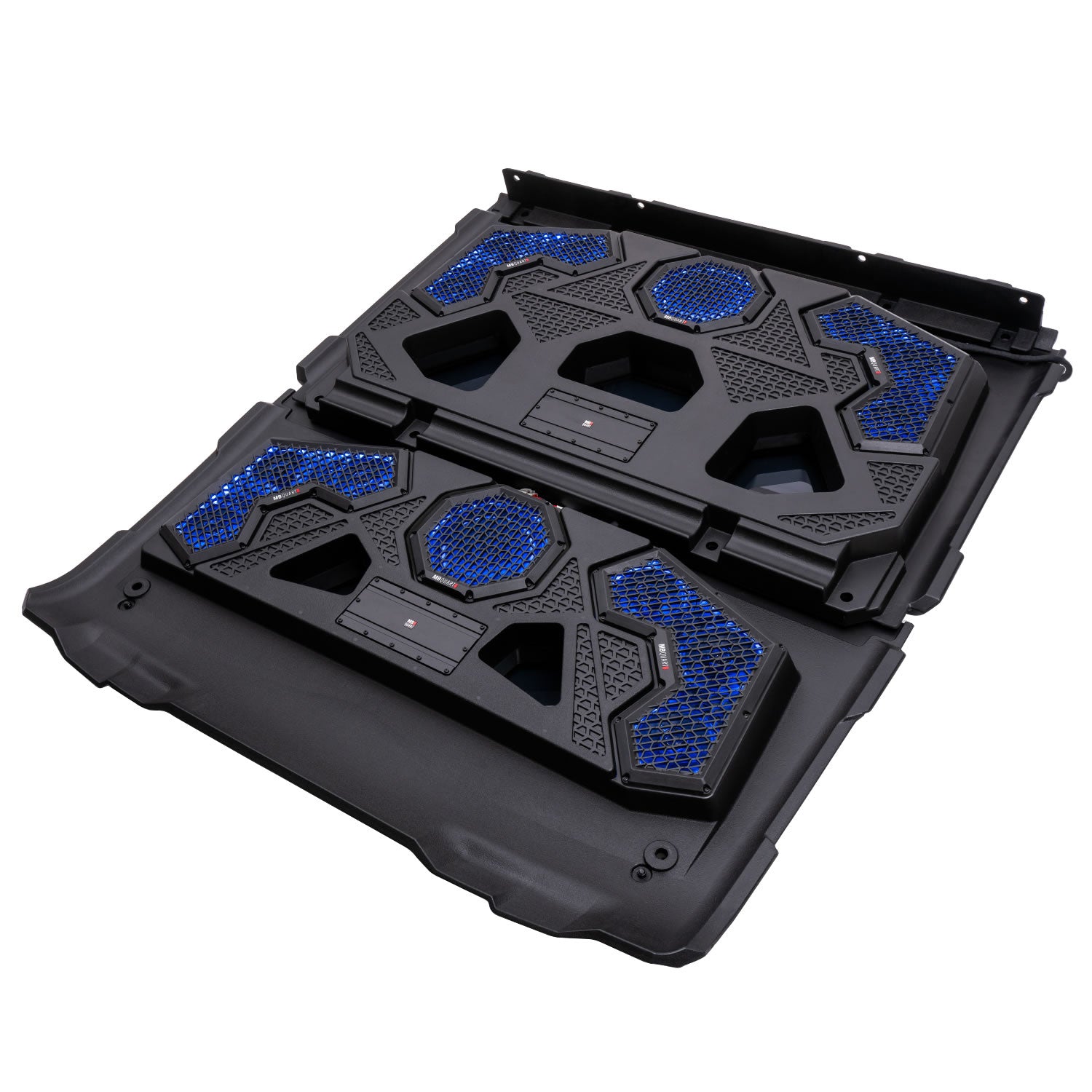

🏗 Enclosure & Construction
-

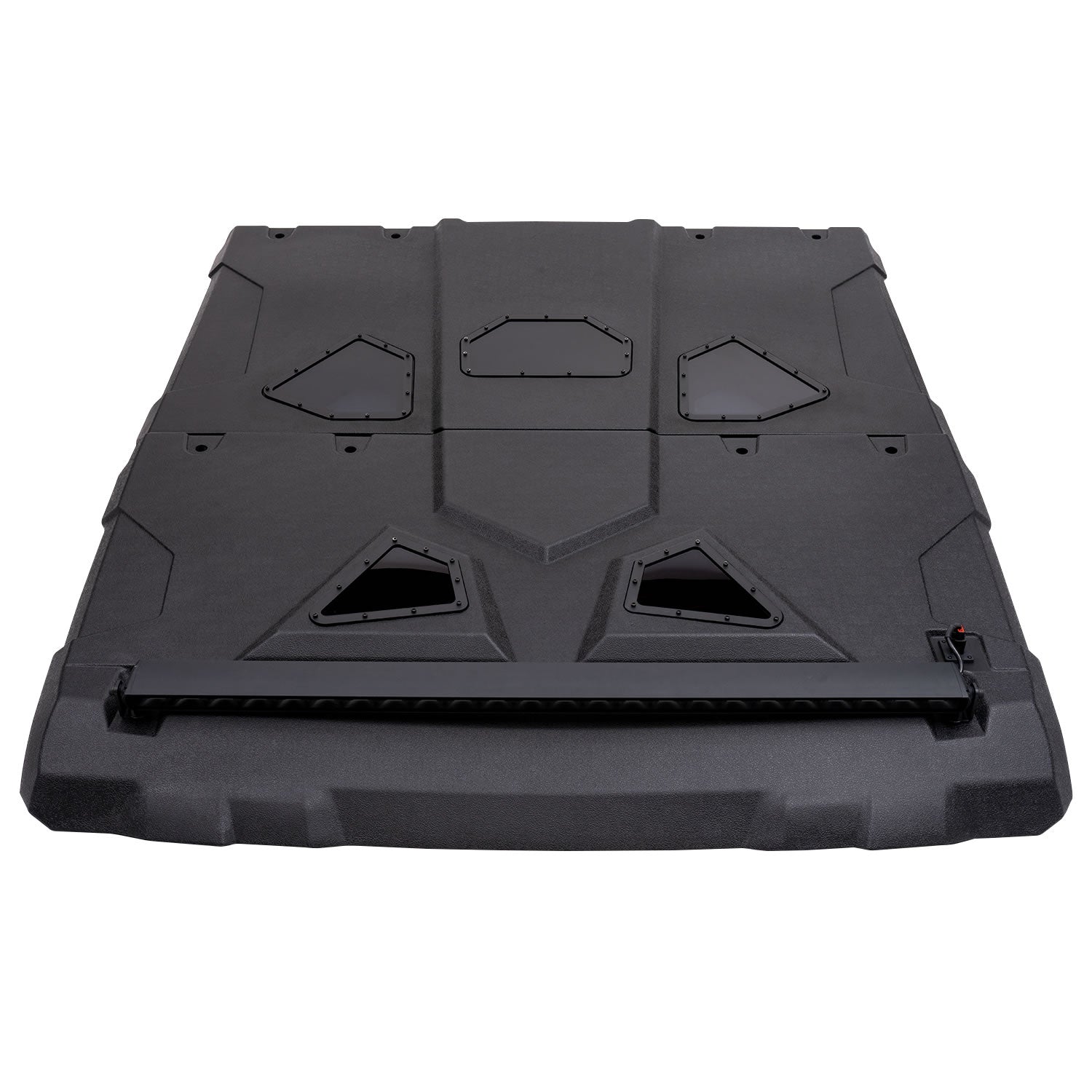

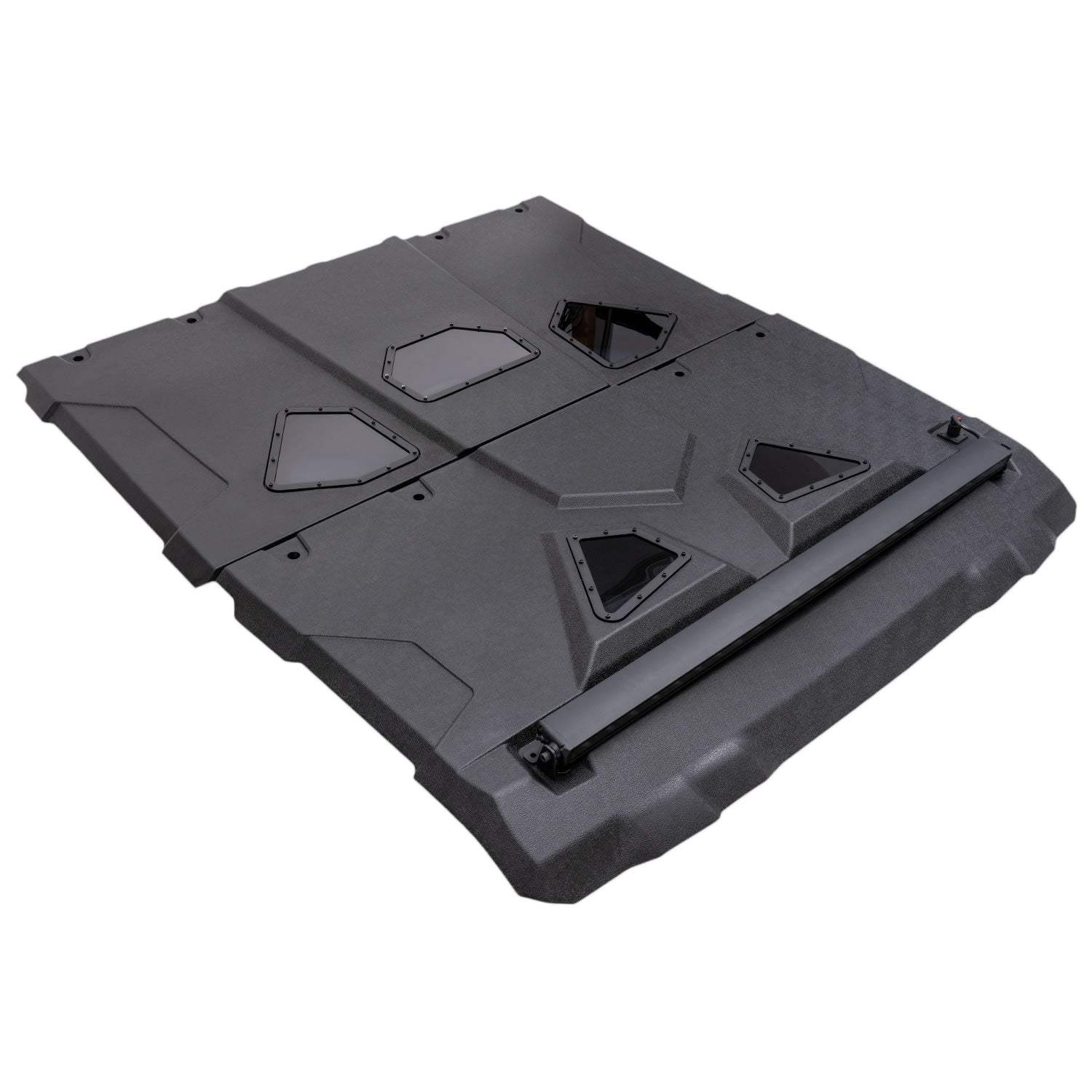

High-impact HDPE composite enclosure – rigid, durable, and weather-resistant.
- Vehicle-specific mounting system for the OEM roll cage.
- Integrated RGB LED lighting throughout the roof and light bar.
📡 Connectivity & Control
-
Bluetooth® 5.0 wireless audio streaming.
-
Secure Simple Pairing™ for fast, stable connection with your device.
-
Memory Sync – remembers the last connected device and auto reconnects when in range.
- Bluetooth range up to ~32 ft (line-of-sight).
- Two USB-A connections for storage/charging and firmware/media.
📊 Technical Specifications
| Model |
MBQRG4-S14R |
| System Type |
All-in-one UTV audio roof |
| Total Power |
1000 watts (two 500W 5-channel Class-D amps) |
| Speakers |
12 × 6.5" coaxials + 2 × 10" subwoofers (14 speakers total) |
| Frequency Response |
20 Hz – 20 kHz (system) |
| Source Unit |
GMR7V1 7" waterproof touchscreen with Apple® CarPlay® |
| Bluetooth Version |
5.0 (Secure Simple Pairing™) |
| Bluetooth Range |
Up to ~32 ft |
| Inputs |
2 × USB-A, 1 × Aux, 2 × video in, 1 × video out, pre-amp outputs |
| IP Rating |
IPX67 (marine grade) |
| Color |
Black |
| Enclosure Material |
High-impact HDPE composite |
| Weight |
Approx. 137 lbs (roof assembly) |
| Overall Dimensions |
Approx. 133" × 16.75" × 78" |
| Warranty |
1-Year (manufacturer) |
| Condition |
New |
🚙 Vehicle Fitment
Designed specifically for:
- Polaris RANGER 1000 – 2018 and newer
- Polaris RANGER XP 1000 – 2018 and newer
Fits OEM roll cage only (not universal).
🛠 Installation & Wiring
- Mounts directly to the factory RANGER roll cage using the included brackets/hardware.
- Includes plug-and-play Pulse power harness with pre-measured wiring.
- Designed so there’s no cutting of the factory dash or major fabrication for standard installs.
- Approximate install time: ~1 hour with basic hand tools (two-person lift recommended due to size/weight).
📦 What’s Included
- Complete MBQRG4-S14R Polaris RANGER audio roof assembly.
- Pre-installed GMR7V1 7" touchscreen source unit.
- Pre-installed 12 × 6.5" coaxial speakers.
- Pre-installed 2 × 10" subwoofers.
- Pre-installed 2 × 500W 5-channel Class-D amplifiers.
-
45" integrated half-optic RGB LED light bar.
- Pulse plug-and-play power harness and signal wiring.
- Mounting hardware and brackets for OEM roll cage.

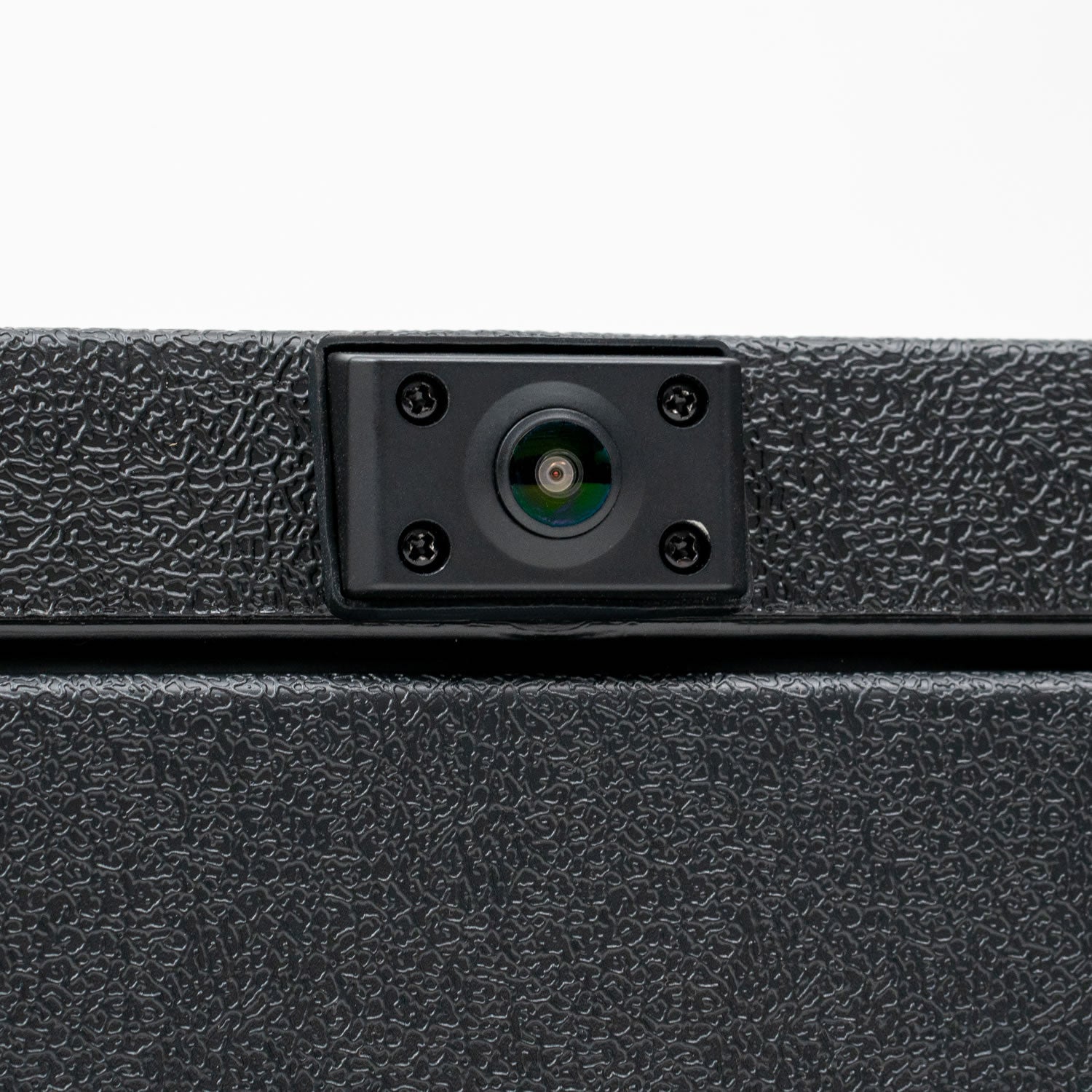

- Backup camera (150° wide-angle) and necessary wiring.
- Owner’s / installation manual.
🎯 Ideal For
- Riders who want one complete, factory-style audio + lighting solution with minimal install hassle.
- Polaris RANGER owners looking for high output, clean audio with strong midbass and real subwoofer impact.
- Trail, work, and weekend rigs that need integrated CarPlay®, lighting, and camera in a single package.
Note: Always verify fitment for your exact year/model RANGER before ordering and follow all installation and safety guidelines.
