Description
Features
- 300W X 4 Channel Class D Amplifier
- ATC - Audiophile RCA Connectors
- ACT - Adaptive Crossover Technology
- High-efficiency Class Full Range Class D Technology
- Direct Connect Speaker Terminals
- 4 Gauge Power Wire Inputs
- APC - Audio Protection Circuit
- SESI - Signal Evaluation Status Indicator
- CHM - Collective Heat Management
Specifications
- @ 14.4 volts
- 4 x 75 Watts @ 4 ohms
- 4 x 150 Watts @ 2 ohms
- 4 x 300 Watts @ 1 ohm
- 4 ohms (Bridged): 2 x 1500 Watts
- Working Voltage: 12-15 Volts
- Frequency Response: 15 Hz - 20k Hz
- Signal to Noise Ratio: 96dB
- ACT - Variable Crossover HP/BP/LP
- Damping Factor: ≥200
- Low-Level Input: 6V - 0.2mV
- Ch 1/2 High Pass Filter Variable: 15 Hz - 6k Hz
- Ch 1/2 Low Pass Filter Variable: 50 Hz - 2k Hz
- Ch 3/4 High Pass Filter Variable: 15 Hz - 6k Hz
- Ch 3/4 Low Pass Filter Variable: 50 Hz - 2k Hz
- Minimum working Impedance: 1 ohm stereo / 2 Ohms bridged
Description

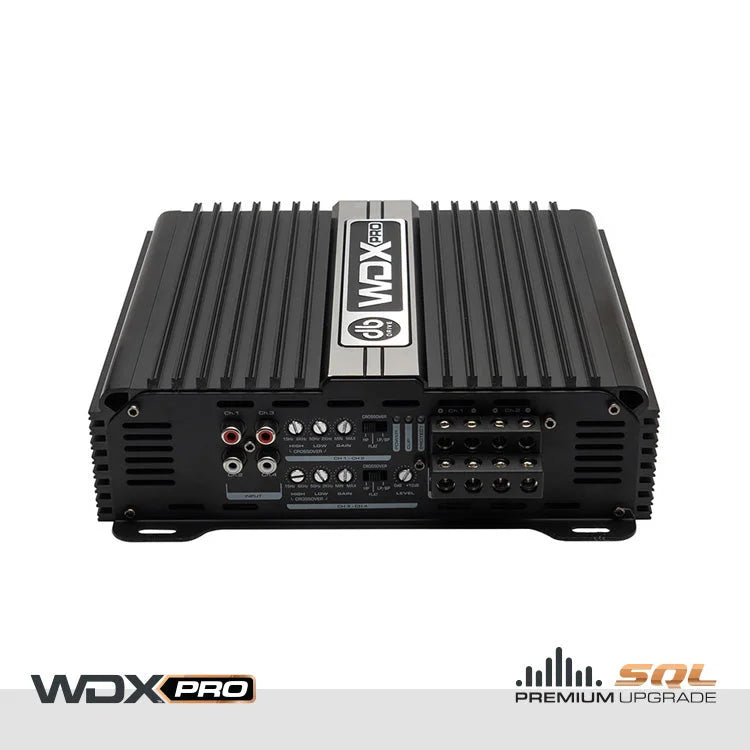

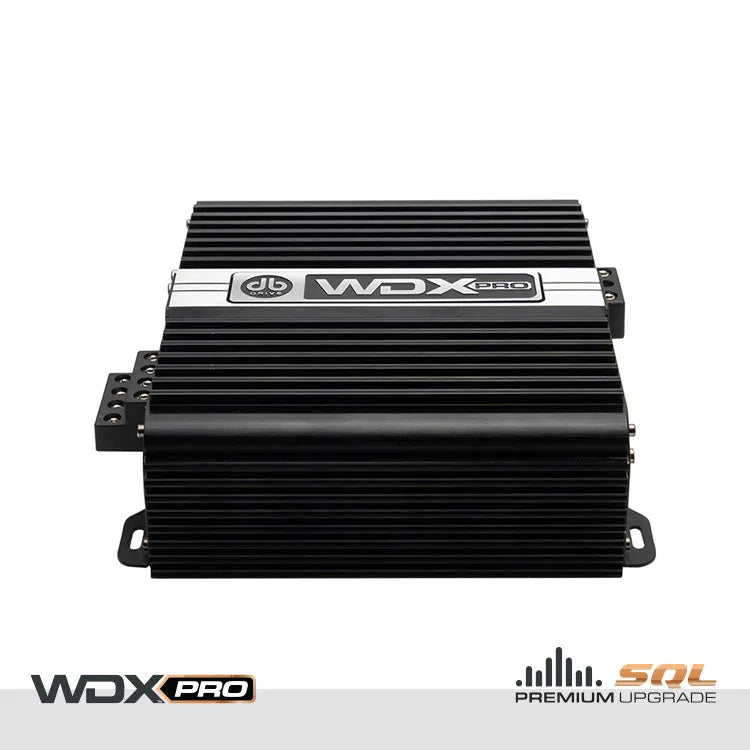

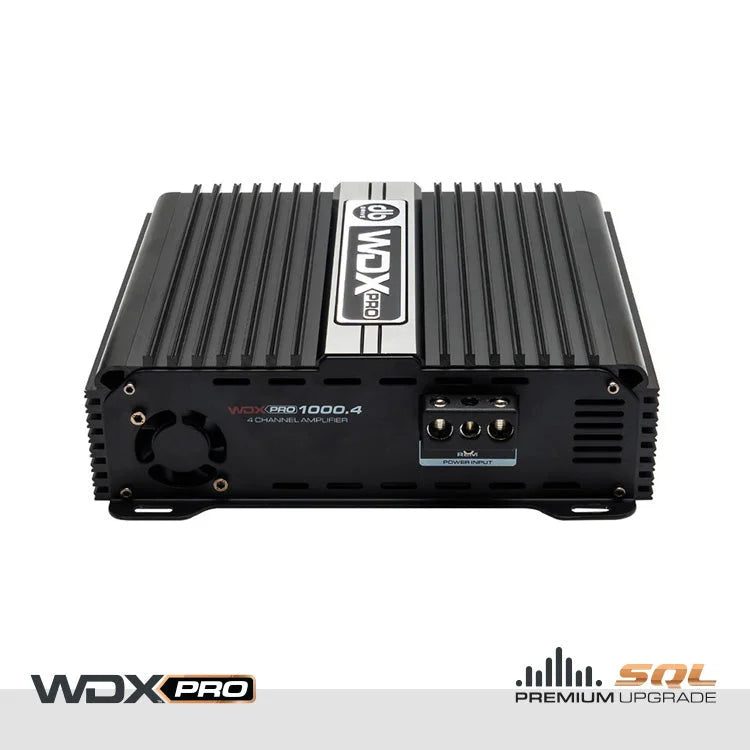

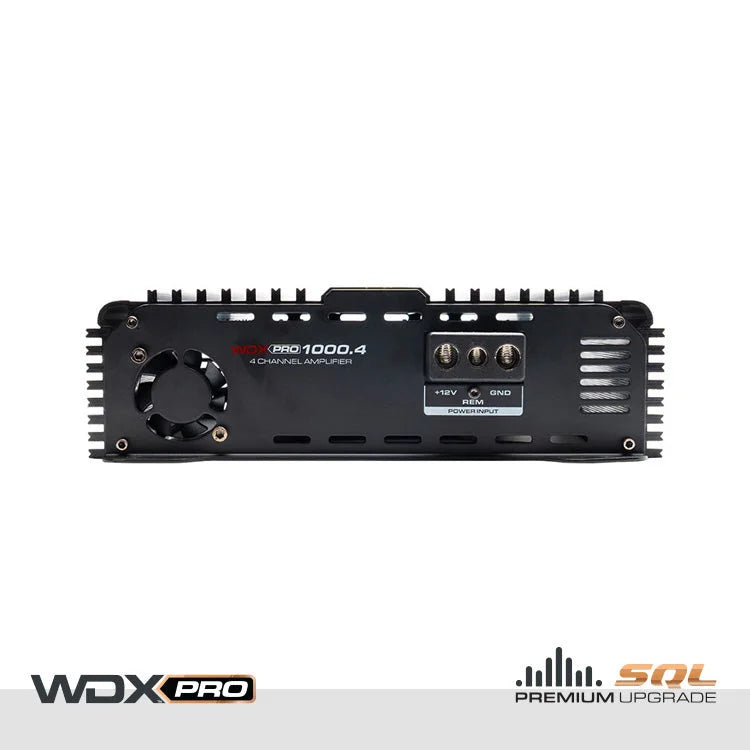

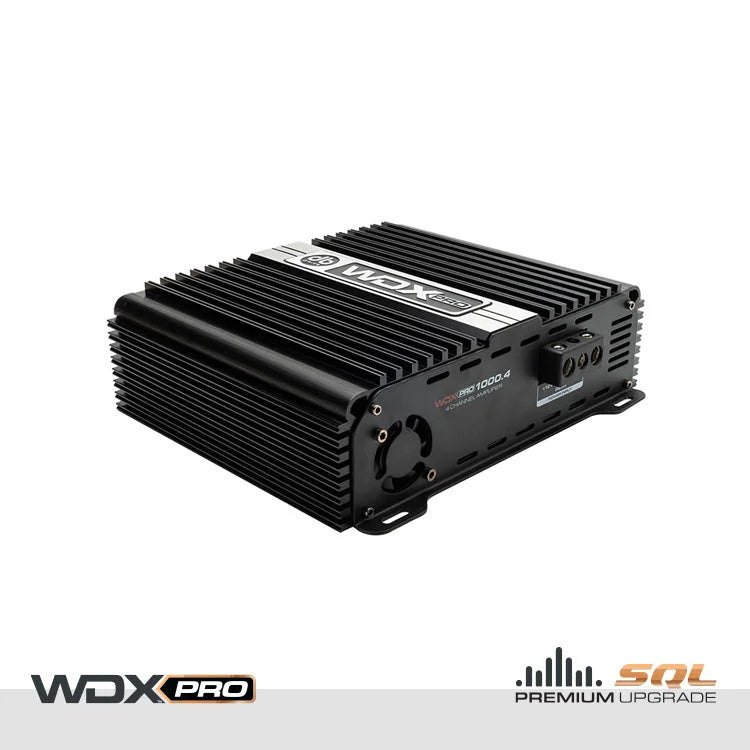

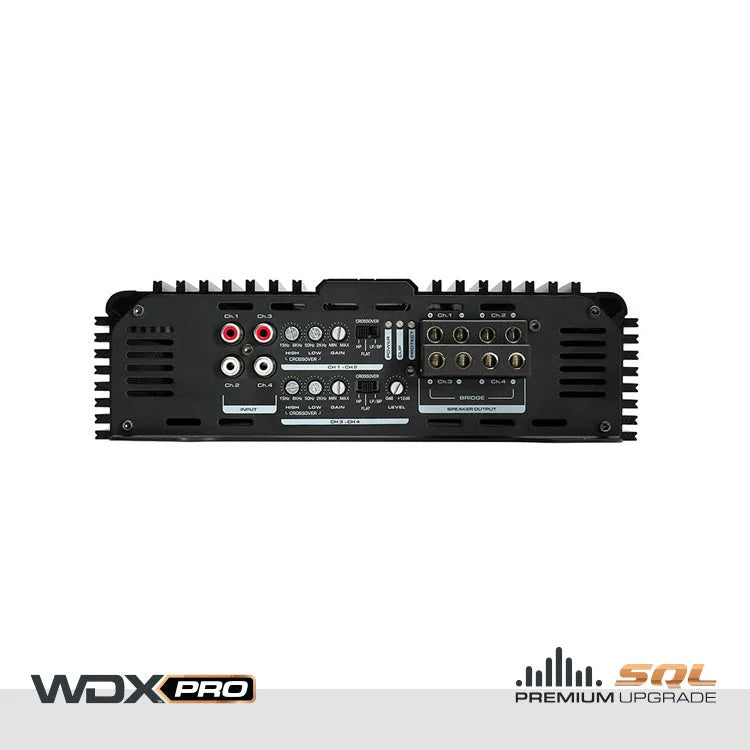

Maximize your car audio with the DB Drive WDX PRO1000.4, a powerful 4-channel Class D amplifier built for high output and superior sound. Key Features: • Adaptive Crossover: Optimizes performance for tweeters, midranges, and midbass. • CHM: Keeps the amp cool during extended use. • SESI Circuit: Monitors output to prevent overdriving and protect your gear. • Large-Gauge Terminals: Support 4-gauge wiring for high-output systems. With 300 Watts per channel at 1Ω, the WDX PRO1000.4 delivers clear, powerful sound, elevating your audio experience.
Product Manual
Product Manual PDF
