Description
Features
- ATC - Audiophile RCA Connectors
- ACT - Adaptive Crossover Technology
- High efficiency Class Full Range Class D Technology
- 4 Gauge Direct Connect Speaker Terminals

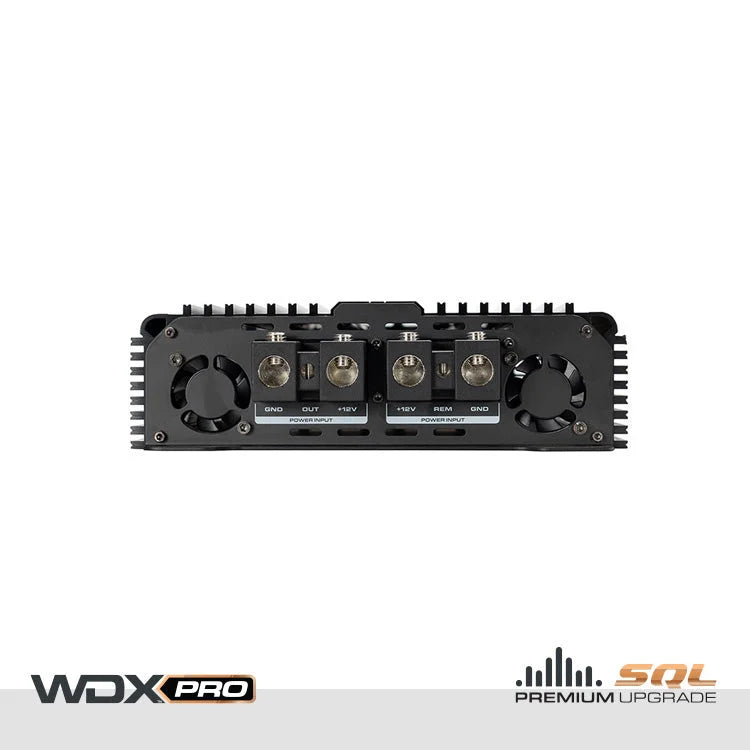

- Dual 0 Gauge Power Wire Inputs
- APC - Audio Protection Circuit
- SESI - Signal Evaluation Status Indicator

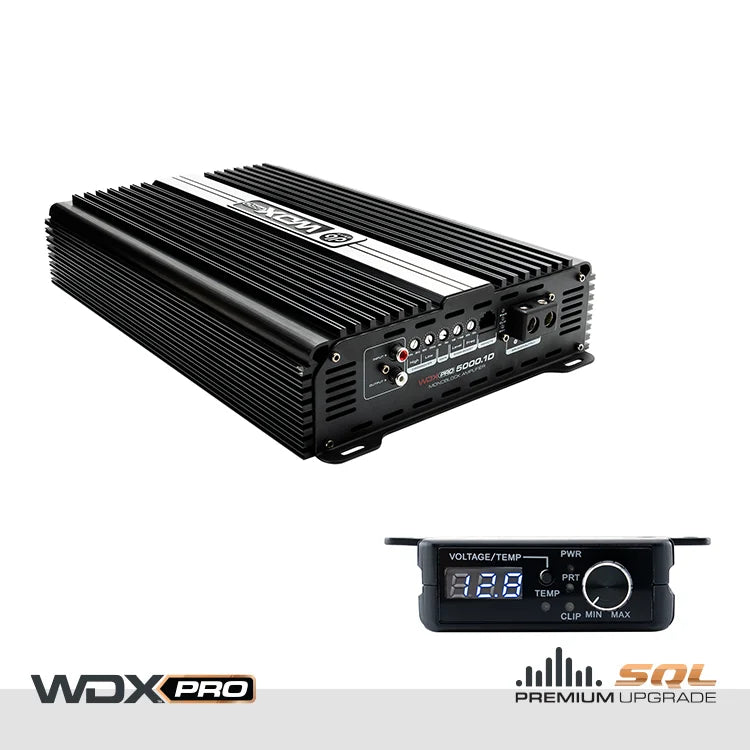

- Bass Remote with voltage , temperature and signal status indicator
- CHM - Collective Heat Management
Specifications
- 1 x 5000 Watts @ 1 ohm
- 1 x 2500 Watts @ 2 ohms
- 1 x 1250 Watts @ 4 ohms
- Working Voltage: 12-15 Volts
- Frequency Response: 15 Hz - 20k Hz
- Signal to Noise Ratio: 95dB
- Damping Factor: ≥200
- Low Level Input: 6V - 0.2mV
- Variable Bass Boost Frequency: 35 Hz - 70 Hz
- Bass Boost EQ Gain: 0dB - 12dB
- High Pass Filter Variable: 15 Hz - 8k Hz
- Low Pass Filter Variable: 40 Hz - 20 Hz
- Minimum working Impedance: 1 Ohm
Description
Superior audio performance with the DB Drive WDX PRO5000.1D a mono Class D full range amplifier designed for high output and crystal-clear sound. Easily power subwoofers or high power midbass drivers. Key Features: • Adaptive Crossover: Fine-tunes your system for optimal performance across compression drivers , midranges, or subwoofers. • CHM: Keeps the amp cool for consistent power without overheating. • SESI Circuit: Real-time monitoring to protect your system from overdriving. • Large-Gauge Terminals: Compatible with 4-gauge wiring for maximum efficiency. With 5000 Watts at 1Ω, the WDX PRO5000.1D provides extremely powerful, dynamic power taking your car audio system to the next level.
