Description
Features
- ATC - Audiophile RCA Connectors
- ACT - Adaptive Crossover Technology
- High efficiency Class Full Range Class D Technology

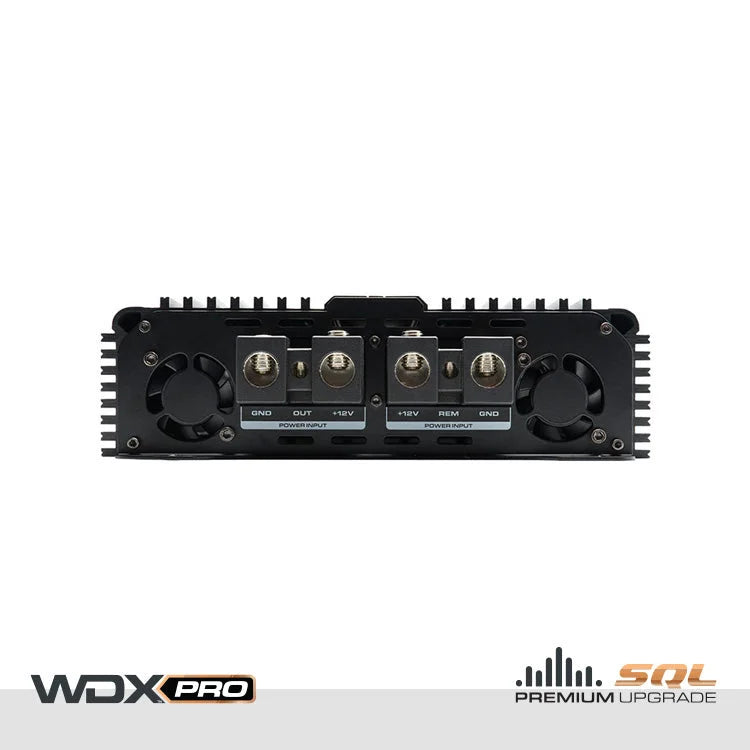

- Dual 4 Gauge Direct Connect Speaker Terminals
- Dual 0 Gauge Power Wire Inputs
- APC - Audio Protection Circuit
- SESI - Signal Evaluation Status Indicator

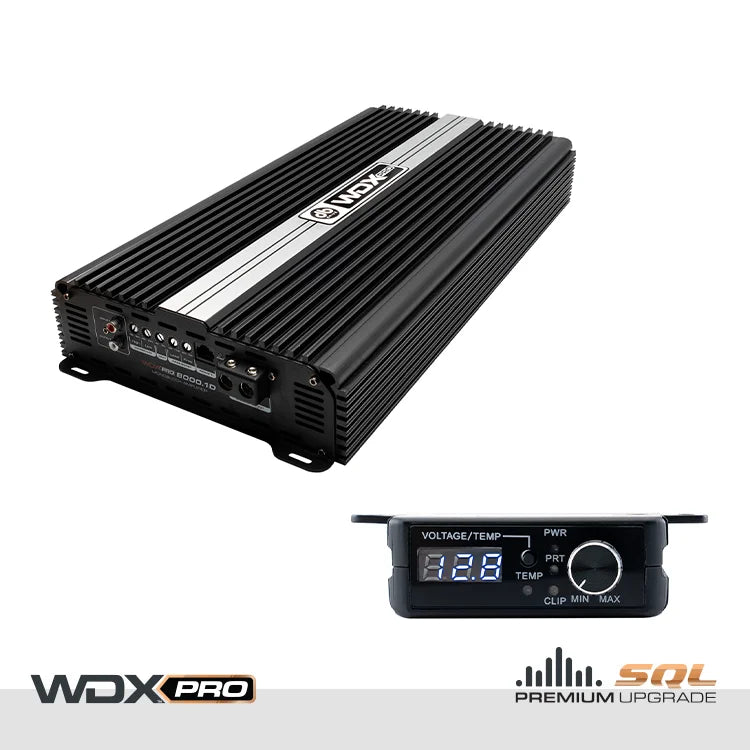

- Bass Remote with voltage , temperature and signal status indicator
- CHM - Collective Heat Management
Specifications
- 1 x 8000 Watts @ 1 ohm
- 1 x 4000 Watts @ 2 ohms
- 1 x 2000 Watts @ 4ohms
- Working Voltage: 12-15 Volts
- Frequency Response: 15 Hz - 500 Hz
- Signal to Noise Ratio: 92dB
- Damping Factor: ≥200
- Low Level Input: 6V - 0.2mV
- Variable Bass Boost Frequency: 15 Hz - 500 Hz
- Bass Boost EQ Gain: 0dB - 12dB
- Subsonic Filter Variable: 15 Hz - 100 Hz
- Low Pass Filter Variable: 40 Hz - 20 k Hz
- Minimum working Impedance: 1 Ohm
Description
Superior audio performance with the DB Drive WDX PRO8000.1D a mono Class D full range amplifier designed for high output and crystal-clear sound. Easily power subwoofers or high power midbass drivers. Key Features: • Adaptive Crossover: Fine-tunes your system for optimal performance across compression drivers , midranges, or subwoofers. • CHM: Keeps the amp cool for consistent power without overheating. • SESI Circuit: Real-time monitoring to protect your system from overdriving. • Large-Gauge Terminals: Compatible with 4-gauge wiring for maximum efficiency. With 8000 Watts at 1Ω, the WDX PRO8000.1D provides extremely powerful, dynamic power taking your car audio system to the next level.
Product Manual
Product Manual PDF
