Description
Features
- 3.5" High Temperature Voice Coil with Shorting Ring
- High Strength Ferrite Oxide magnet
- Treated Paper Cone with Cloth Surround
- Die-Cast Aluminum Basket
- EVA Mounting gasket
- Compression Speaker terminals
Specifications
- Dynamic Power Handling: 1200 Watts
- Nominal Power Handling: 600 Watts
- Impedance: 8Ω Voice Coil
- Resonant Frequency (fs): 58.6 Hz
- D.C. Voice Coil Resistance (Re): 8Ω
- Mechanical Quality Factor (Qms): 3.39
- Electrical Quality Factor (Qes): 0.50
- Total Quality Factor (Qts): 0.43
- Equivalent Air Volume to Cms (Vas): 22.8 L
- Mass of Diaphragm/Coil (Mms): 58.6 g
- Force Factor (BL): 15.3
- Sound Pressure Level (SPL): 91.5dB
- Dimensions
- Outside Diameter: 10.28"/ 261 mm
- Cutout Diameter: 9.06"/ 230 mm
- Mounting Depth: 4.56"/ 115 mm
Description

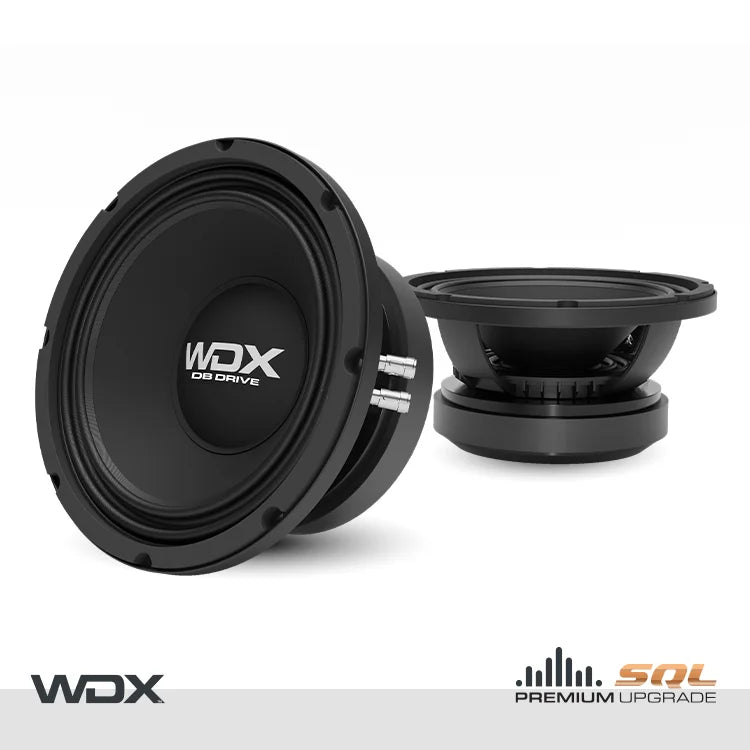

The WDX10-MB10-8 is a 10-inch midbass speaker engineered for high-output car audio systems. It features a 3.5" high-temperature voice coil with shorting ring , paired with a ferrite oxide magnet for high efficiency and enhanced power handling . The treated paper cone with a cloth surround is designed to optimize midbass frequency response, delivering exceptional output performance. With a dynamic power handling of 1200 watts and a nominal power rating of 600 watts, this speaker is built for unmatched performance and durability.
