Description
Features
- 3.5" High Temperature Voice Coil
- High Strength Ferrite Oxide magnet
- Treated Paper Cone with Cloth Surround
- Die-Cast Aluminum basket
- EVA Mounting gasket
- Compression Speaker terminals
Specifications
| Dynamic Power Handling: 1200 Watts |
| Nominal Power Handling: 600 Watts |
| Impedance: 8Ω Voice Coil |
| Resonant Frequency (fs): 52.8 Hz |
| D.C. Voice Coil Resistance (Re): 8Ω |
| Mechanical Quality Factor (Qms): 2.94 |
| Electrical Quality Factor (Qes): 0.44 |
| Total Quality Factor (Qts): 0.38 |
| Equivalent Air Volume to Cms (Vas): 44.9 L |
| Mass of Diaphragm/Coil (Mms): 77.4 g |
| Force Factor (BL): 17.7 |
| Sound Pressure Level (SPL): 96.1dB |
| Dimensions |
| Outside Diameter: 12.36"/ 314 mm |
| Cutout Diameter: 11.02"/ 280 mm |
| Mounting Depth: 5.26"/ 133.50 mm |
Description

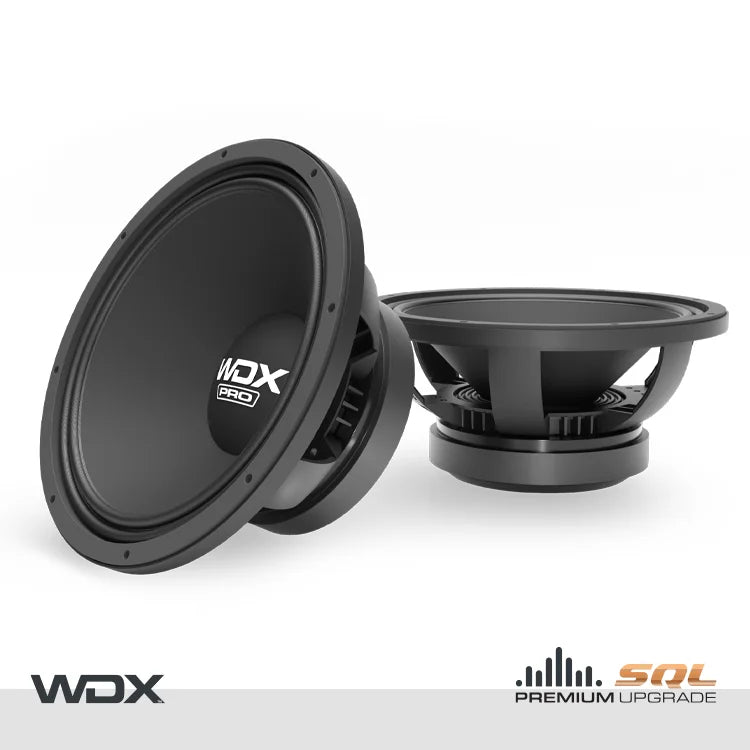

The WDX10-MB12-8 is a 12-inch midbass speaker engineered for high-output car audio systems. It features a 3.5" high-temperature voice coil with shorting ring , paired with a ferrite oxide magnet for high efficiency and enhanced power handling . The treated paper cone with a cloth surround is designed to optimize midbass frequency response, delivering exceptional output performance. . With a dynamic power handling of 1200 watts and a nominal power rating of 600 watts, this speaker is built for unmatched performance and durability.
