Description
Features
- 3.0″ Anodized aluminum high temperature voice coil
- Non-Pressed paper cone
- Double-stitched reinforced foam surround
- Dual poly-cotton dampeners
- Die-cast aluminum vented basket
- Rubber gasket trim ring
- Large gauge compression terminals
- Protective magnet cover
Specifications
- Dynamic Power Handling: 2200 Watts
- Nominal Power Handling: 1100 Watts
- Impedance: Dual 2Ω Voice Coil
- Resonant Frequency (fs): 32.29 Hz
- D.C. Voice Coil Resistance (Re): 2 x 2Ω
- Mechanical Quality Factor (Qms): 3.70
- Electrical Quality Factor (Qes): 0.96
- Total Quality Factor (Qts): 0.76
- Equivalent Air Volume (Vas): 16.71 L
- Mechanical Compliance of Suspension (CMS): 92.670 mm/N
- Mass of Diaphragm/Coil (Mms): 262.19 g
- Force Factor (BL): 14.89
- Sound Pressure Level (SPL): 79.6 dB
Description

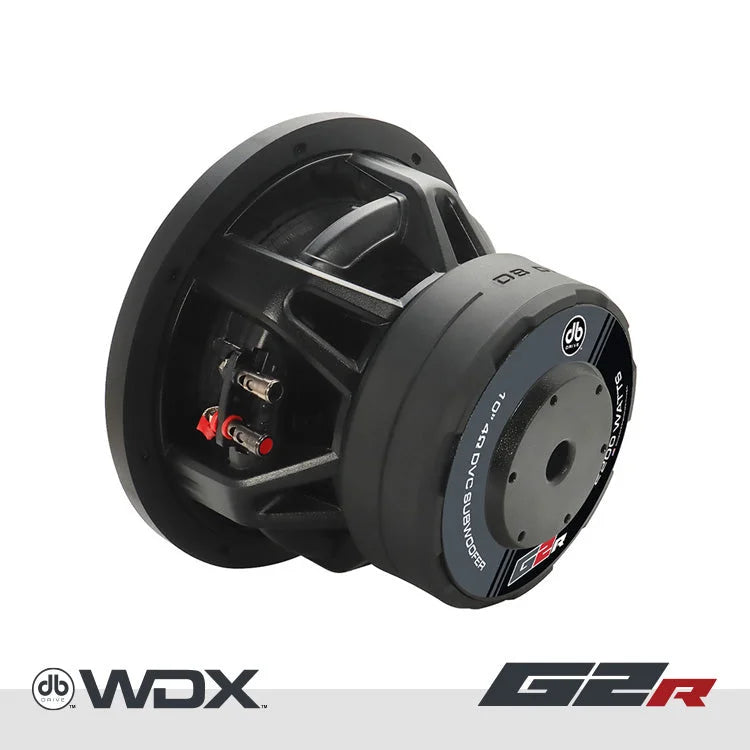

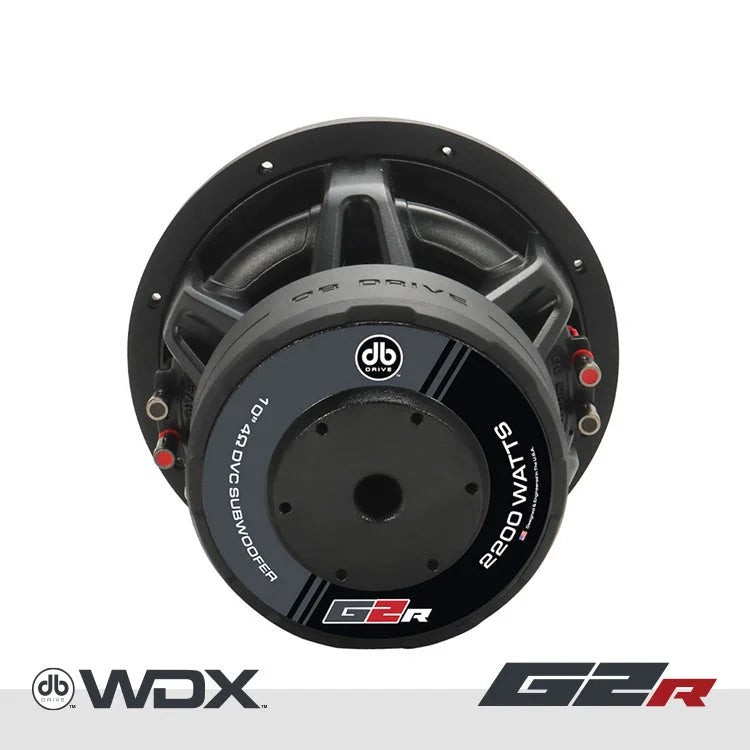

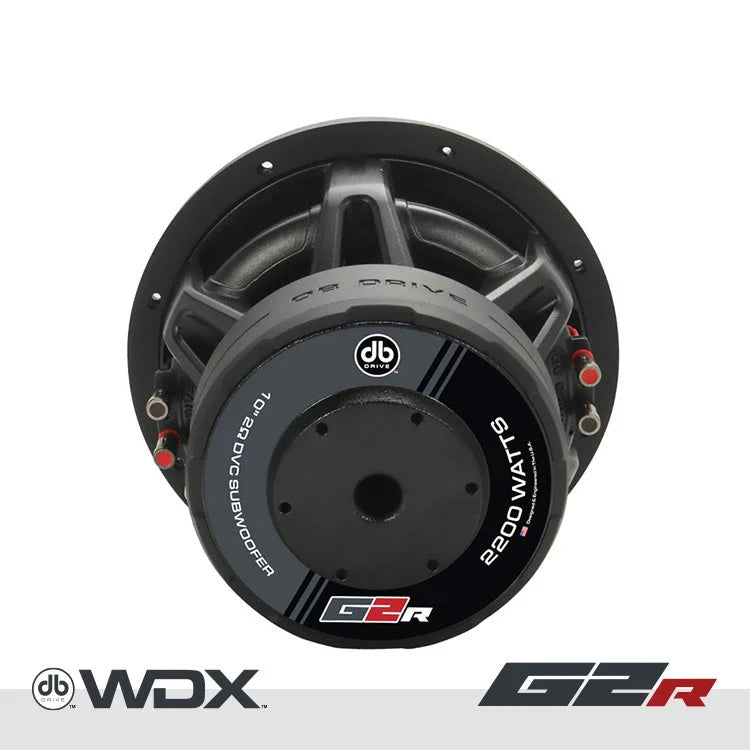

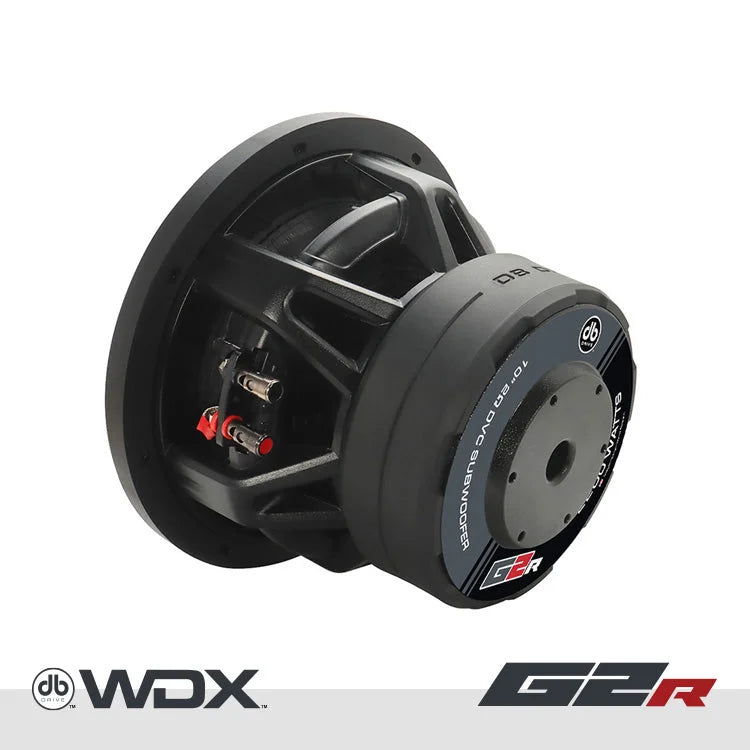

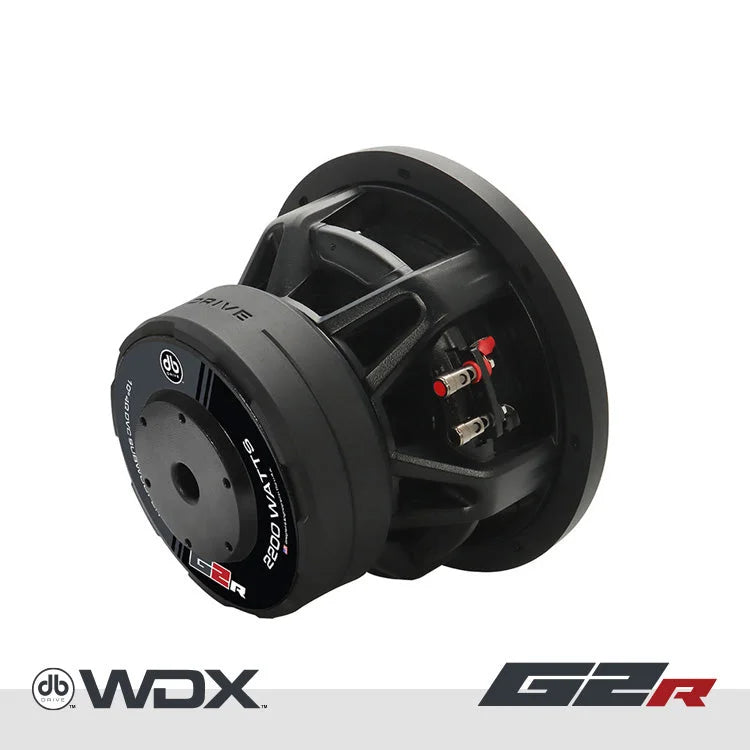

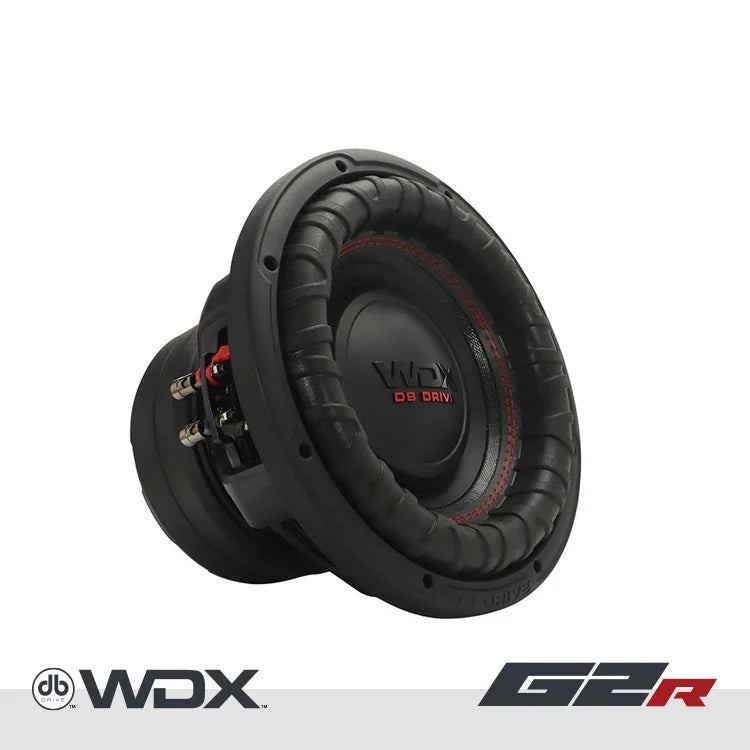

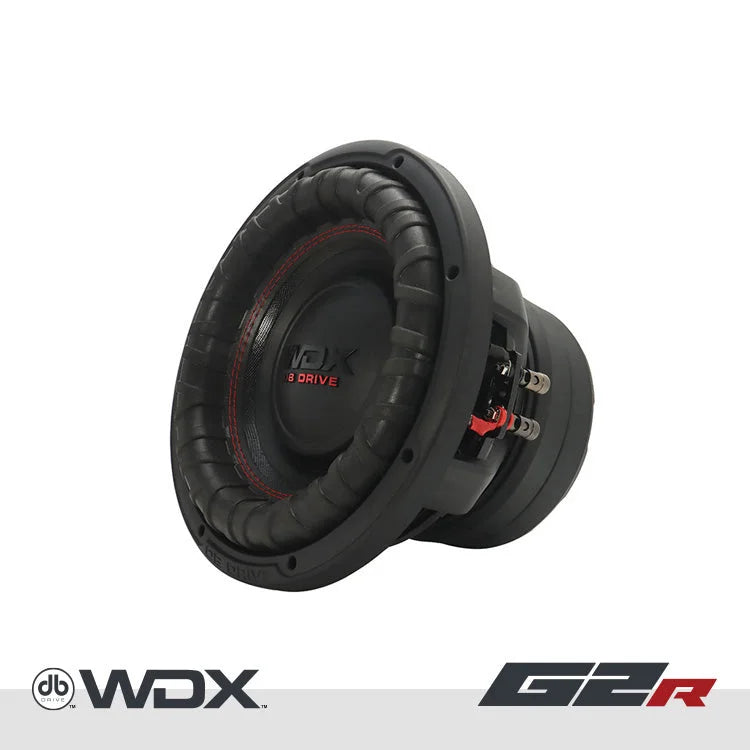

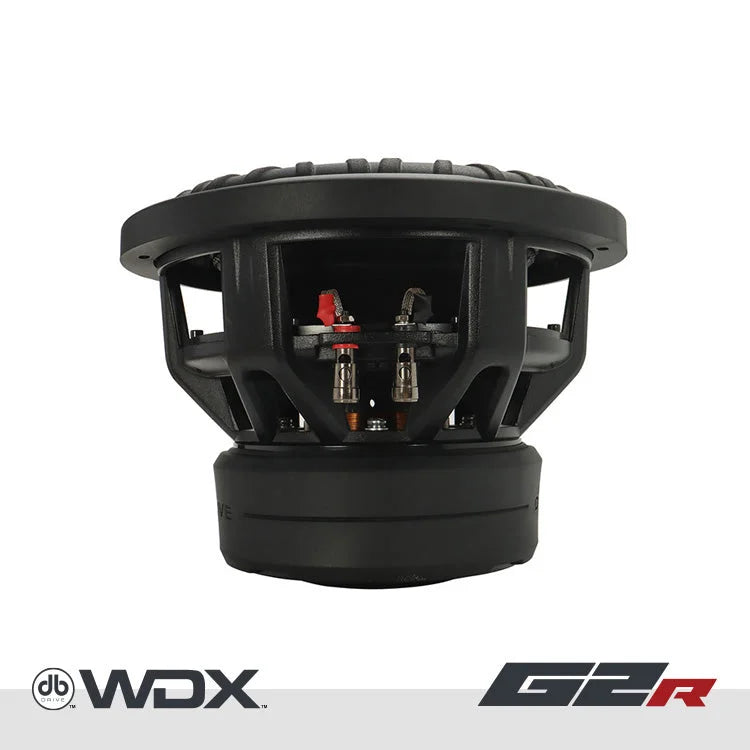

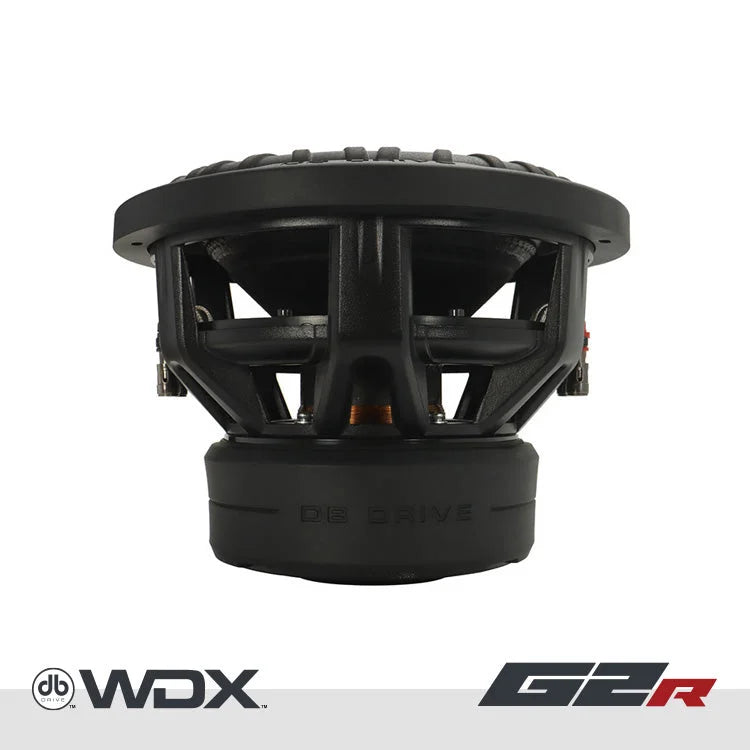

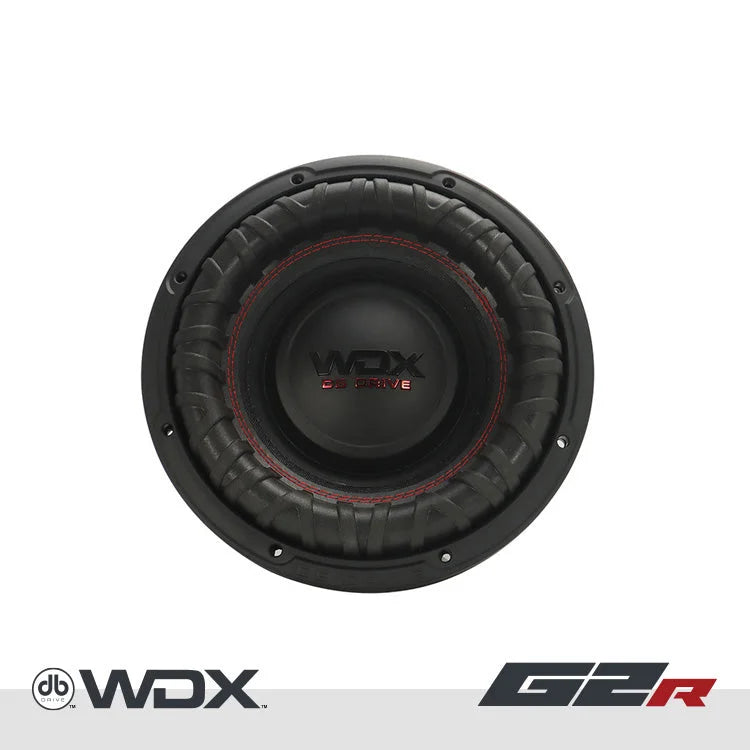

Introducing the WDX10G2R.2, our premium 10-inch woofer with dual 2-ohm voice coils for efficient power handling. With a high temperature voice coil, non-pressed paper cone, reinforced foam surround, and die-cast aluminum basket, experience impressive bass and clear sound at a resonant frequency of 32.29 Hz.
