Description
Features
- 3.0″ 4 layer Anodized aluminum high temperature voice coil
- Non-Pressed paper cone
- Double-stitched reinforced foam surround
- Dual poly-cotton dampeners
- Die-cast aluminum vented basket
- Rubber gasket trim ring
- Large gauge compression terminals
- Protective magnet cover
Specifications
- Dynamic Power Handling: 6000 Watts
- Nominal Power Handling: 3000 Watts
- Impedance: Dual 2Ω Voice Coil
- Resonant Frequency (fs): 30.23Hz
- D.C. Voice Coil Resistance (Re): 2 x 2Ω
- Mechanical Quality Factor (Qms): 3.32
- Electrical Quality Factor (Qes): 0.56
- Total Quality Factor (Qts): 0.48
- Equivalent Air Volume (Vas): 20.68 L
- Mechanical Compliance of Suspension (CMS): 54.105 mm/N
- Mass of Diaphragm/Coil (Mms): 512.26 g
- Force Factor (BL): 26.43
- Sound Pressure Level (SPL): 82.0 dB
Description

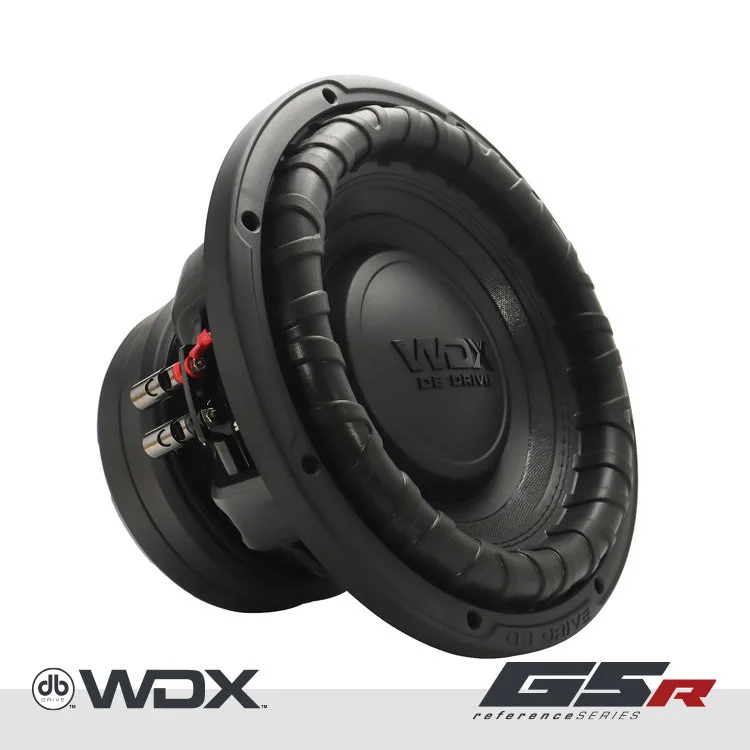

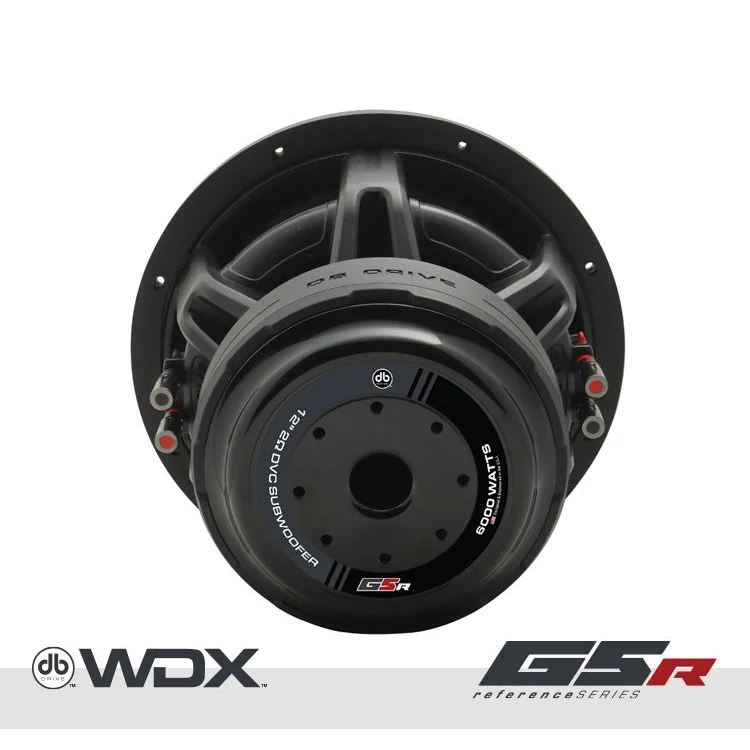

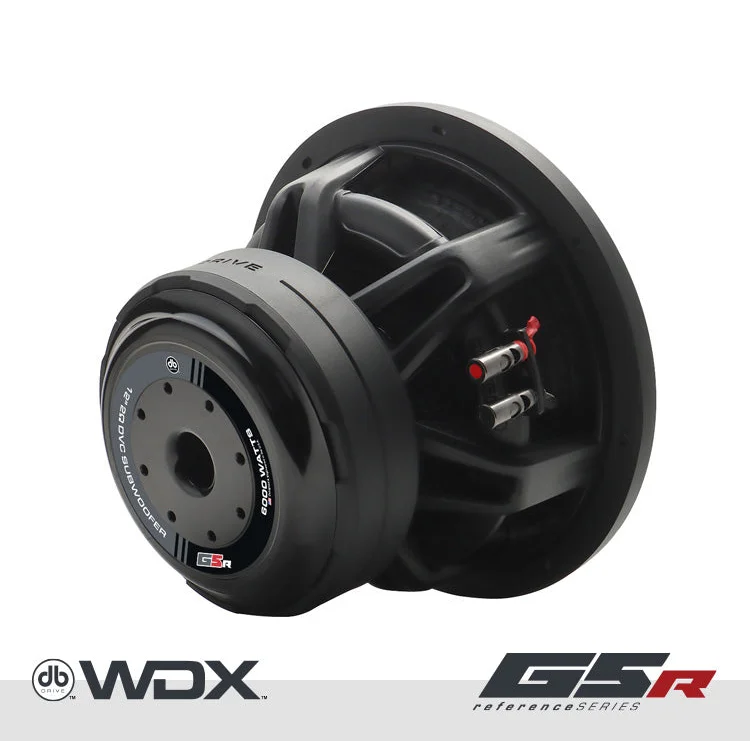

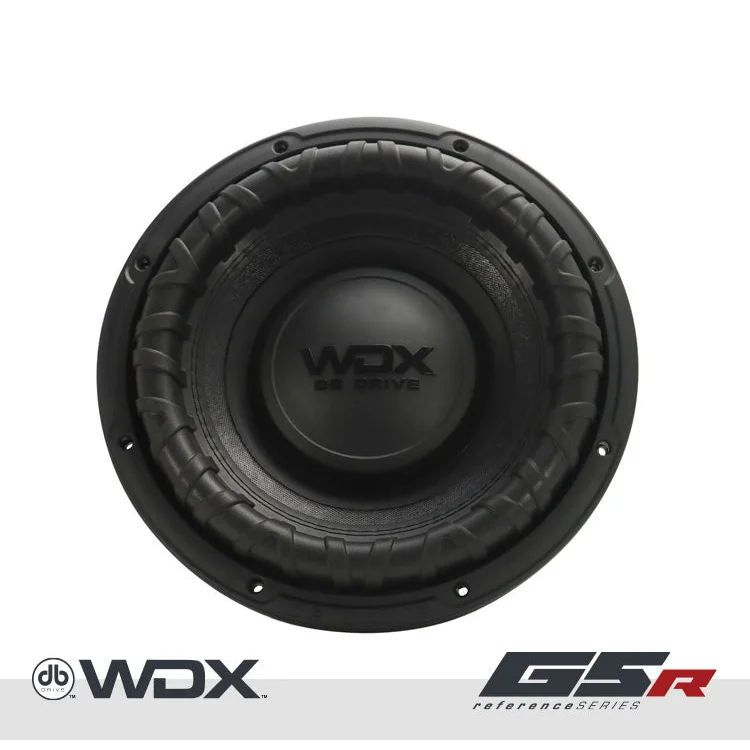

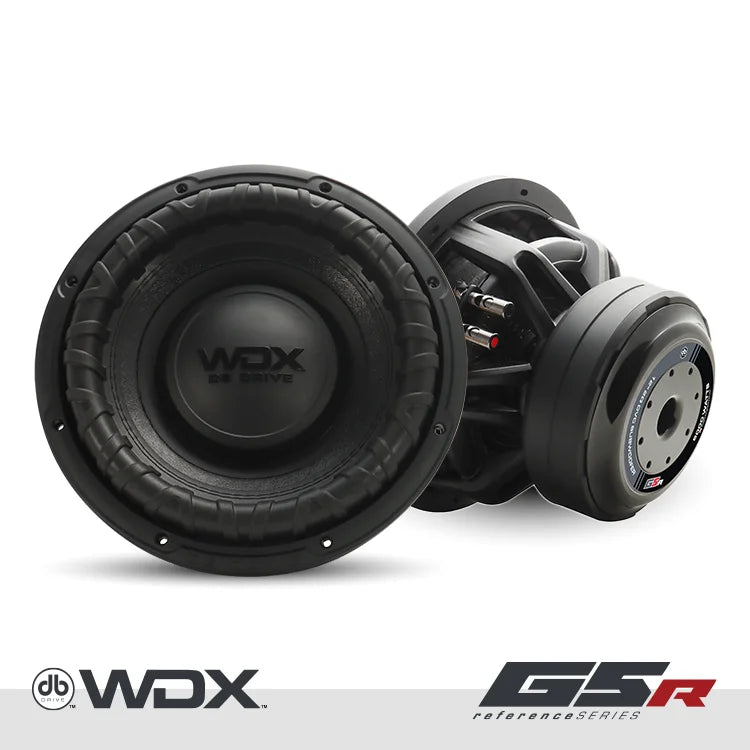

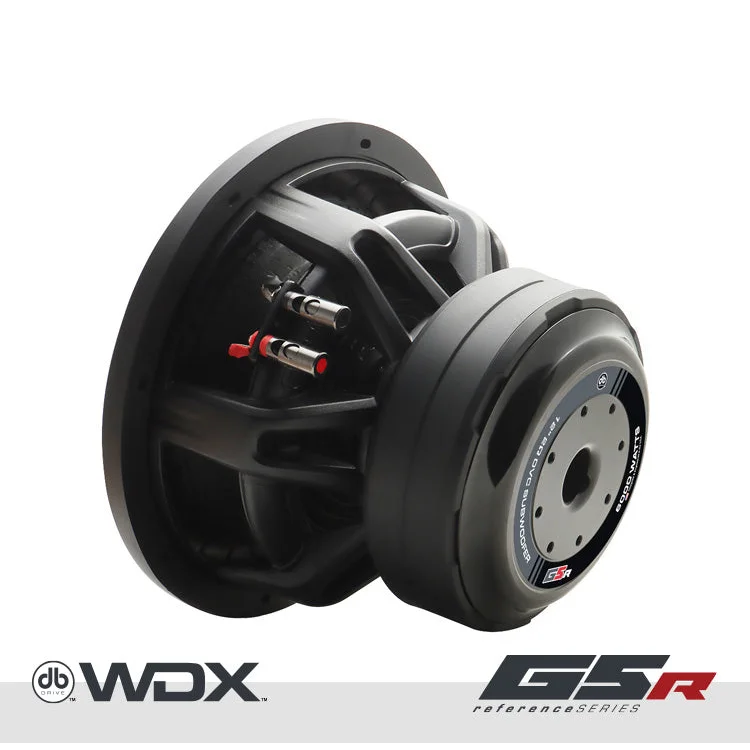

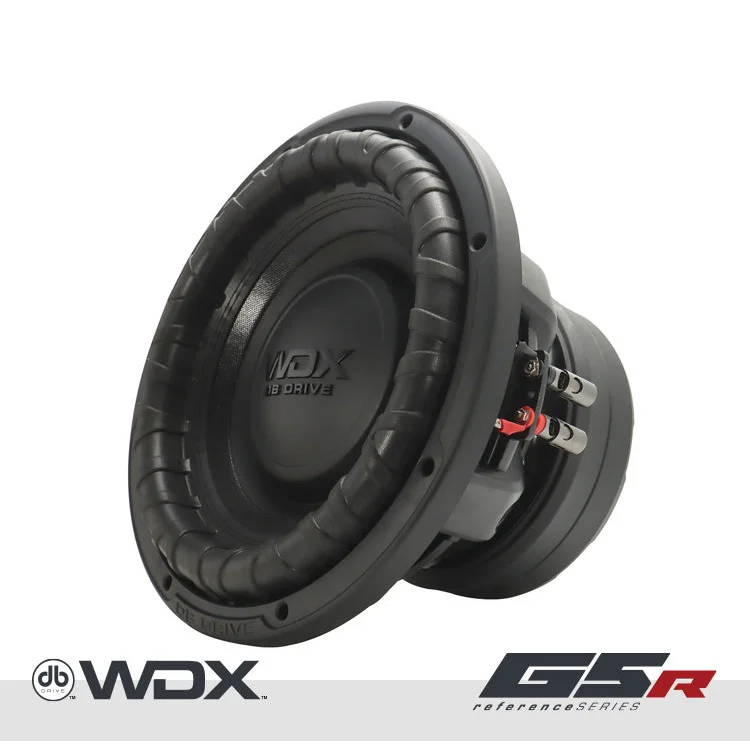

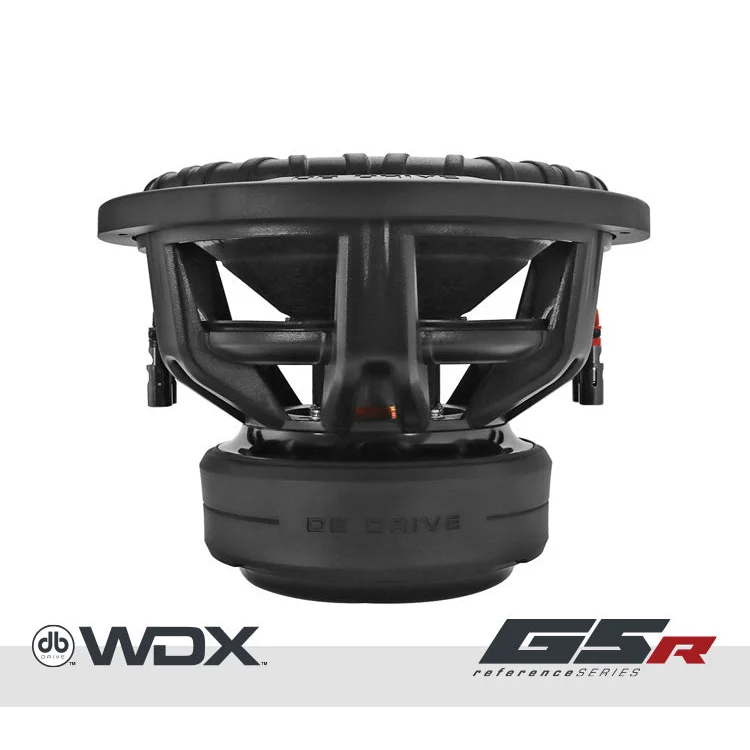

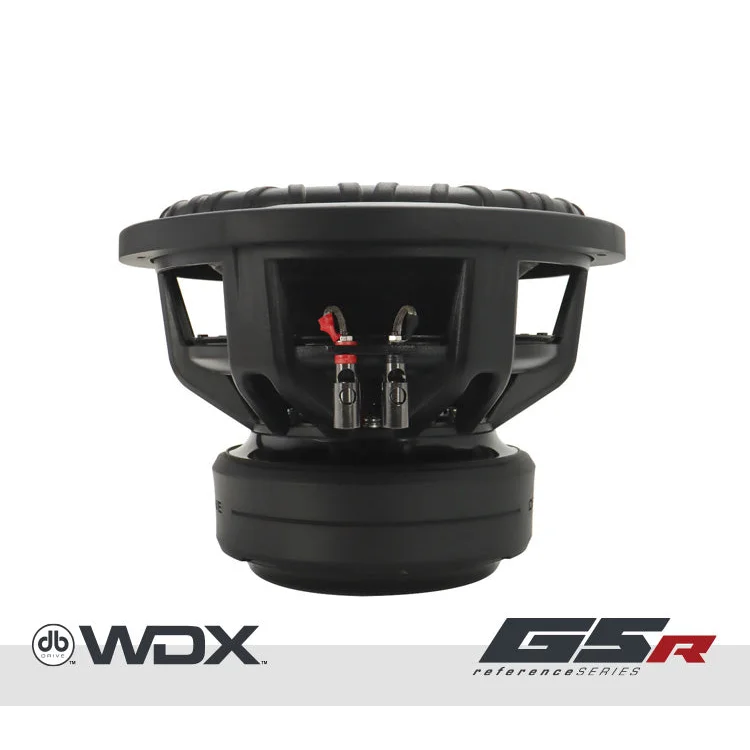

Designed for true bass enthusiasts, the WDX12G5R.2 subwoofers offer unmatched power and precision. • Featuring a custom mounting gasket for a perfect seal, eliminating rear-canceling waves for pure bass. • All-new dust caps and a custom-tooled aluminum basket provide durability, rigidity, and optimal heat dissipation. • The custom ribbed surround and High Excursion motor with Y35 ferrite magnets and high-temperature voice coils deliver deep, distortion-free bass. • Built for Bass: Power handling up to 6000 watts dynamic (3000 watts nominal) The WDX10G5R.2 sets a new standard for earth-shaking bass. Ready to feel the difference?
Product Manual
Product Manual PDF
