Description
Features
- 3.0″ Anodized aluminum high temperature voice coil
- Non-Pressed paper cone
- Double-stitched reinforced foam surround
- Dual poly-cotton dampeners

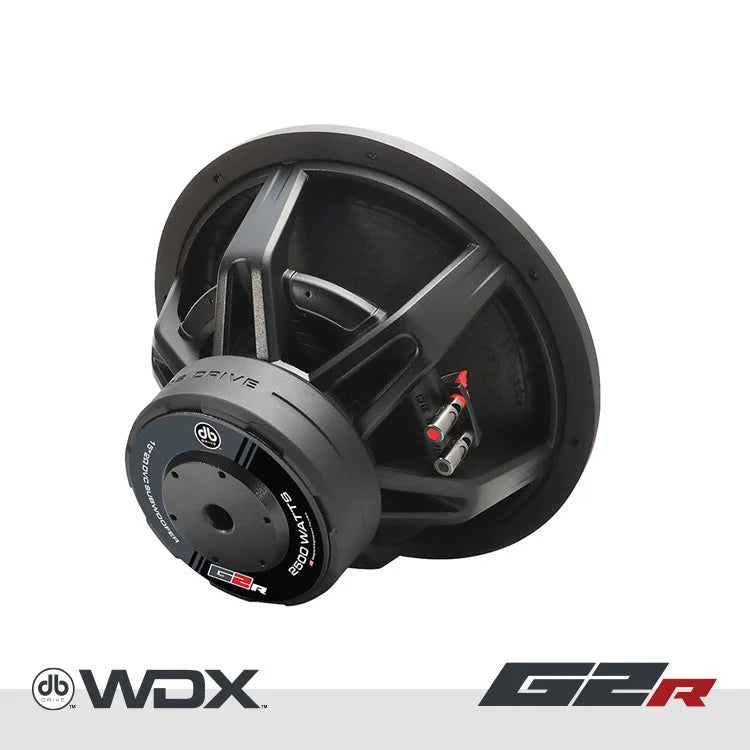

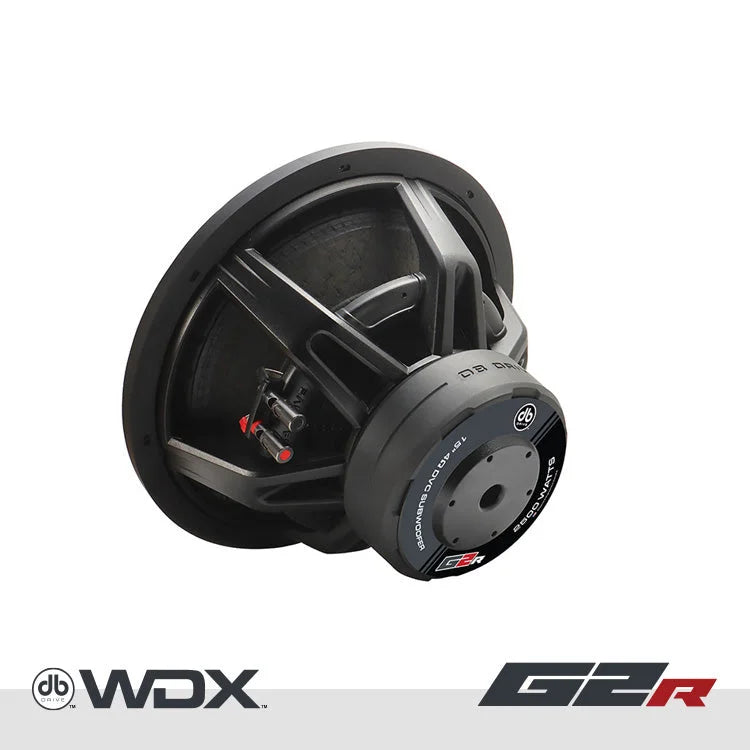

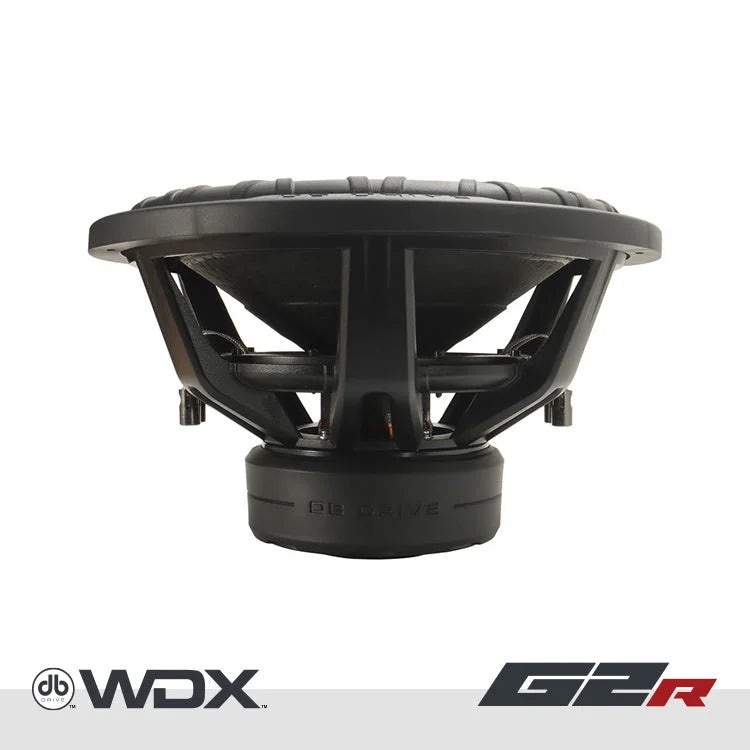

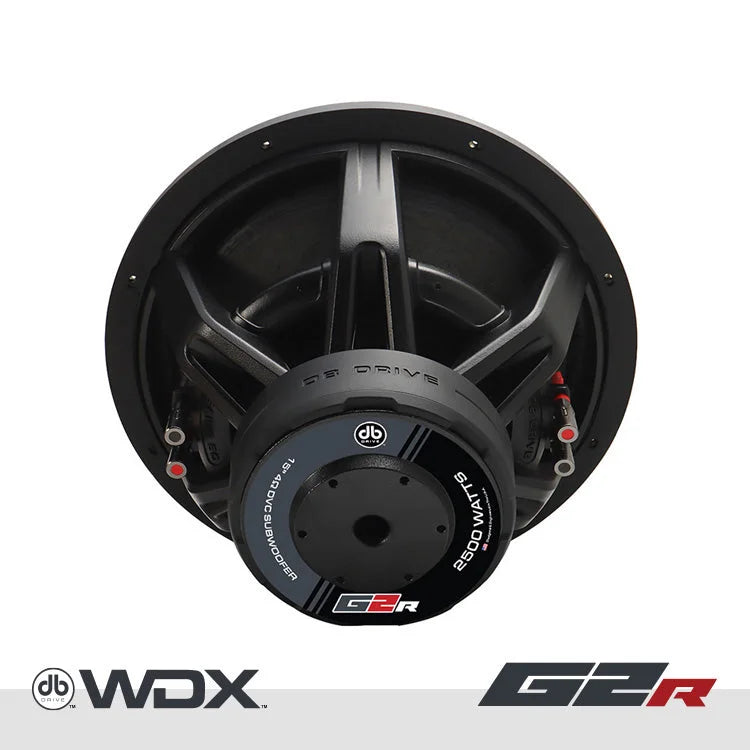

- Die-cast aluminum vented basket
- Rubber gasket trim ring

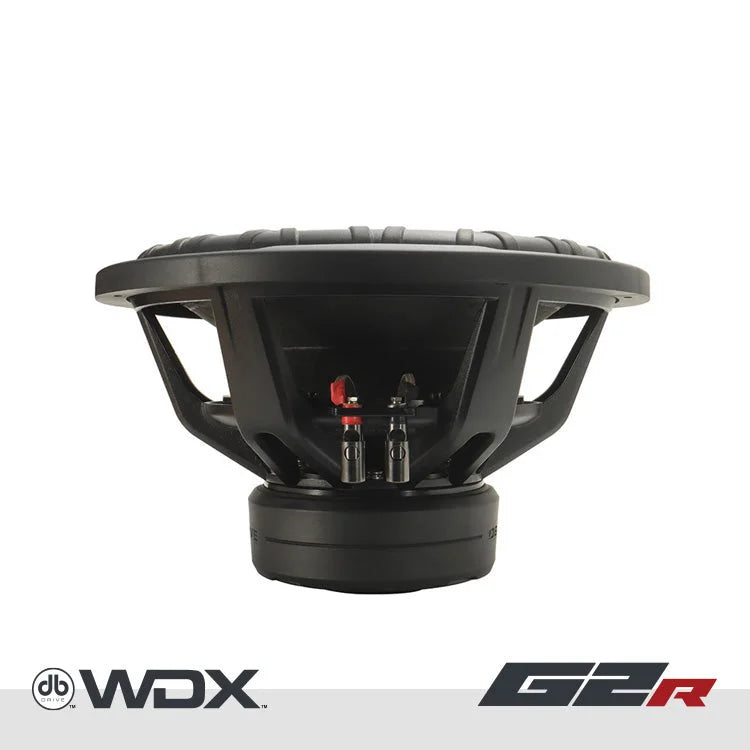

- Large gauge compression terminals

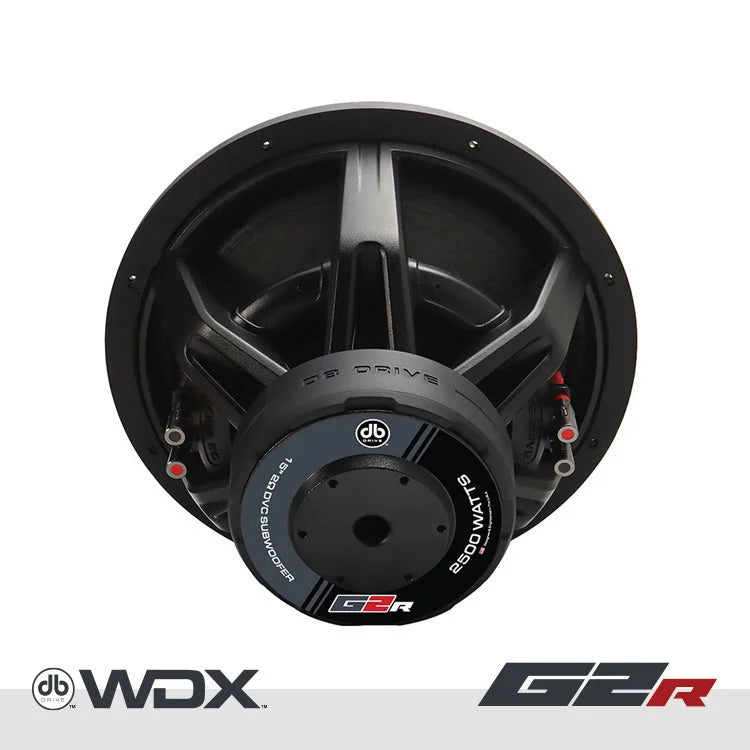

- Protective magnet cover
Specifications
- Dynamic Power Handling: 2500 Watts
- Nominal Power Handling: 1250 Watts
- Impedance: Dual 4Ω Voice Coil
- Resonant Frequency (fs): 31.202 Hz
- D.C. Voice Coil Resistance (Re): 2 x 3.2Ω
- Mechanical Quality Factor (Qms): 3.612
- Electrical Quality Factor (Qes): 1.320
- Total Quality Factor (Qts): 0.967
- Equivalent Air Volume (Vas): 65.567 L
- Mechanical Compliance of Suspension (CMS): 71.386 mm/N
- Mass of Diaphragm/Coil (Mms): 364.469 g
- Force Factor (BL): 18.613
- Sound Pressure Level (SPL): 83.7 dB
Description

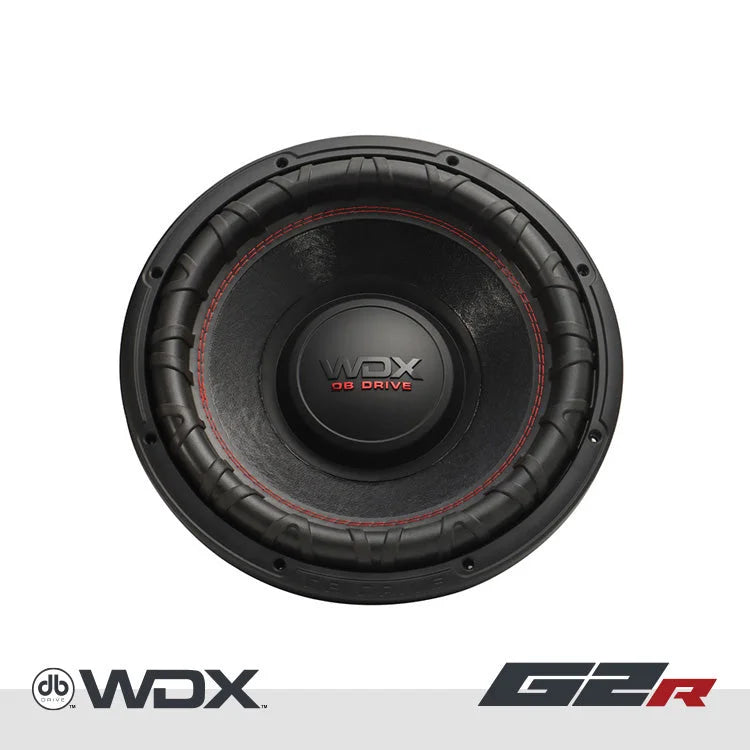

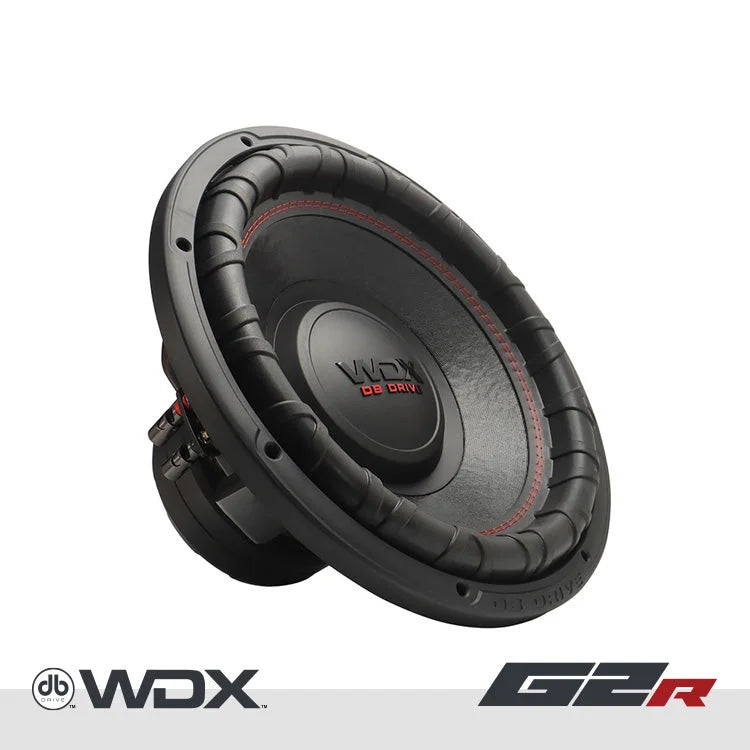

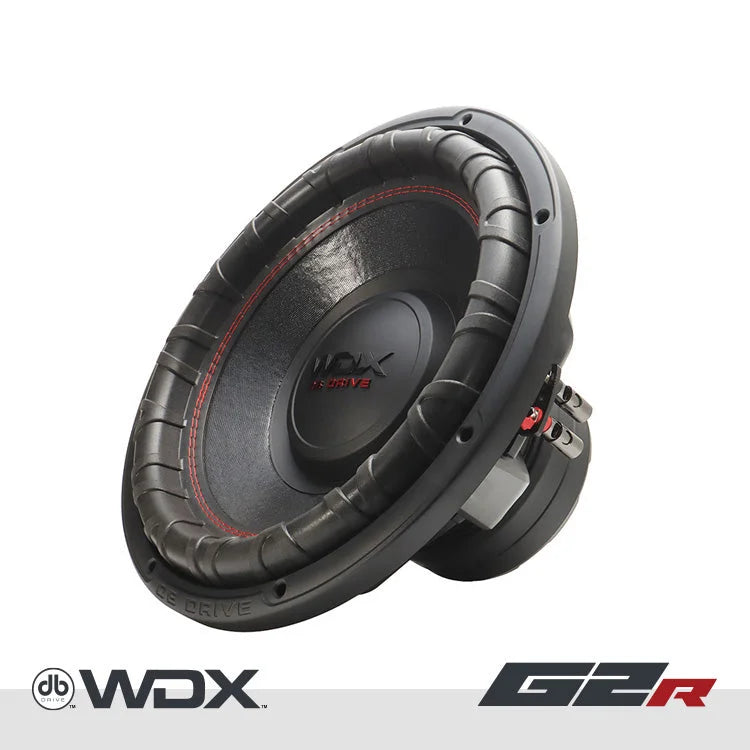

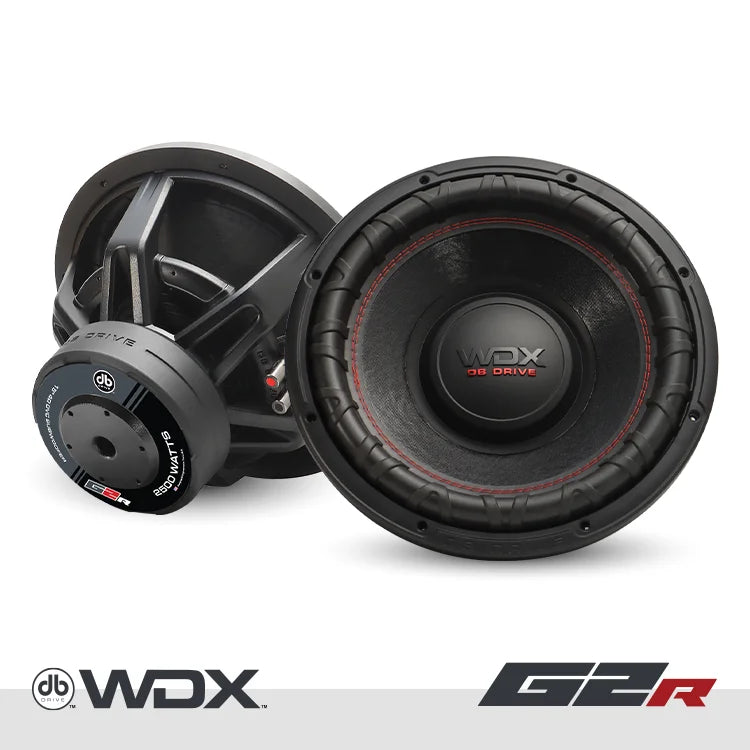

Designed for true bass enthusiasts, the WDX15G2R.4 subwoofers offer unmatched power and precision. • Featuring a custom mounting gasket for a perfect seal, eliminating rear-canceling waves for pure bass. • All-new dust caps and a custom-tooled aluminum basket provide durability, rigidity, and optimal heat dissipation. • The custom ribbed surround and High Excursion motor with Y35 ferrite magnets and high-temperature voice coils deliver deep, distortion-free bass. • Built for Bass: Power handling up to 2500 watts dynamic (1250 watts nominal) • The WDX15G2R.4 sets a new standard for earth-shaking bass. Ready to feel the difference?
