Features
- 2.5″ Anodized aluminum high-temperature voice coil
- Non-pressed paper cone
- Double-stitched reinforced foam surround
- Dual poly-cotton dampeners
- Die-cast aluminum vented basket
- Rubber gasket trim ring

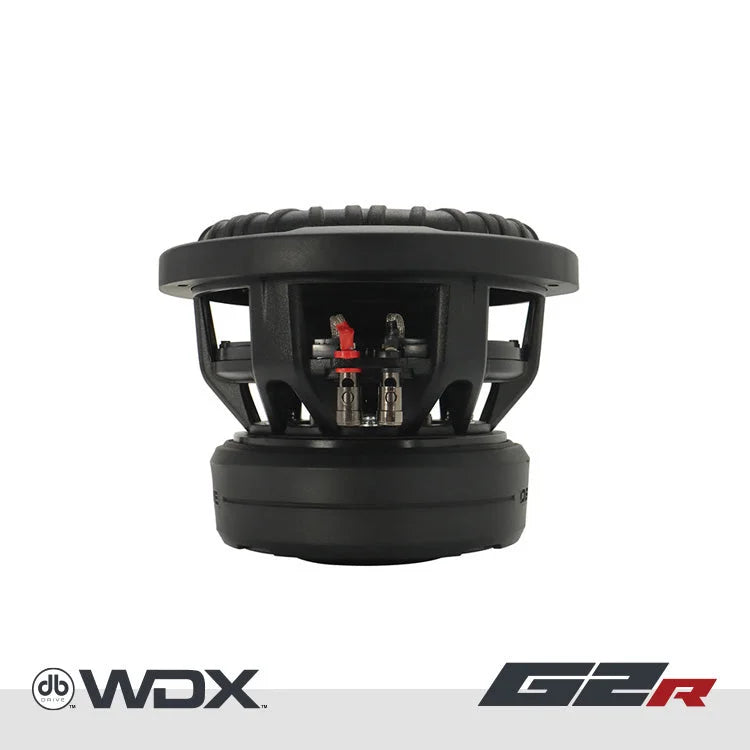

- Large gauge compression terminals

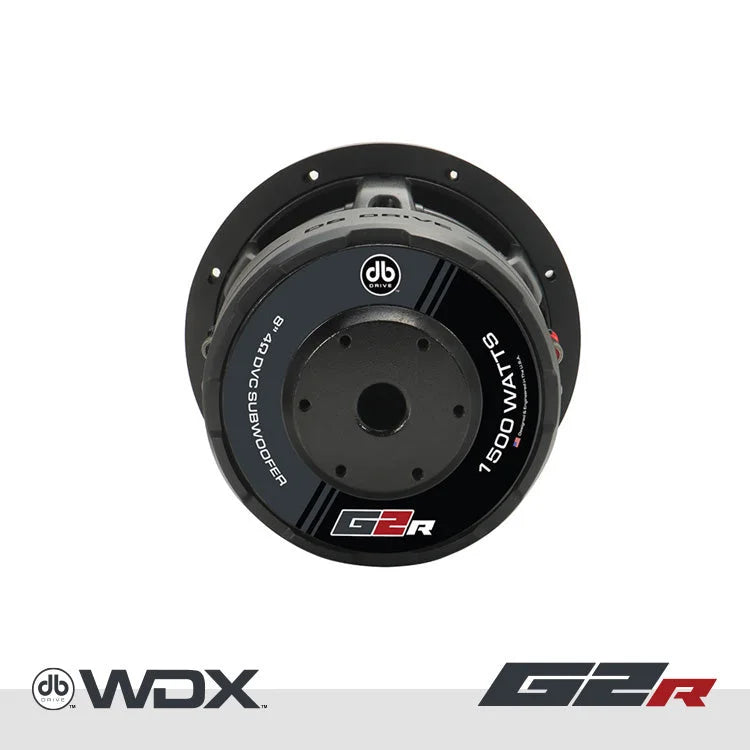

- Protective magnet cover
Specifications
| Dynamic Power Handling: 1500 Watts |
| Nominal Power Handling: 750 Watts |
| Impedance: Dual 4Ω Voice Coil |
| Resonant Frequency (fs): 39.479 Hz |
| D.C. Voice Coil Resistance (Re): 2 x 3.2Ω
|
| Mechanical Quality Factor (Qms): 3.892 |
| Electrical Quality Factor (Qes): 0.793 |
| Total Quality Factor (Qts): 0.659 |
| Equivalent Air Volume (Vas): 7.051 L
|
| Mechanical Compliance of Suspension (CMS): 122.833 mm/N |
| Mass of Diaphragm/Coil (Mms): 132.307 g |
| Force Factor (BL): 16.277 |
| Sound Pressure Level (SPL): 79.3 dB |
| Dimensions |
| Outside Diameter: 8.78"/ 223 mm |
| Cutout Diameter: 7.36"/ 187.5 mm |
| Mounting Depth: 5.55"/ 141 mm |
Description

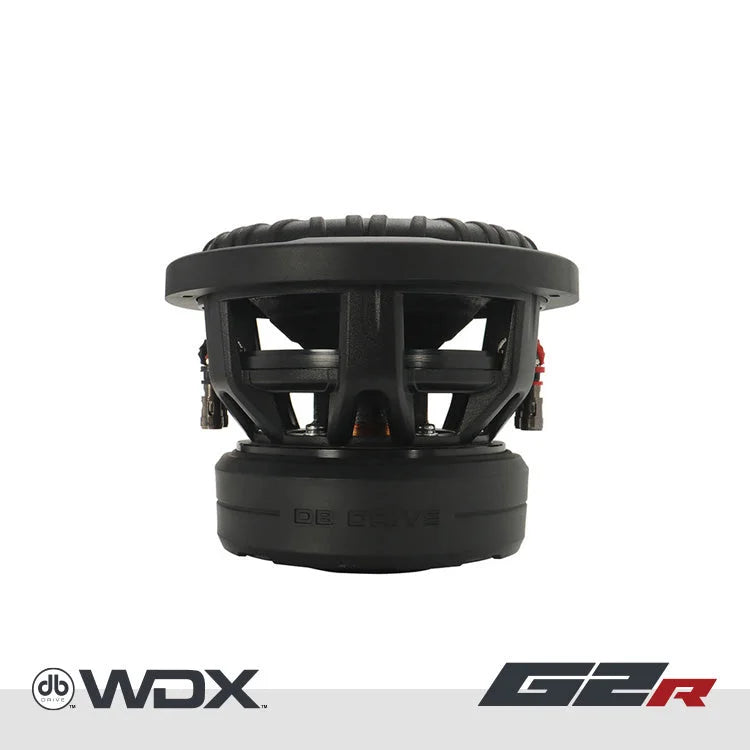

Designed for true bass enthusiasts, the WDX8G2R.4 subwoofers offer unmatched power and precision. • Featuring a custom mounting gasket for a perfect seal, eliminating rear-canceling waves for pure bass. • All-new dust caps and a custom-tooled aluminum basket provide durability, rigidity, and optimal heat dissipation. • The custom ribbed surround and High Excursion motor with Y35 ferrite magnets and high-temperature voice coils deliver deep, distortion-free bass. • Built for Bass: Power handling up to 1500 watts dynamic (750 watts nominal) • The WDX8G2R.4 sets a new standard for earth-shaking bass. Ready to feel the difference?
Product Manual
Product Manual PDF
