Description
Features
- 1.5" KSV voice Coil
- Neo Charged Ferrite Oxide
- Enhanced Midbass
- Wider Frequency Response
- Paper cone
- Cloth surround
- Sold In pairs
Specifications
| Nominal Power Handling: 225 Watts |
| Peak Power Handling: 450 Watts |
| Impedance: 4 Ω |
| Resonant Frequency (fs): 146.1Hz |
| D.C. Voice Coil Resistance (Re): 3.1Ω |
| Mechanical Quality Factor (Qms): 4.94 |
| Electrical Quality Factor (Qes): 0.41 |
| Total Quality Factor (Qts): 0.38 |
| Equivalent Air Volume to Cms (Vas): 3.6 L |
| Cms: 0.10 mm/N |
| Mass of Diaphragm/Coil (Mms): 11.7 g |
| Force Factor (BL): 9.0 N/A |
| Sound Pressure Level (SPL): 96.2 dB |
| Dimensions |
| Overall Diameter: 6.69"/ 170 mm |
| Cutout Diameter: 5.91"/ 150.19 mm |
| Mounting Depth: 3.27"/ 83 mm |
Description

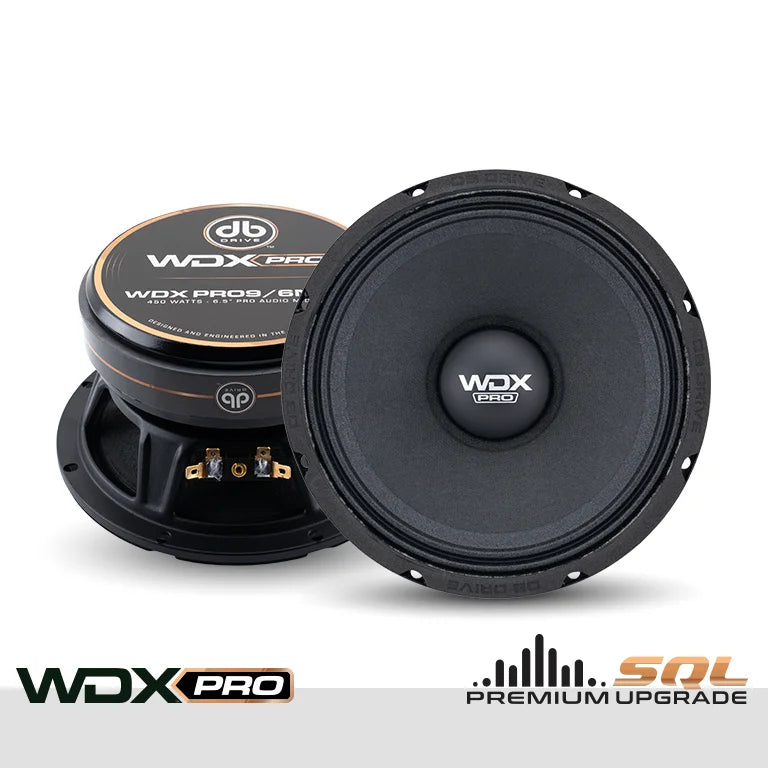

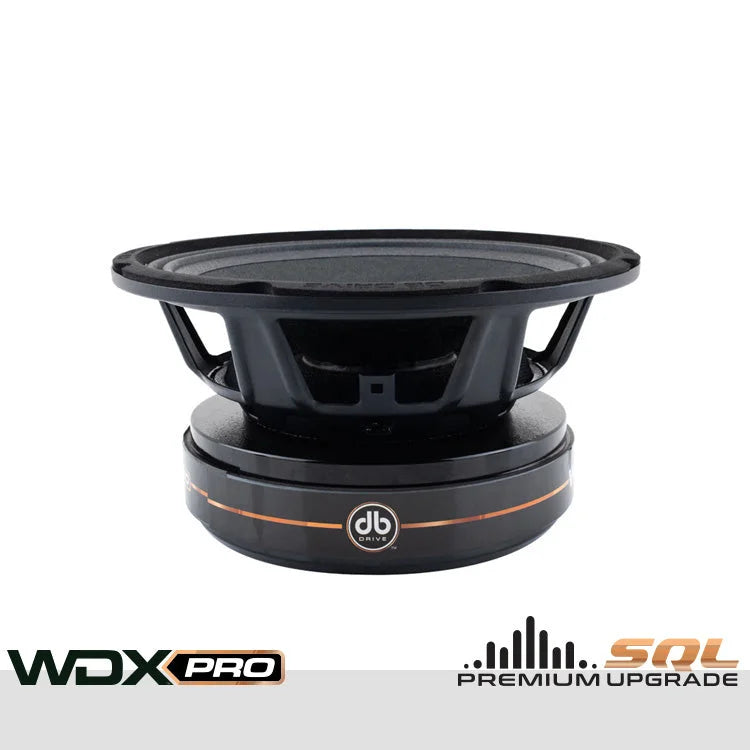

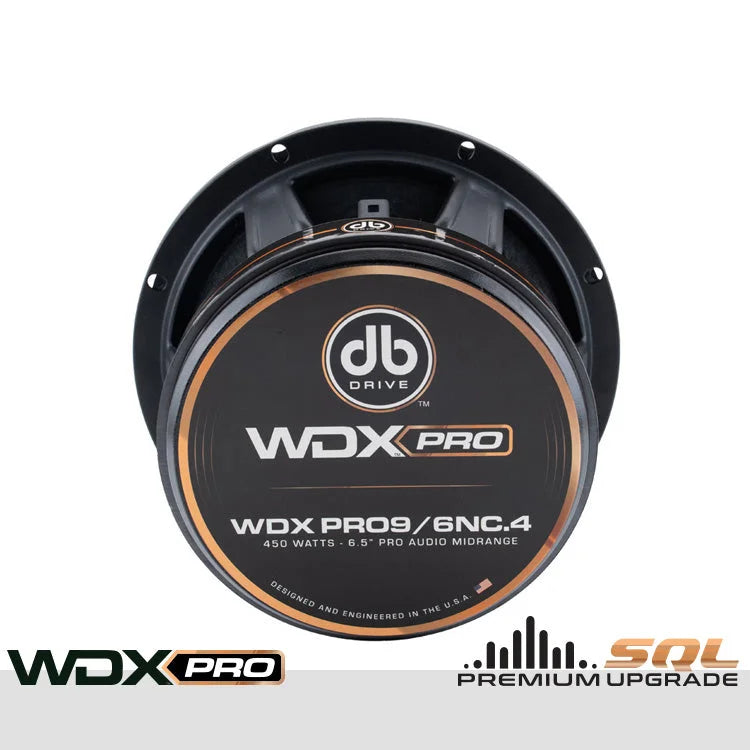

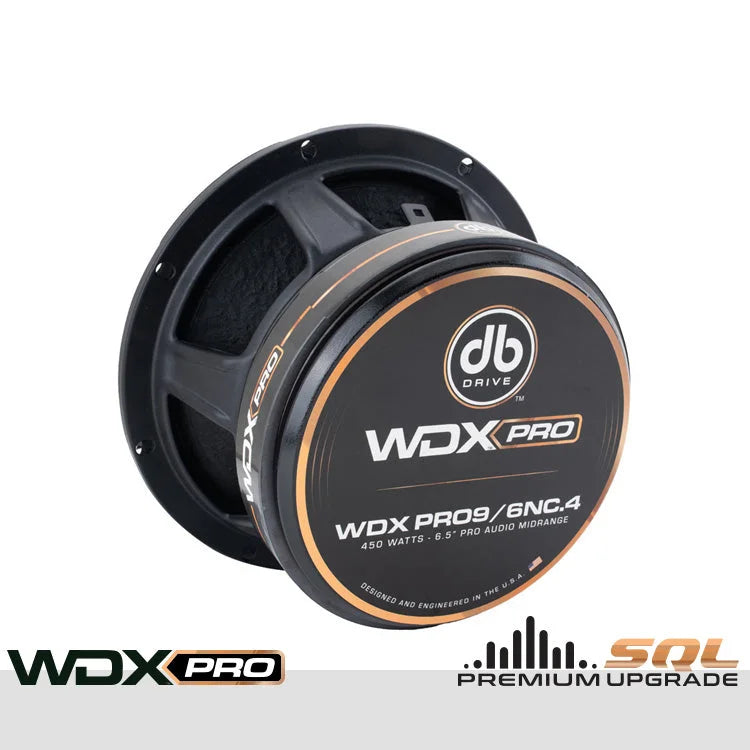

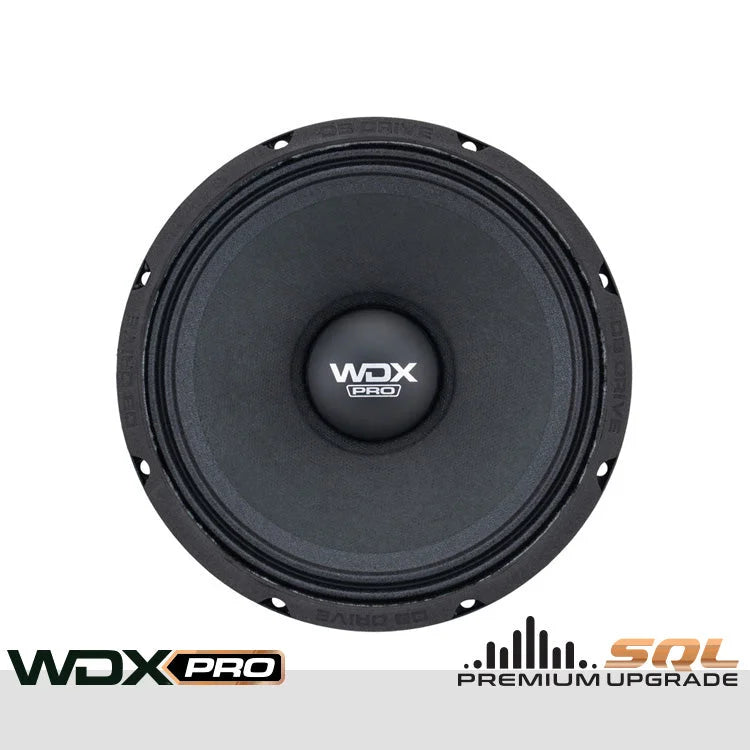

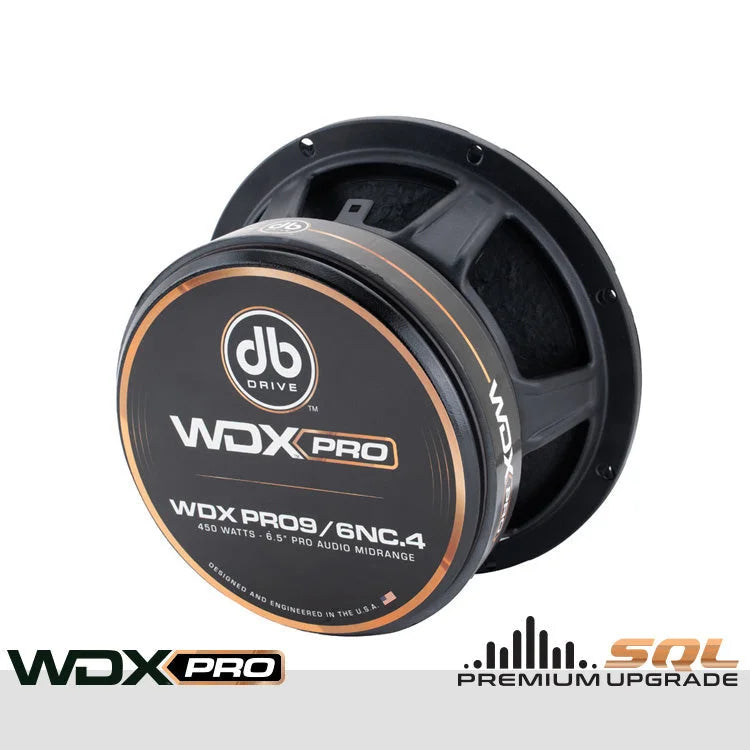

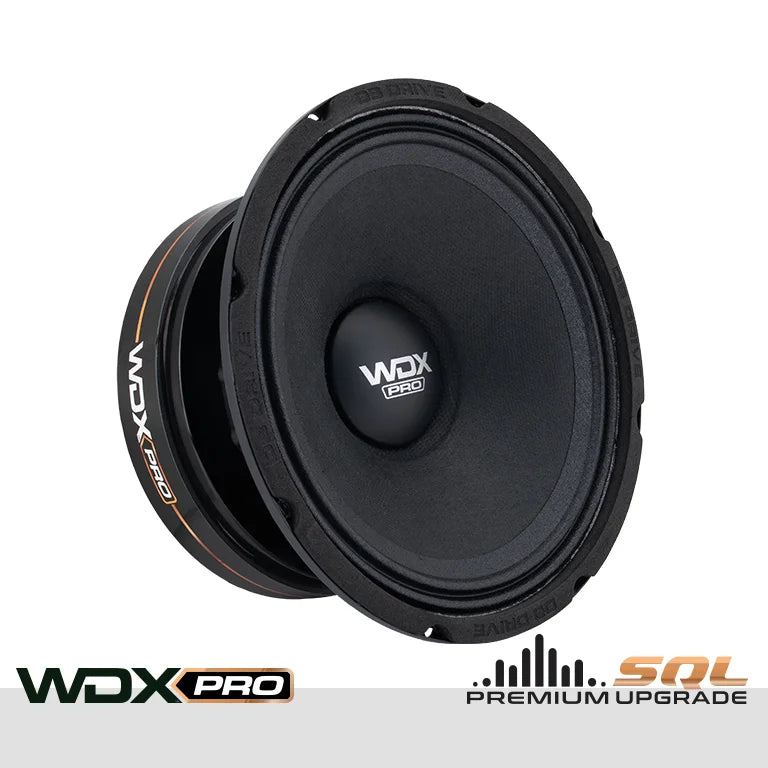

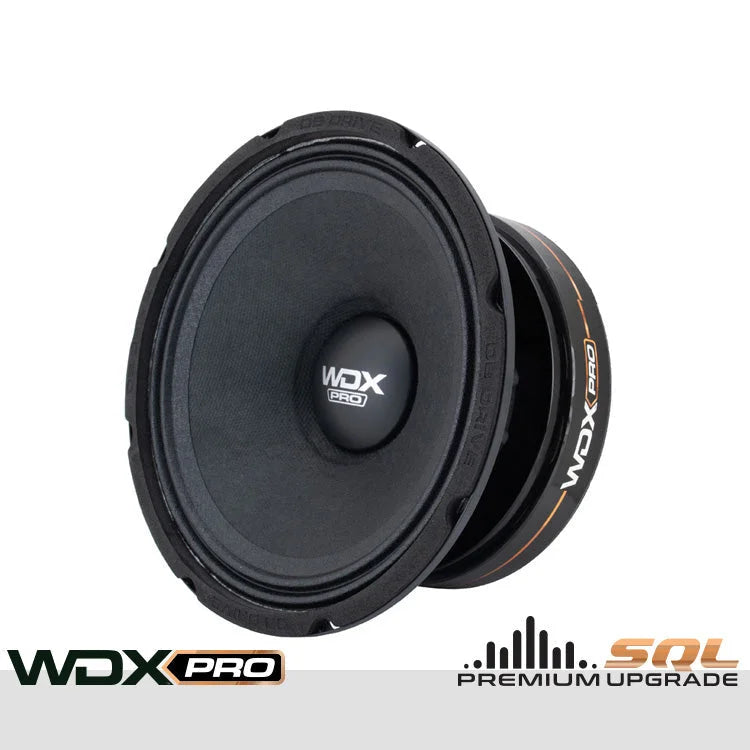

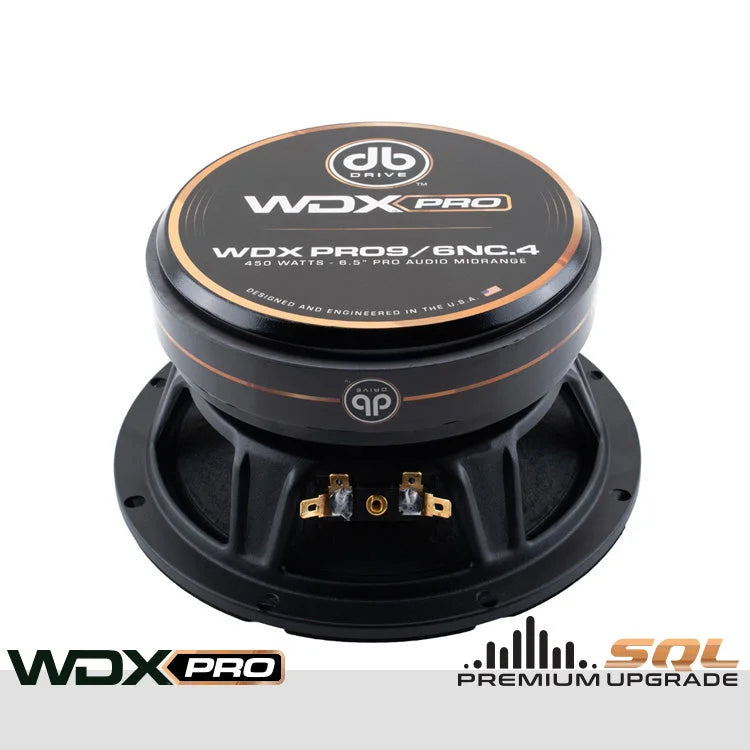

Experience crystal clear and powerful sound with the WDXPRO9/6NC.4 Pro Audio Mid-Bass speakers. Featuring a 6.5" size, 1.75" KSV VC size, 4 Ohms impedance, and 450W nominal power handling, these speakers deliver a wide frequency range with 225 watts of peak power. The Neo Charged Ferrite Oxide magnet ensures superior performance and the compact design allows for easy installation. Sold in pairs for a complete audio upgrade.
