Description
Features
- 1.75" TIL voice Coil
- Neo Charged Ferrite Oxide
- Enhanced Midbass
- Wider Frequency Response
- Paper cone
- Cloth surround
- Sold In pairs
Specifications
| Nominal Power Handling: 300 Watts |
| Peak Power Handling: 600 Watts |
| Impedance: 4 Ω |
| Resonant Frequency (fs): 103.2Hz |
| D.C. Voice Coil Resistance (Re): 3.0Ω |
| Mechanical Quality Factor (Qms): 5.10 |
| Electrical Quality Factor (Qes): 0.47 |
| Total Quality Factor (Qts): 0.43 |
| Equivalent Air Volume to Cms (Vas): 12.4 L |
| Cms: 0.14 mm/N |
| Mass of Diaphragm/Coil (Mms): 16.6 g |
| Force Factor (BL): 8.3 N/A |
| Sound Pressure Level (SPL): 96.4 dB |
| Dimensions |
| Overall Diameter: 8.19"/ 208 mm |
| Cutout Diameter: 7.35"/ 186.80 mm |
| Mounting Depth: 3.46"/ 88 mm |
Description

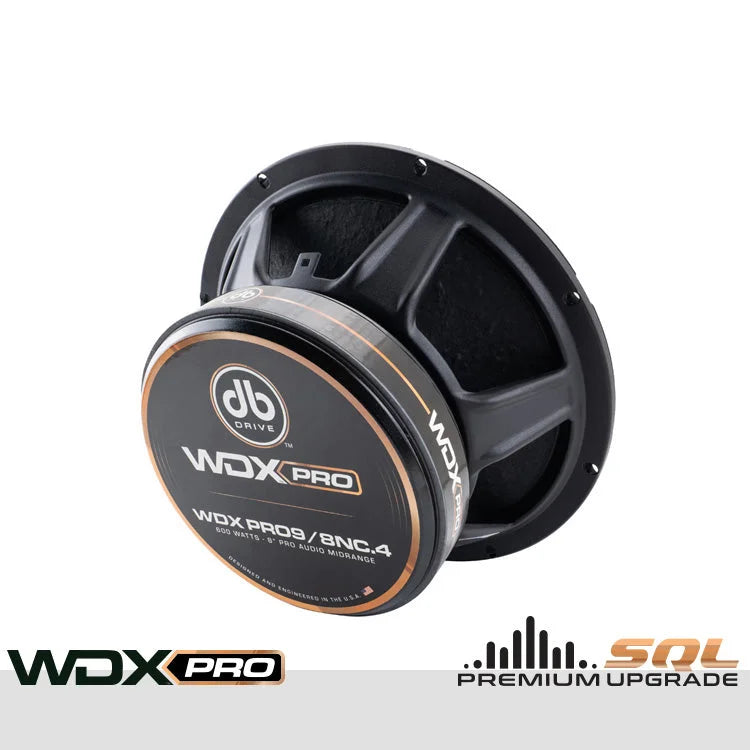

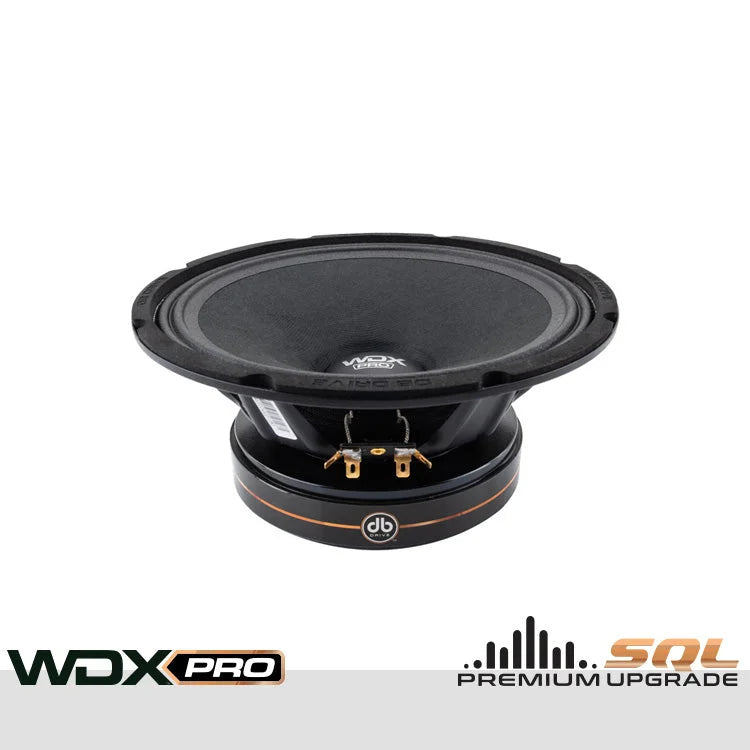

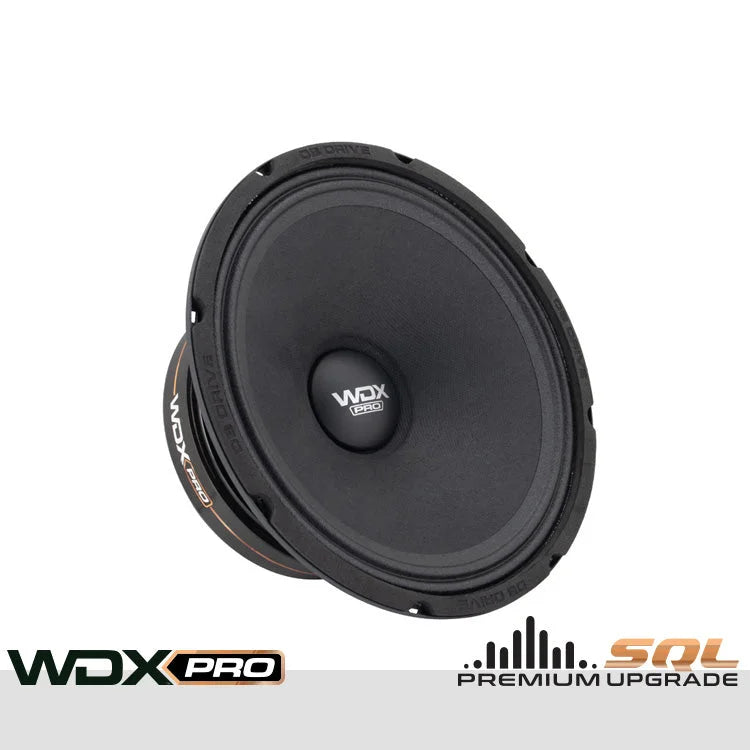

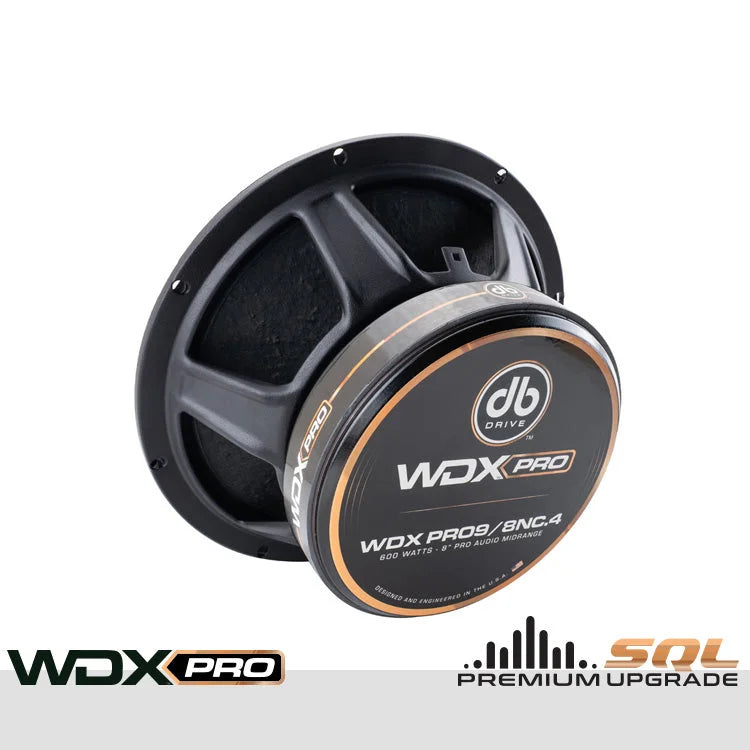

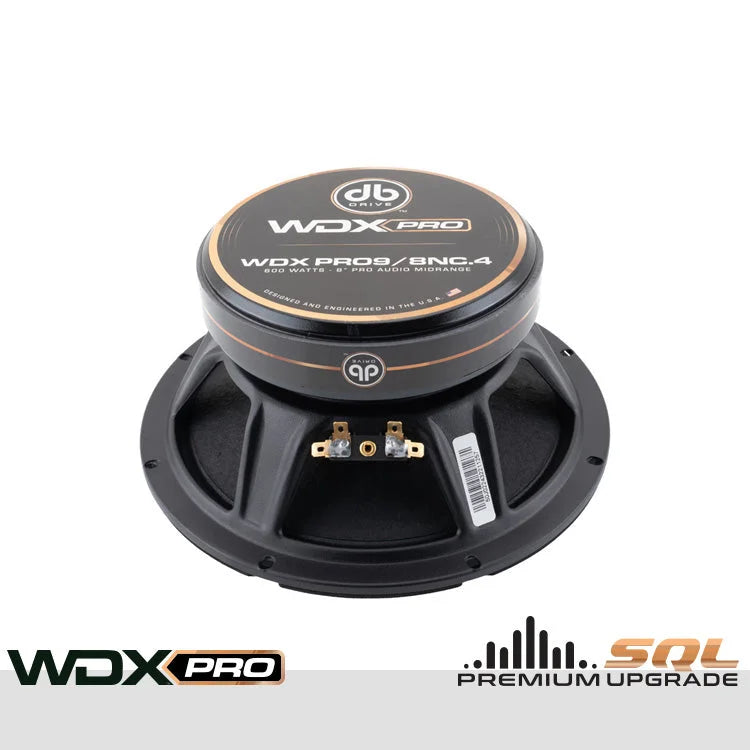

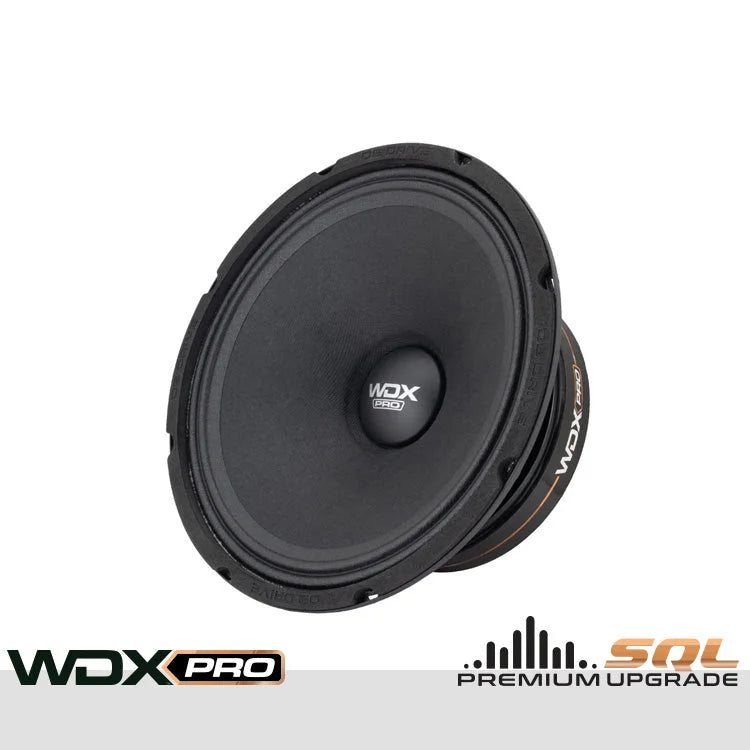

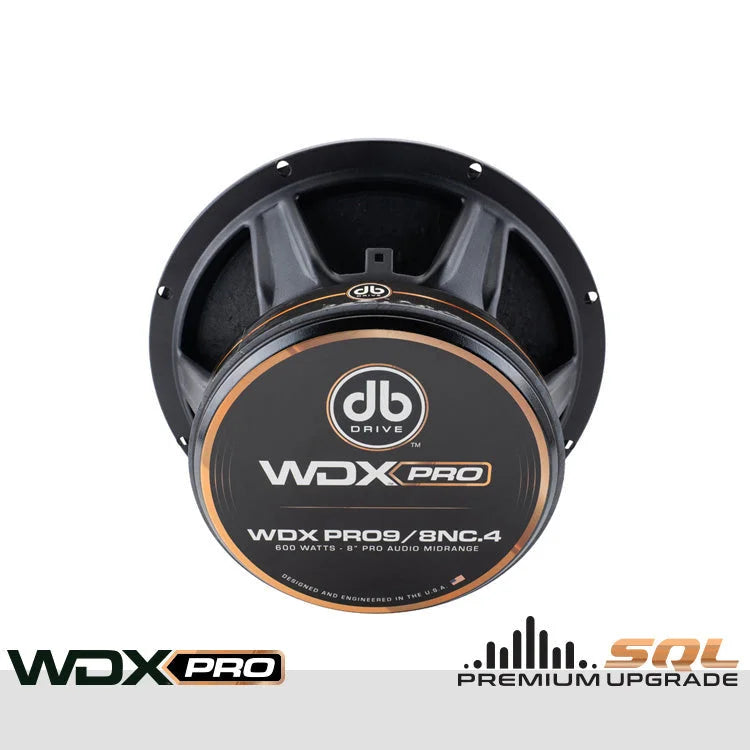

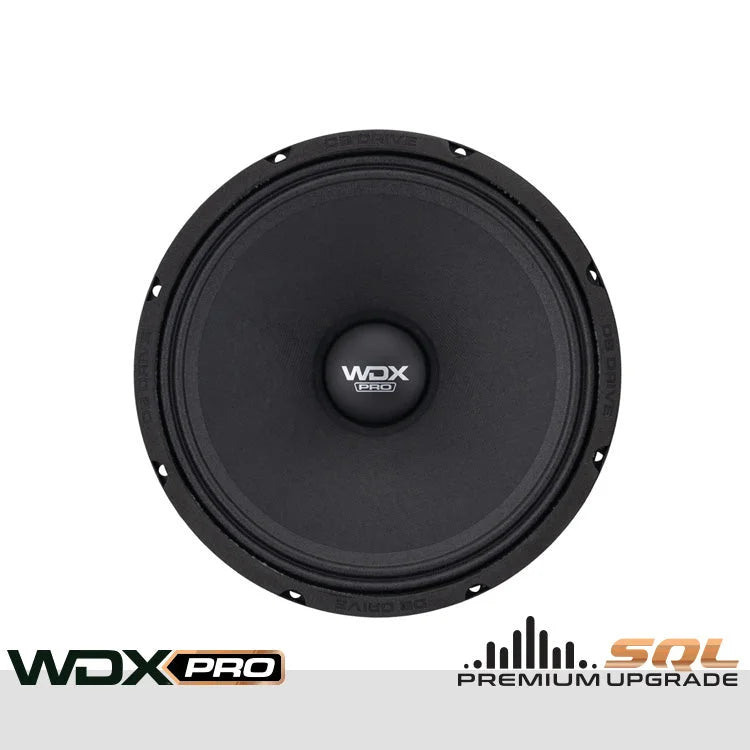

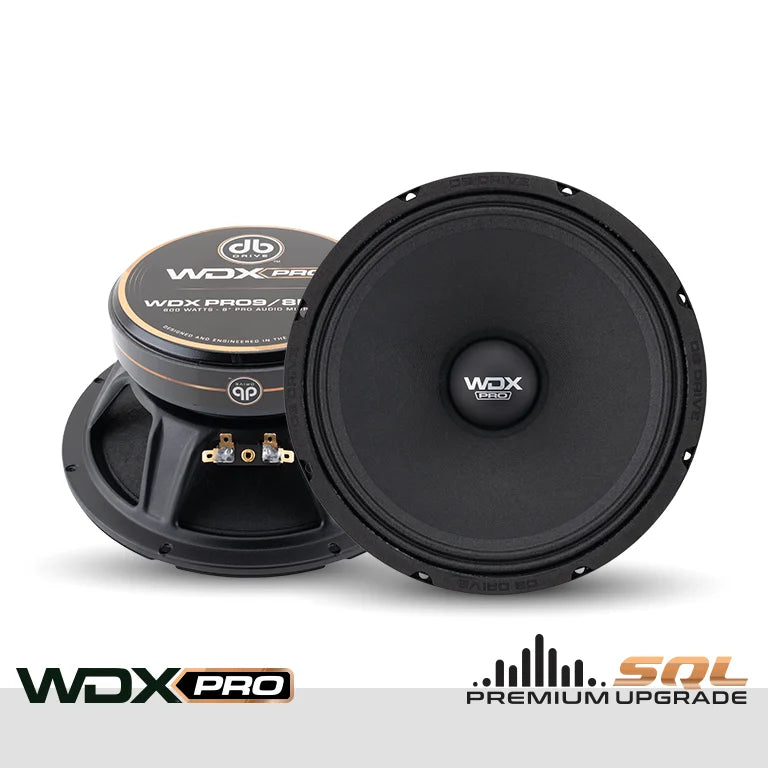

Upgrade your audio experience with the WDXPRO9/8NC.4 pair of 8" wide-frequency range mid-bass speakers. Boasting a 1.75" TIL VC size and a powerful Neo Charged Ferrite Oxide magnet, these speakers deliver clear, strong sound. With 300 peaks and 600 nominal power handling, immerse yourself in rich sound while minimizing distortion. Sold in pairs.
