Description
TECHNICAL SPECIFICATIONS
|
|
|

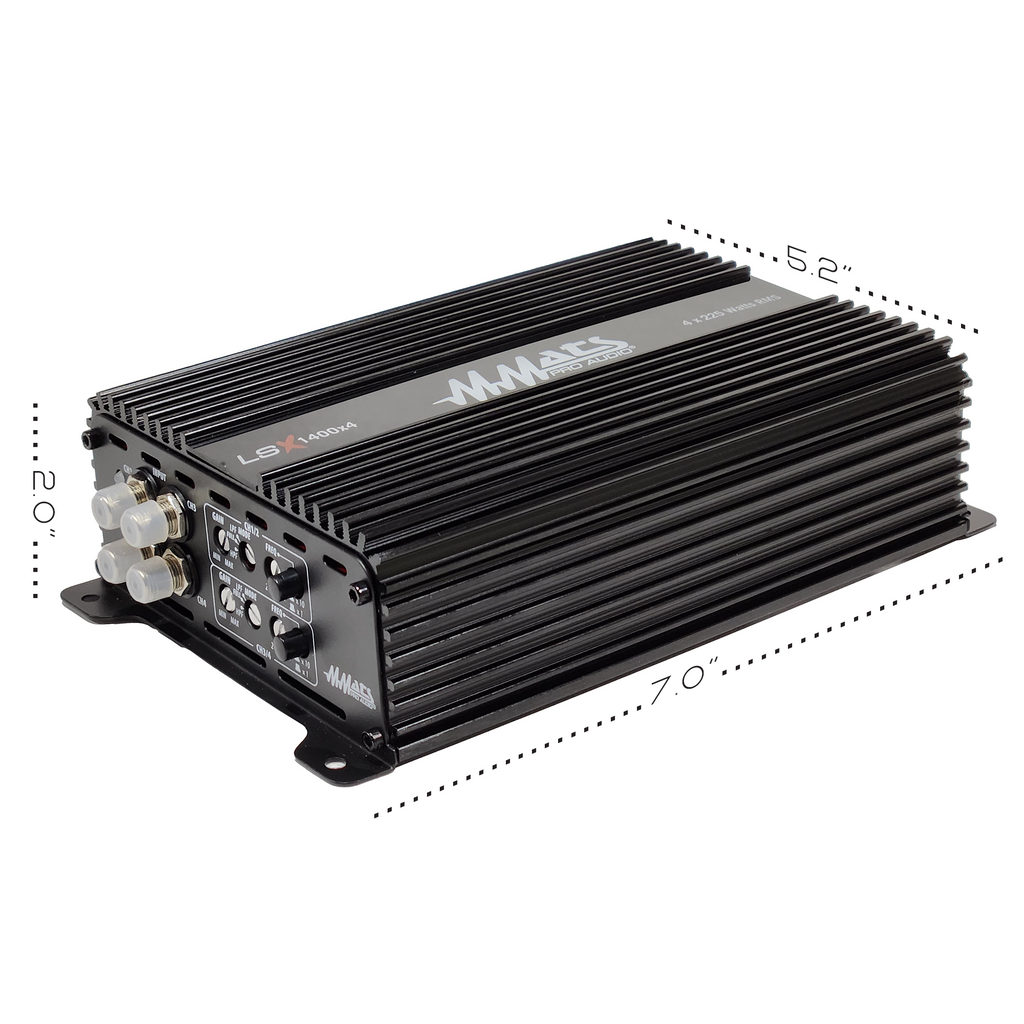

Power @ 4Ω stereo: Power @ 2Ω stereo: Power @ 4Ω mono: Operating Voltage: Rated Voltage: Current Draw (Music): Current Draw (Max): Recommended Fuse: Efficiency @ Full Power: Damping Factor: Frequency Response (-3dB): SNR: THD + N: Product Dimensions: |
4 x 225 WRMS 4 x 360 WRMS 2 x 720 WRMS 8V – 16V 13.8V 60A 125 A 100 A 86% @ 2-ohm stereo Resistive >1000 10Hz – 22Khz 96dB 0.1% 7.0 x 5.2 x 2.0 inches |
FEATURES |
|
|
Gain: LPF: HPF: Full-pass: Protection: Power light: ULTRA Efficient Heatsink: 4-Gauge Battery Terminal 12-Gauge Speaker Terminal |
.2V – 10V 20Hz – 700hz 200Hz – 7Khz (via 10x switch) Full range if needed Over-current, Short and Thermal Blue Proprietary Tooling |
