Description
Features
- CLASS “D” CIRCUITRY

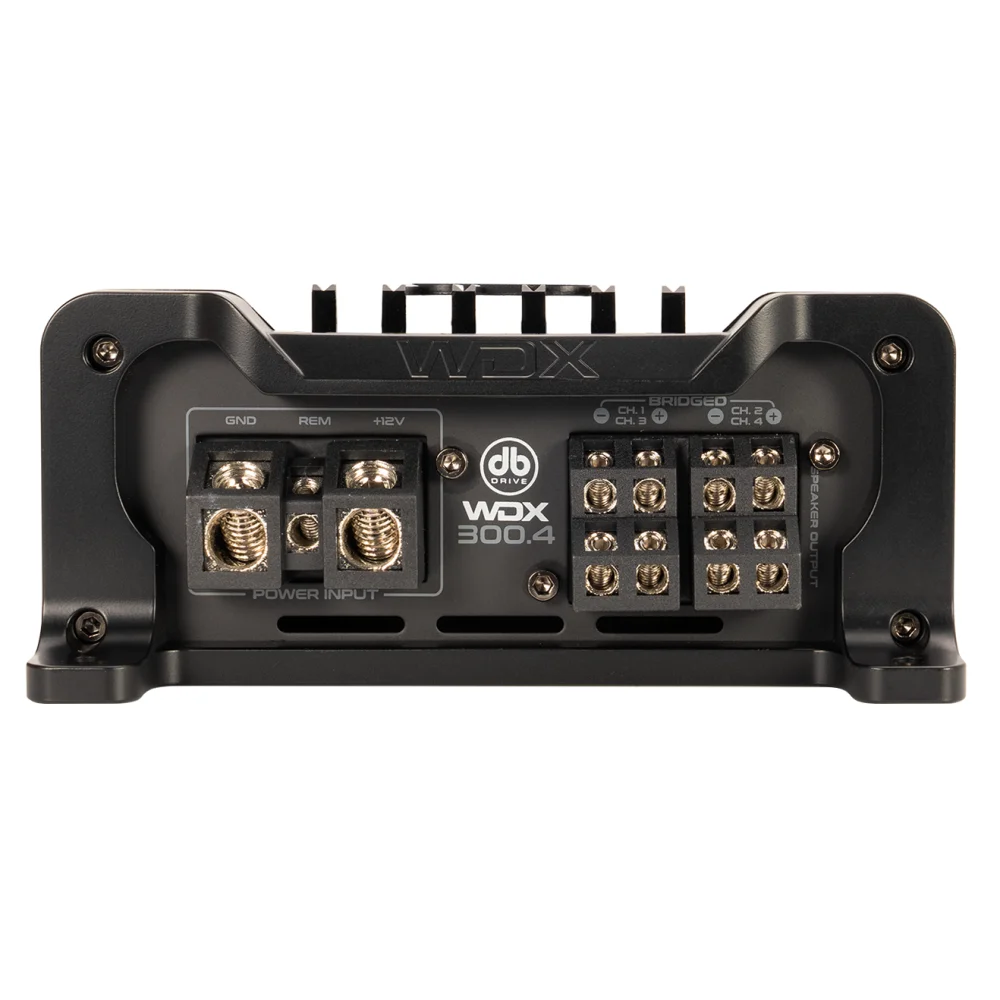

- Direct Connect Speaker Terminals
- 4 Gauge Power Wire Input
- CHM- Collective Heat Management
- ACT – Adaptive Crossover Technology
- SESI – Signal Evaluation Status Indicator
- APC – Audio Protection Circuit
Specifications
| Rated Power @14.4 Volts | |
|---|---|
| 4 x 300 Watts @ 4Ω | |
| 4 x 400 Watts @ 2Ω | |
| 2 x 400 Watts @ 4Ω Bridged |
Parameters
| Frequency Response | 20Hz ~ 22KHz |
| S/N Ratio | < 105 dB |
| Low Level Input | 6V - 0.2V |
| Independent Selectable X-Over F/R | HPF / LPF / BP / FULL |
| Variable High Pass Filter (@ 12dB Slope) | 20Hz ~ 5Kz |
| Variable Low Pass Filter (@ 12dB Slope) | 50Hz ~ 5Khz |
| Bass Equalizer | 0dB - 9dB |
| Working Voltage | 12 - 15 Volts |
Description
Amplify Your Sound, Amplify Your Life!

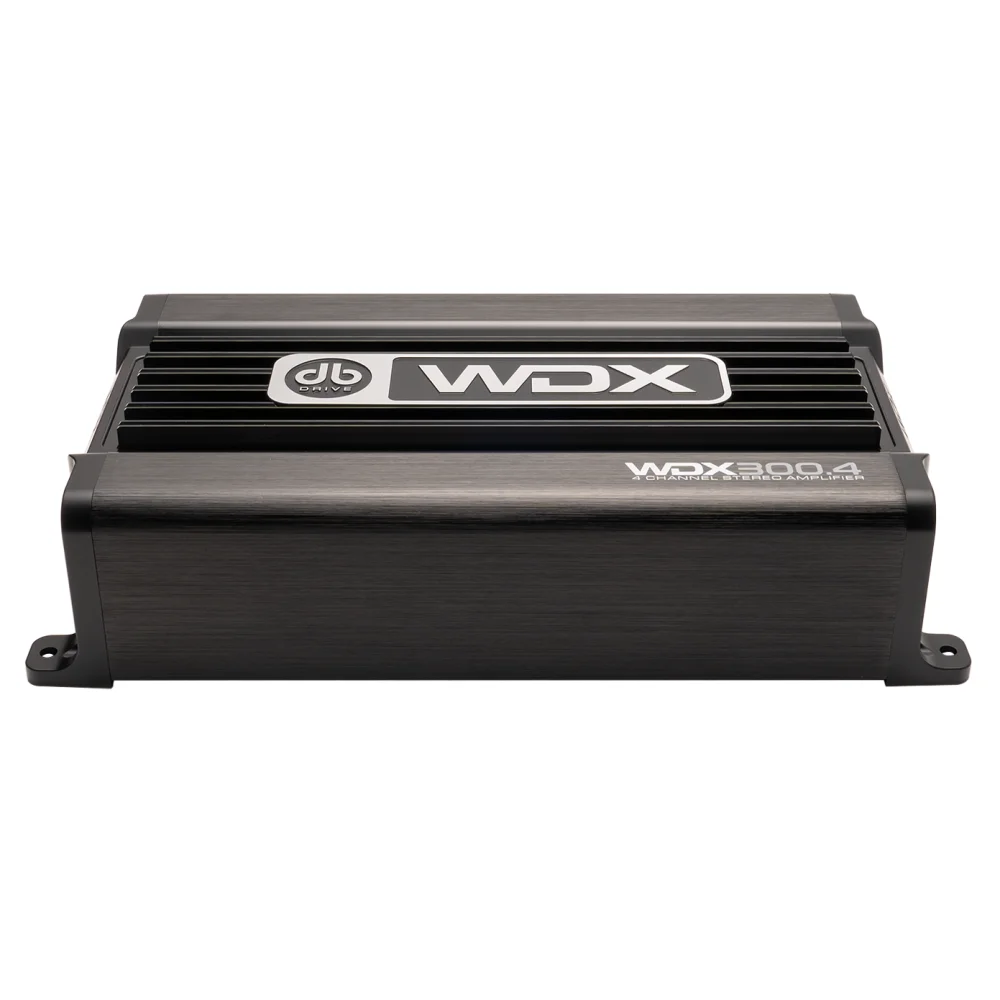

Unleash the full potential of your audio system with the DB Drive WDX300.4: 4 Channel Class D Stereo Amplifier. Designed with precision and power in mind, this amplifier offers an impressive 2Ω stereo or 4Ω bridged capability, delivering up to 1600W of raw power. Its direct connect speaker terminals and 4-gauge power wire input ensure seamless connectivity, while the collective heat management and adaptive crossover technology keep your system running smoothly and efficiently. With a signal evaluation status indicator and audio protection circuit, you can trust in the reliability and quality of your sound. Whether you're a car audio enthusiast or a professional installer, the WDX MINI AMPLIFIERS series is your ultimate solution for superior sound performance. Elevate your audio experience with the unmatched power and clarity of the DB Drive WDX300.4.
Unleash the full potential of your audio system with the DB Drive WDX300.4: 4 Channel Class D Stereo Amplifier. Designed with precision and power in mind, this amplifier offers an impressive 2Ω stereo or 4Ω bridged capability, delivering up to 1600W of raw power. Its direct connect speaker terminals and 4-gauge power wire input ensure seamless connectivity, while the collective heat management and adaptive crossover technology keep your system running smoothly and efficiently. With a signal evaluation status indicator and audio protection circuit, you can trust in the reliability and quality of your sound. Whether you're a car audio enthusiast or a professional installer, the WDX MINI AMPLIFIERS series is your ultimate solution for superior sound performance. Elevate your audio experience with the unmatched power and clarity of the DB Drive WDX300.4.
Product Manual
Product Manual PDF
