Description
### Technical Specifications
**MMATS LSX4000.2D**
#### Power Output:
- ⚡ **Power @ 4Ω:** 1 x 2680 WRMS
- ⚡ **Power @ 2Ω:** 1 x 4325 WRMS
- ⚡ **Power @ 1Ω:** N/A
#### Electrical:
- 🔋 **Operating Voltage:** 8V – 16V
- 🔋 **Rated Power:** 13.8V
- 🔋 **Current Draw (Music):** 175A
- 🔋 **Current Draw (Max):** 365A
- 🔋 **Recommended Fuse:** 200A
- 🔋 **Efficiency @ Full Power:** 86% @ 2Ω Resistive
#### Performance:
- 📏 **Damping Factor:** >1000
- 🎚️ **Frequency Response (-3dB):** 10Hz – 22Khz
- 🎛️ **SNR:** 96dB
- 📈 **THD + N:** 0.1%
#### Dimensions:
- 📏 **Product Dimensions:** 10 x 6.43 x 2.2 inches
### Features:
- 🎛️ **Gain:** 0.2V – 10V
- 🎚️ **Subsonic Filter:** 10Hz – 200Hz
- 🎚️ **LPF:** 60Hz – 20Khz
- 🔊 **Bass Boost:** 0dB – 12dB
- 🎚️ **Variable Boost Frequency:** 30Hz – 70Hz
- 🔵🔴🟡 **Power, Protect, Clip Indicators:** Blue – Red – Yellow
- 🎚️ **Remote Bass Knob:** Included
- ❄️ **ULTRA Efficient Heatsink**
- 🔌 **1-Gauge Battery Terminal**
- 🔌 **8-Gauge Speaker Terminal**
- ❄️ **Dual Cooling Fans**
- 🛠️ **Proprietary Tooling**
**NOTE:** Power ratings have increased over the last year and this amplifier is as strong as some 5KW on the market rated at 14.4V. Pricing has remained unchanged.

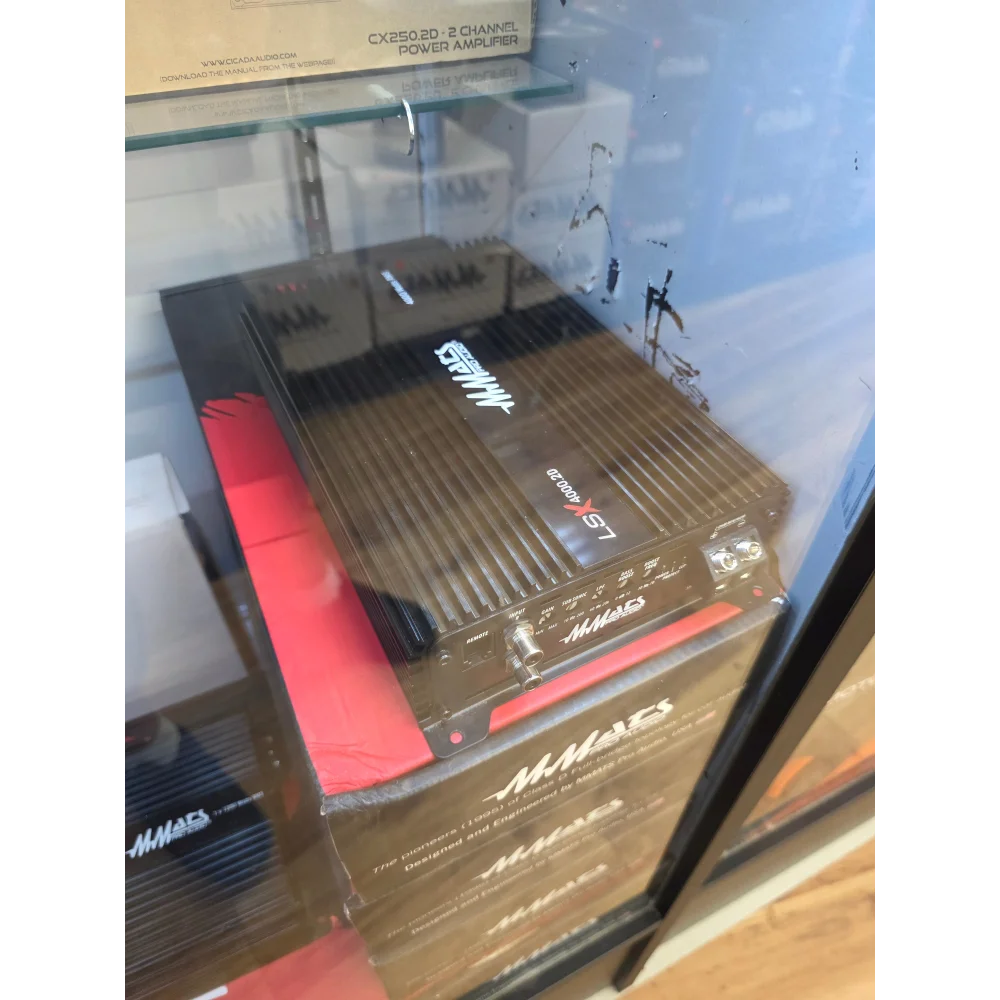

Upgrade your car audio system with the MMATS LSX4000.2D 2 Channel Full Range Amplifier and experience exceptional sound quality and performance like never before.
