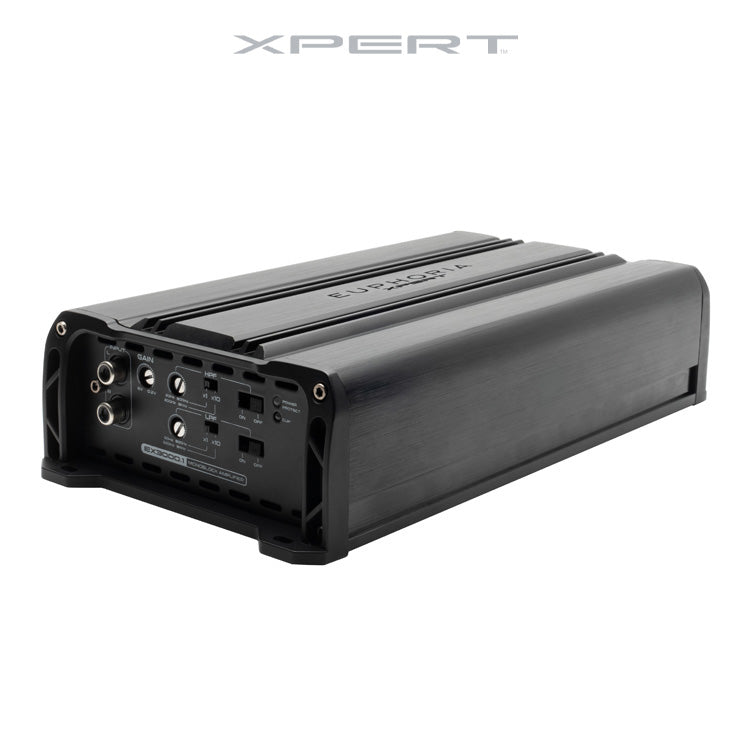

Description
Features
◦ ACT - Adaptive Crossover Technology
◦ High Efficiency Full Range Class D Technology

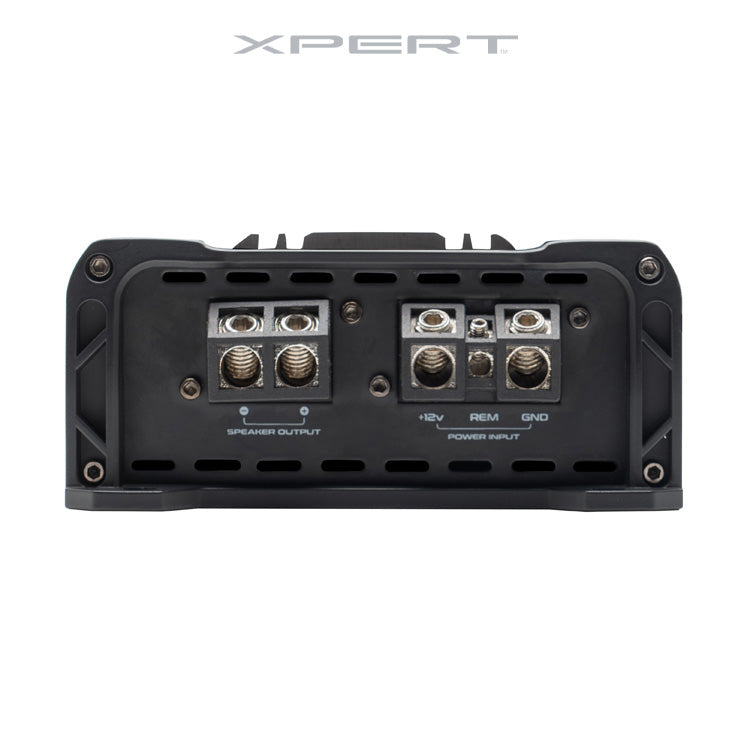

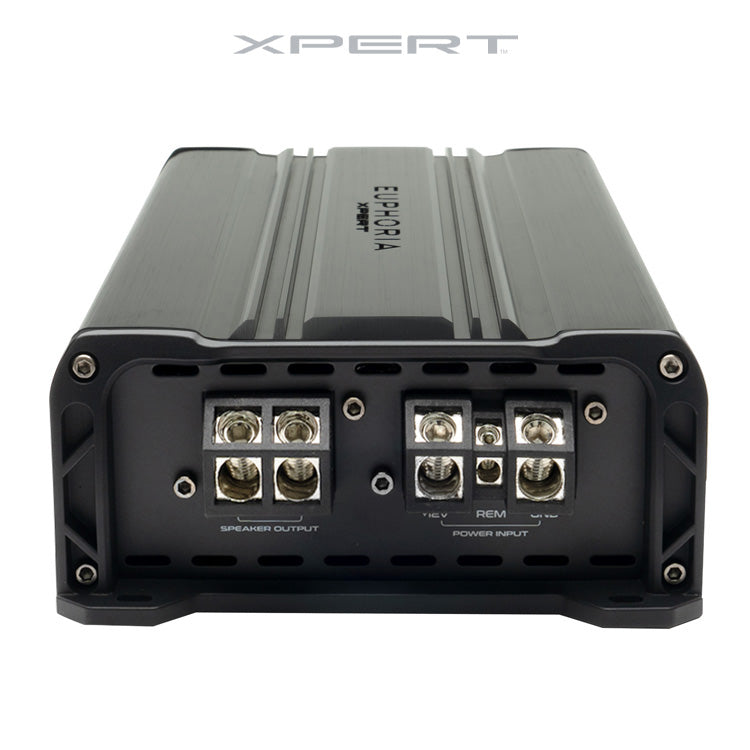

◦ Direct Connect Speaker Terminals
◦ Large Gauge Power Wire Inputs
◦ APC - Audio Protection Circuit
◦ SESI - Signal evaluation status indicator
Specifications
@14.4 Volts - 1% THD
- 1 x 3000 Watts @ 1 Ohm
- 1 x 1500 Watts @ 2 Ohm
- 1 x 750 Watts @ 4 Ohm
- Working Voltage: 10 - 16 Volts
- Frequency Response: 10Hz - 20KHz
- Signal to Noise Ratio: < 95dB
- Damping Factor @ 4 Ohm > 53/ 1KHz
- Low Level Input: 6V - 0.2V

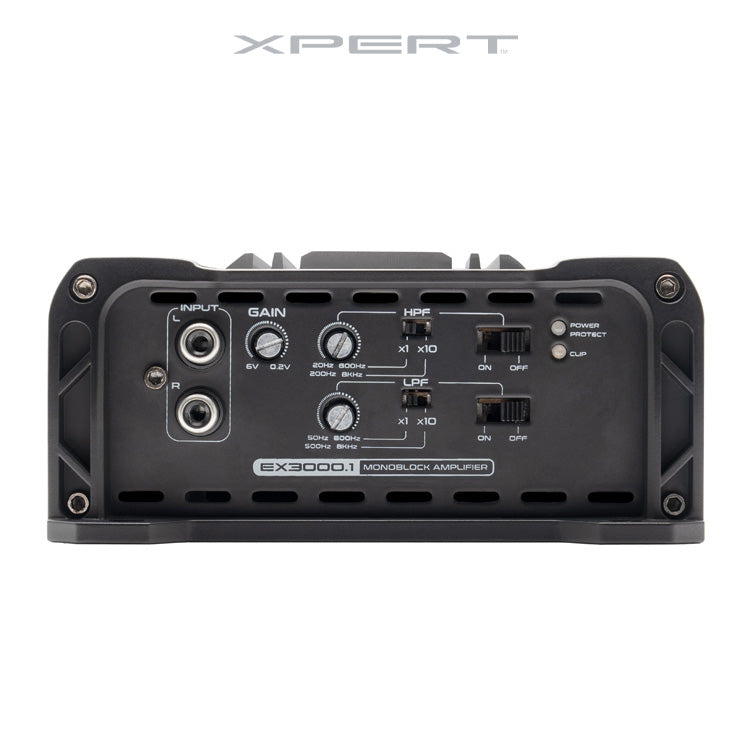

- High Pass Variable Filter Ranges: 20Hz - 800Hz / 200Hz - 8KHz
- Low Pass Variable Filter Ranges: 50Hz - 800Hz / 500hz - 8KHz
- Minimum working Impedance: 1 Ohm

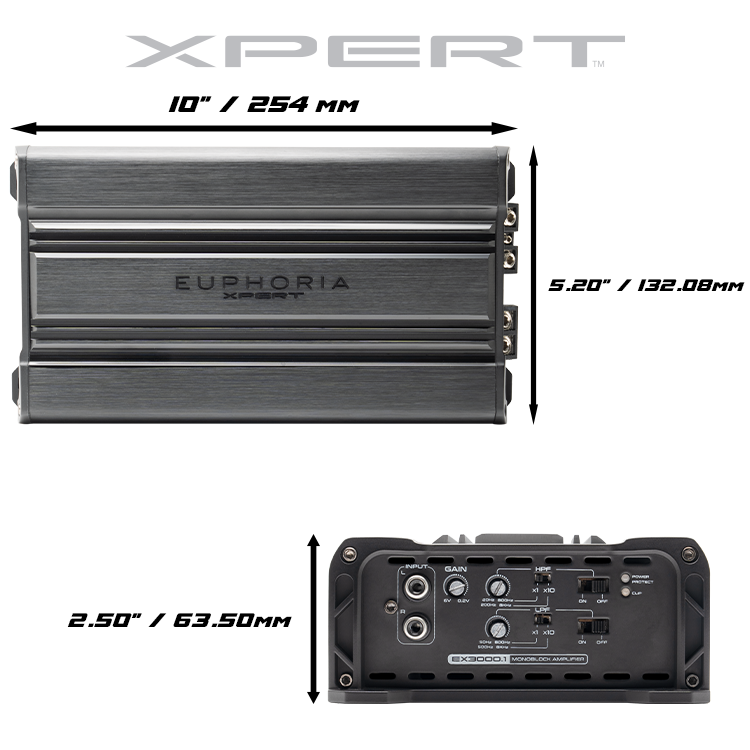

DIMENSIONS
- L - 10" / 254 mm
- W - 5.20" / 132.08 mm
- H - 2.50" / 63.50 mm
