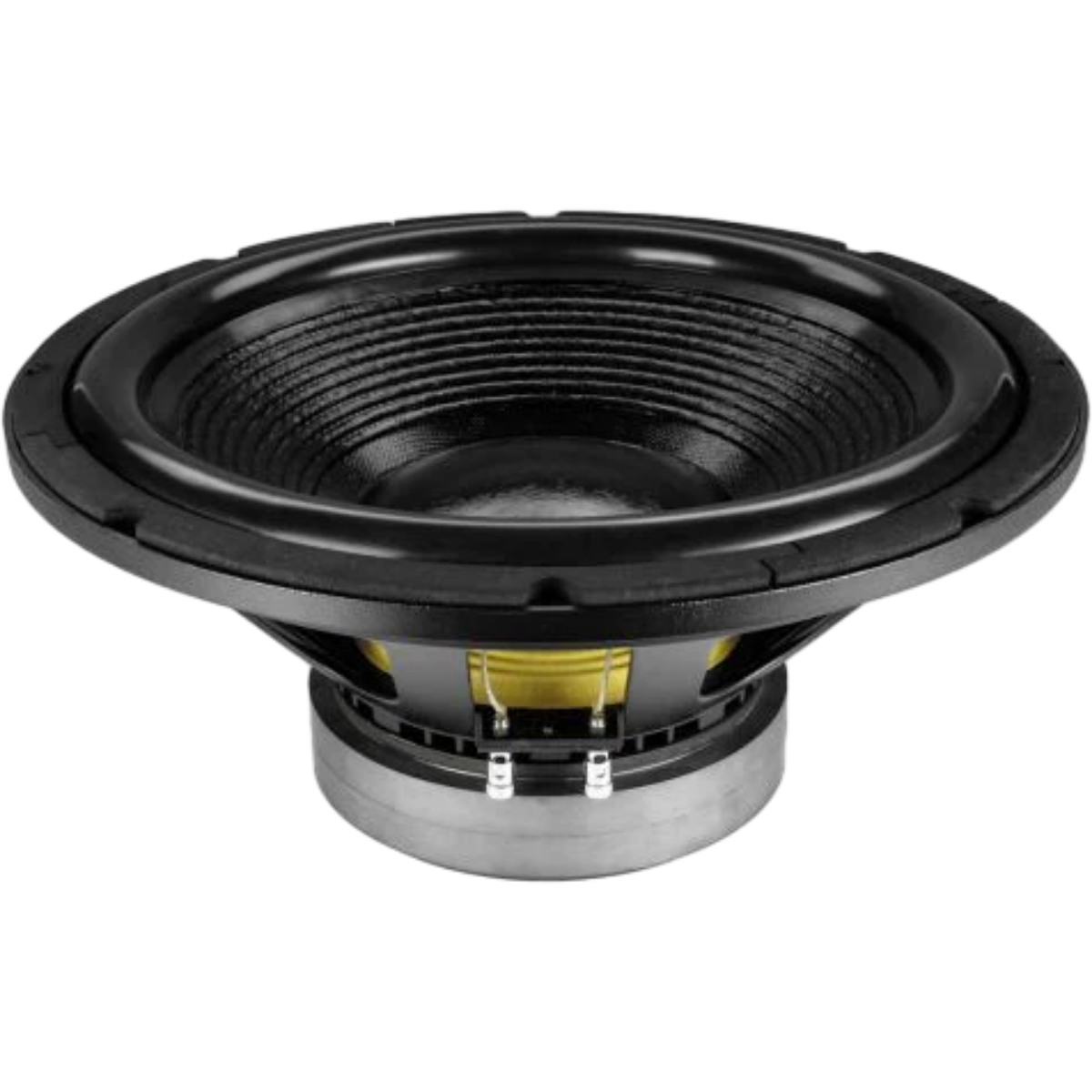

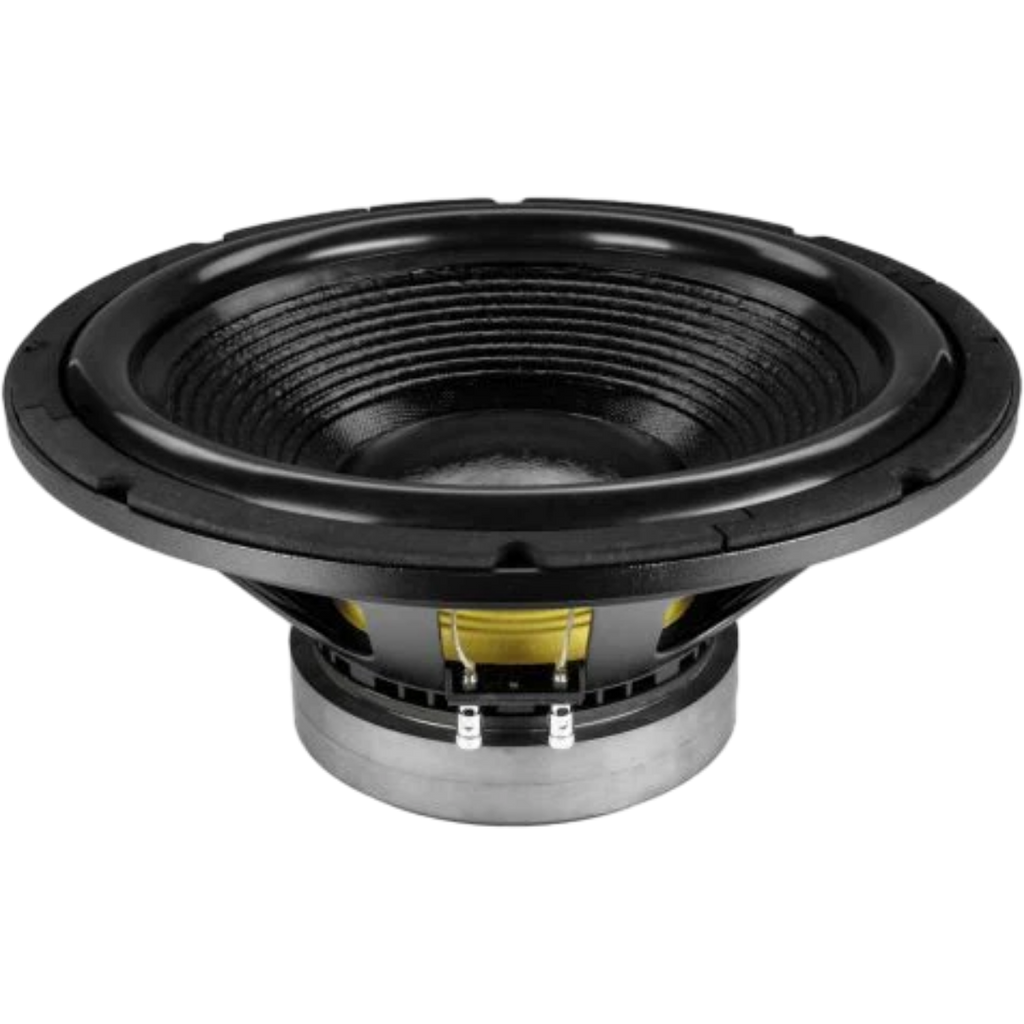

Ciare SPL 18.00SW-4 18″ High-Power Subwoofer
Sale unit: Sold individually — one subwoofer.
The 18.00SW-4 is Ciare’s 18-inch ferrite high-power subwoofer built for deep, high-output low-frequency systems. Its 4-inch voice coil and 14 mm Xmax give it substantially more cone area and displacement than the 15-inch version when enclosure size allows it.
Important impedance note: Ciare’s exact technical page specifies this model as 4Ω. Some Ciare collection-card data currently displays 8Ω; this listing follows the exact model technical specification.
Verified Specifications
- Rated impedance: 4Ω
- Nominal power handling: 1,000 W
- Program power handling: 2,000 W
- Voice coil: 4 in / 100 mm
- Sensitivity: 91.5 dB
- Published frequency range: 20–200 Hz
- Xmax: 14 mm
- Magnet: ferrite
Fitment
- Overall diameter: 460 mm / 18.11 in
- Baffle cutout: 416 mm / 16.38 in
- Total depth: 210 mm / 8.27 in
- Bolt circle: 440 mm / 17.32 in
Where It Makes Sense
Use the 18.00SW-4 when maximum low-frequency displacement and output matter more than enclosure size. Build the enclosure and set filtering from the published T/S data; this is not a universal replacement for every 18-inch cutout or box alignment.
Included: one Ciare 18.00SW-4 subwoofer.
Where this fits in the build
The subwoofer is only one part of the bass system. Enclosure volume and alignment, final impedance, amplifier power, vehicle space and electrical support all affect the result.
