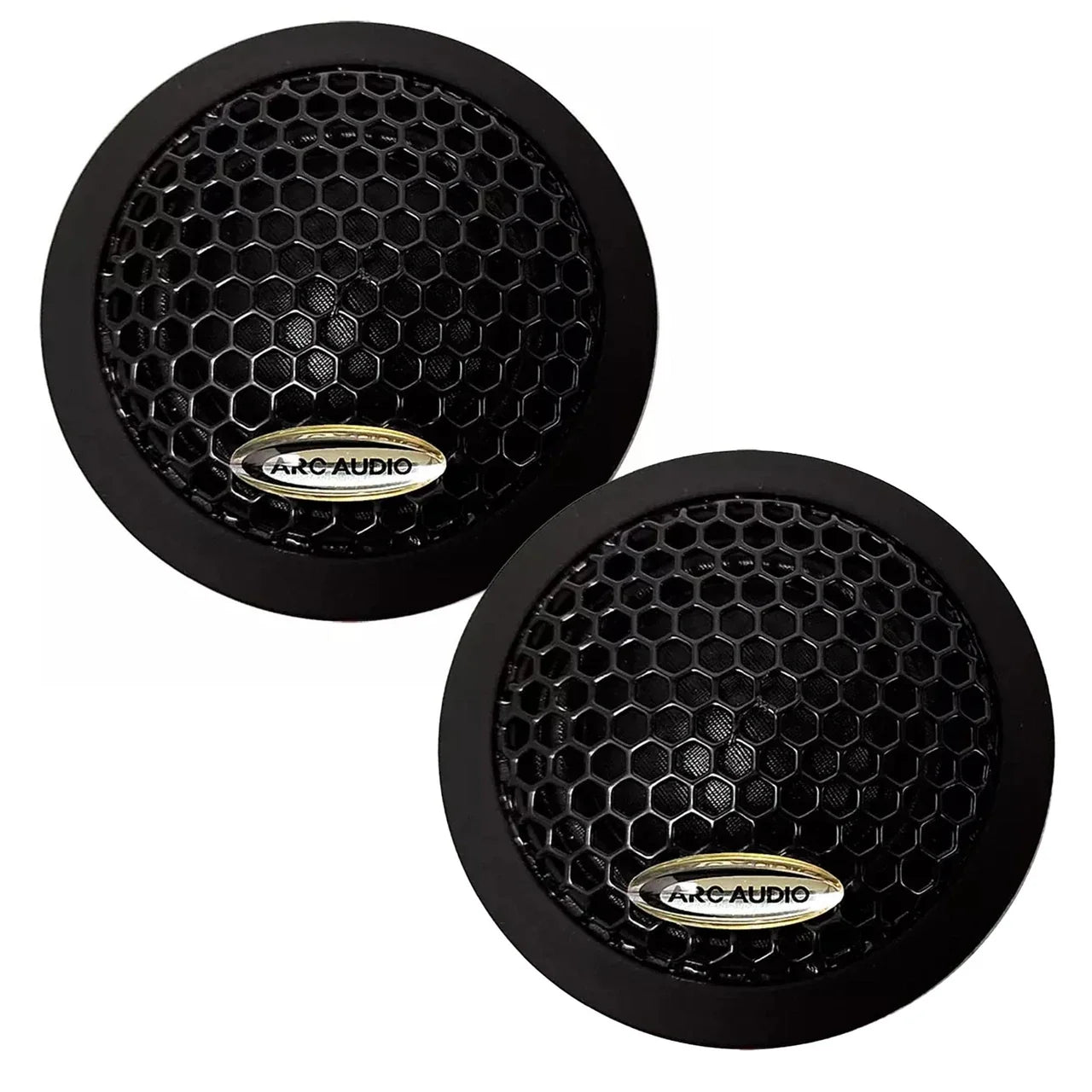

ARC Audio AS100 — 27 mm Silk-Dome Tweeter
The top end should sound like part of the music—not a little speaker screaming at you from the corner of the dash.
Building an active front stage and need a tweeter we can place, cross over and time-align around the actual vehicle?
That’s where the AS100 makes sense.
At SMS, we would use the AS100 when we are building a DSP-controlled two-way or three-way front stage and want the tweeter to be its own controlled channel. The 27 mm fine-woven silk dome, neodymium motor and tuned rear chamber are built around smooth high-frequency reproduction and an extended lower crossover capability, which gives us more flexibility when we are blending it into the midrange.
Placement matters.
A tweeter can completely change imaging and stage height depending on where it is mounted and how it is aimed. The AS100’s compact format gives us options for factory tweeter locations, sail panels and custom pillar work instead of letting the factory hole dictate the entire front stage.
Need a compact coaxial-style solution?
ARC also designed the AS100 to mount into the center of the AS600 for an active integrated coaxial arrangement when packaging and geometry favor that approach.
Manufacturer Specifications
- Model: AS100
- Driver type: Tweeter
- Diaphragm: 27 mm fine-woven silk dome
- Impedance: 4 ohms
- RMS power handling: 70 watts
- Peak power handling: 185 watts
- Frequency response: 1.8 kHz–20 kHz
- Sensitivity: 92 dB
- Motor: N35 neodymium
- Tuned rear chamber
- Integrated rear threaded mounting provision for AS600 coaxial configuration
The top end should sound like part of the music—not a little speaker screaming at you from the corner of the dash.
Building an active front stage and need a tweeter we can place, cross over and time-align around the actual vehicle?
That’s where the AS100 makes sense.
At SMS, we would use the AS100 when we are building a DSP-controlled two-way or three-way front stage and want the tweeter to be its own controlled channel. The 27 mm fine-woven silk dome, neodymium motor and tuned rear chamber are built around smooth high-frequency reproduction and an extended lower crossover capability, which gives us more flexibility when we are blending it into the midrange.
Placement matters.
A tweeter can completely change imaging and stage height depending on where it is mounted and how it is aimed. The AS100’s compact format gives us options for factory tweeter locations, sail panels and custom pillar work instead of letting the factory hole dictate the entire front stage.
Need a compact coaxial-style solution?
ARC also designed the AS100 to mount into the center of the AS600 for an active integrated coaxial arrangement when packaging and geometry favor that approach.
Manufacturer Specifications
- Model: AS100
- Driver type: Tweeter
- Diaphragm: 27 mm fine-woven silk dome
- Impedance: 4 ohms
- RMS power handling: 70 watts
- Peak power handling: 185 watts
- Frequency response: 1.8 kHz–20 kHz
- Sensitivity: 92 dB
- Motor: N35 neodymium
- Tuned rear chamber
- Integrated rear threaded mounting provision for AS600 coaxial configuration
SPEAKER SYSTEM FIT
Where this fits in the build
Speaker choice should follow the listening goal and the location it has to work in. Factory replacement, sound quality, loud daily and high-output builds have different priorities.
Authorized Dealer — In-Store PurchasePlan aroundConfirm mounting location, depth, cutout and usable bandwidth.
Match itMatch efficiency and power needs to the output target.
Finish itPlacement, sealing, crossover and tuning determine how the driver performs in the vehicle.
