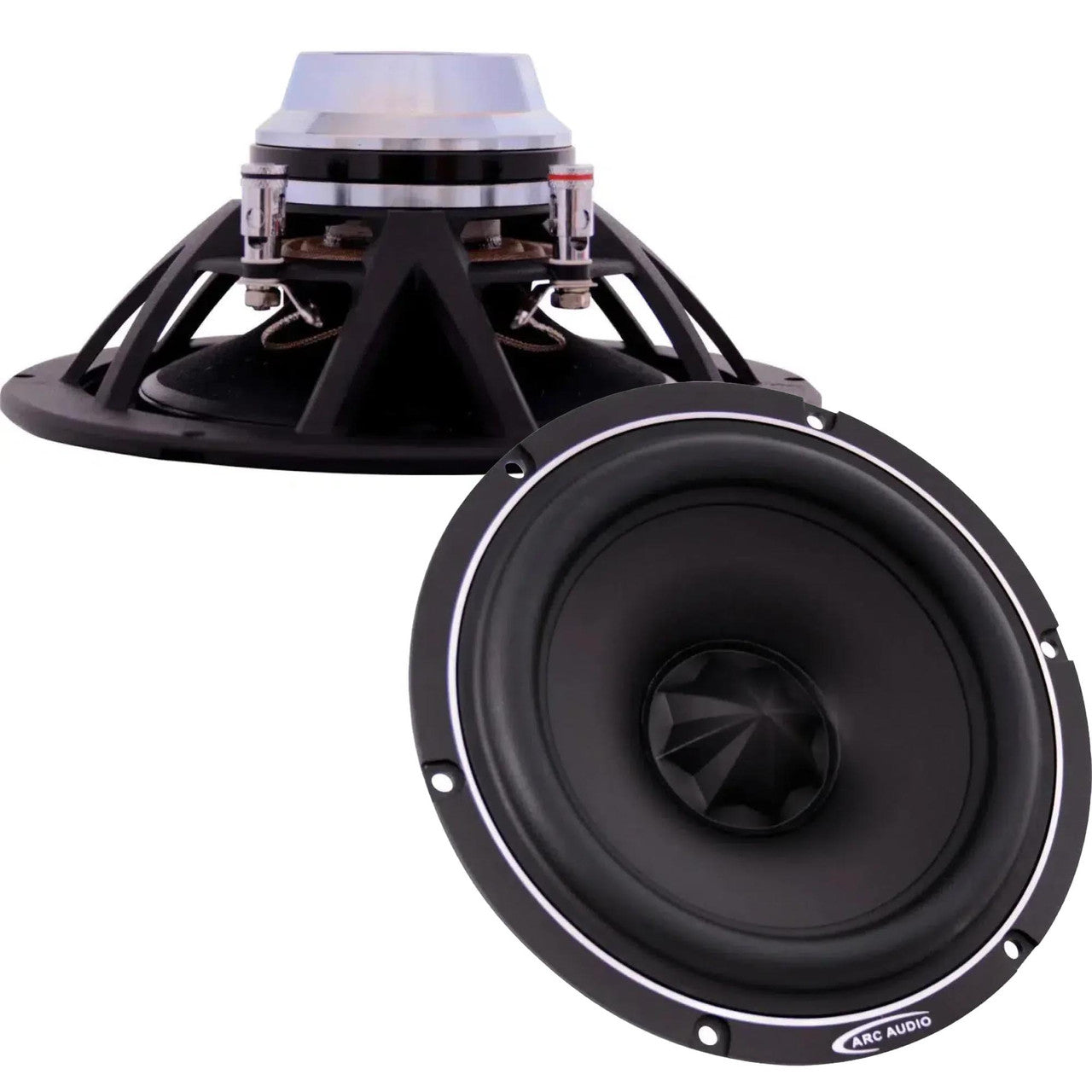

ARC Audio RS 6.0 6.5-inch midbass speakers, matched pair
ARC Audio RS 1.0 25 mm silk-dome tweeters, matched pair

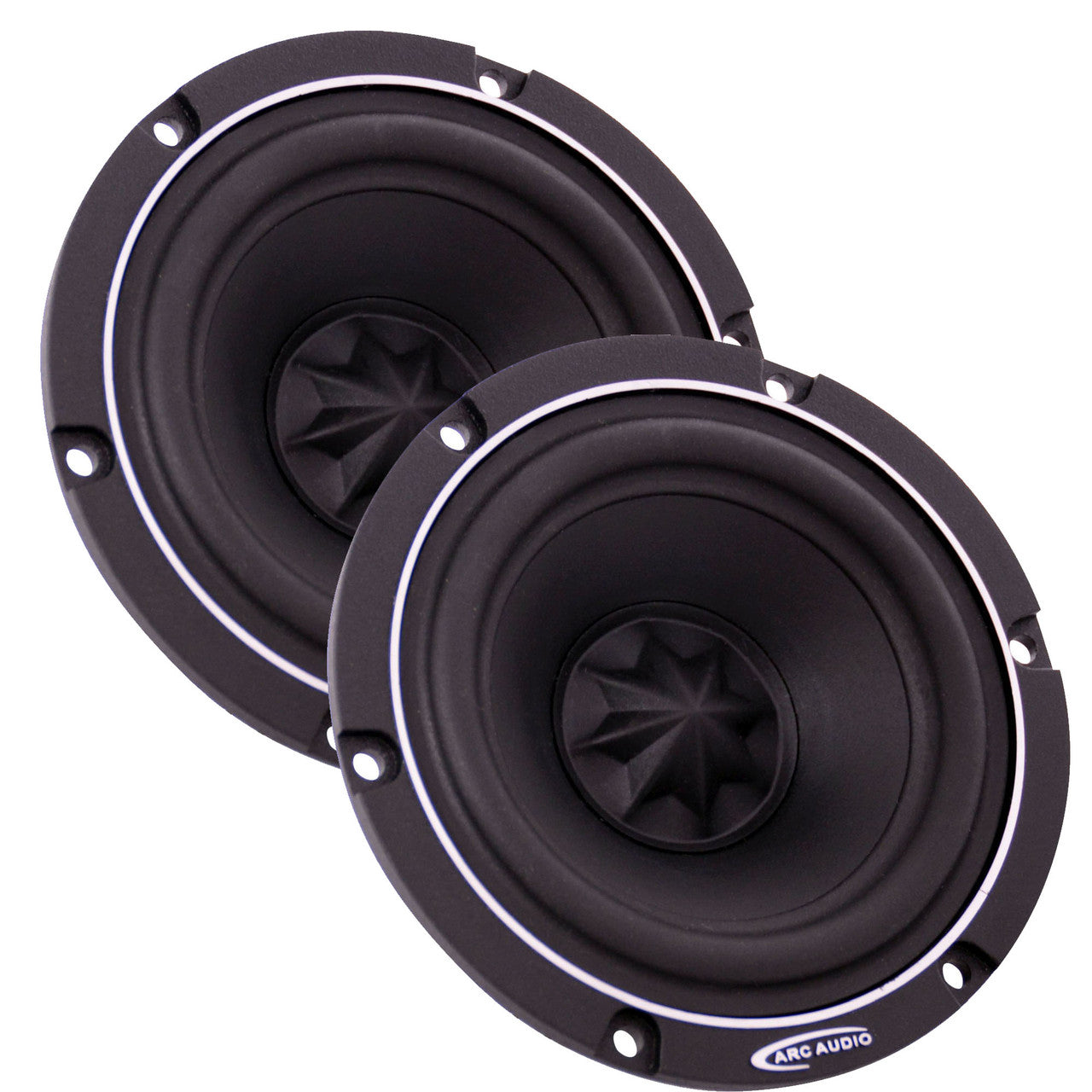

ARC Audio RS 3.0 3-inch wideband midrange speakers, matched pair

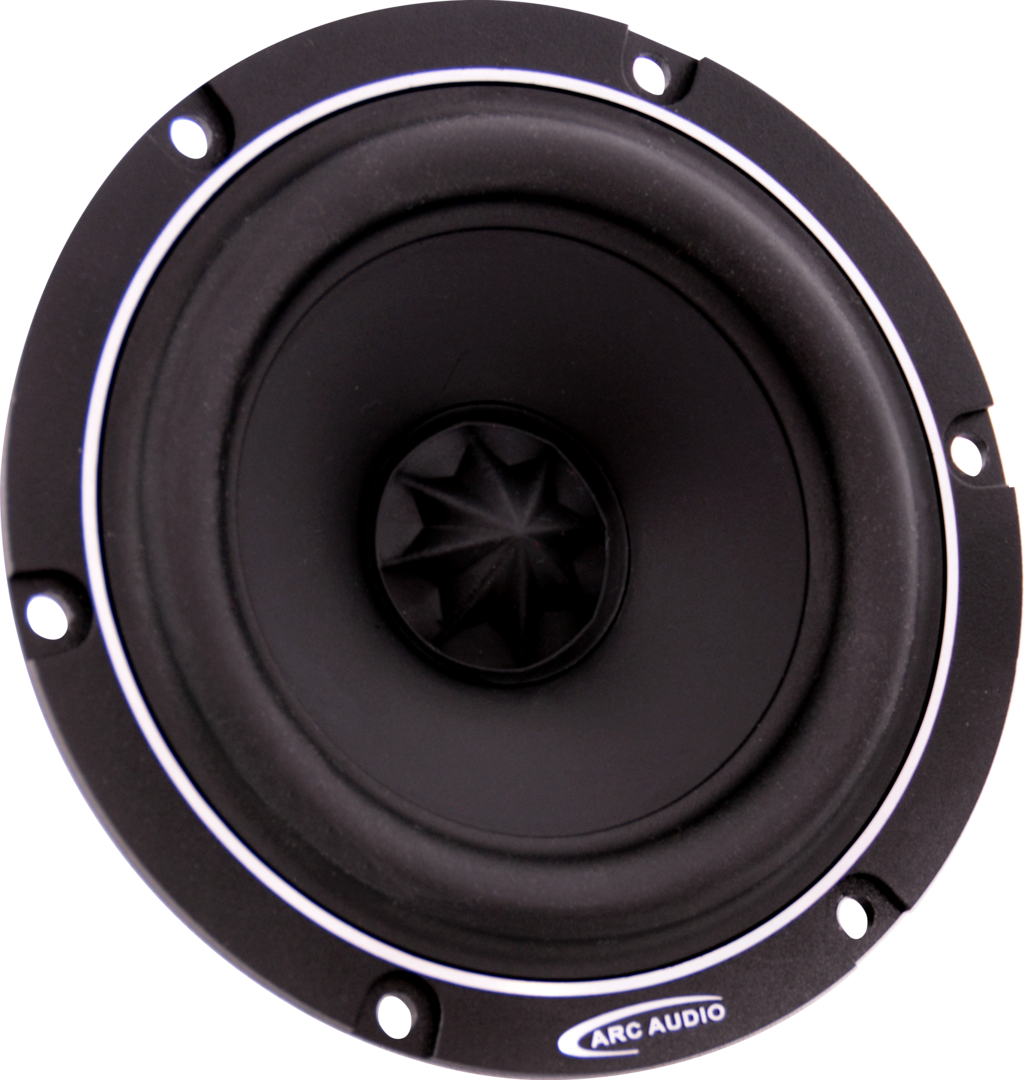

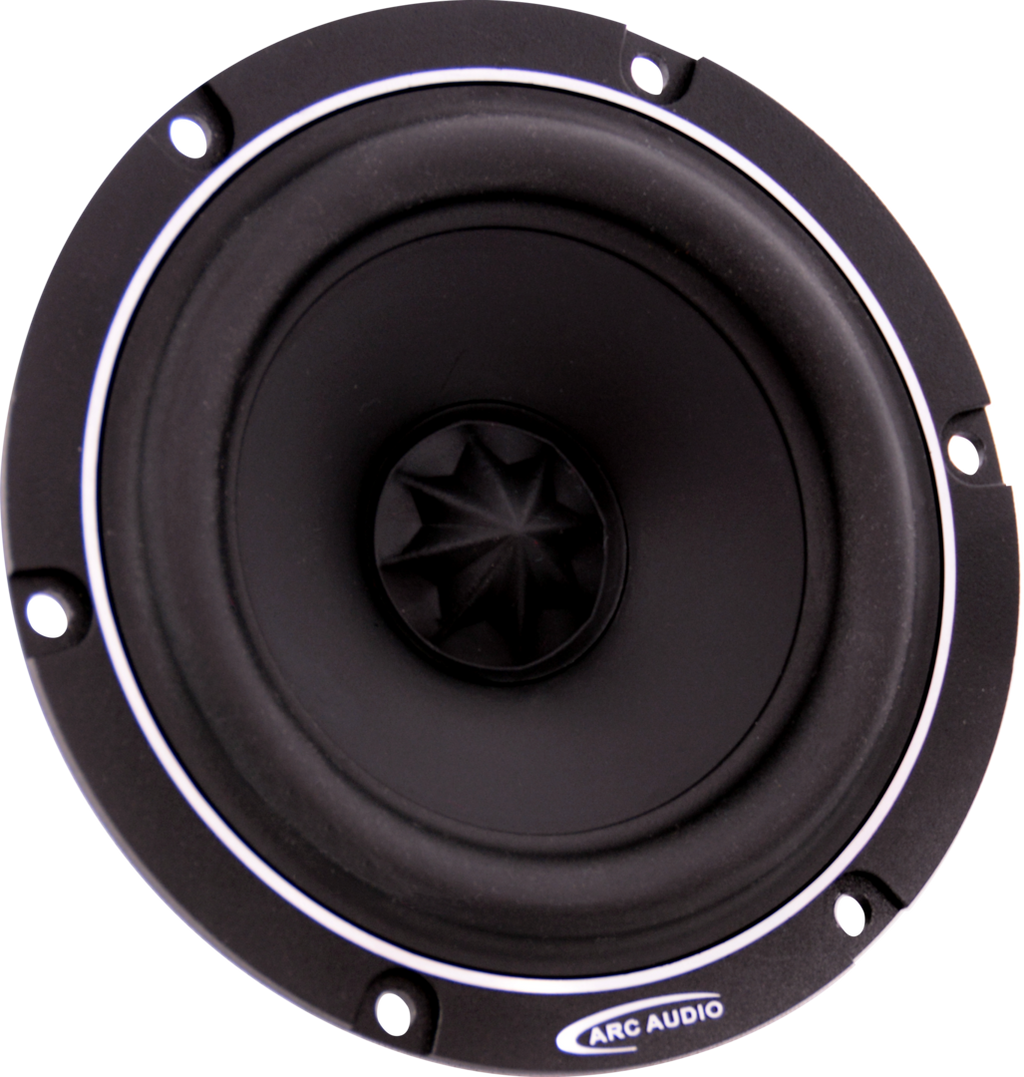

ARC Audio RS 4.0 4-inch midrange speakers, matched pair
Hover over the image to zoom Tap the image to zoom
ARC Audio RS 6.0 6.5-inch midbass speakers, matched pairARC Audio RS 1.0 25 mm silk-dome tweeters, matched pairARC Audio RS 3.0 3-inch wideband midrange speakers, matched pairARC Audio RS 4.0 4-inch midrange speakers, matched pair

ARC Audio RS Series Reference Speakers

ARC AudioSKU: RS 1.0
Authorized Dealer In-Store Only

Authorized dealer · In-store only

In-Store Only — We’ll Help You Get the Right One

This product is not available for online purchase or shipping. Call or text us and we’ll make sure you’re getting the right one—whether you’re picking it up over the counter or having SMS install it for you. All purchases are completed in-store at SMS Car Audio.

Call 504-289-8127 Text 504-289-8127 Send Project Details

Description

ARC Audio RS 1.0 — 25 mm Reference Tweeter Pair

The RS 1.0 is the top end of ARC Audio’s Reference Series. This is a matched raw tweeter pair for a properly designed active DSP front stage—not a universal tweeter meant to be dropped in anywhere and crossed by guesswork.

ARC Audio uses a 25 mm fine-woven silk dome, neodymium motor with a secondary bucking magnet, a large copper shorting ring and a tuned rear acoustic chamber to keep distortion and resonance under control.

Manufacturer Specifications
• Sold as: Matched pair
• Speaker type: Raw tweeter
• Dome size: 25 mm
• Dome material: Fine-woven silk
• Nominal impedance: 4 ohms
• RMS power handling: 60 watts
• Maximum power: 120 watts
• Sensitivity: 92.5 dB
• Frequency response: 2.2 kHz–22 kHz
• Mounting depth with outer ring: 1.175 inches
• ISO mounting depth without outer ring: 1.163 inches
• Cutout diameter without outer ring: 1.613 inches
• Housing: Cast aluminum with tuned rear acoustic chamber
SPEAKER SYSTEM FIT

Where this fits in the build

Speaker choice should follow the listening goal and the location it has to work in. Factory replacement, sound quality, loud daily and high-output builds have different priorities.

Authorized Dealer — In-Store Purchase
Plan aroundConfirm mounting location, depth, cutout and usable bandwidth.
Match itMatch efficiency and power needs to the output target.
Finish itPlacement, sealing, crossover and tuning determine how the driver performs in the vehicle.
