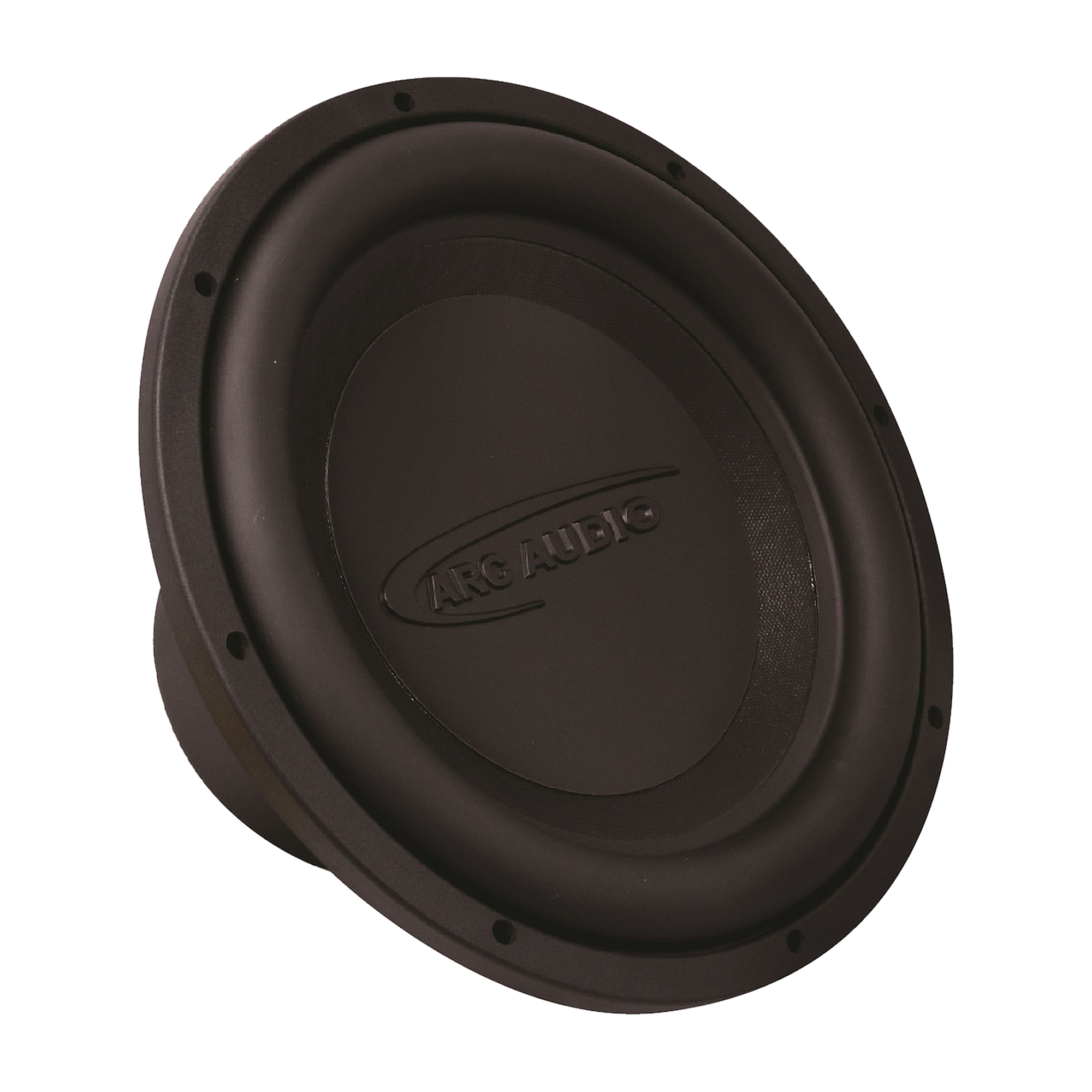

ARC Audio X2 12-inch dual-voice-coil subwoofer

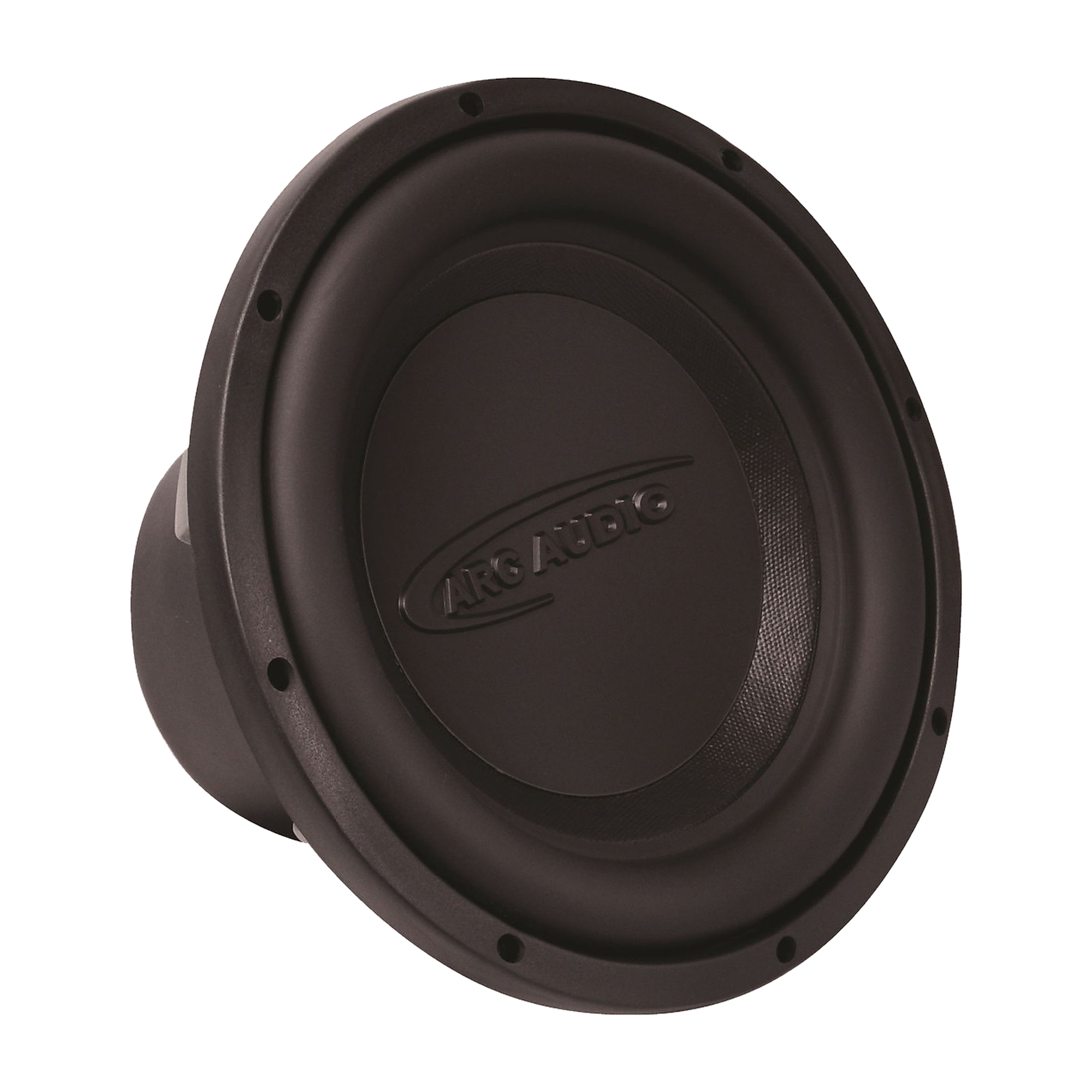

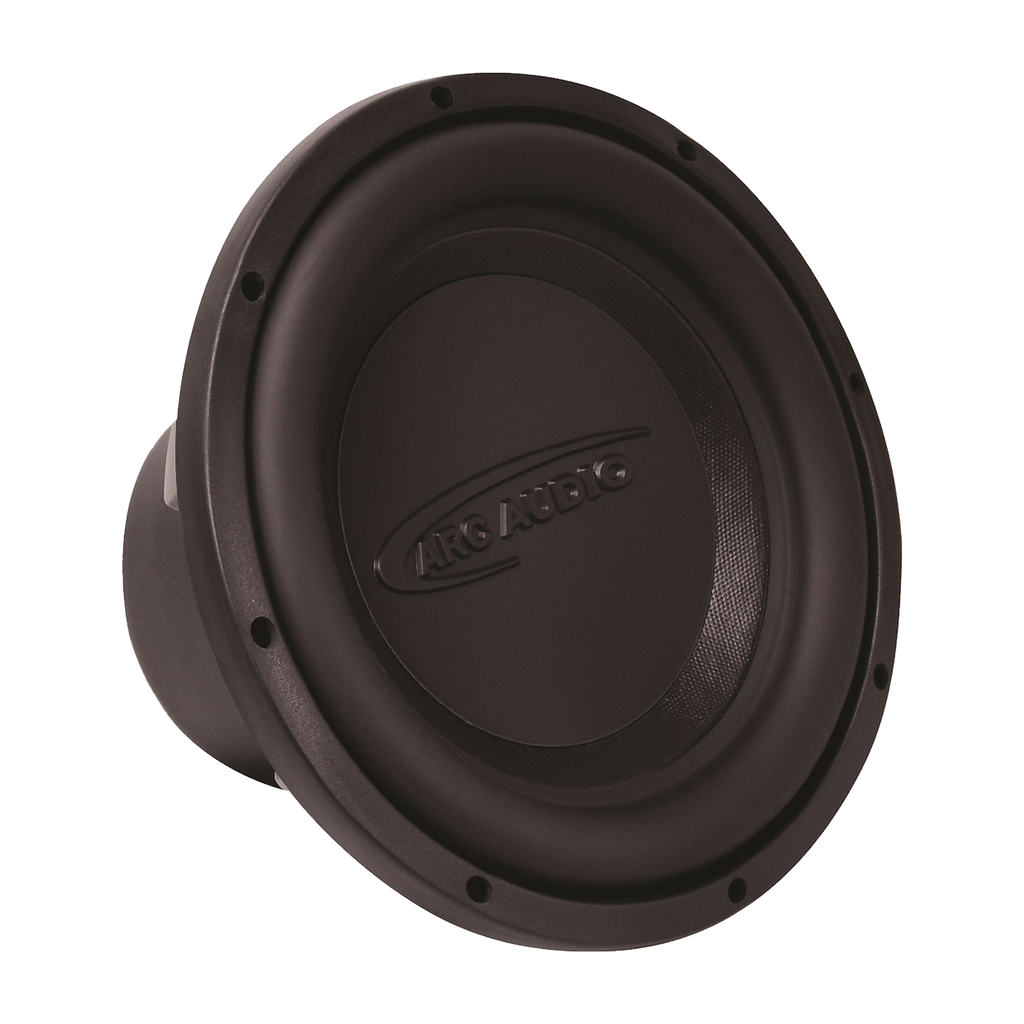

ARC Audio X2 10-inch dual-voice-coil subwoofer
Hover over the image to zoom Tap the image to zoom
ARC Audio X2 12-inch dual-voice-coil subwooferARC Audio X2 10-inch dual-voice-coil subwoofer

ARC Audio X2 Series Subwoofers — 10 & 12-Inch

ARC AudioSKU: X2 1002
Authorized Dealer In-Store Only
Choose your options
Purchase & availability

Authorized dealer · In-store only

In-Store Only — We’ll Help You Get the Right One

This product is not available for online purchase or shipping. Call or text us and we’ll make sure you’re getting the right one—whether you’re picking it up over the counter or having SMS install it for you. All purchases are completed in-store at SMS Car Audio.

Call 504-289-8127 Text 504-289-8127Send Project Details

Description

ARC Audio X2 1002 — 10-Inch Dual 2-Ohm Subwoofer

Want a straightforward 10-inch daily bass setup that does not need a huge box or huge power? The X2 1002 is the dual 2-ohm version of ARC Audio’s X2 10. It is built for practical sealed and ported systems.

Manufacturer Specifications

• Model: X2 1002

• Size: 10 inches

• Voice coils: Dual 2 ohms

• RMS power handling: 200 watts

• Musical power handling: 400 watts

• Sensitivity: 85 dB

• Mounting depth: 5.91 inches

• Cutout diameter: 8.98 inches

• Sealed enclosure: 0.65 cu. ft. minimum / 1.00 cu. ft. optimum

• Ported enclosure: 1.30 cu. ft. minimum / 1.70 cu. ft. optimum

• Optimum ported tuning: 42 Hz

ARC Audio lists the enclosure volumes above as gross volume per driver.

BASS SYSTEM FIT

Where this fits in the build

The subwoofer is only one part of the bass system. Enclosure volume and alignment, final impedance, amplifier power, vehicle space and electrical support all affect the result.

Authorized Dealer — In-Store Purchase
Plan aroundChoose the bass target and usable space first.
Match itMatch the enclosure to the driver instead of treating the box as an afterthought.
Finish itMatch final load, amplifier and electrical support to the complete bass plan.
Custom Bass & Enclosures Ask SMS About This Product
