Description
Description

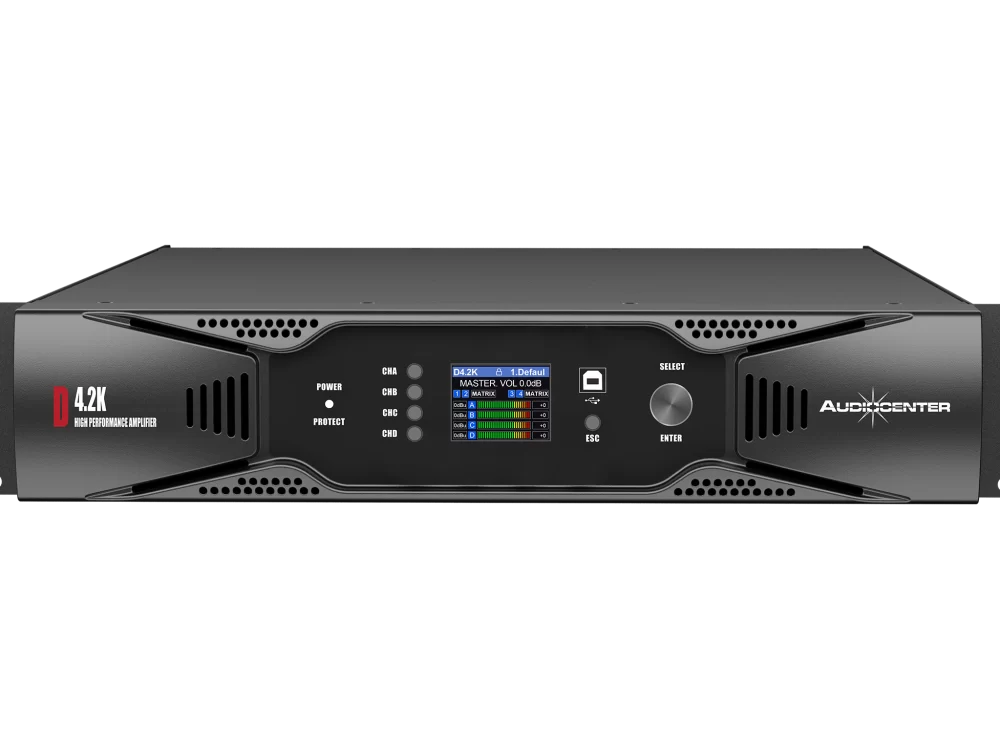

The AudioCenter D4.2K is a four-channel professional Class-D power amplifier with integrated high-precision digital signal processing. It combines amplification, routing, equalization, crossover control, delay, limiting, and network management in one 2U chassis for installed sound, portable PA, rental, and multi-zone professional audio systems.
The current D-Series platform provides 350 watts per channel into 8 ohms, 550 watts per channel into 4 ohms, or 1,100 watts per bridged pair into 8 ohms. Four analog and four AES digital inputs feed a 48 kHz/24-bit DSP section with input and output equalization, IIR crossover filters, four channels of 2,048-tap FIR processing, matrix routing, and channel delay.
Front-panel display and USB control are supplemented by BrainCore NET Ethernet monitoring and control. Two RJ45 network ports support centralized configuration and device management. High-efficiency Class-D operation exceeds 90 percent, while front-to-back forced-air cooling and comprehensive protection circuits support dependable professional use.
Power Specifications
| 8-Ohm Stereo Power | 350 watts × 4 |
|---|---|
| 4-Ohm Stereo Power | 550 watts × 4 |
| 8-Ohm Bridged Power | 1,100 watts × 2 |
| Output Topology | Class D |
| Efficiency | Greater than 90% |
| Frequency Response | 20 Hz–20 kHz, ±1 dB |
| Signal-to-Noise Ratio | At least 100 dB, A-weighted |
| Damping Factor | At least 400 at 1 kHz / 8 ohms |
| THD+N | 0.1% or less at 1 kHz, 8-ohm half power |
DSP and Control
| DSP Resolution | 48 kHz / 24-bit |
|---|---|
| Analog Inputs | 4 |
| AES Digital Inputs | 4 |
| Input Processing | Noise gate, gain, sensitivity, phase, mute, 15-band EQ, HPF/LPF, and up to 90 ms delay per channel |
| Output Processing | 10-band EQ, HPF/LPF, up to 20 ms delay, compressor, limiter, gain, phase, and mute |
| Crossover Filters | Butterworth, Linkwitz-Riley, and Bessel; 6–48 dB/octave |
| FIR Processing | 4 × 2,048 taps |
| Operating Modes | Matrix, stereo, parallel, and bridge |
| USB Control | USB-B |
| Network Control | 2 × RJ45 with BrainCore NET support |
Connections and Physical Specifications
| Input Connectors | Male and female XLR |
|---|---|
| Speaker Outputs | Speakon |
| Input Sensitivity | 0, 6, or 12 dBu |
| Maximum Input Level | At least 18 dBu |
| Power Supply | 100–130 or 220–240 volts AC, 50/60 Hz |
| Cooling | Front-to-back forced-air cooling |
| Rack Height | 2U |
| Dimensions | 483 × 88 × 404 mm |
| Net Weight | 8.5 kg |
Protection and Features
- Integrated four-channel Class-D amplification and DSP
- BrainCore NET centralized monitoring and control
- Analog and AES digital inputs
- IIR and four-channel FIR processing
- Input and output parametric equalization
- Matrix routing and bridge operation
- DC, short-circuit, thermal, overload, soft-start, and limiter protection
- High-efficiency switching power supply
- Modular construction for service and maintenance
- Designed for professional installed and portable audio systems
