Description
Description

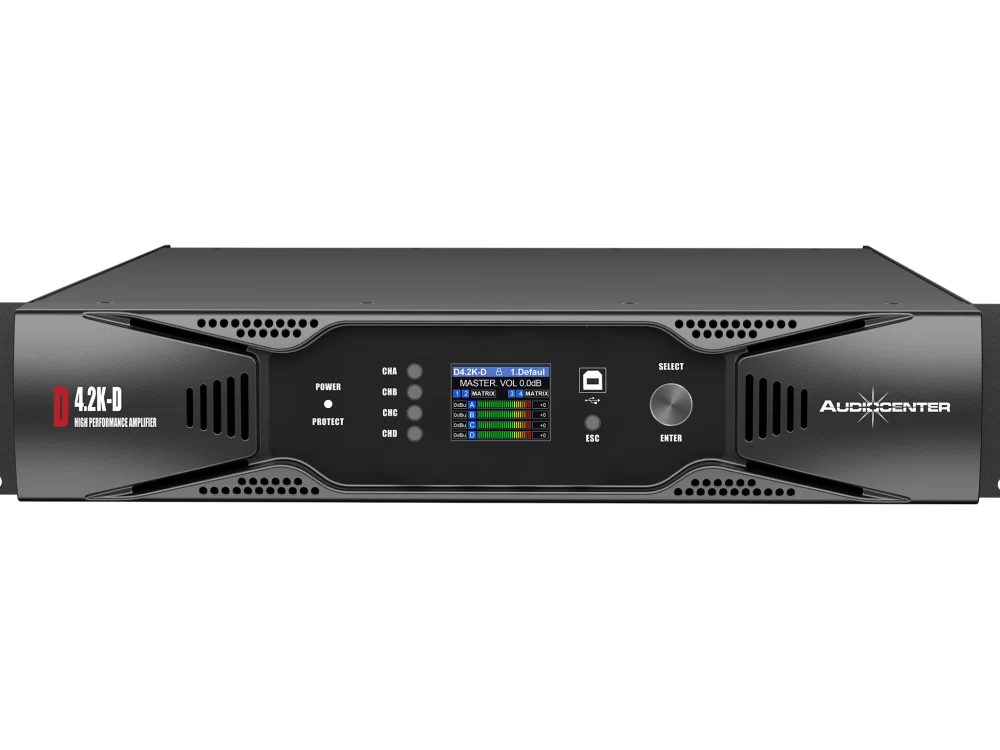

The AudioCenter D4.2K-D is the Dante-enabled version of the four-channel D4.2K professional Class-D DSP amplifier. It integrates power amplification, high-precision digital signal processing, Dante network audio, AES digital audio, analog inputs, and Ethernet control in one 2U chassis for installed sound, touring, rental, and distributed professional audio systems.
The amplifier delivers 350 watts per channel into 8 ohms, 550 watts per channel into 4 ohms, or 1,100 watts per bridged pair into 8 ohms. Its 48 kHz/24-bit DSP includes input and output EQ, IIR crossover filters, four channels of 2,048-tap FIR processing, matrix routing, delay, compression, and limiting.
Four Dante channels, four AES inputs, and four analog inputs provide multiple signal paths with network-audio flexibility. BrainCore NET supports centralized monitoring and control for large systems, while the Dante and network-control functions share the professional Ethernet architecture. Comprehensive protection and front-to-back forced-air cooling support reliable operation.
Power Specifications
| 8-Ohm Stereo Power | 350 watts × 4 |
|---|---|
| 4-Ohm Stereo Power | 550 watts × 4 |
| 8-Ohm Bridged Power | 1,100 watts × 2 |
| Output Topology | Class D |
| Efficiency | Greater than 90% |
| Frequency Response | 20 Hz–20 kHz, ±1 dB |
| Signal-to-Noise Ratio | At least 100 dB, A-weighted |
| Damping Factor | At least 400 at 1 kHz / 8 ohms |
| THD+N | 0.1% or less at 1 kHz, 8-ohm half power |
DSP, Dante, and Control
| DSP Resolution | 48 kHz / 24-bit |
|---|---|
| Analog Inputs | 4 |
| AES Digital Inputs | 4 |
| Dante Inputs | 4 |
| Input Processing | Noise gate, gain, sensitivity, phase, mute, 15-band EQ, HPF/LPF, and up to 90 ms delay per channel |
| Output Processing | 10-band EQ, HPF/LPF, up to 20 ms delay, compressor, limiter, gain, phase, and mute |
| Crossover Filters | Butterworth, Linkwitz-Riley, and Bessel; 6–48 dB/octave |
| FIR Processing | 4 × 2,048 taps |
| Operating Modes | Matrix, stereo, parallel, and bridge |
| USB Control | USB-B |
| Network Control | 2 × RJ45 with BrainCore NET support |
Connections and Physical Specifications
| Input Connectors | Male and female XLR |
|---|---|
| Speaker Outputs | Speakon |
| Input Sensitivity | 0, 6, or 12 dBu |
| Maximum Input Level | At least 18 dBu |
| Power Supply | 100–130 or 220–240 volts AC, 50/60 Hz |
| Cooling | Front-to-back forced-air cooling |
| Rack Height | 2U |
| Dimensions | 483 × 88 × 404 mm |
| Net Weight | 8.5 kg |
Protection and Features
- Four-channel Class-D amplification with integrated DSP
- Dante network-audio input and Ethernet control
- Analog and AES digital inputs
- BrainCore NET centralized monitoring and management
- IIR and four-channel FIR processing
- Input and output parametric equalization
- Matrix routing and bridge operation
- DC, short-circuit, thermal, overload, soft-start, and limiter protection
- High-efficiency switching power supply
- Designed for networked professional audio systems
