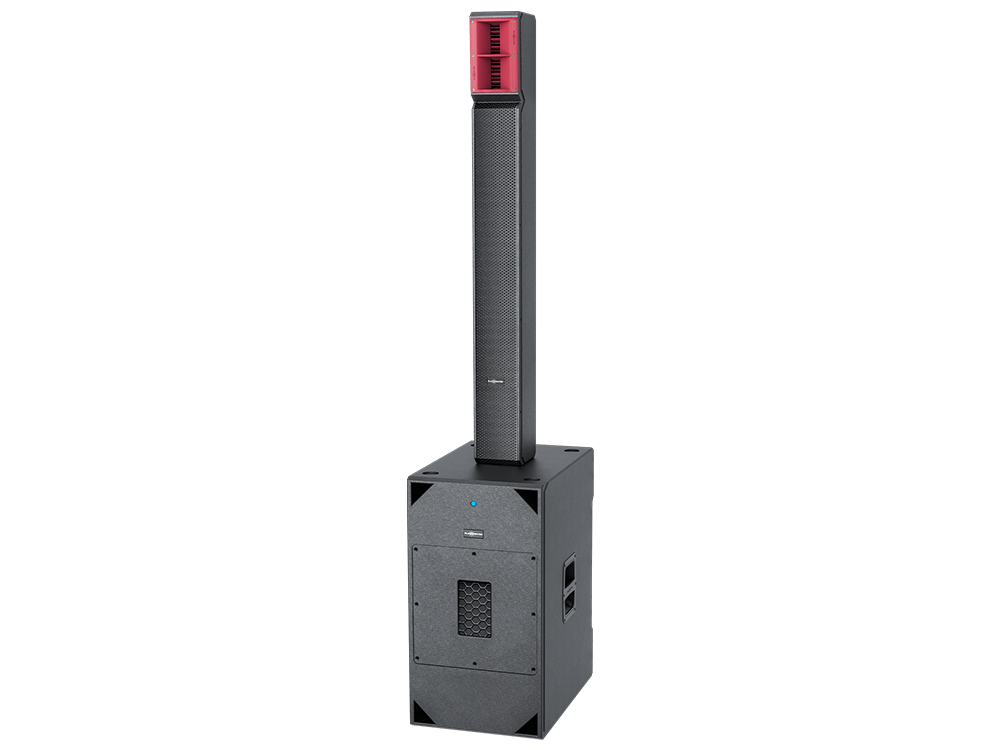

L65 MK2 + L65S MK2 — Active Column System
OVERVIEW
The L65 MK2/L65S MK2 is a complete AudioCenter column system built for fast setup, wide audience coverage and substantial low-frequency output. The passive L65 MK2 column combines six 5-inch low-frequency drivers with four 1-inch high-frequency drivers, while the powered L65S MK2 uses a single 18-inch subwoofer and houses the system amplifier, DSP and inputs.
SYSTEM PERFORMANCE
• 2,000W RMS / 4,000W peak Class-D amplification
• 35 Hz–20 kHz published system response (-10 dB)
• 131 dB continuous / 137 dB peak calculated SPL
• 110° horizontal × 10° vertical coverage
• 96 kHz DSP
• Factory presets for L65 MK2, L83 MK2 and T8
• AudioCenter ETE™ waveguide / Phycal™ physical-calibration design concepts
CONNECTIVITY
Professional XLR/6.35 mm (1/4-inch) combo input, stereo Bluetooth, male XLR signal output and a 4-pin Speakon link to the passive column. The narrow vertical pattern helps focus energy toward the audience in reverberant rooms while maintaining broad horizontal coverage.
APPLICATIONS
A strong fit for DJs, bands, houses of worship, presentations, hospitality, event production and permanent installations where a conventional large speaker-on-a-stick system is undesirable.
PHYSICAL
Column: 156 × 1,400 × 180 mm (6.14 × 55.12 × 7.09 in) / 21 kg (46.3 lb)
Powered subwoofer: 590 × 600 × 815 mm (23.23 × 23.62 × 32.09 in) / 54 kg (119.0 lb)
OVERVIEW
The L65 MK2/L65S MK2 is a complete AudioCenter column system built for fast setup, wide audience coverage and substantial low-frequency output. The passive L65 MK2 column combines six 5-inch low-frequency drivers with four 1-inch high-frequency drivers, while the powered L65S MK2 uses a single 18-inch subwoofer and houses the system amplifier, DSP and inputs.
SYSTEM PERFORMANCE
• 2,000W RMS / 4,000W peak Class-D amplification
• 35 Hz–20 kHz published system response (-10 dB)
• 131 dB continuous / 137 dB peak calculated SPL
• 110° horizontal × 10° vertical coverage
• 96 kHz DSP
• Factory presets for L65 MK2, L83 MK2 and T8
• AudioCenter ETE™ waveguide / Phycal™ physical-calibration design concepts
CONNECTIVITY
Professional XLR/6.35 mm (1/4-inch) combo input, stereo Bluetooth, male XLR signal output and a 4-pin Speakon link to the passive column. The narrow vertical pattern helps focus energy toward the audience in reverberant rooms while maintaining broad horizontal coverage.
APPLICATIONS
A strong fit for DJs, bands, houses of worship, presentations, hospitality, event production and permanent installations where a conventional large speaker-on-a-stick system is undesirable.
PHYSICAL
Column: 156 × 1,400 × 180 mm (6.14 × 55.12 × 7.09 in) / 21 kg (46.3 lb)
Powered subwoofer: 590 × 600 × 815 mm (23.23 × 23.62 × 32.09 in) / 54 kg (119.0 lb)
PRO AUDIO · PA SYSTEM FIT
Where this fits in the build
PA loudspeakers should be chosen around coverage, output, placement and the room or audience they need to cover. A column, point-source box or line-array module solves a different deployment problem, so the system layout comes first.
Plan aroundConfirm audience area, coverage pattern, placement and the output the job requires.
Match itMatch tops, subs, amplification and DSP to the actual deployment.
Finish itSet crossover, limiting, polarity and placement as one complete PA system.
