Sold individually — one complete processor package with ACR-4 remote.

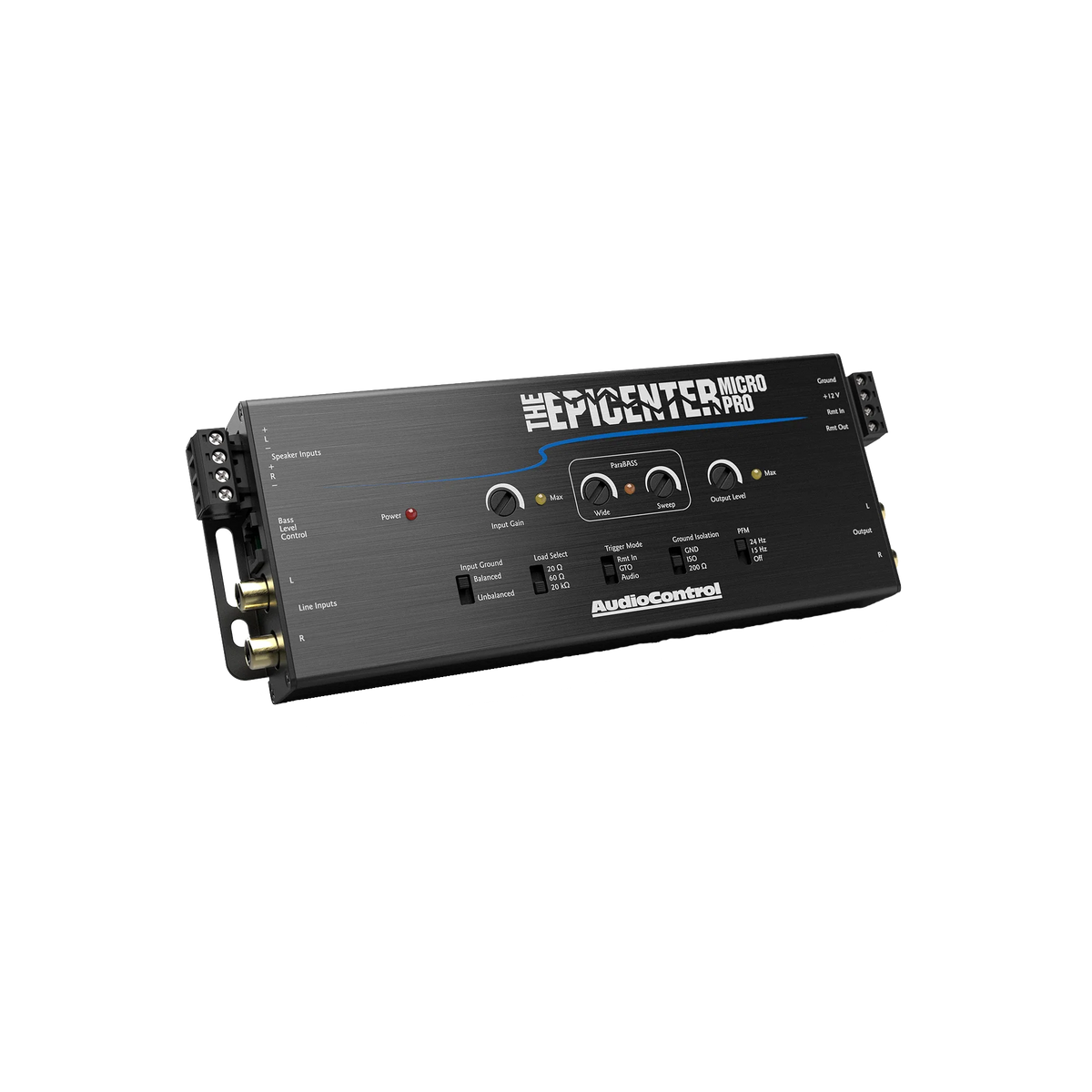

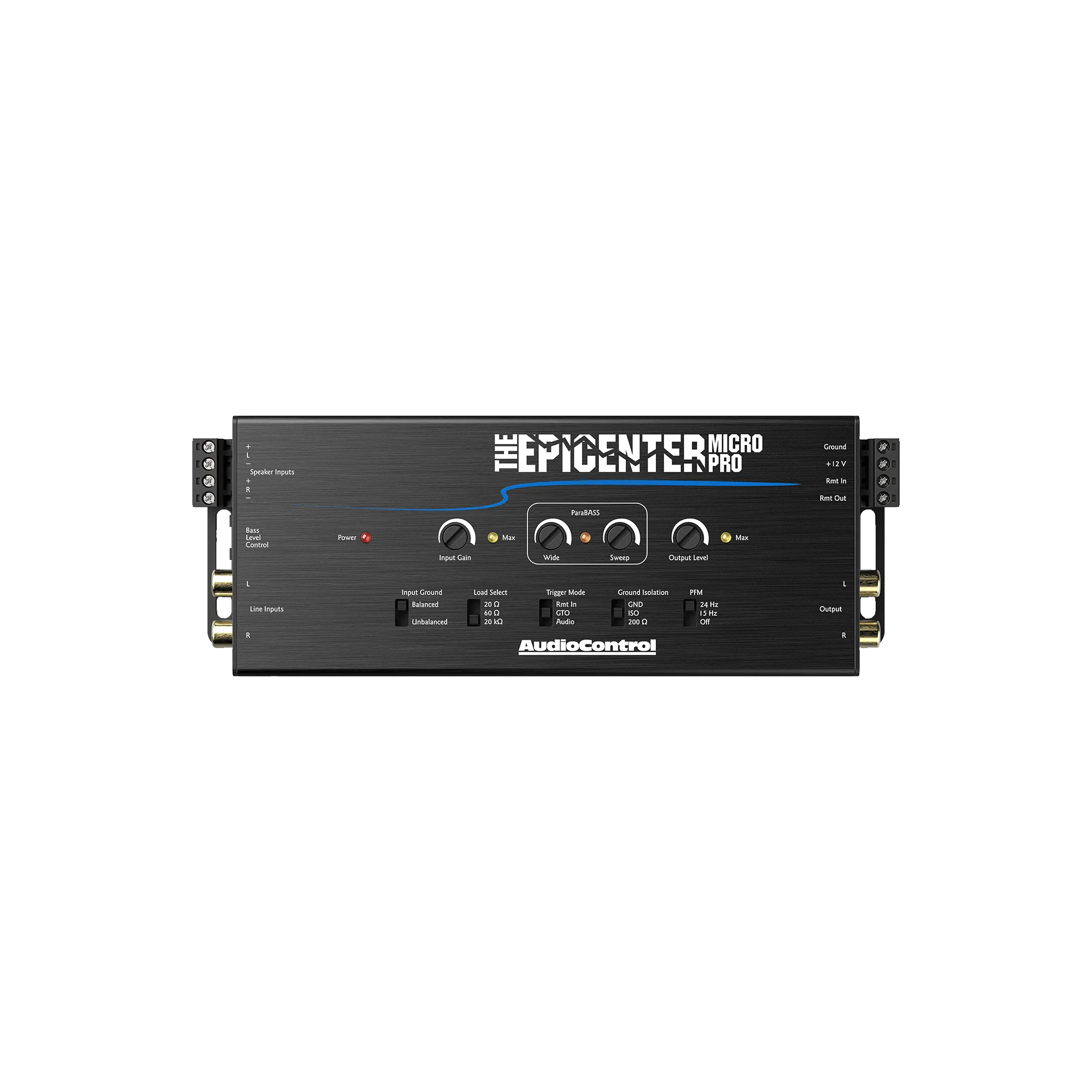

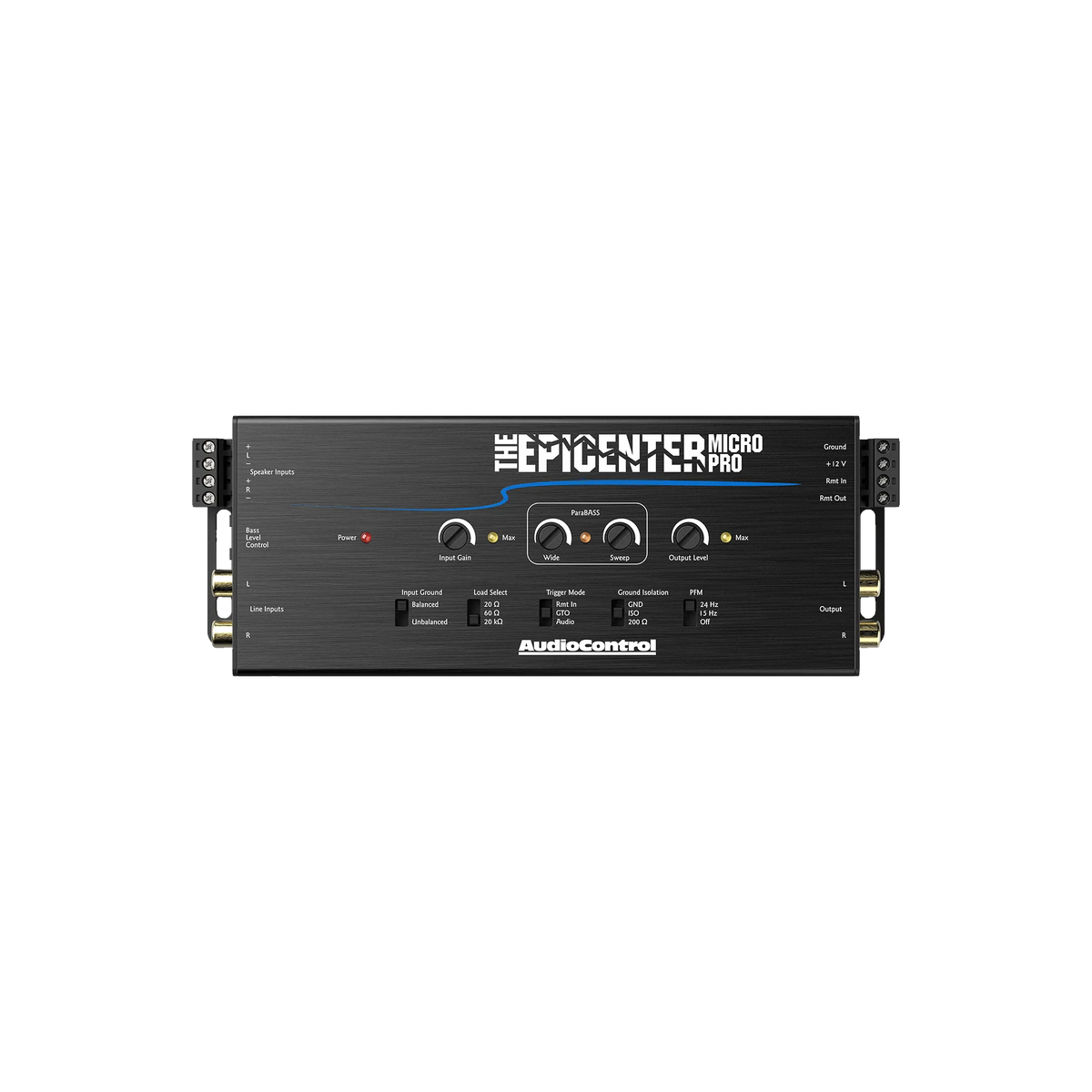

AudioControl EPICENTER Micro PRO Bass Restoration Processor & Line Output Converter
Adding a subwoofer amplifier to a factory system can create two separate problems: the radio may roll bass off as volume increases, and its speaker-level output may not be a clean match for an aftermarket amplifier. The EPICENTER Micro PRO is designed to handle both sides of that job in one compact processor.
It combines AudioControl bass restoration with a full line-output-converter input stage, selectable speaker-load settings, multiple turn-on methods and a built-in line driver. Compared with the larger EPICENTER PRO, the Micro PRO is the better fit when the signal is coming directly from a factory speaker circuit or when installation space is tighter.
Key Features
- AudioControl digital bass restoration
- ParaBASS bass shaping controls
- Speaker-level and line-level inputs
- Selectable speaker-level input impedance for factory-radio compatibility
- Built-in line driver for a strong, clean signal to the subwoofer amplifier
- Selectable PFM high-pass/subsonic filter: 24 Hz, 15 Hz or bypass
- Remote-in, GTO signal-sense and audio-sense turn-on modes
- 12 V remote output when the processor is active
- Selectable ground-isolation and input-grounding options
- Conformally coated circuit board for added environmental resistance
- ACR-4 dual-knob dash remote included for bass-restoration and subwoofer-level control
Verified Specifications
- Maximum line-level input: 10 Vrms
- Maximum speaker-level input: 40 V / 400 W at the 20 kΩ setting
- Line-level input impedance: 7 kΩ
- Selectable speaker-level input impedance: 20 Ω, 60 Ω or 20 kΩ
- Maximum output: 9 Vrms / 13 V peak
- Output impedance: 150 Ω
- Total harmonic distortion: 0.03%
- Signal-to-noise ratio: greater than 105 dB
- Frequency response: 10 Hz–22 kHz ±1 dB
- Current draw: 300 mA
- Recommended fuse: 1 A
- Dimensions: 8 in L × 3 in D × 1 in H
- Weight: 0.9 lb
What’s in the Box

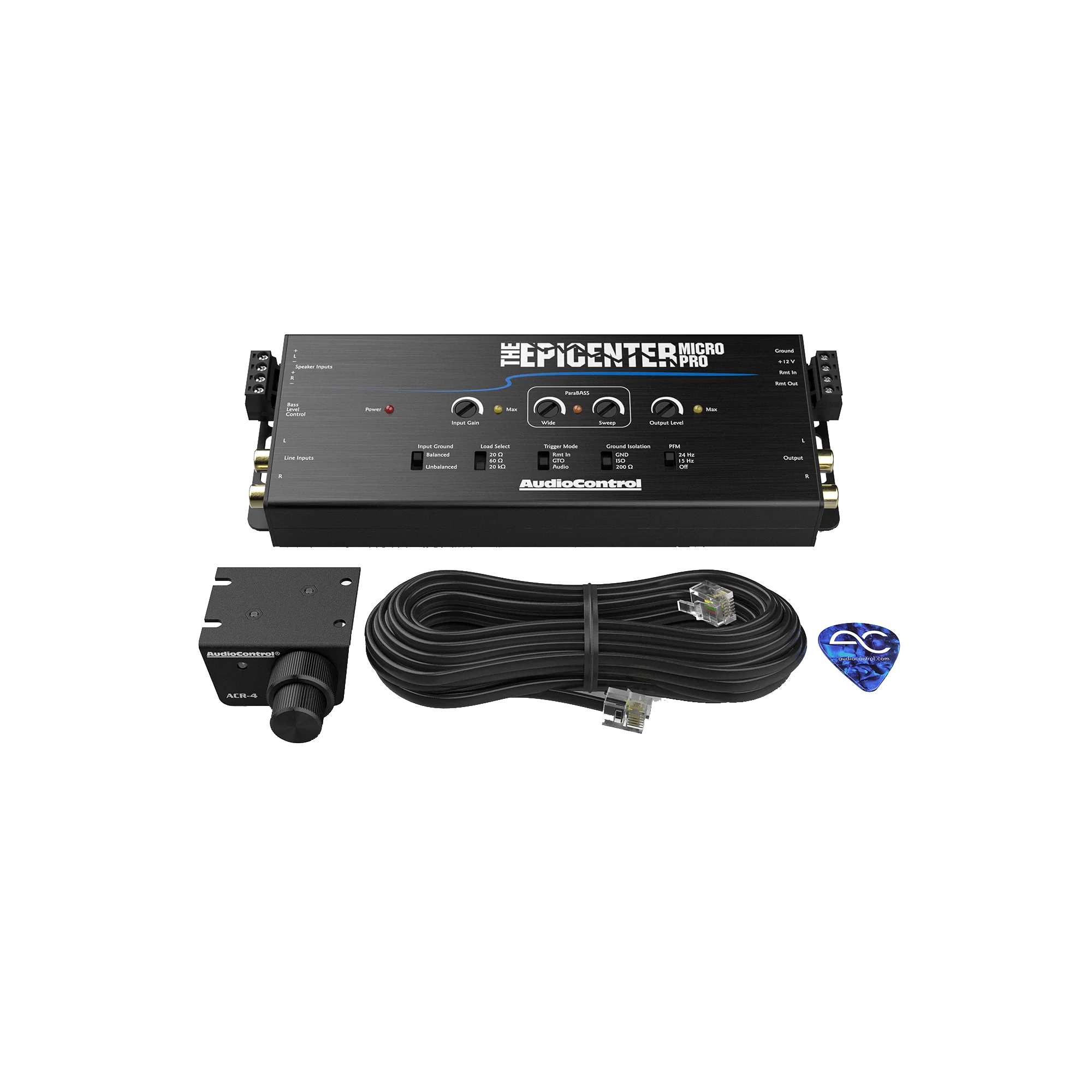

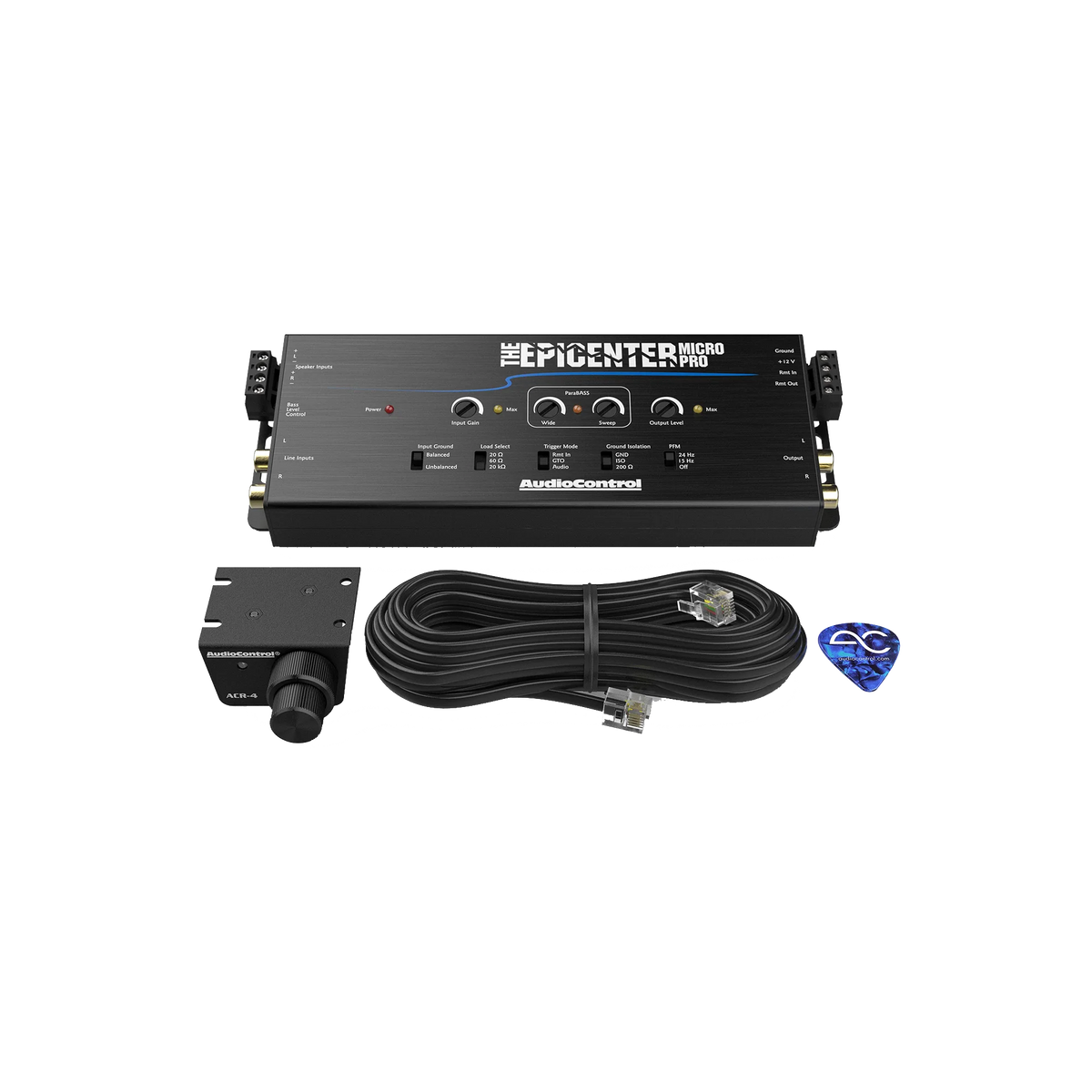

EPICENTER Micro PRO processor, ACR-4 dual-knob remote, remote cable, speaker and power connectors, and user manual.
Good fit: factory-radio systems that need a proper speaker-level interface plus bass restoration, or compact installs where the 3-inch-deep chassis is easier to package. Already have a clean RCA/preamp-level signal and do not need OEM speaker-level integration? The EPICENTER PRO is the simpler choice.
Where this fits in the build
This is a system-control or DSP component. The correct choice depends on the signal path, channel count, routing, retained features and the rest of the amplifier and speaker plan.
