Description
Sold individually — one complete processor package with ACR-4 remote.

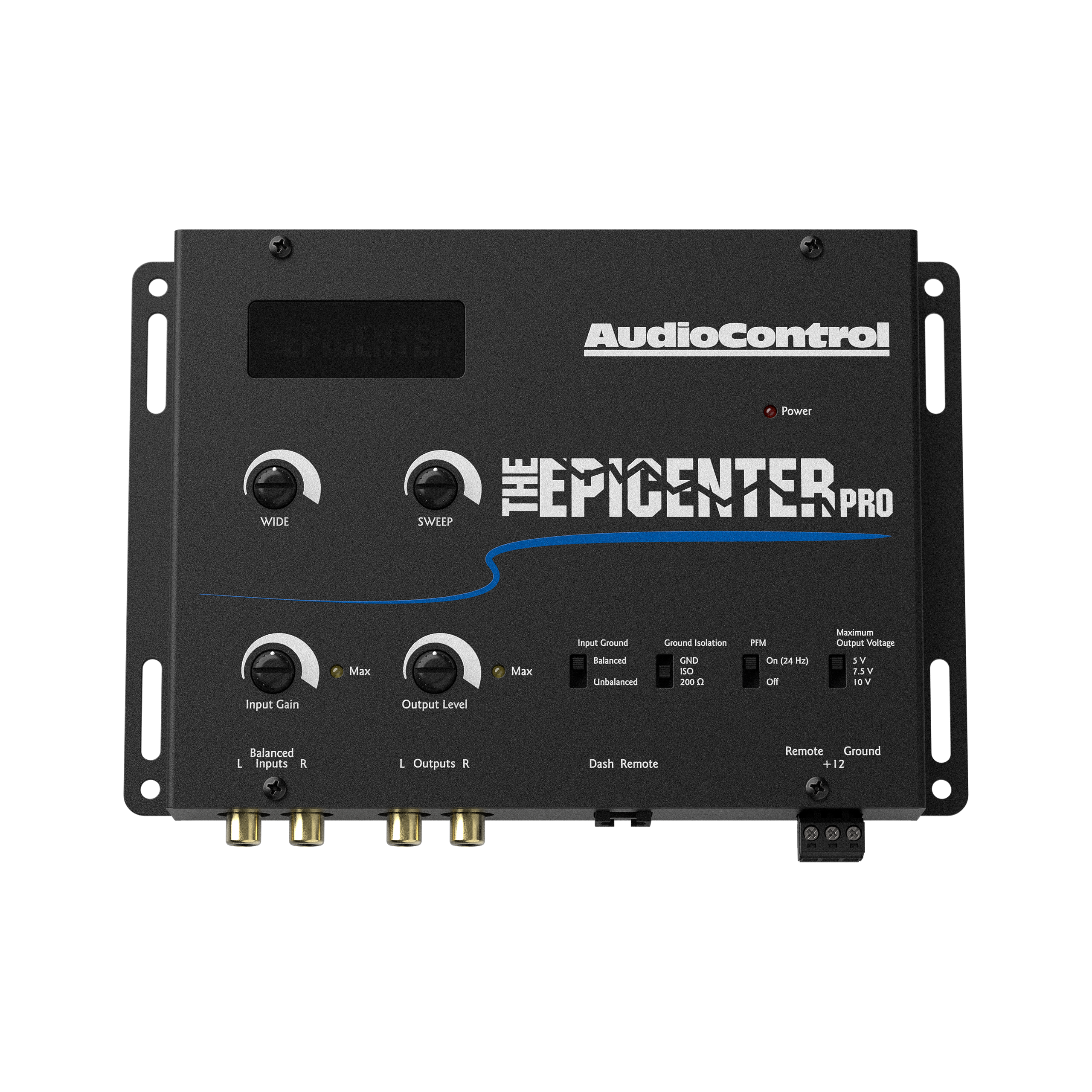

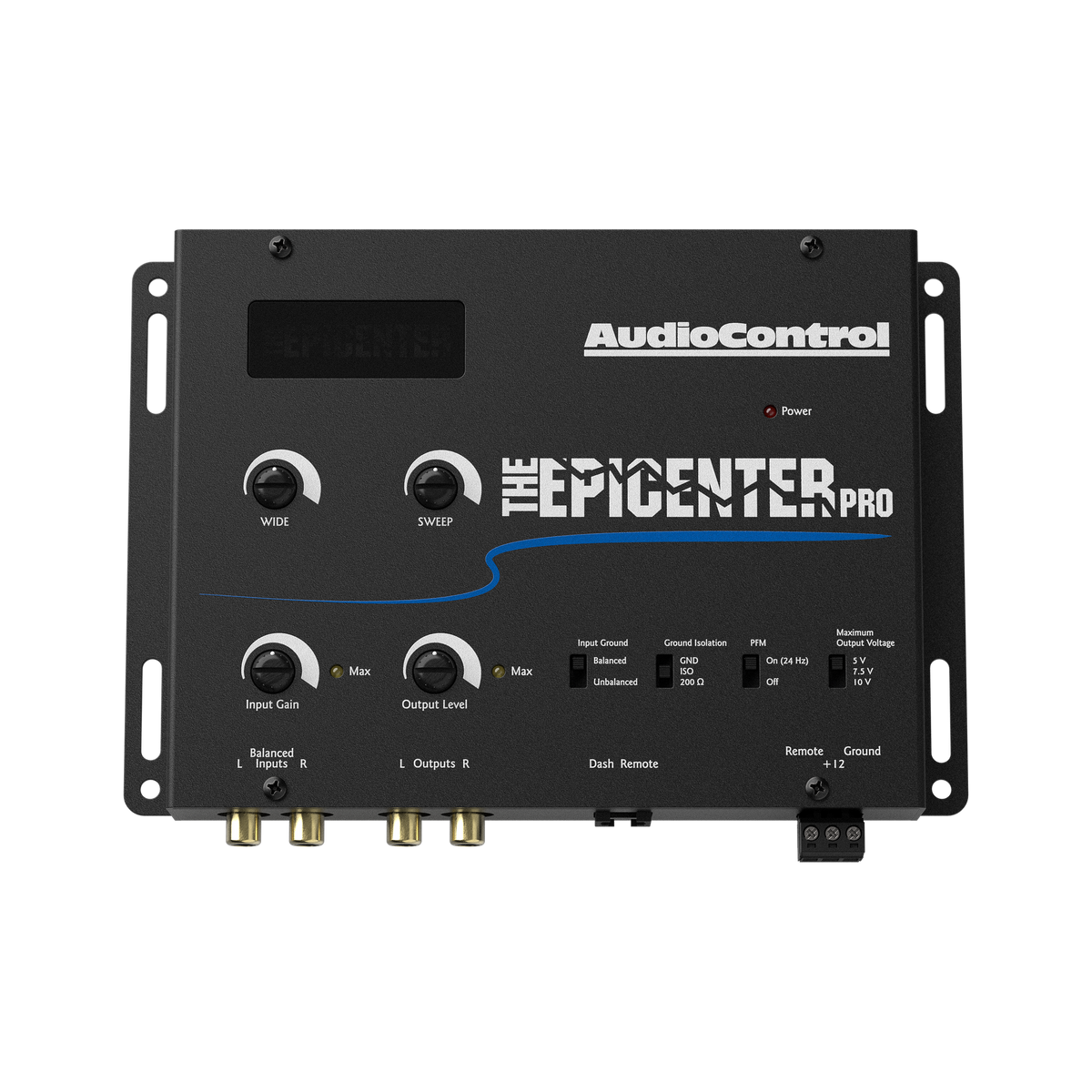

AudioControl EPICENTER PRO Bass Restoration Processor & Line Driver
If the subwoofer system has enough power but the music itself is missing the low bass that should be there, adding more gain or EQ is not the same as restoring that content. The EPICENTER PRO is built specifically for that job. It analyzes upper-bass harmonics, recreates the missing fundamental bass information, and puts that restored low-frequency content back into the signal path.
The PRO version is the right fit when the system already has a clean line-level signal. It combines AudioControl bass restoration with ParaBASS shaping, balanced line-level inputs and a high-voltage line driver. Compared with the EPICENTER Micro PRO, it does not add speaker-level OEM-integration inputs or selectable input-load settings.
Key Features
- AudioControl digital bass restoration
- ParaBASS bass shaping controls
- Balanced line-level inputs
- Built-in line driver for a strong, clean signal to the subwoofer amplifier
- Selectable PFM high-pass/subsonic filter: 24 Hz or bypass
- Selectable maximum output-voltage control
- Dynamic LED display shows bass-restoration activity
- EPICENTER Link compatibility with supported AudioControl EPIC amplifiers
- ACR-4 dual-knob dash remote included for bass-restoration and subwoofer-level control
Verified Specifications
- Maximum line-level input: 10 Vrms
- Line-level input impedance: 7 kΩ
- Maximum output: 9 Vrms / 13 V peak
- Output impedance: 150 Ω
- Total harmonic distortion: 0.03%
- Signal-to-noise ratio: greater than 105 dB
- Frequency response: 10 Hz–22 kHz ±1 dB
- Current draw: 300 mA
- Recommended fuse: 1 A
- Dimensions: 8 in L × 5.5 in D × 1.2 in H
- Weight: approximately 1.7 lb
What’s in the Box

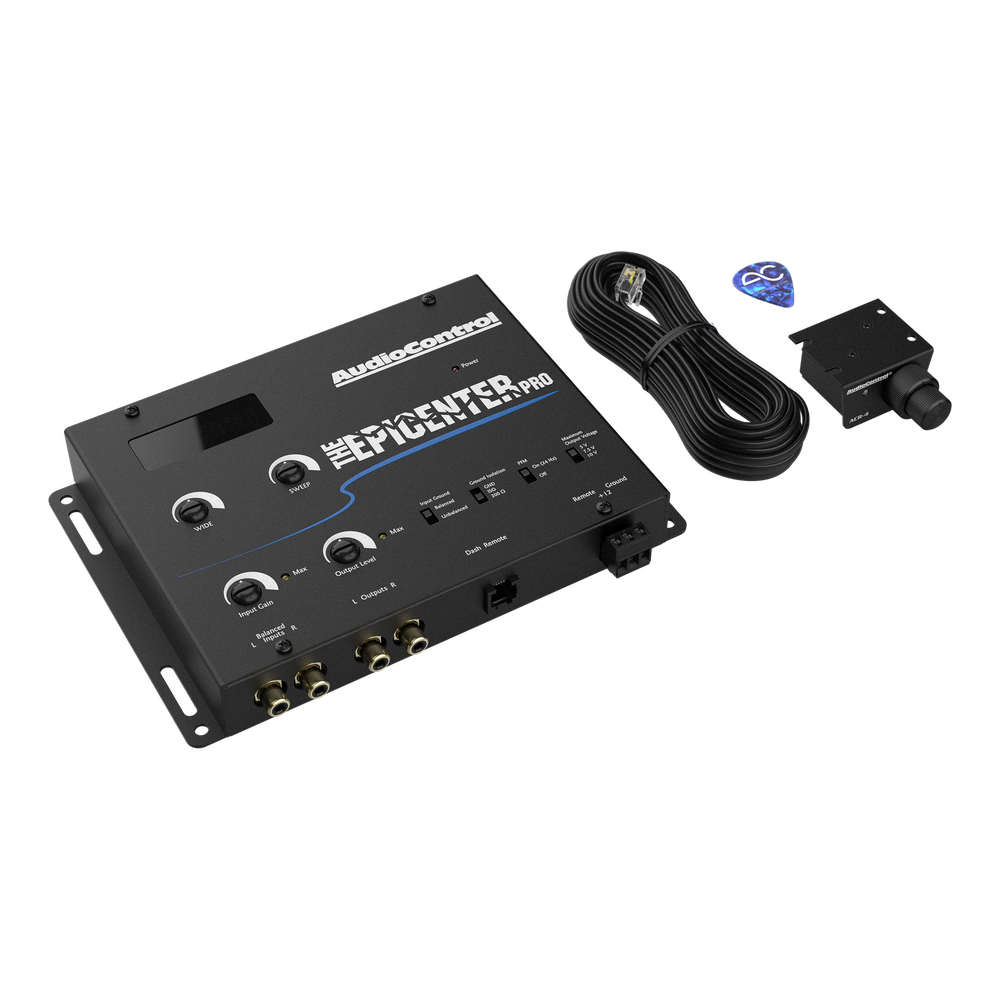

EPICENTER PRO processor, ACR-4 dual-knob remote, remote cable and user guide.
Good fit: aftermarket or integrated systems that already provide a clean RCA/preamp-level signal and need bass restoration plus line driving. Need speaker-level factory-radio integration in the processor itself? Use the EPICENTER Micro PRO instead.
Where this fits in the build
This is a system-control or DSP component. The correct choice depends on the signal path, channel count, routing, retained features and the rest of the amplifier and speaker plan.
