RADIO / OEM FUNCTION FIT
Where this fits in the build
The source unit has to fit more than the dash opening. Steering-wheel controls, factory cameras, amplified audio, chimes, USB, vehicle settings and data integration can change the correct installation path.
Plan aroundConfirm dash fitment and the factory features that must remain.
Match itMatch the radio to phone, camera, audio and interface requirements.
Finish itUse the correct vehicle interface instead of sacrificing OEM functions unnecessarily.
Description

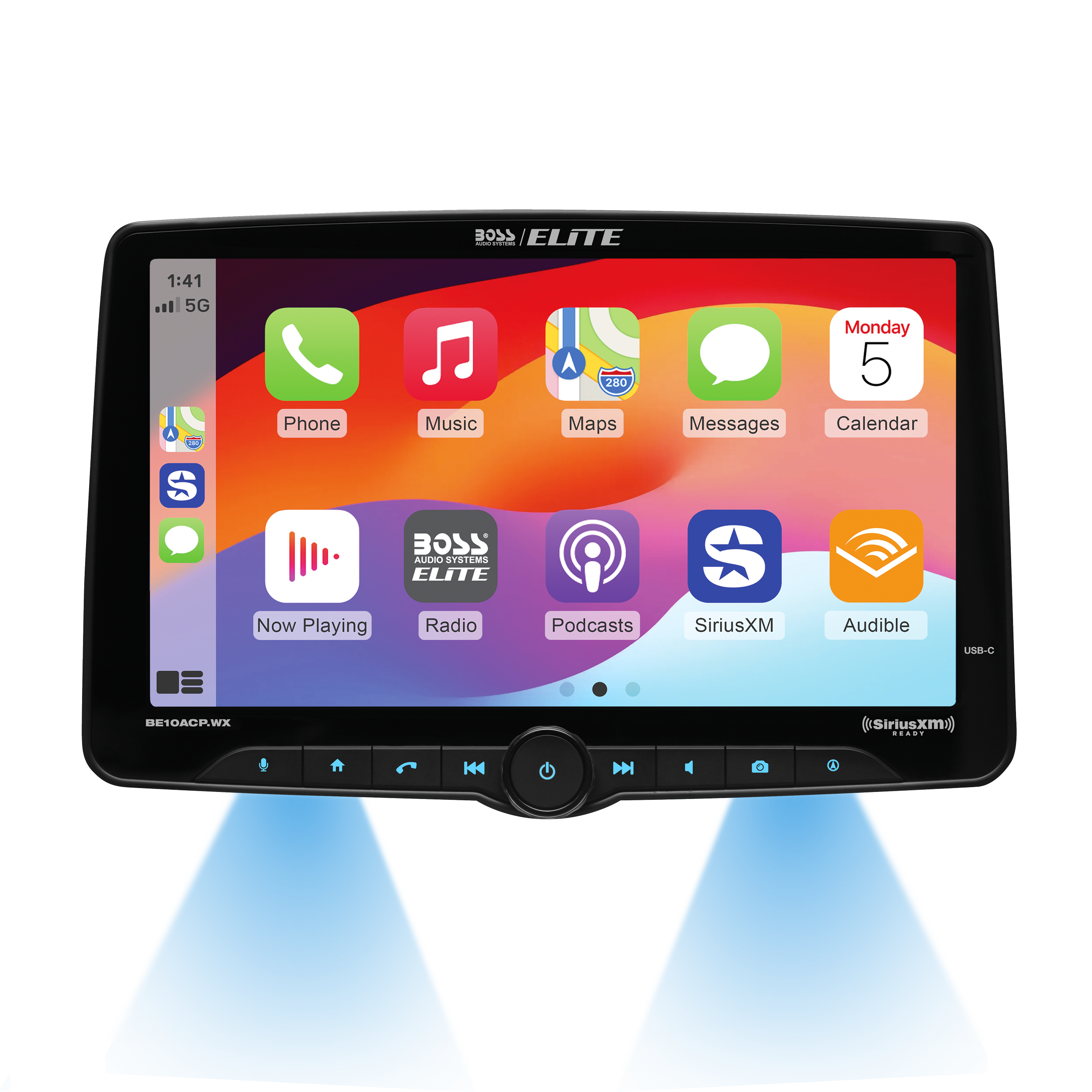

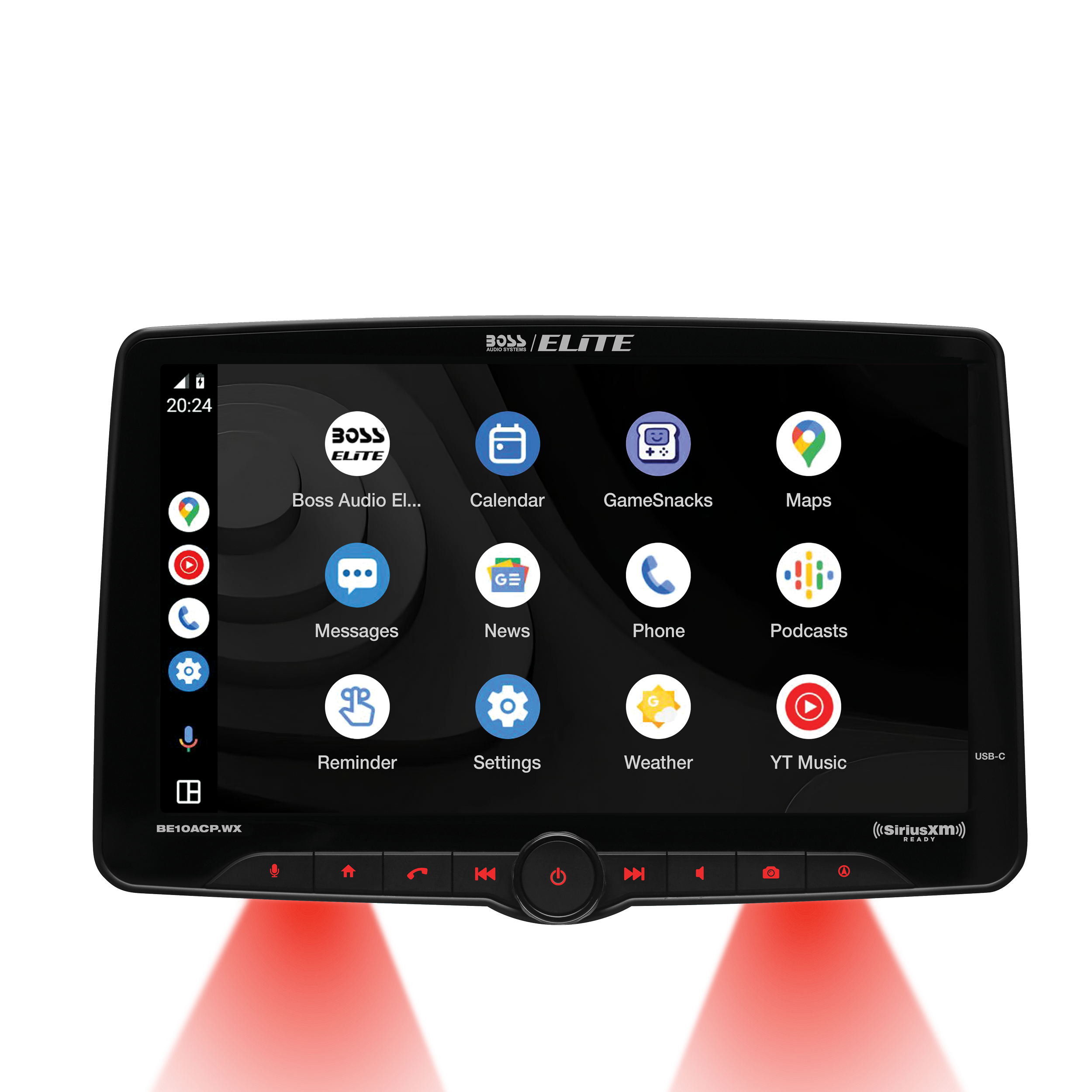

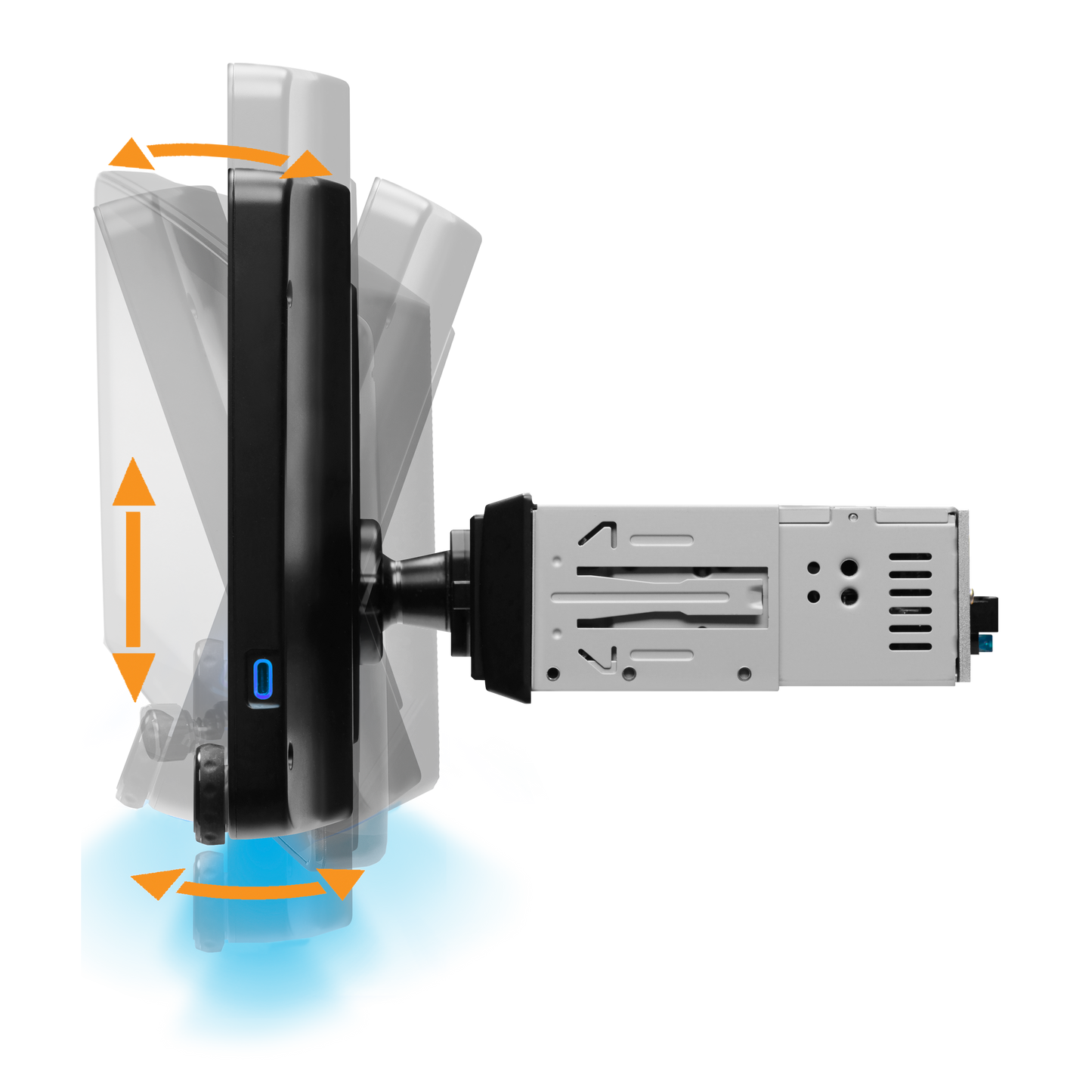

BOSS Elite BE10ACP.X — 10.1-Inch Wired CarPlay & Android Auto Receiver
The BE10ACP.X is the wired 10.1-inch model for a customer who wants a genuinely large navigation and media screen but does not need wireless phone connection or a bundled rear camera. It sits in a useful spot between the easier-to-package 9-inch models and the much larger 12- and 14-inch screens.
Wired Apple CarPlay and Android Auto make sense when the phone is usually connected for charging anyway. The money stays focused on the larger display while you still get BOSS Elite’s 13-band EQ, crossover settings and time alignment, FLAC support, and front/rear/sub preamp outputs for adding amplifiers and subwoofers.

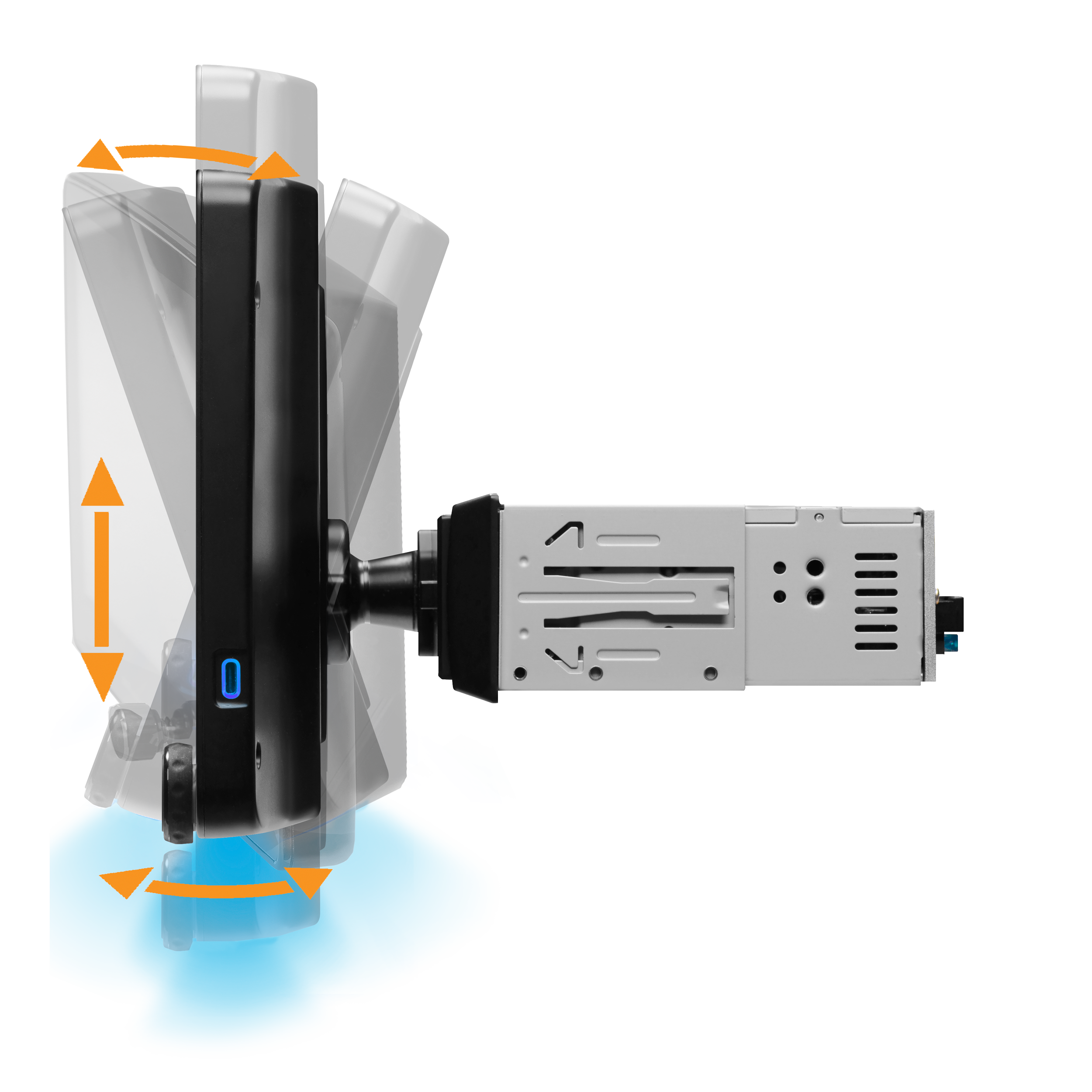

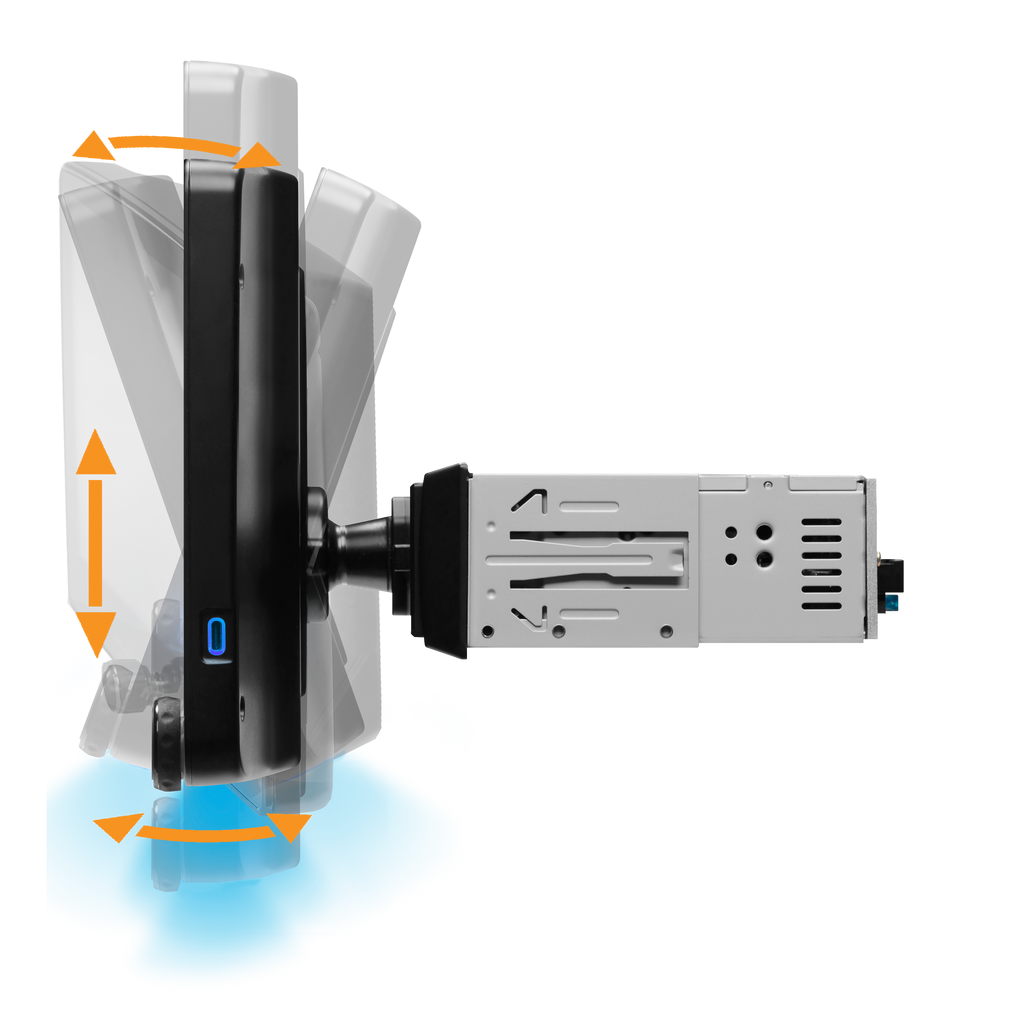

The chassis is designed around a single-DIN fit and includes double-DIN adapter brackets, but the 10.1-inch screen is what decides whether the install works cleanly. We want to check HVAC controls, vents, switches and shifter clearance before choosing it over the 9-inch model. If the vehicle also needs a camera, choose the XC. If cable-free CarPlay or Android Auto is part of the reason for replacing the radio, the WX is the better comparison.
Manufacturer Specifications
• Screen: 10.1-inch capacitive touchscreen
• Display resolution: 1024 x 600
• Apple CarPlay / Android Auto: Wired
• Chassis fit: Single-DIN; double-DIN adapter brackets included
• SiriusXM: Ready; tuner and subscription sold separately
• Bluetooth: Hands-free calling and audio streaming
• DSP: 13-band EQ, crossover settings and time alignment
• High-resolution audio: FLAC up to 192 kHz / 24-bit; WAV, MP3 and WMA supported
• Front USB-C: Media playback and 1.5 A charging
• Rear USB-A: Wired CarPlay / Android Auto and 1.5 A charging
• Camera inputs: Front and rear camera ready
• A/V input: Rear
• Preamp outputs: 4 V front, rear and sub
• Radio: RDS/RBDS; switchable US/LATAM/EU tuner frequencies
• Steering-wheel controls: Built-in programmable learning for compatible analog controls; external interface ready when required
• Push-to-Talk: Yes
• Illumination: Multicolor
• External microphone: Included
• Published maximum power: 340 watts total / 85 W x 4 maximum
• Rear-view camera: Not included
