RADIO / OEM FUNCTION FIT
Where this fits in the build
The source unit has to fit more than the dash opening. Steering-wheel controls, factory cameras, amplified audio, chimes, USB, vehicle settings and data integration can change the correct installation path.
Plan aroundConfirm dash fitment and the factory features that must remain.
Match itMatch the radio to phone, camera, audio and interface requirements.
Finish itUse the correct vehicle interface instead of sacrificing OEM functions unnecessarily.
Description

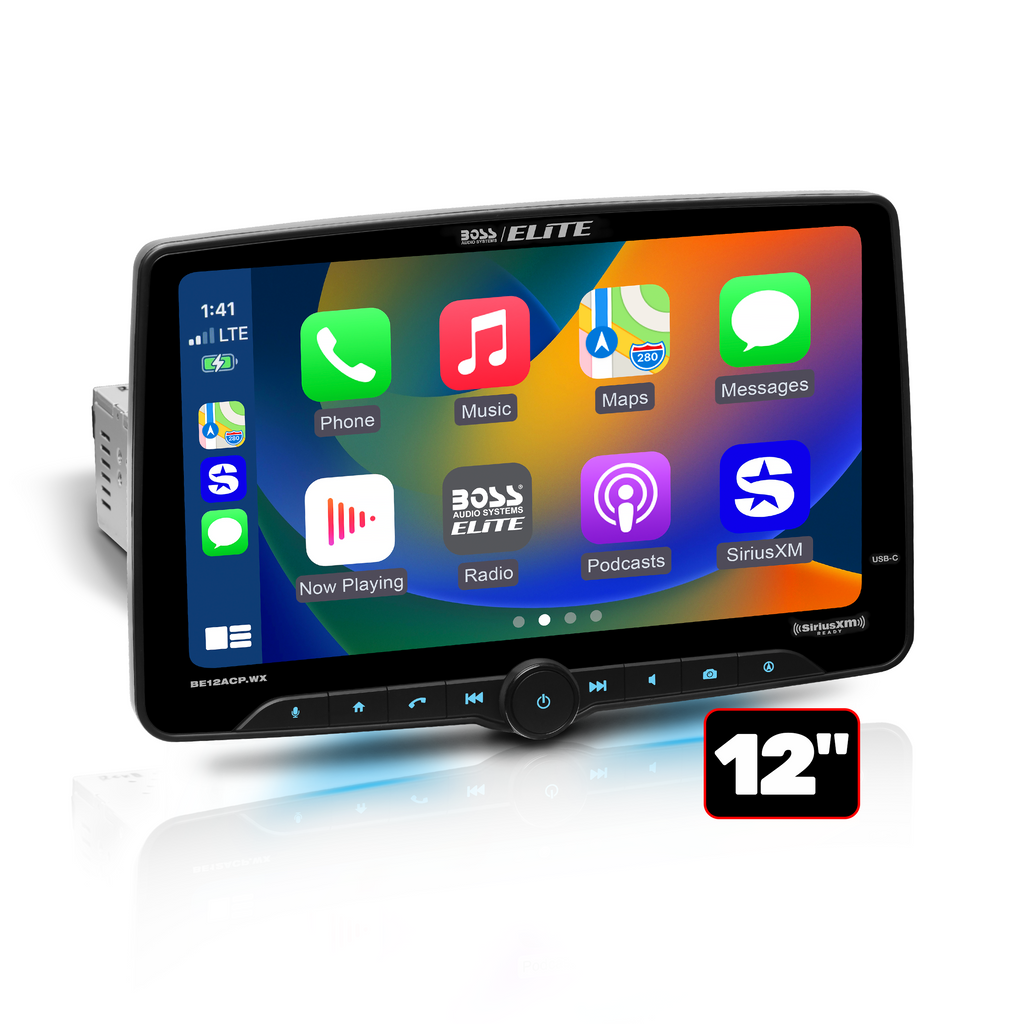

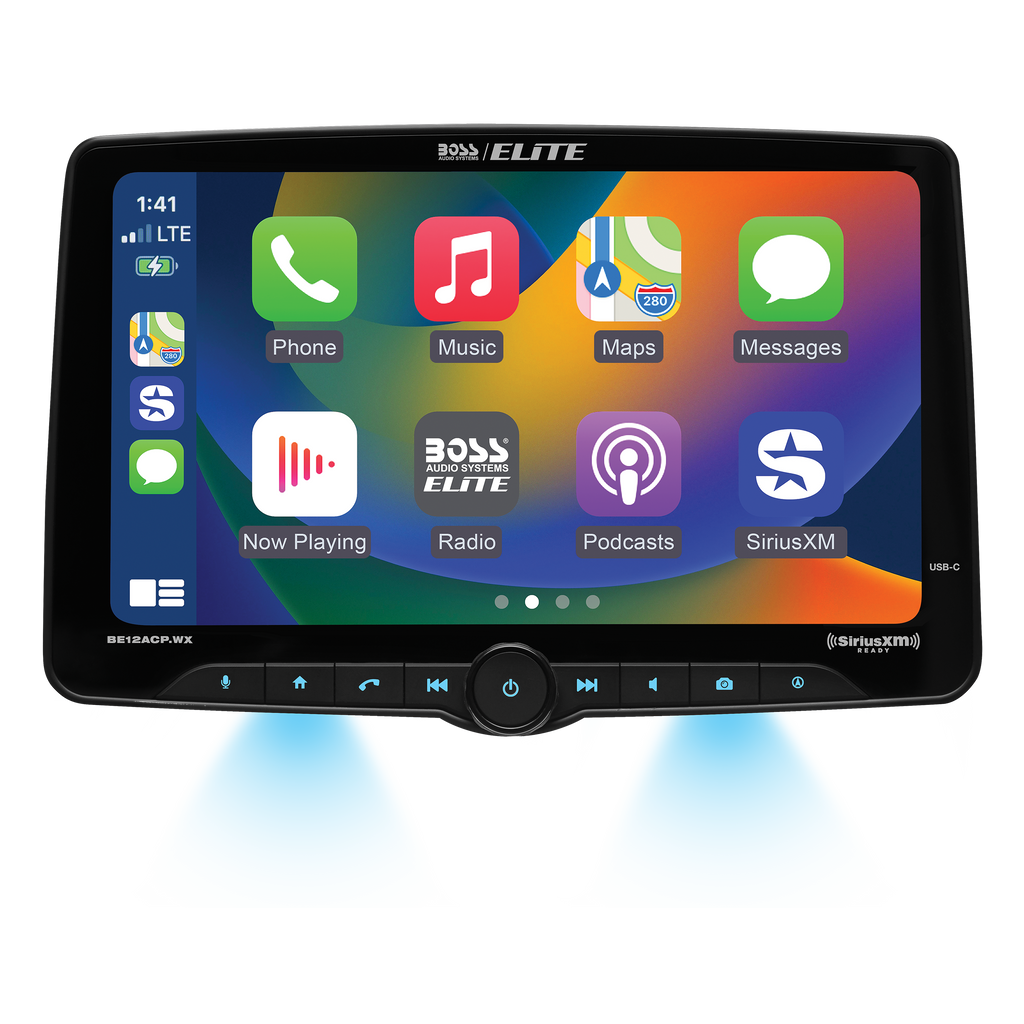

BOSS Elite BE12ACP.WX — 12-Inch Wireless/Wired CarPlay & Android Auto Receiver
The BE12ACP.WX is for the customer who wants a truly large navigation screen but already has the camera side of the install handled. At 12 inches, maps, media controls and compatible camera video are much easier to see at a glance than on the 7-, 9- or 10.1-inch models. The tradeoff is physical size, so this is a vehicle-fit decision before it is a feature decision.
CarPlay and Android Auto work wired or wirelessly. BOSS also lists iDatalink Maestro compatibility, a 13-band EQ, crossover settings, time alignment, FLAC support, and front/rear/sub preamp outputs. In a real amplified system, those outputs matter more than choosing a radio around its built-in max-power rating.

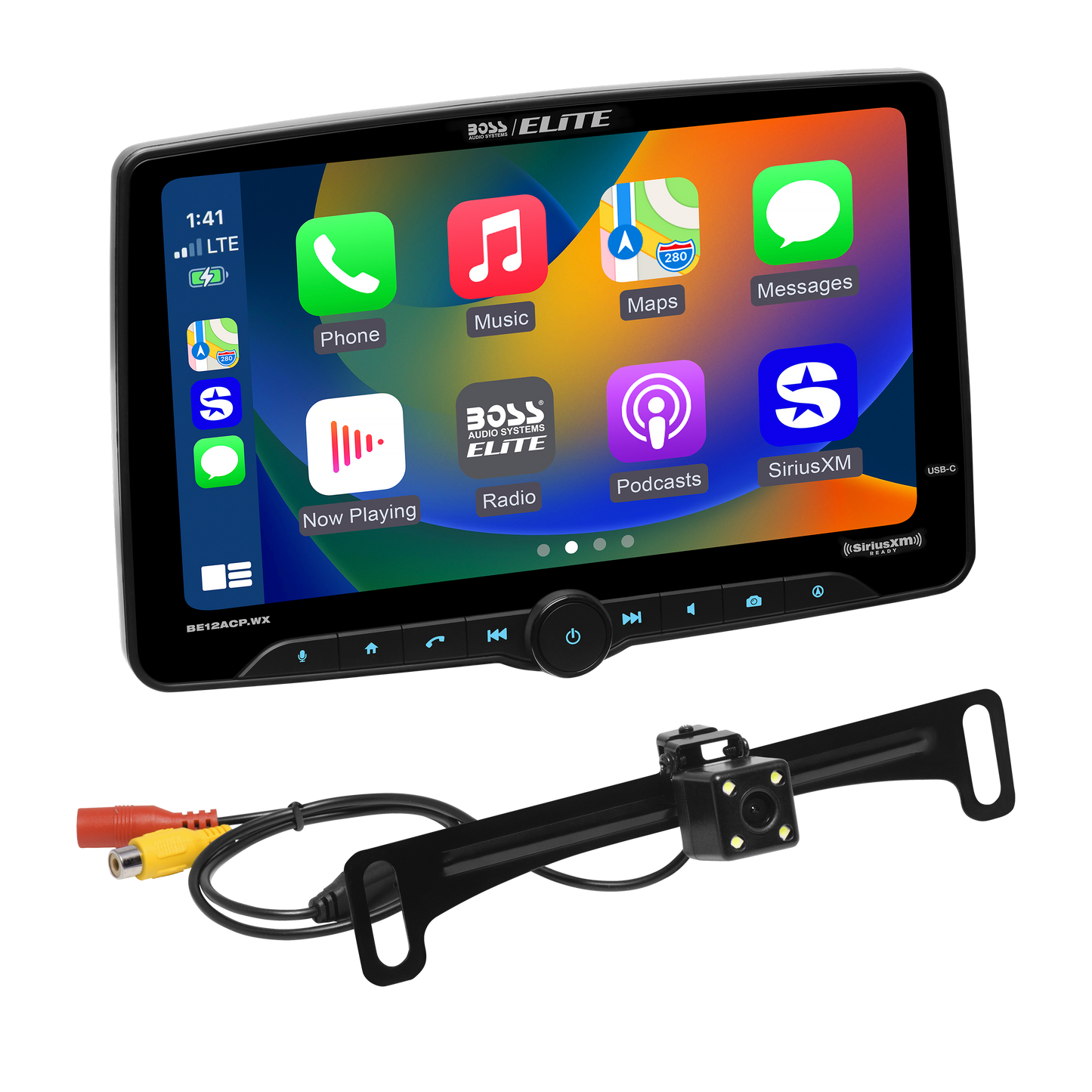

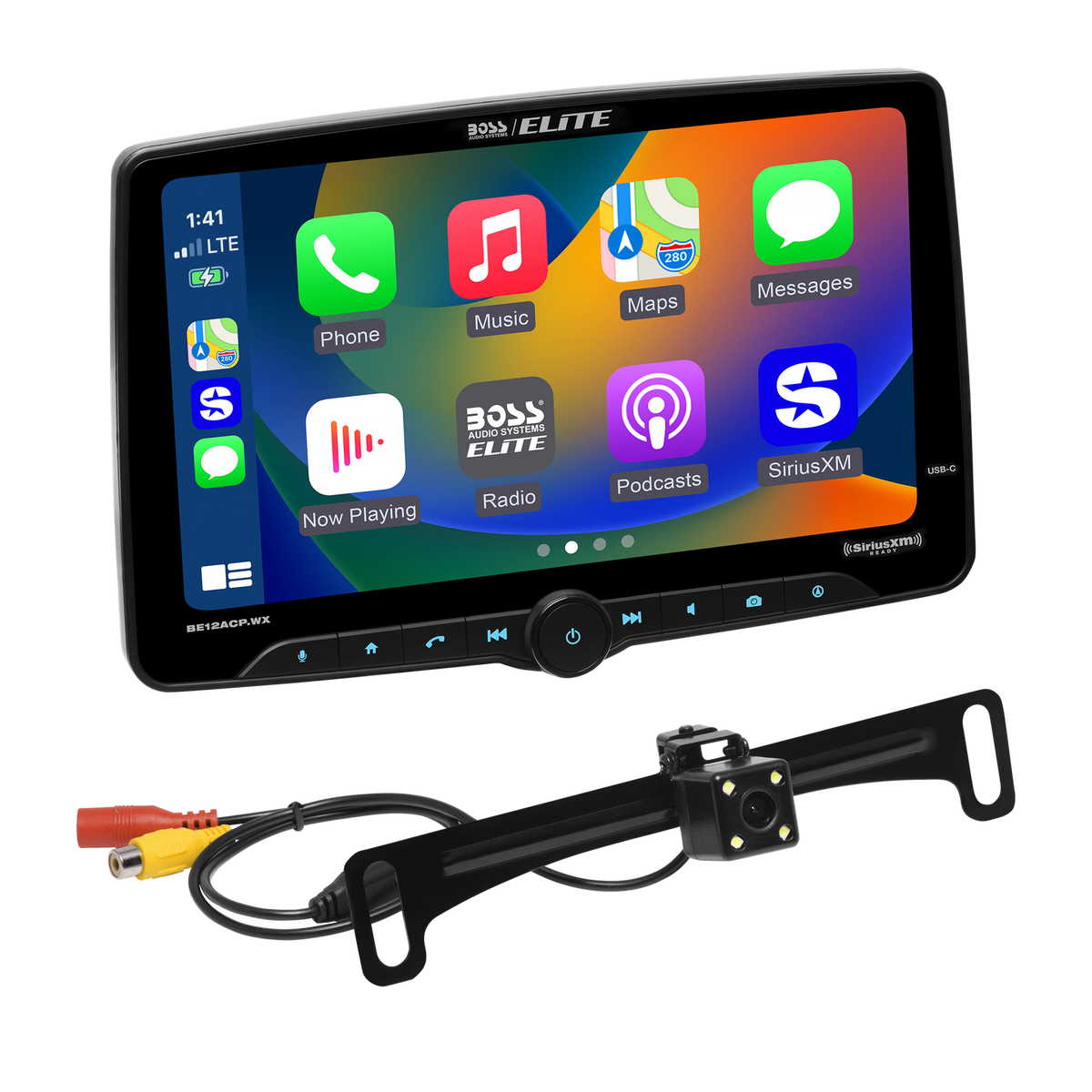

Choose the WX when the vehicle’s factory camera can be retained correctly or when no new camera is needed. The WXC is the same platform with a camera added. Compared with the 14-inch model, 12 inches is often the more practical stopping point when you want a very large display without covering as much of the dash.
Manufacturer Specifications
• Screen: 12-inch capacitive touchscreen
• Display resolution: 1024 x 600
• Apple CarPlay / Android Auto: Wired and wireless

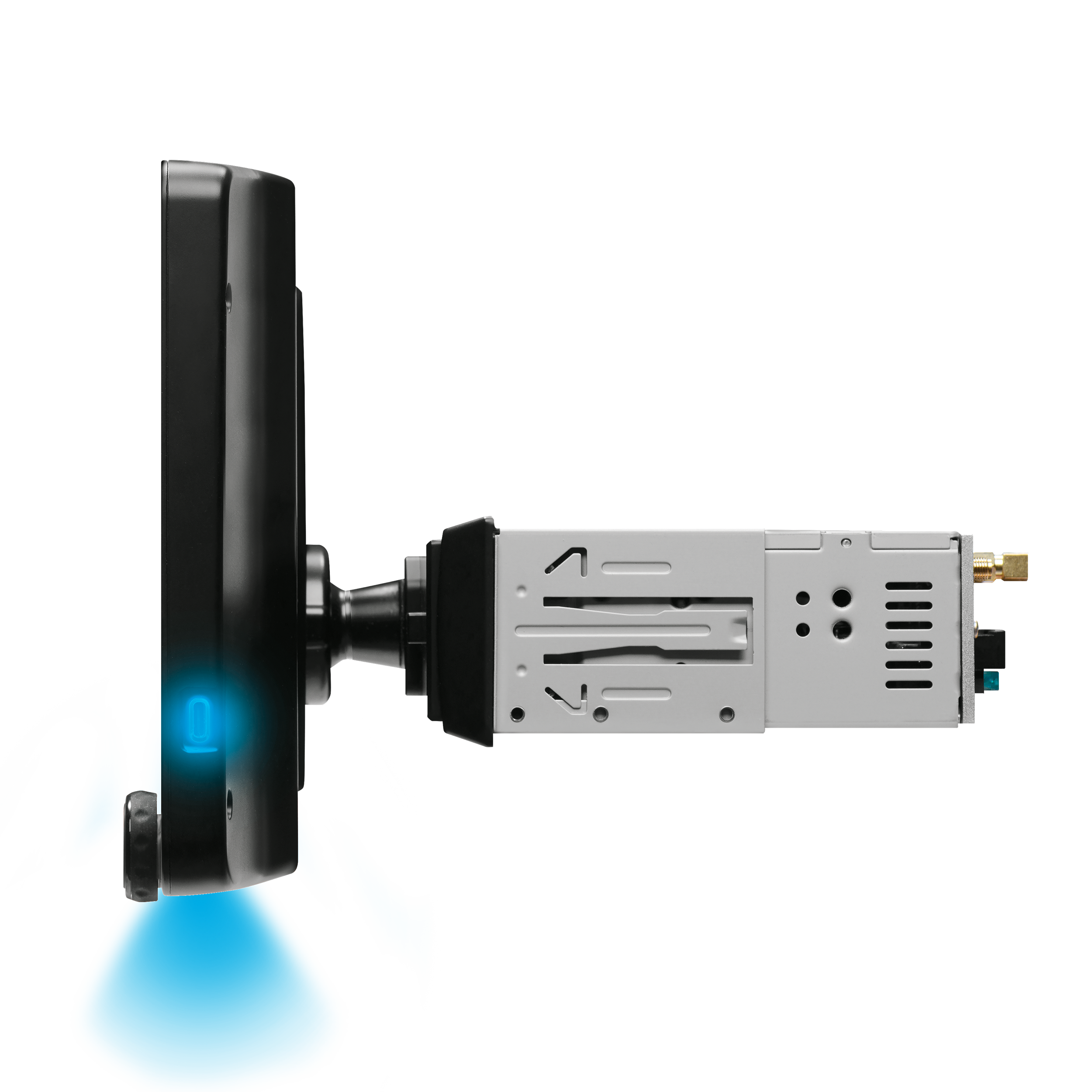

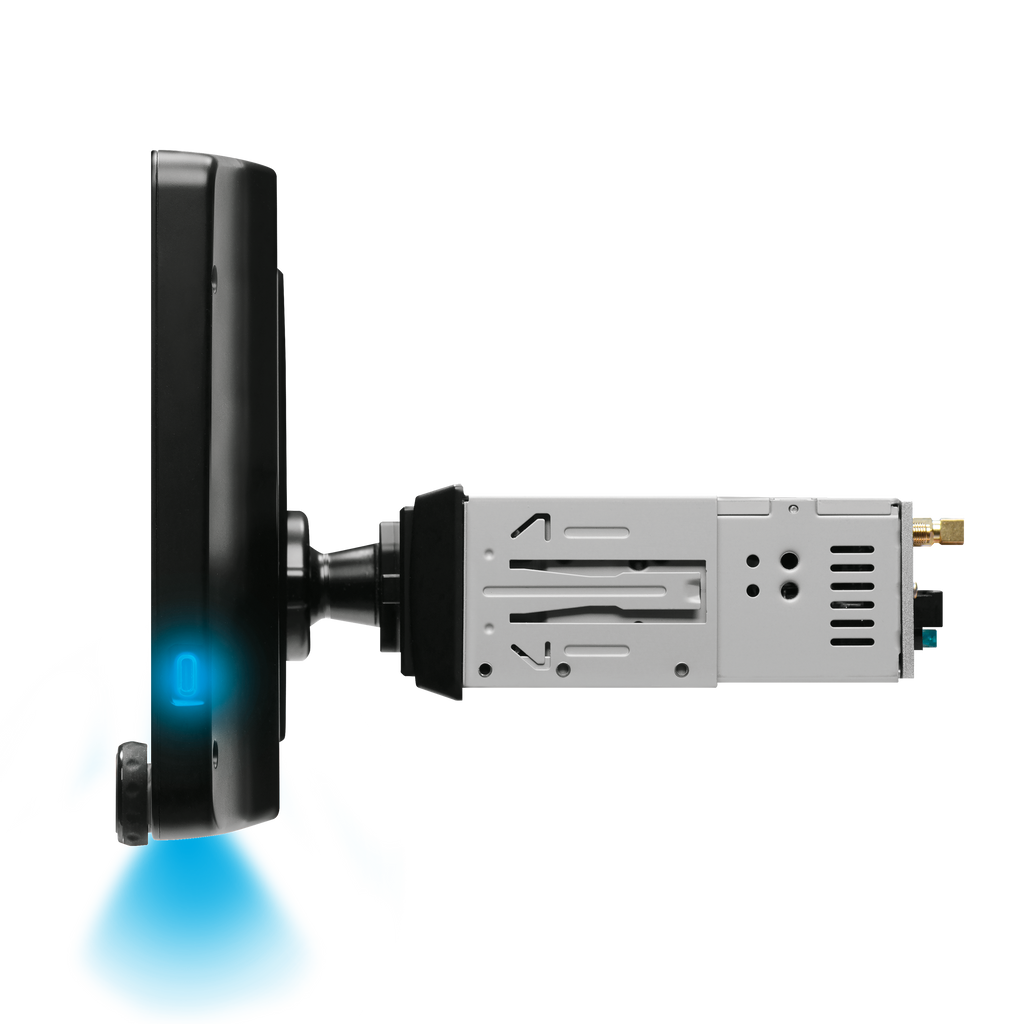

• Chassis fit: Single-DIN; double-DIN adapter brackets included
• SiriusXM: Ready; tuner and subscription sold separately
• Integration: iDatalink Maestro compatible
• Bluetooth: Hands-free calling and audio streaming
• DSP: 13-band EQ, crossover settings and time alignment
• High-resolution audio: FLAC up to 192 kHz / 24-bit; WAV, MP3 and WMA supported
• Front USB-C: Media playback and 1.5 A charging
• Rear USB-A: Wired CarPlay / Android Auto and 1.5 A charging
• Camera inputs: Front and rear camera ready
• A/V input: Rear
• Preamp outputs: 4 V front, rear and sub
• Radio: RDS/RBDS; switchable US/LATAM/EU tuner frequencies
• Steering-wheel controls: Built-in programmable learning for compatible analog controls; external interface ready when required
• Push-to-Talk: Yes
• Illumination: Multicolor
• External microphone: Included
• Published maximum power: 340 watts total / 85 W x 4 maximum
• Mounting dimensions: 7.01 W x 1.97 H x 4.94 D inches
• Rear-view camera: Not included
The BE12ACP.WX is for the customer who wants a truly large navigation screen but already has the camera side of the install handled. At 12 inches, maps, media controls and compatible camera video are much easier to see at a glance than on the 7-, 9- or 10.1-inch models. The tradeoff is physical size, so this is a vehicle-fit decision before it is a feature decision.
CarPlay and Android Auto work wired or wirelessly. BOSS also lists iDatalink Maestro compatibility, a 13-band EQ, crossover settings, time alignment, FLAC support, and front/rear/sub preamp outputs. In a real amplified system, those outputs matter more than choosing a radio around its built-in max-power rating.
Choose the WX when the vehicle’s factory camera can be retained correctly or when no new camera is needed. The WXC is the same platform with a camera added. Compared with the 14-inch model, 12 inches is often the more practical stopping point when you want a very large display without covering as much of the dash.
