RADIO / OEM FUNCTION FIT
Where this fits in the build
The source unit has to fit more than the dash opening. Steering-wheel controls, factory cameras, amplified audio, chimes, USB, vehicle settings and data integration can change the correct installation path.
Plan aroundConfirm dash fitment and the factory features that must remain.
Match itMatch the radio to phone, camera, audio and interface requirements.
Finish itUse the correct vehicle interface instead of sacrificing OEM functions unnecessarily.
Description

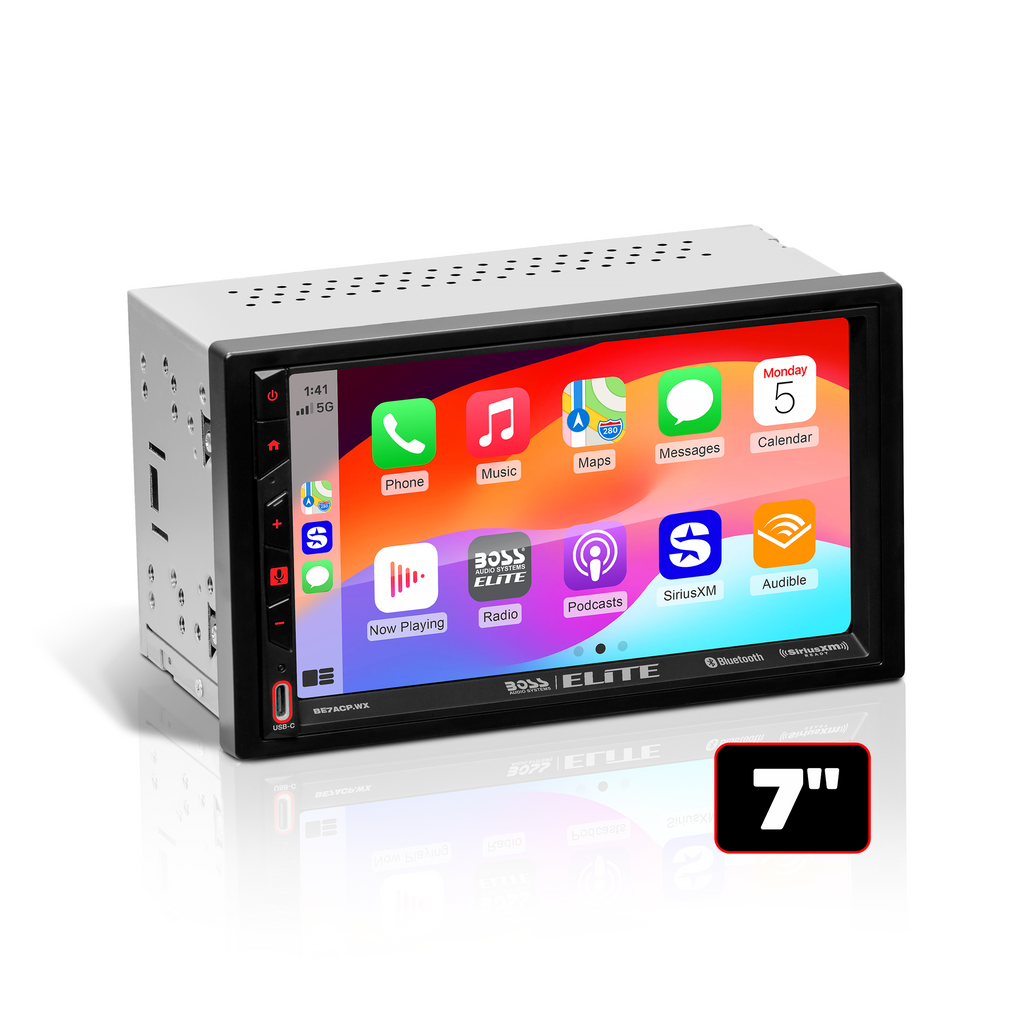

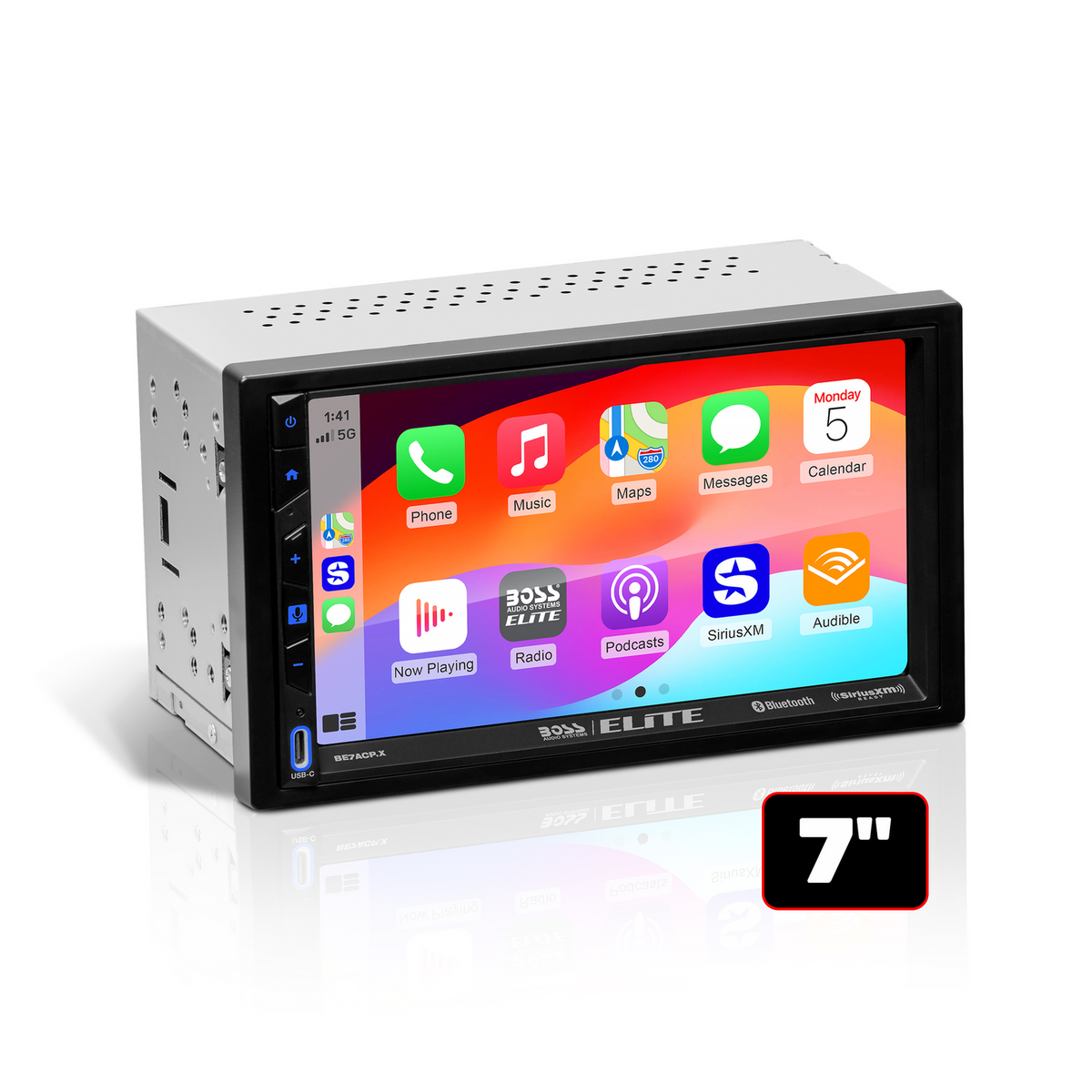

BOSS Elite BE7ACP.X — 7-Inch Wired CarPlay & Android Auto Receiver

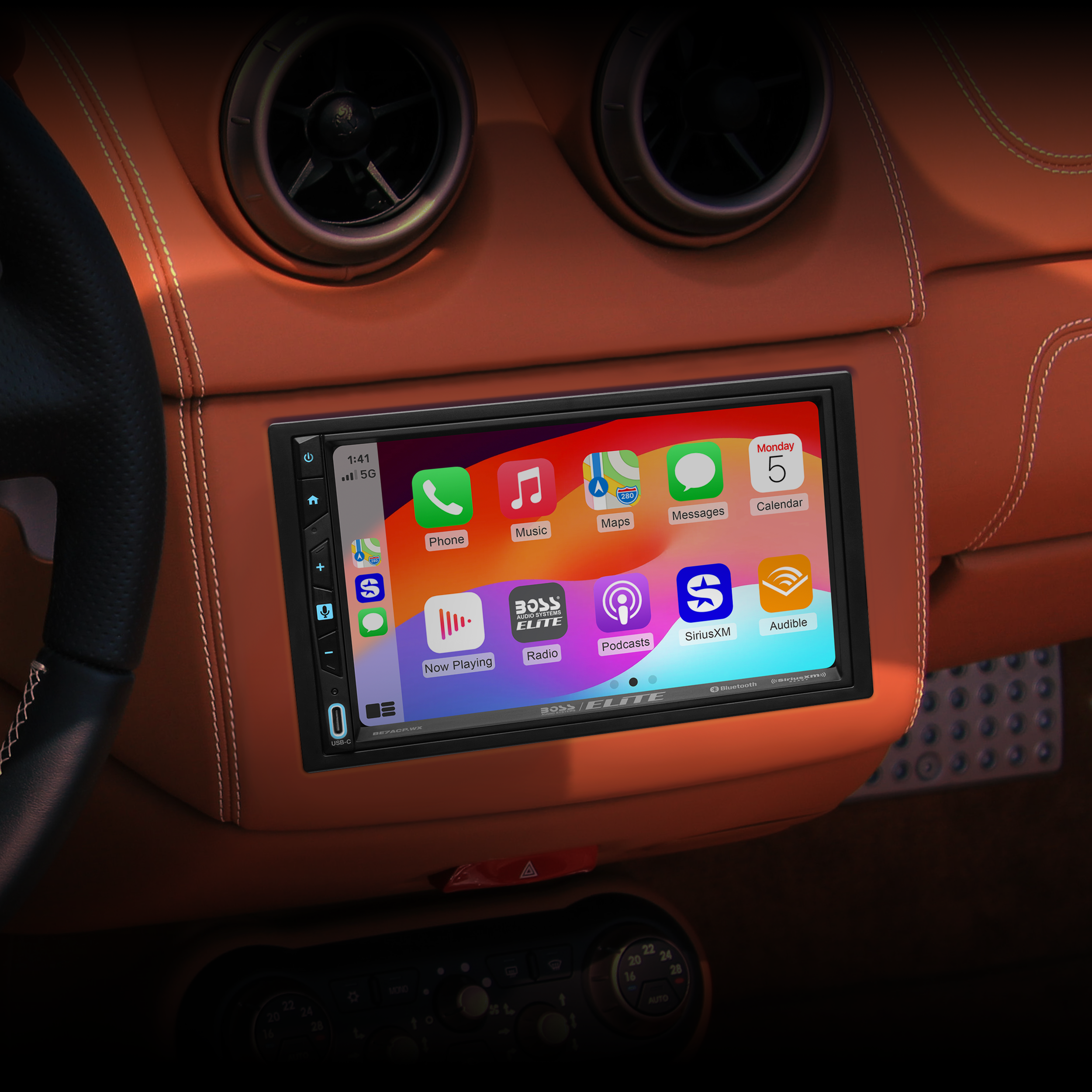

The BE7ACP.X makes sense when you want modern phone integration without turning the dash into a giant-screen install. It uses a true double-DIN chassis and a 7-inch capacitive touchscreen, so it stays close to a conventional radio footprint instead of hanging a 9-, 10.1-, 12- or 14-inch display in front of the dash.
This is the wired version. If you normally plug your phone in to charge anyway, that can be the smarter buy: you still get certified Apple CarPlay and Android Auto, the built-in 13-band EQ, crossover settings and time alignment, FLAC playback, and front/rear/sub preamp outputs without paying for wireless connectivity you may not use.

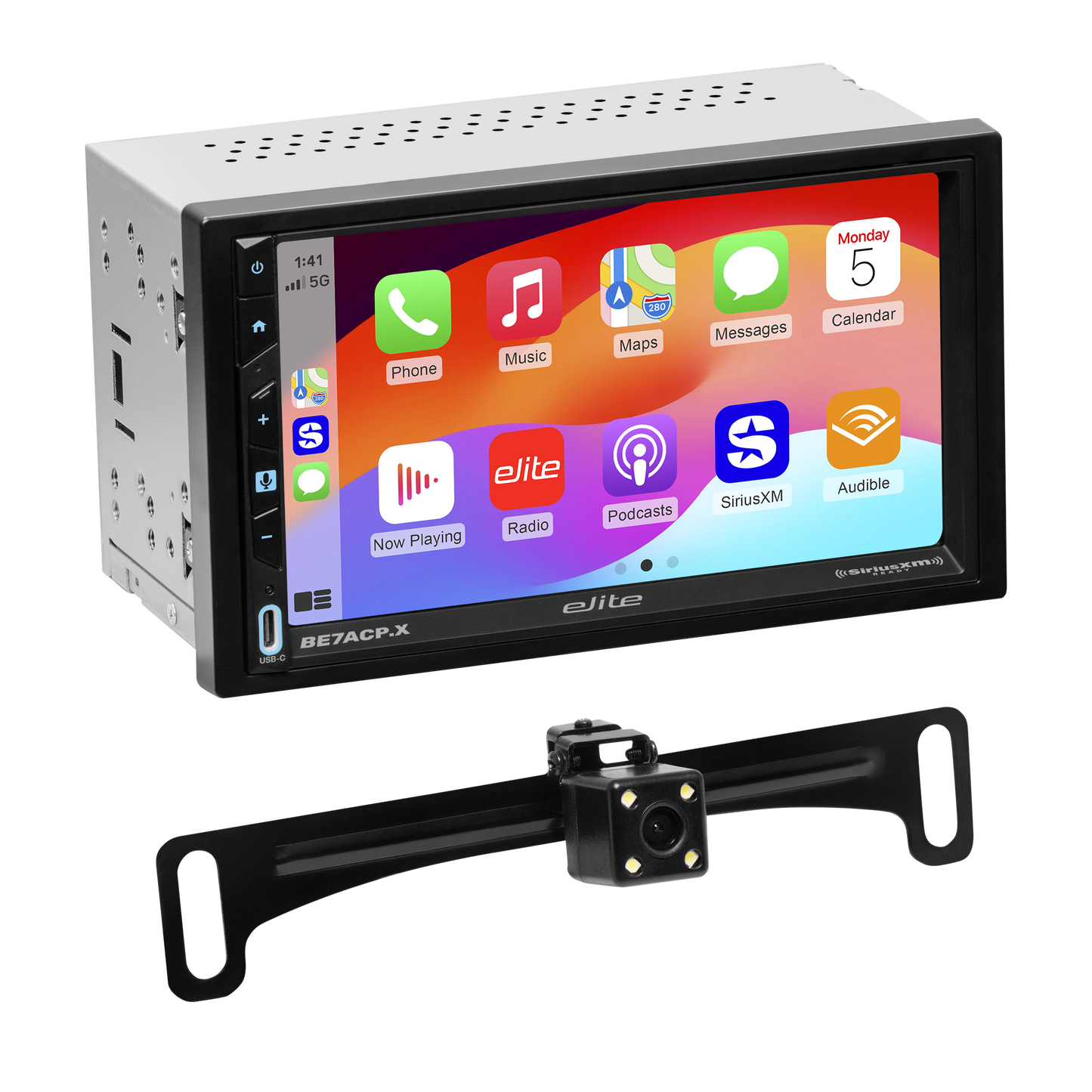

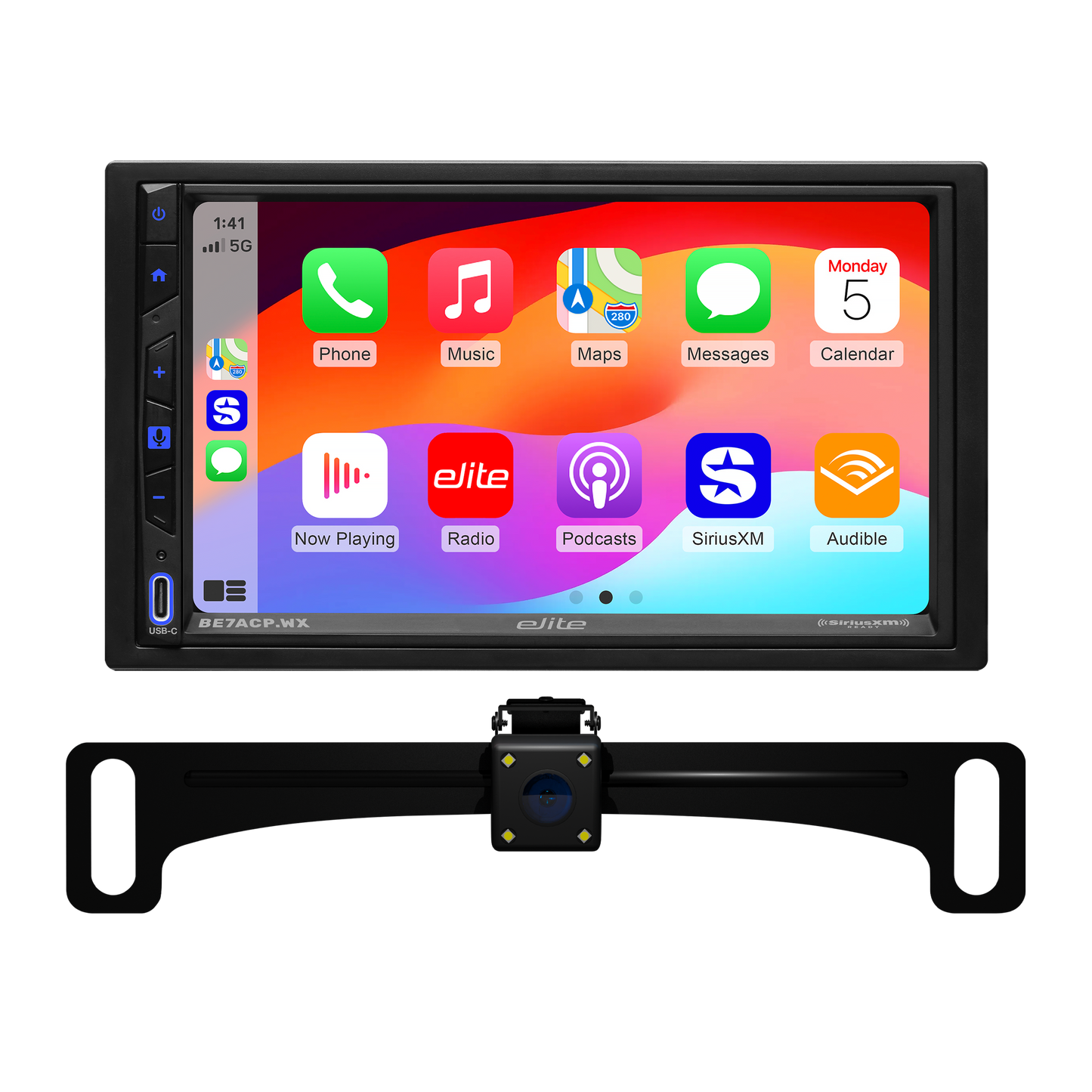

Choose the BE7ACP.X over the XC when the vehicle already has a rear camera that can be retained with the correct integration hardware, or when you simply do not need a camera. Move to the WX when keeping the phone in your pocket and connecting wirelessly matters more than keeping the radio cost down.
Manufacturer Specifications

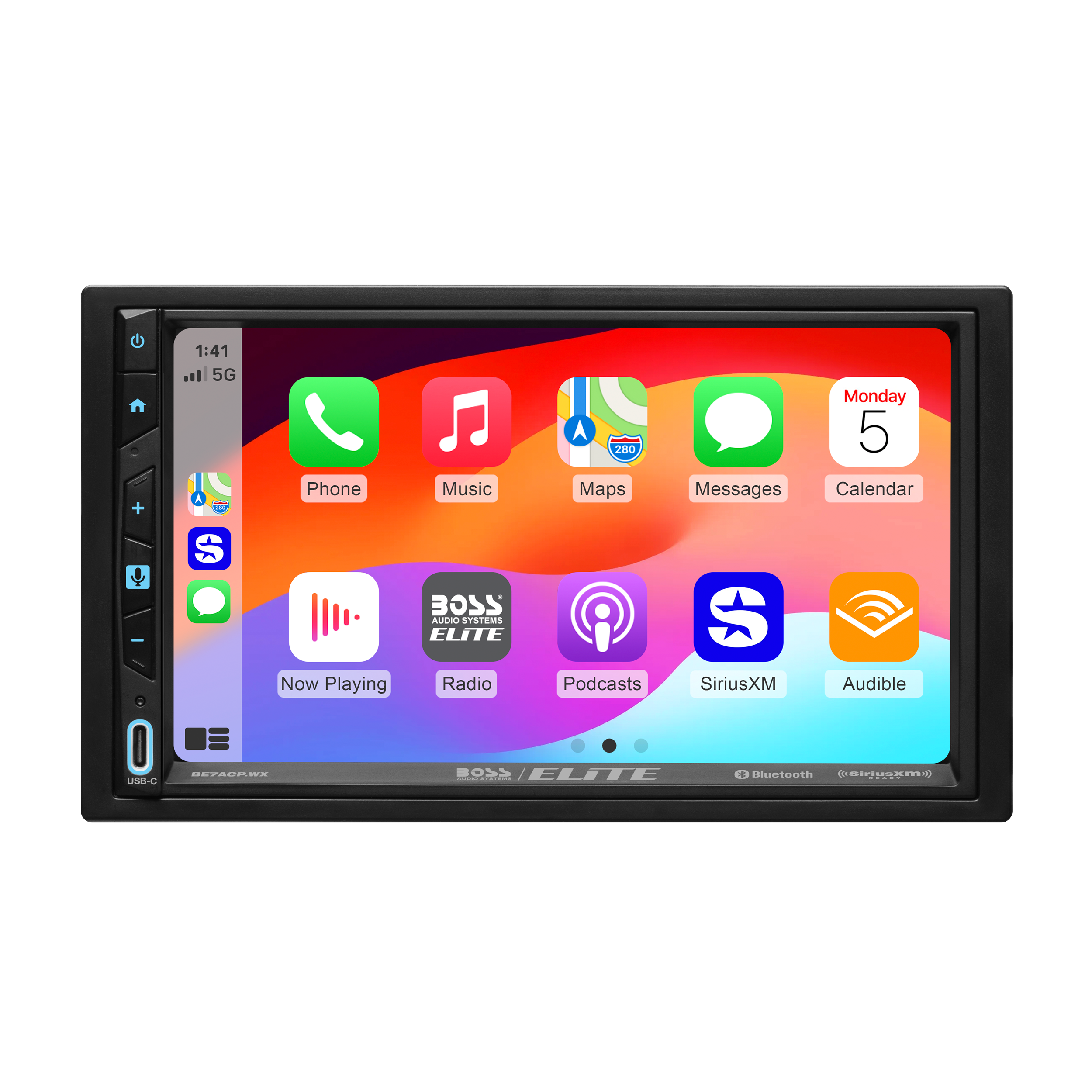

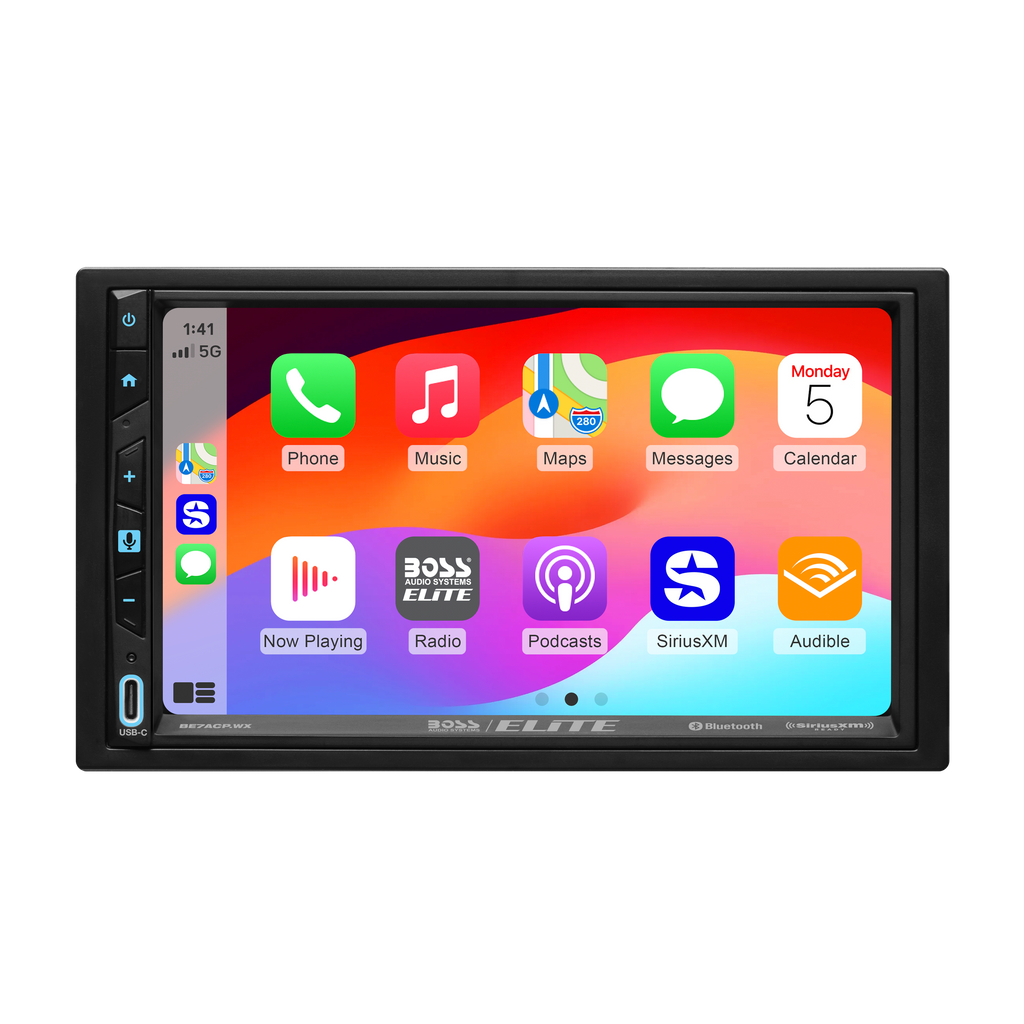

• Screen: 7-inch capacitive touchscreen
• Display resolution: 1024 x 600
• Apple CarPlay / Android Auto: Wired

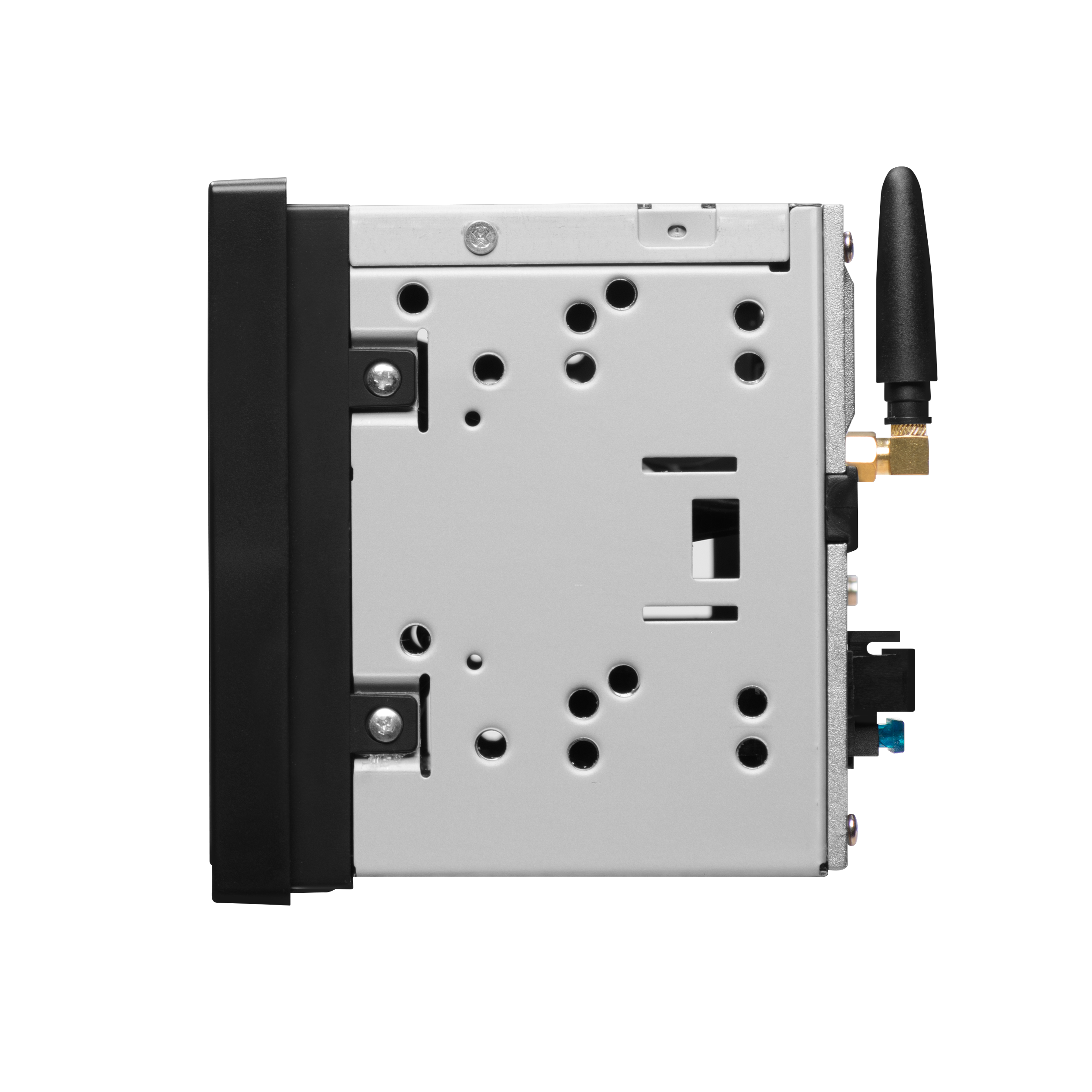

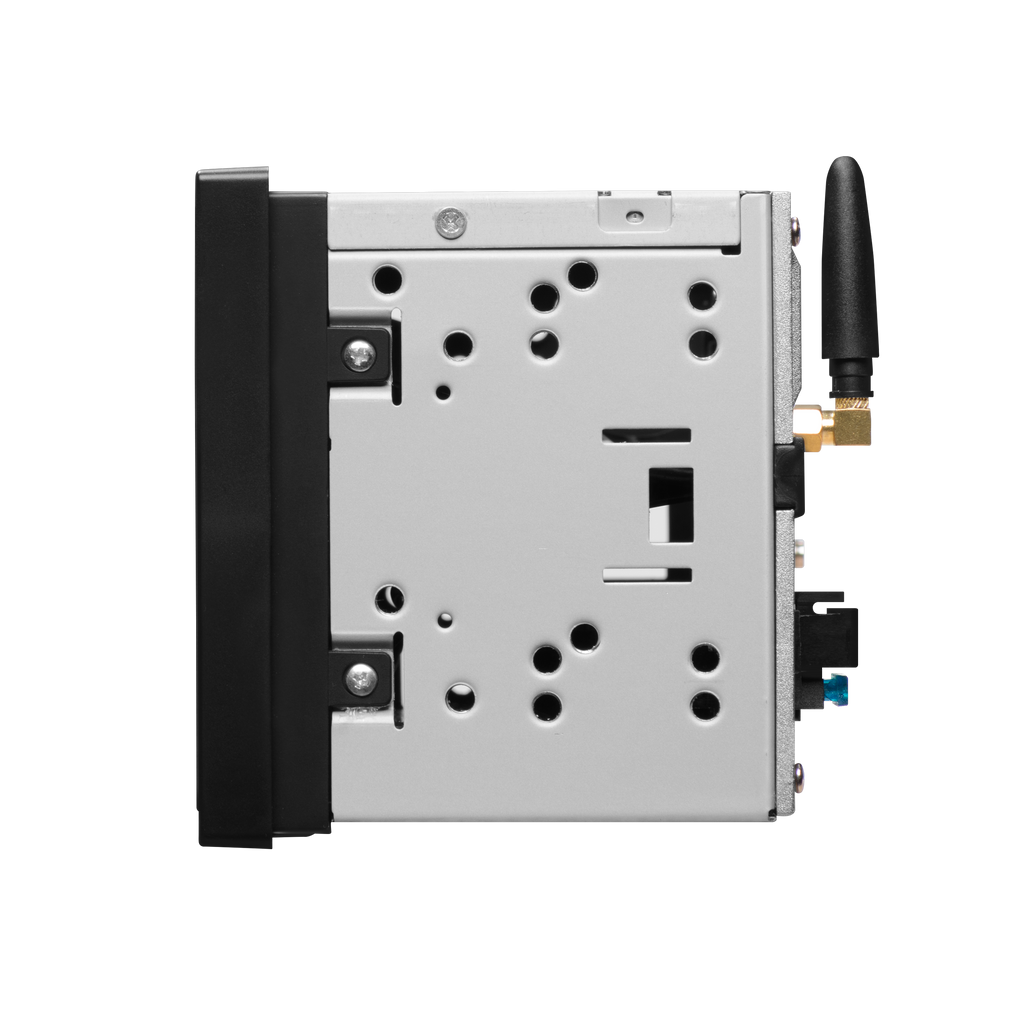

• Chassis: True double-DIN
• SiriusXM: Ready; tuner and subscription sold separately
• Bluetooth: Hands-free calling and audio streaming
• DSP: 13-band EQ, crossover settings and time alignment
• High-resolution audio: FLAC up to 192 kHz / 24-bit; WAV, MP3 and WMA supported
• Front USB-C: Media playback and 1.5 A charging
• Rear USB-A: Wired CarPlay / Android Auto and 1.5 A charging
• Camera inputs: Front and rear camera ready
• A/V input: Rear
• Preamp outputs: 4 V front, rear and sub
• Radio: RDS/RBDS; switchable US/LATAM/EU tuner frequencies
• Steering-wheel controls: Built-in programmable learning for compatible analog controls; external interface ready when required
• Push-to-Talk: Yes
• Illumination: Multicolor

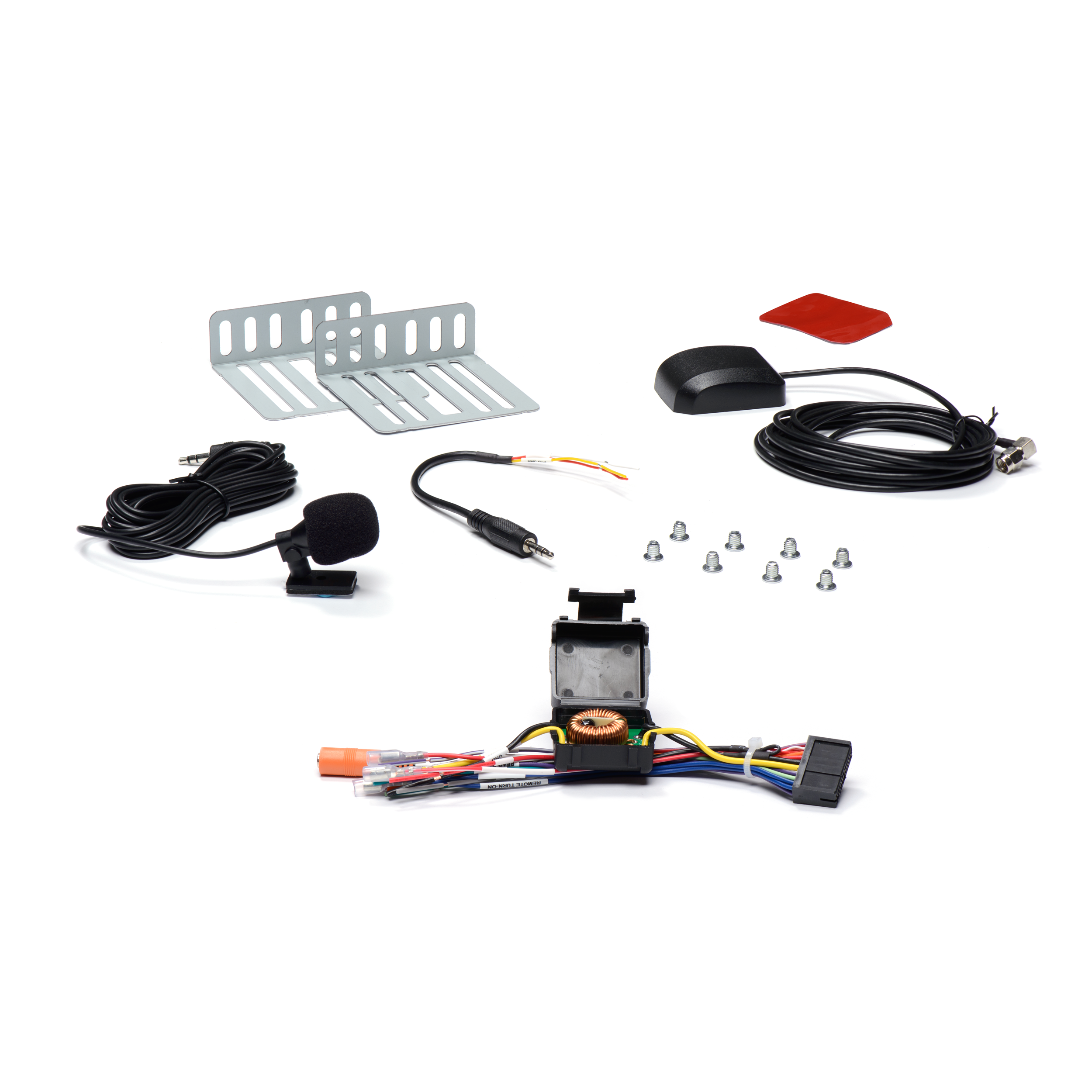

• External microphone: Included
• Published maximum power: 340 watts total / 85 W x 4 maximum
• Mounting dimensions: 7.01 W x 4 H x 3.58 D inches
• Rear-view camera: Not included
